Chrysler 2013-Up* Radio Replace Interface w/Chime Retention


Write a Review


Chrysler 2013-Up* Radio Replace Interface w/Chime Retention

This vehicle-specific interface is designed for use when installing an aftermarket radio. If displayed through the OE radio, this interface retains safety chimes, R.A.P. (Retained Accessory Power), the 3.5mm AUX-IN jack, and the factory backup camera. This interface features easy plug-n-play connectivity and a pre-wired harness is included for the AXSWC, which is sold separately. It provides 12-volt 10-amp accessory power and wires for multimedia radios for parking brake, reverse, and speed sense.

Interface Features:

  • Designed for non-amplified models
  • Provides accessory power (12-volt 10-amp)
  • Retains R.A.P. (Retained Accessory Power)
  • Provides wires for multimedia radios (park brake, reverse, speed sense)
  • Pre-wired AXSWC harness (AXSWC sold separately)
  • Retains the factory backup camera (if displayed through the OE radio)
  • Retains the 3.5mm AUX-IN jack
  • Retains balance and fade
  • Retains safety chimes
  • Micro-B USB updatable

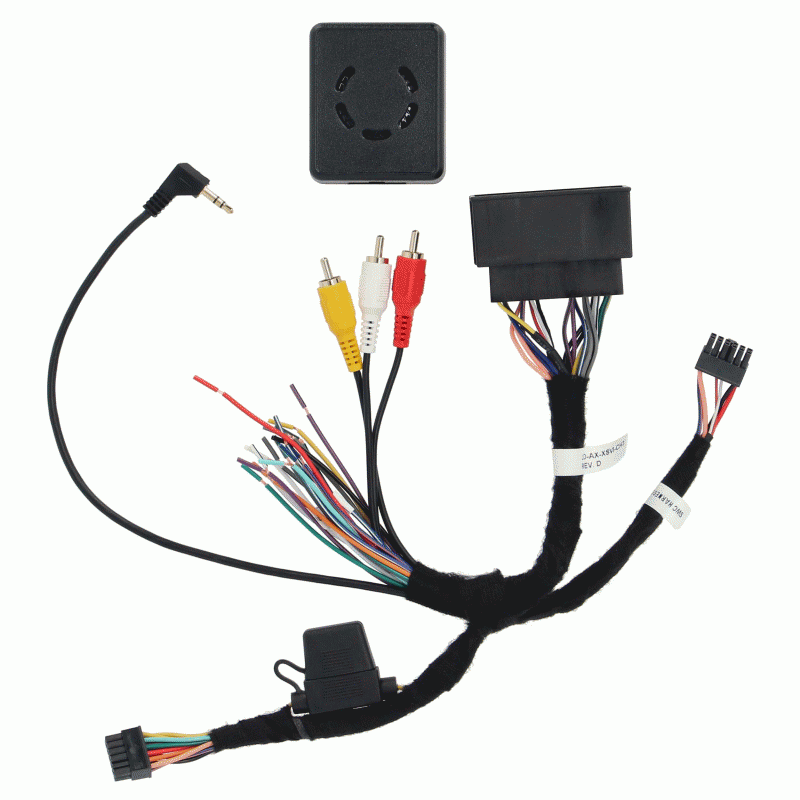

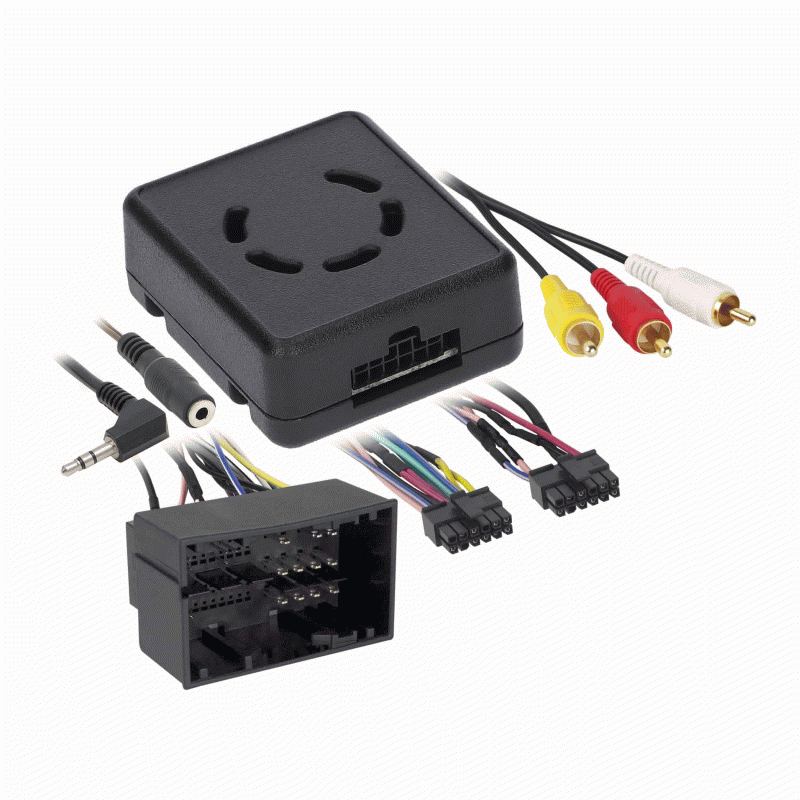

Interface Components:

  • AXDI-CH5 interface
  • LD-AX-XSVI-CH3 harness


Visit for more detailed information about the product and up-to-date vehicle specific applications.
