DS18 3" OEM Dashboard Loudspeaker 4-Ohm with Neodymium Magnet

Specifications

SKU
3D160N0-4
Nominal Diameter
3" / 76.2mm
Nominal Impedance
4 Ohms
RMS Power Handling
80W
MAX Power Handling
160W
Sensitivity (1w/1m)
93dB
Frequency Response
150Hz-20KHz
Recommended HI Pass Crossover
200Hz
Sold in Pair or Single
Pair
Grill Included
No

Features

Cone Shape
Curvilinear
Speaker Terminals
Regular Spade

Motor

Voice Coil Diameter
0.8" / 20.4mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
Paper
Surround Material
Cloth
Spider Diameter
2.16" / 55mm
Leads Connection Type
Direct to Cone
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Neodymium

Thiele & Small Parameters

Equivalent Volume Vas
0.95L / 0.033ft3
Free Air Resonance Fs
164Hz
Mechanical Factor Qms
4.8
Electrical Factor Qes
0.61
Total Factor Qts
0.54
Mechanical Mass Mms
1.97g
Mechanical Compliance Cms
0.48mm/N
BL Factor BL
3.46
Voice Coil Inductance Le
0.02mH
Cone Area Sd
37.39Cm2
DC Resistance Re
3.6 Ohms
Mechanical Mass w/o air Mmd
1.8g

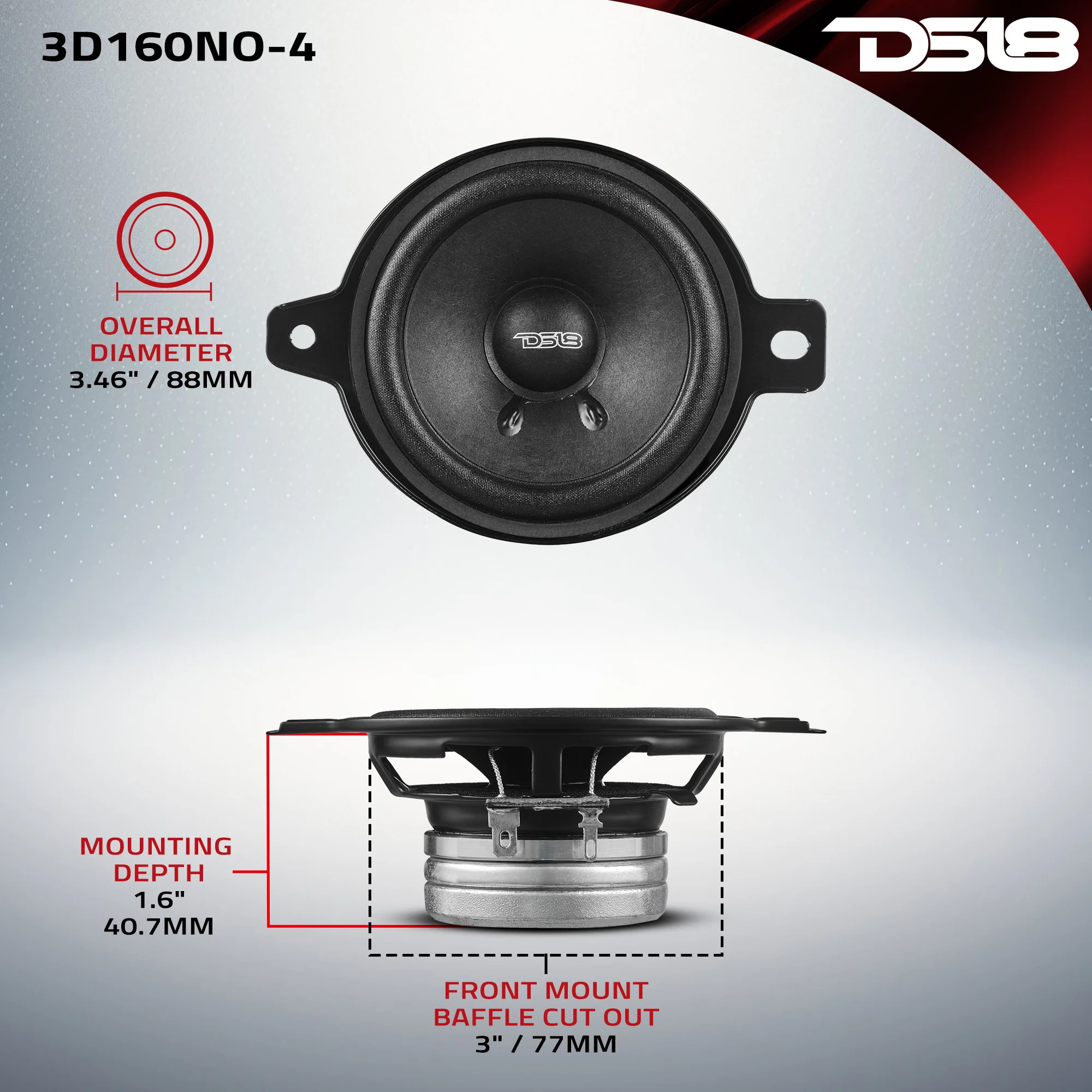

Measurement

Overall Diameter
3.46" / 88mm
Overall Depth
1.75" / 44.5mm
Front Mount Baffle Cutout
3" / 77mm
Mounting Depth
1.6" / 40.7mm
Motor Diameter
2" / 53mm
