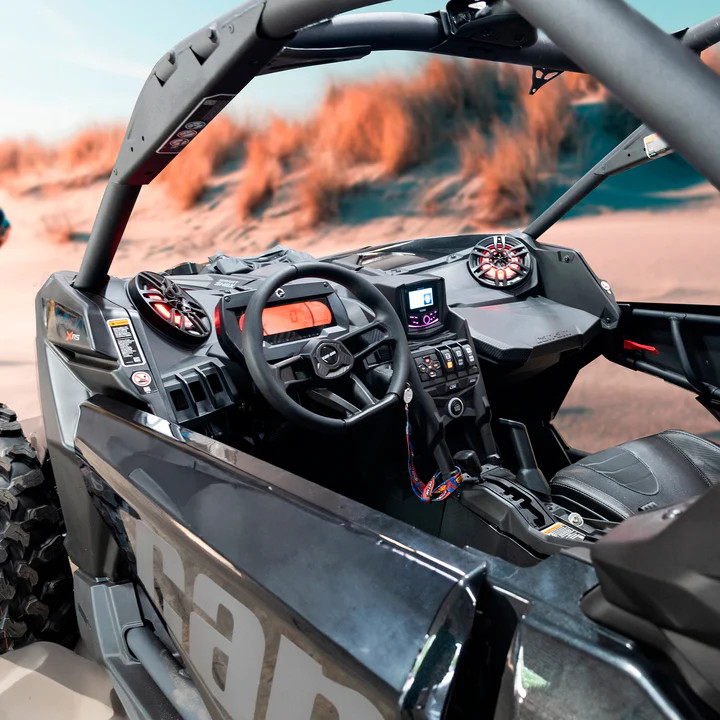

DS18 CAN-AM MAVERICK X3 LOADED 6.5" DASH BOARD SPEAKER PANEL (INCLUDES NXL-6/BK)

SPECS

SKU
CA-X3DS6LD
Box Type
Front Baffle
Box Material
Polyethylene (PE)
Finish Material
Black
UV Protection
Yes
Waterproof Rating
IP65
Total Impedance
4+4 Ohms (Left & Right)
Input Wire (Harness)
6 Core OFC Tinned (2ft / 0.6m)

SPEAKER SPECIFICATIONS

Speaker Type/Size
6.5" Waterproof Coaxial with RGB LED
RMS Power Handling
100W
MAX Power Handling
300W
Sensitivity (1w/1m)
91dB
Frequency Response
45Hz-20KHz
Recommended Hi Pass Crossover
65Hz
Voice Coil Diameter
1.2" / 30.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Magnet Material
Ferrite+Neodymium
Magnet Weight
14oz + 0.32 oz

MEASUREMENTS

Overall Height (Driver Side)
5.86" / 149mm
Overall Width (Driver Side)
20" / 506mm
Overall Depth (Driver Side)
20.47" / 520mm
Overall Height (Passenger Side)
6.1" / 155mm
Overall Width (Passenger Side)
20.4" / 518mm
Overall Depth (Passenger Side)
19.3" / 490mm
Speaker Mounting Hole
5.7" / 145mm
