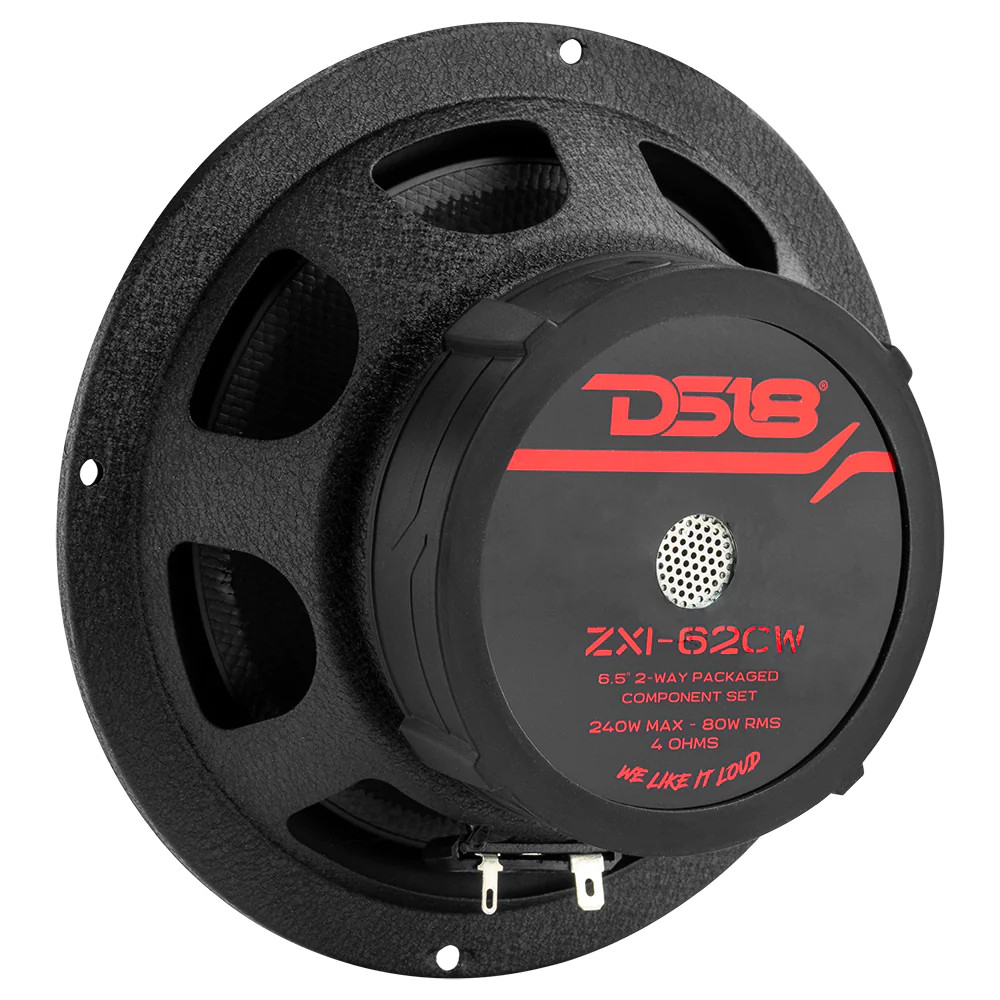

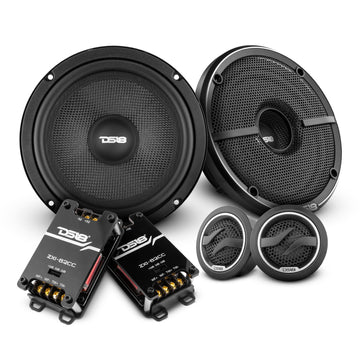

DS18 ELITE SERIES 6.5" 2 WAY COMPONENT SYSTEM WITH KEVLAR CONE & SILK DOME TWEETERS

GENERAL

SKU
ZXI-62C
Nominal Diameter
6.5 Inches / 165 mm
Nominal Impedance
4 ohm
RMS Power Handing
120 WATTS
MAX Power Handing
240 WATTS
Sensitivity
88 dB
Frequency Response
40 Hz - 20 KHz
Recommended HI Pass
60 Hz
Speaker Type
2-Way

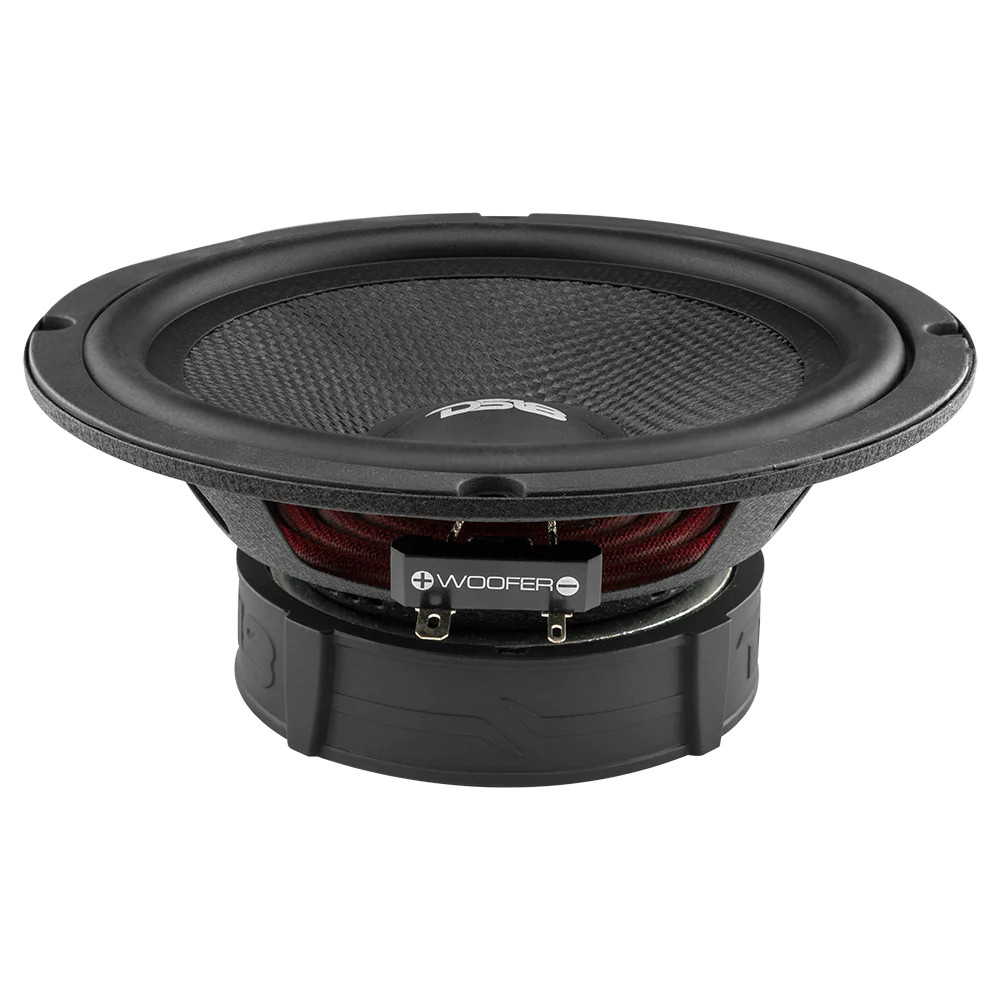

WOOFER

Voice Coil Diameter
25.5 mm (1 inch)
Voice Coil Former Material
KSV
Winding Material
EISV
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Barium Ferrite
Magnet Weight
14.4 oz / 410 g
Grill Included
Yes
Pair
Yes

TWEETER

Nominal Diameter
31.7 mm (1.25 inch)
Voice Coil Diameter
25.5 mm (1 inch)
Voice Coil Former Material
ASV
Winding Material
EISVM
Diaphragm Material
SILK
Magnet Material
Neodymium
Magnet Weight
13 g / 0.46 oz
Pair
Yes

CROSSOVER SPECIFICATIONS & FEATURES

Passive Crossover Ways
2 Ways
Frequency Crossover point
3.5 Khz
Cut-Off Slope
12 dB / Oct
Tweeter Attenuation
(+/- 3 dB)
Capacitor Type
NP
Coil Type
KSV
Housing Material
ABS / Acrylic
Adjustments
Tw Attenuation
Extra Features
Pt Tw protection
Pair
Yes

THIELE & SMALL PARAMETERS

Vas
10.36 LTR
Xmax
2.7 mm
Fs
64 Hz
Qms
9.50
Qes
0.85
Qts
0.78

MEASUREMENTS

Product Weight
7 lbs
Product Dimensions
16 x 10.75 x 3.5
M/C Weight
29.5 lbs
M/C Dimensions
22 x 17 x 7.75
M/C QTY
4
Sold In
Pair
