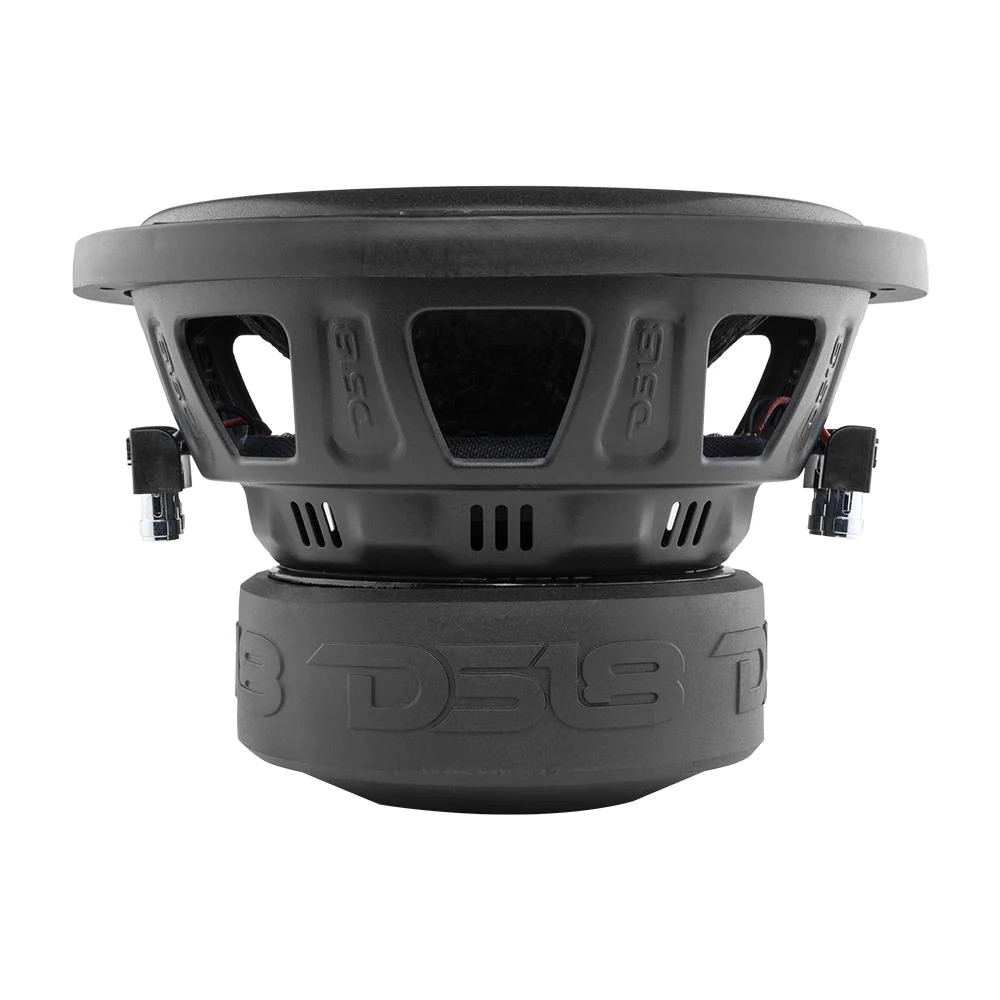

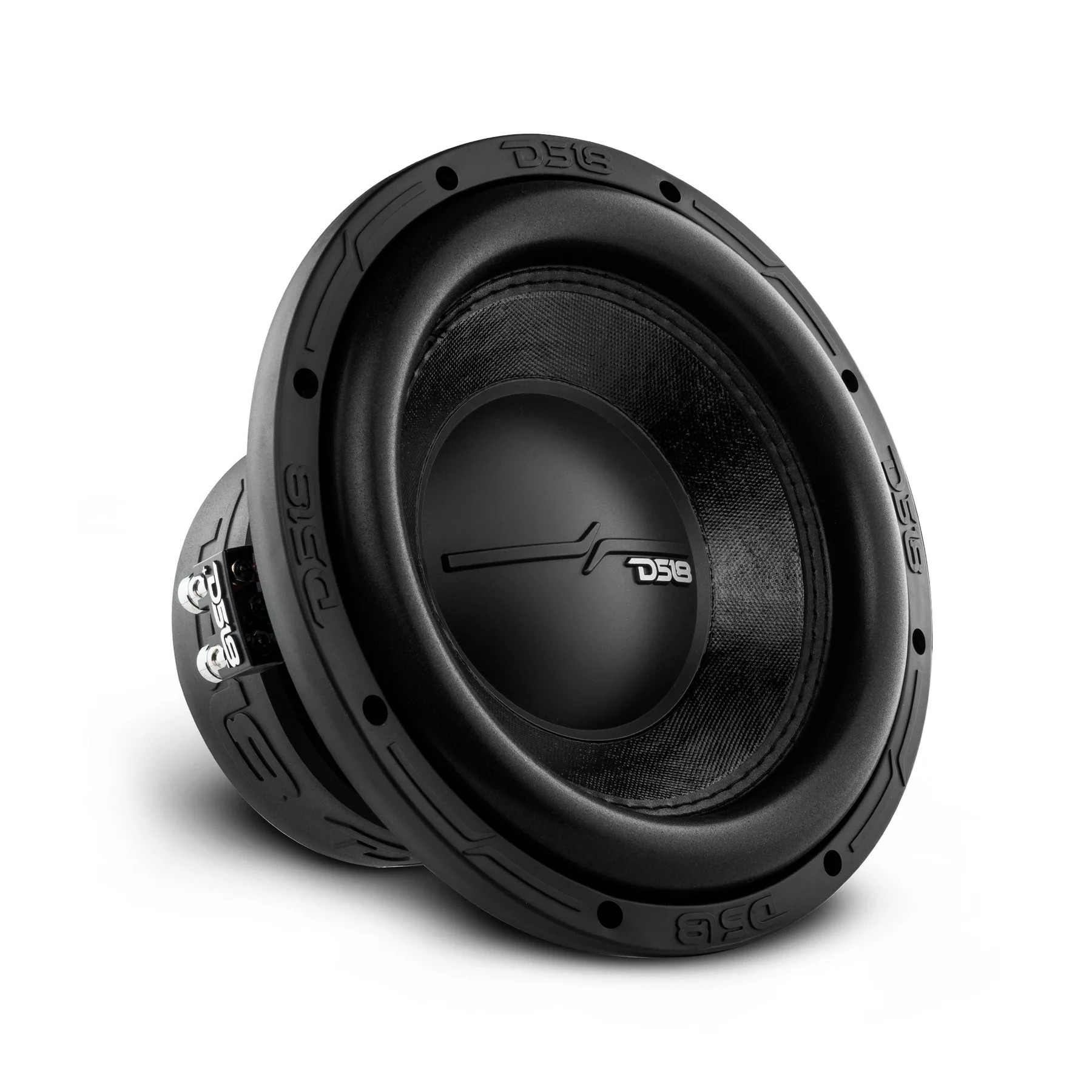

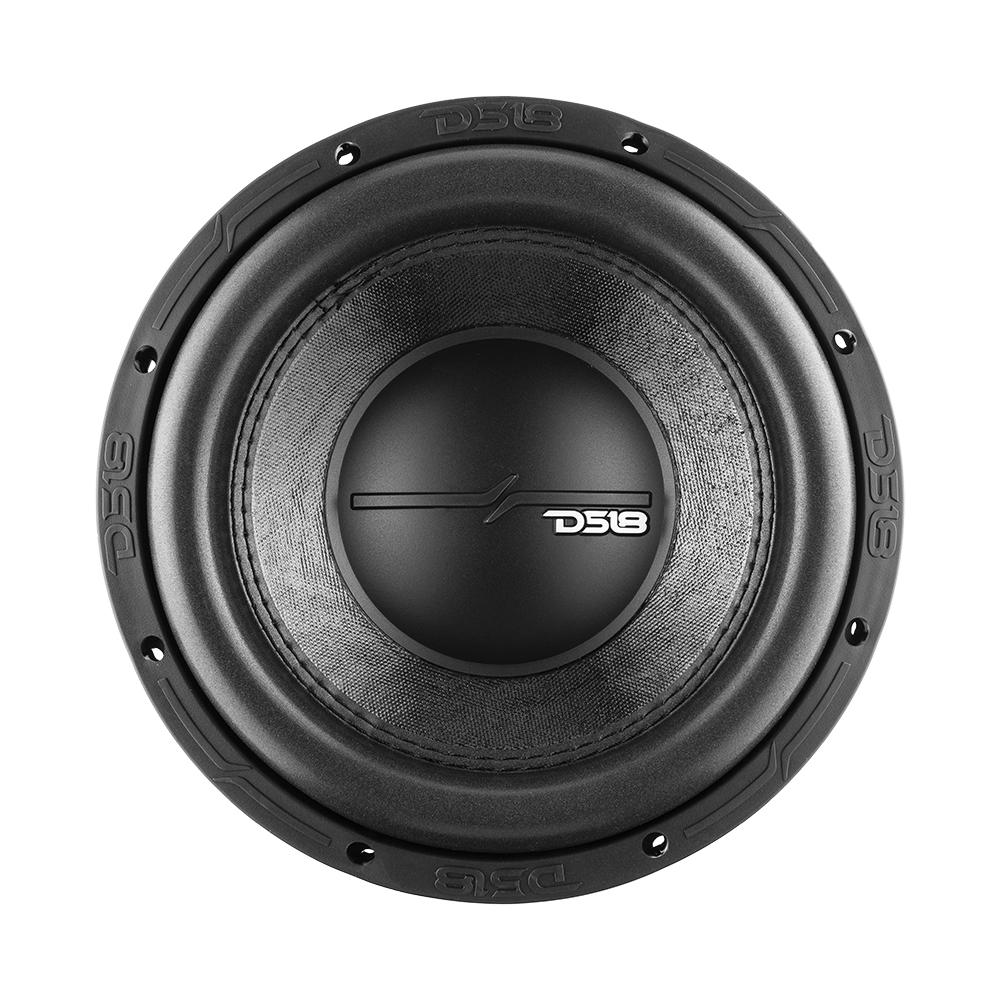

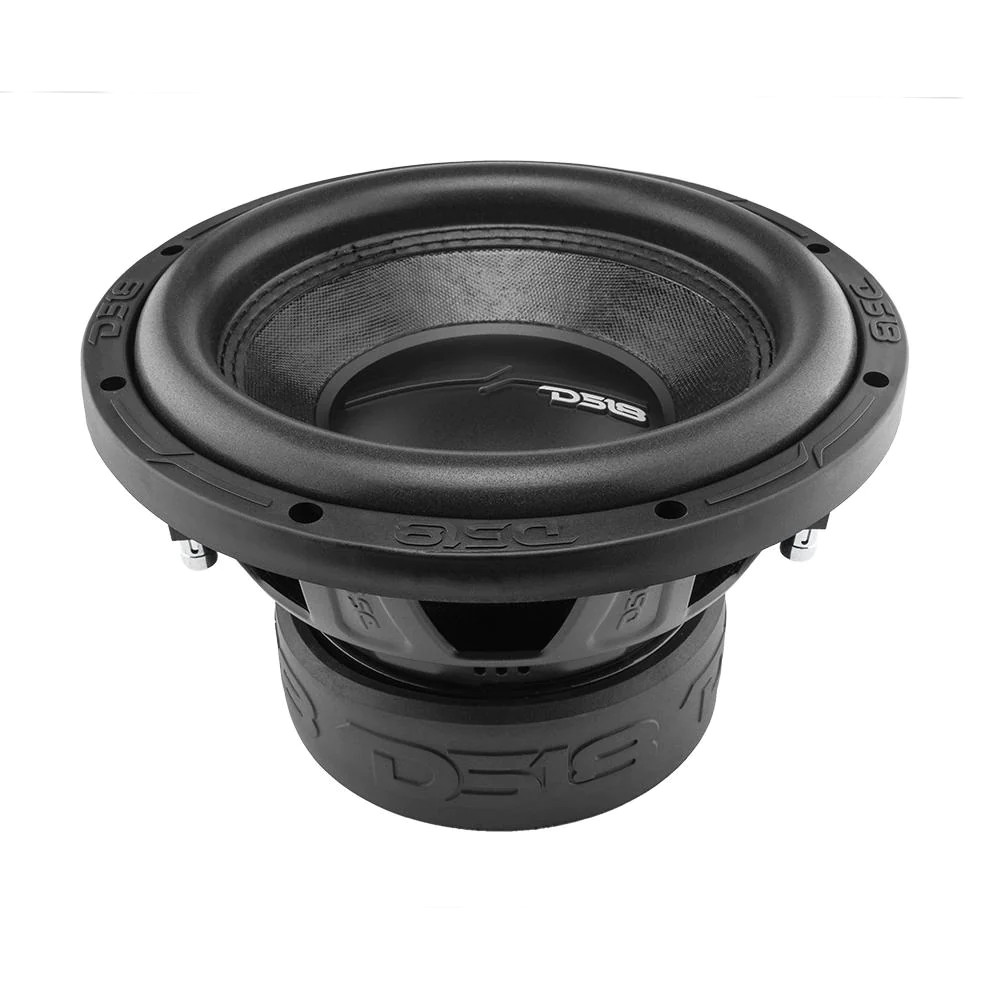

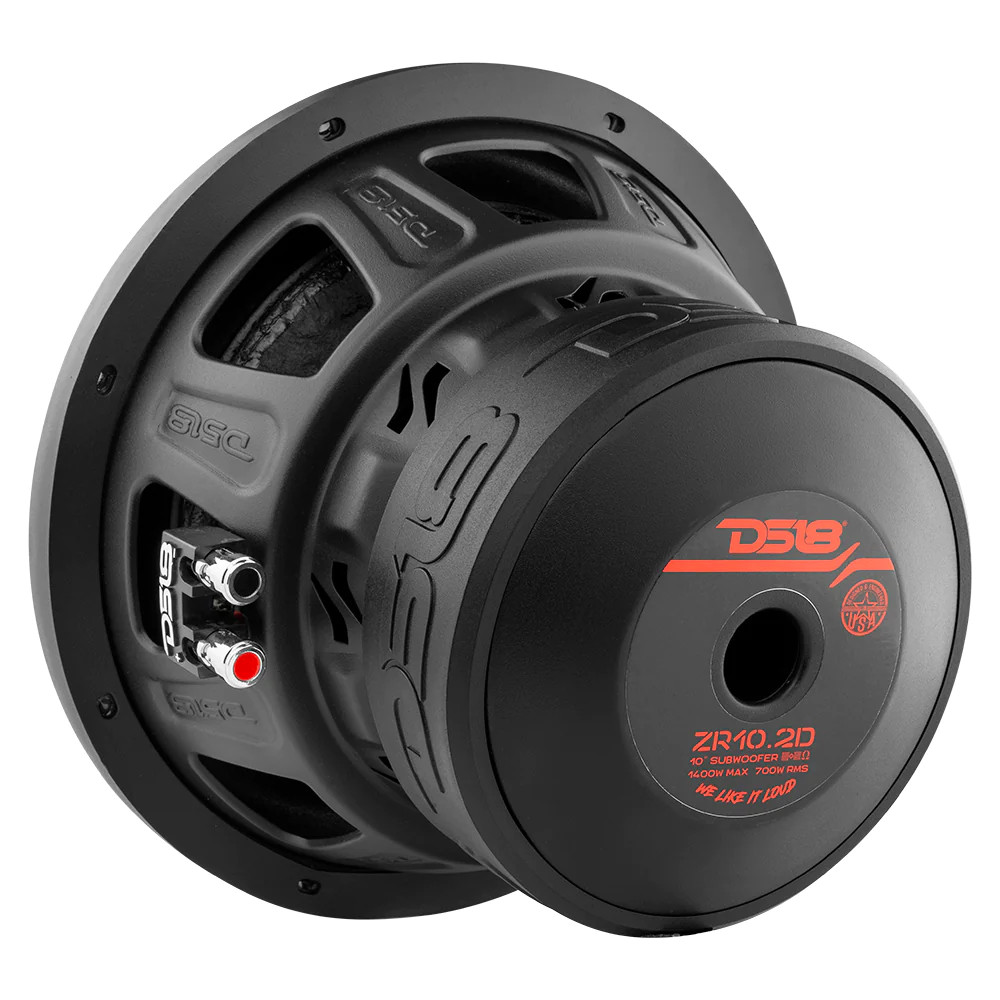

DS18 ELITE Z 10" SUBWOOFER 1500 WATTS DUAL 2 OHM VOICE COIL

SPECS

SKU
ZR10.2D
Nominal Diameter
10" / 254mm
Nominal Impedance
2 + 2 Ohm
RMS Power Handling
700W
Maximum Power Handling
1400W
Sensitivity (1w/1m)
81 dB
Frequency Response
27Hz-200Hz
Recommended Lo Pass Crossover
100Hz

MOTOR

Voice Coil Diameter
2.5" / 61.6mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Ferrite
Magnet Weight
100 Oz
Displacement Volume
0.05 ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
8.26 L
Free Air Resonance Fs
34 Hz
Mechanical Factor Qms
4.3
Electrical Factor Qes
0.8
Total Factor Qts
0.67
Moving Mass Mms
252g
Compliance Cms
53.37? m/N
Bl Factor BI
8.78
Voice Coil Inductance Le
546.4m mH
Cone Area Sd
333.29 Cm2
DC Resistance Re
1.8 + 1.8 Ohm
Efficiency Bandwidth Product EBP
42.5

MEASUREMENTS

Overall Diameter
10.31" / 262mm
Overall Depth
6.92" / 176mm
Front Mount Baffle Cutout
9" / 229mm
Mounting Depth
6" / 152.3mm
Motor Diameter
6.1" / 155mm
Gross Single Unit Weight (lb)
17.5
Dimensions W x L x H (Inches)
11.5 x 11.5 x 8.25
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
36
M/C Dimensions W x L x H (Inches)
12.25 x 12.25 x 17.75
