DS18 ELITE Z SERIES 4CH CLASS D 200W X 4CH 4OHM, 300W X 4CH 2OHM, 600W X 2 4OHM BRIDGED

SPECS

SKU
ZXI.4
Total Watts (Peak)
2200W
RMS Power @ 4 Ohm
4 x 125W
RMS Power @ 2 Ohm
4 x 185W
RMS Power @ 1 Ohm
N/A
RMS Power @ 4 Ohm Bridge
2 x 370W

AUDIO

Frequency Response
20Hz-20KHz
Signal to Noise Ratio
>90dB
Efficiency @ 4 Ohm
>85%
Damping Factor
>200
Total Harmonic Distortion (THD)
<0.1%
Low Level Input Range
0.2 - 6v
High Level Input
No
Selectable X-Over
LPF/FULL/HPF
X-Over Filter Range
40Hz-4KHz
Bass Boost Range
No
Bass Boost Frequency
No
Infrasonic Filter
No
Phase Selector
No

FEATURES

Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
2 ohm (Stereo) / 4 ohm (Bridge)
Led Indicator
Power/Protection/Clip

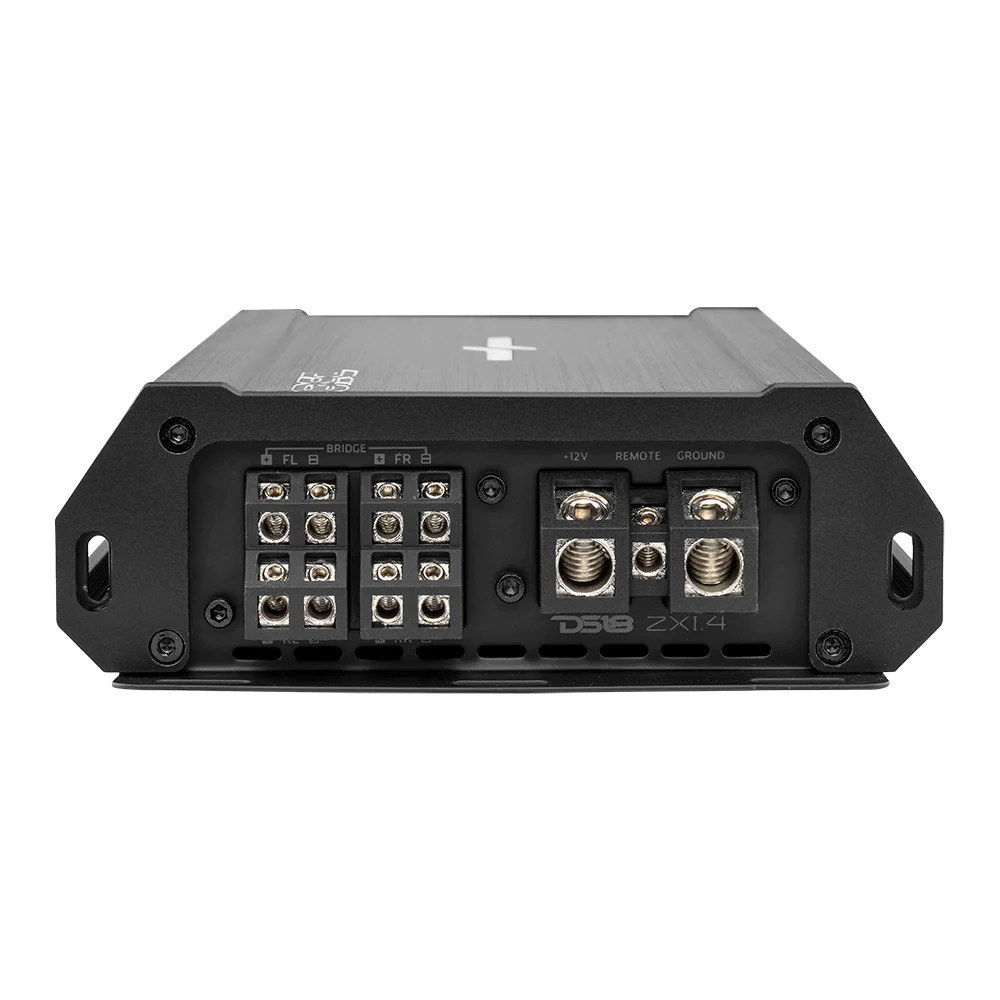

Power Input Terminal Size
4ga
Fuse Size
2 x 40A
Remote Level Control
No
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (>160?F / 71?C)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (8.5-16.8V)
Cliping Protection
Yes
Body Color / Finish
Black Aluminum Brush

EXTRA FEATURES

Tiffany RCA connectors
Yes
Input Selector
Yes (2ch/4ch)
Compact Size to easy Installation for Any Applications
Yes

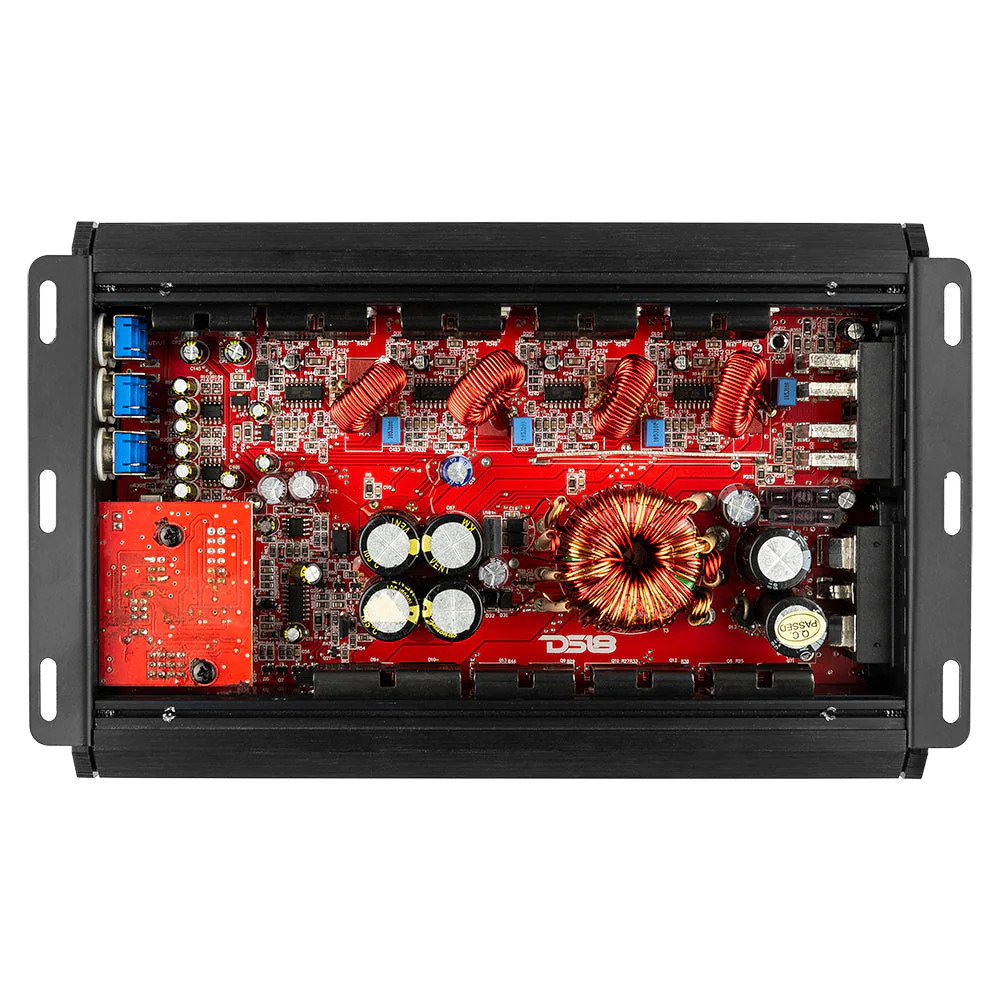

Stable/Reliable Two Layers Traces PCB Design
Yes
Quality Control Verification using Audio Precision Instruments
Yes

MEASUREMENT

Overall Length
9.5" / 241.3mm
Overall Width
5.66" / 144mm
Overall Height
1.9" / 48.5mm
Heatsink Length
8.7" / 221.3mm
Gross Single Unit Weight (Lb)
5
