Description
DS18 FRP Compact Full-Range Class D 5-Channel Amplifier – 250W x 4 + 1,200W Subwoofer Output
Key Features
- Full-Range 5-Channel Class D Amplifier
- 2800W MAX Power Output
- 1200W RMS Subwoofer Channel at 1 Ohm
- Bridgeable 550W x 2 at 4 Ohms
- Smart Cooling with LED Clip Indicator
Power
RMS Power @ 4 ohm
250W x 4 (CH1~CH4) + 500W (SUB)
RMS Power @ 2 ohm
325W x 4 (CH1~CH4) + 800W (SUB)
RMS Power @ 1 ohm
1200W (SUB)
RMS Power @ 4 ohm Bridge
550W x 2 (CH1~CH4)
Audio
Frequency Response
10Hz-20kHz (CH1~CH4) / 10Hz-250Hz (SUB)
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
92%
Damping Factor
90 (CH1~CH4) / 250 (SUB)
Input Impedance
10K Ω
Channel Separation
50dB
Total Harmonic Distortion (THD)
0.5%
Low Level Input Range
400mV-6V
High Level Input
N/A
Selectable X-Over
HPF (CH1~CH4) / LPF (SUB)
X-Over Filter Range
HP:10Hz-2kHz (CH1~CH4) / LP:10Hz-250Hz (SUB)
Bass Boost Range
0-18dB (SUB CH ONLY)
Bass Boost Frequency
50Hz
Infrasonic Filter
10Hz-55Hz (SUB CH ONLY)
Phase Selector
N/A
Features
Amplifier Class
Digital
Amplifier Type
Stereo Full-Range + Subwoofer
Number of Channels
5
Minimum Impedance
2 Ohm Stereo / 4 Ohm Bridge + 1 Ohm (Sub)
Led Indicator
Power / Protect / Clipping

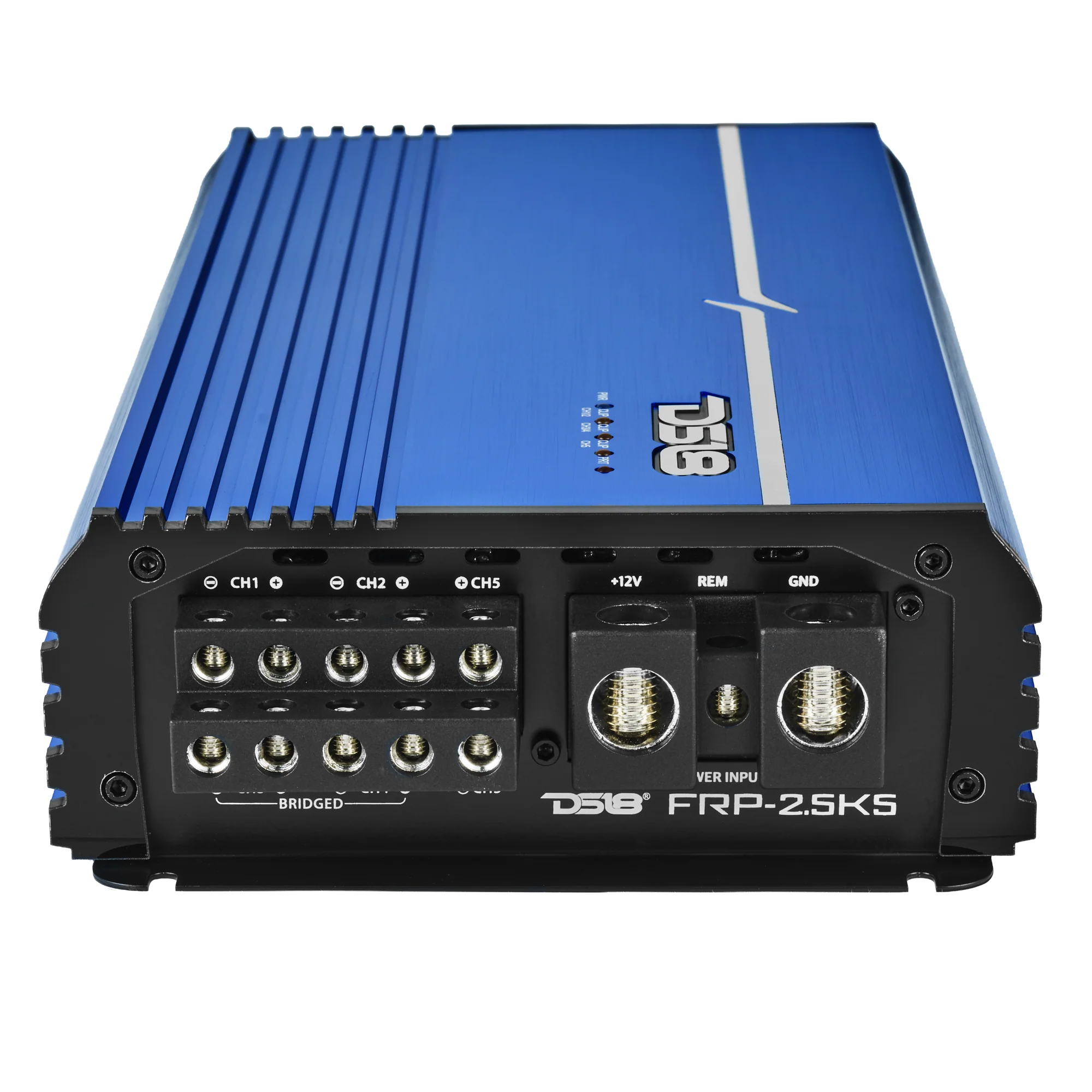

Power Input Terminal Size
0Ga
Fuse Size (Recommended)
300A
Cooling Fan
N/A
Voltmeter
N/A
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
N/A
Body Color / Finish
BL-Blue / RD-Red / TI-Titanium
Compact Size to Easy Installation for Any Applications
Yes

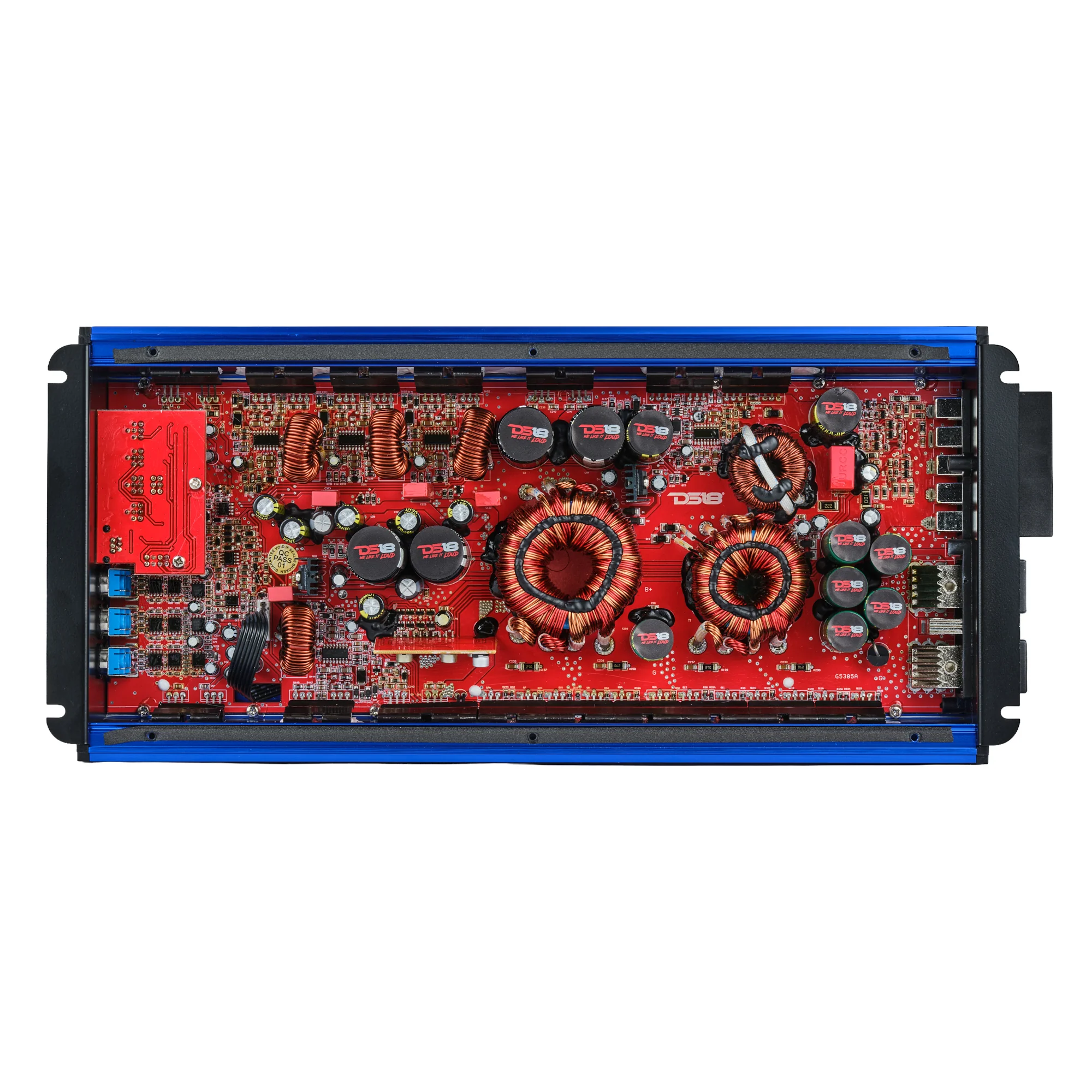

Stable/Reliable Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
Metal Knobs with Click Steps
Yes
Input Selector
Yes (4ch/5ch)

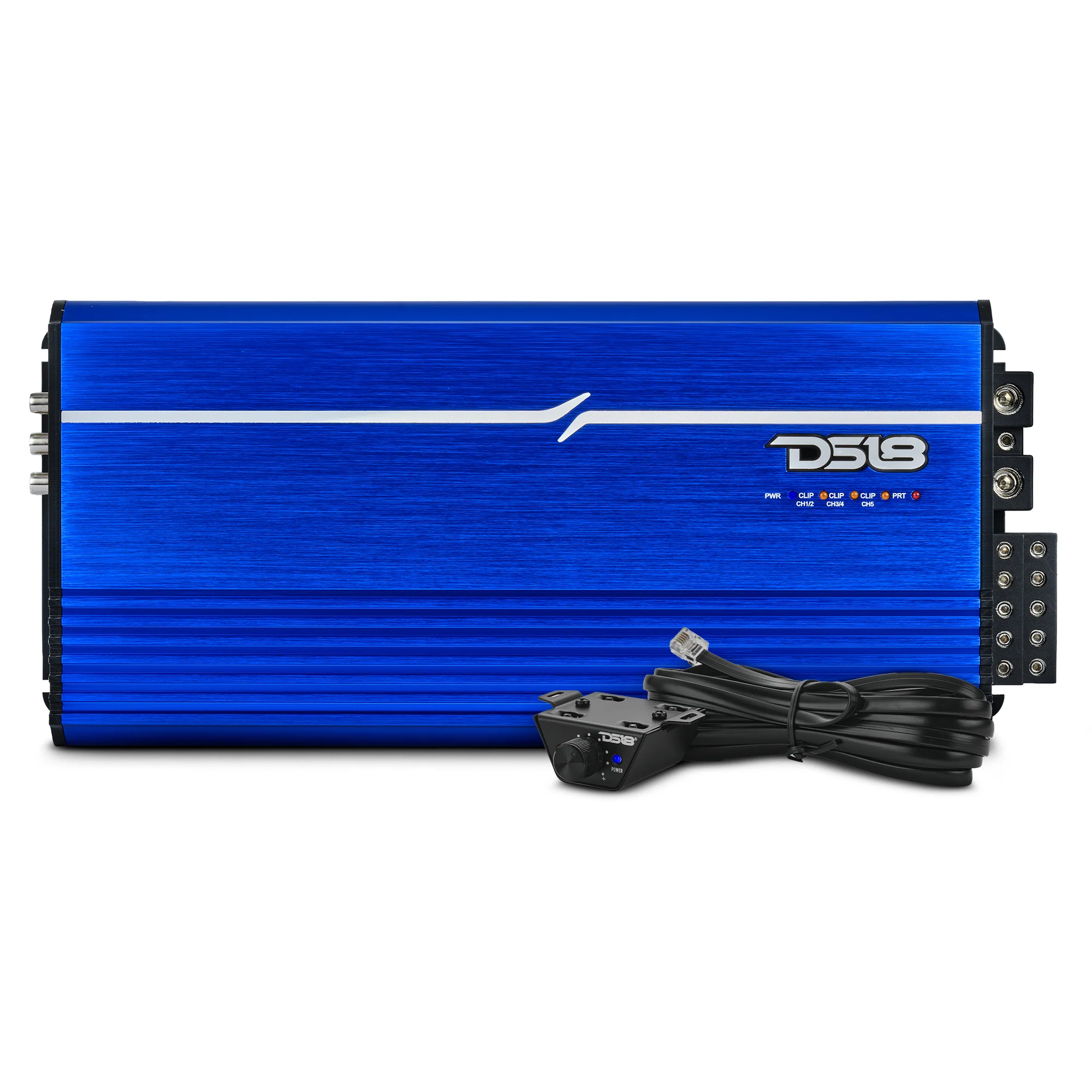

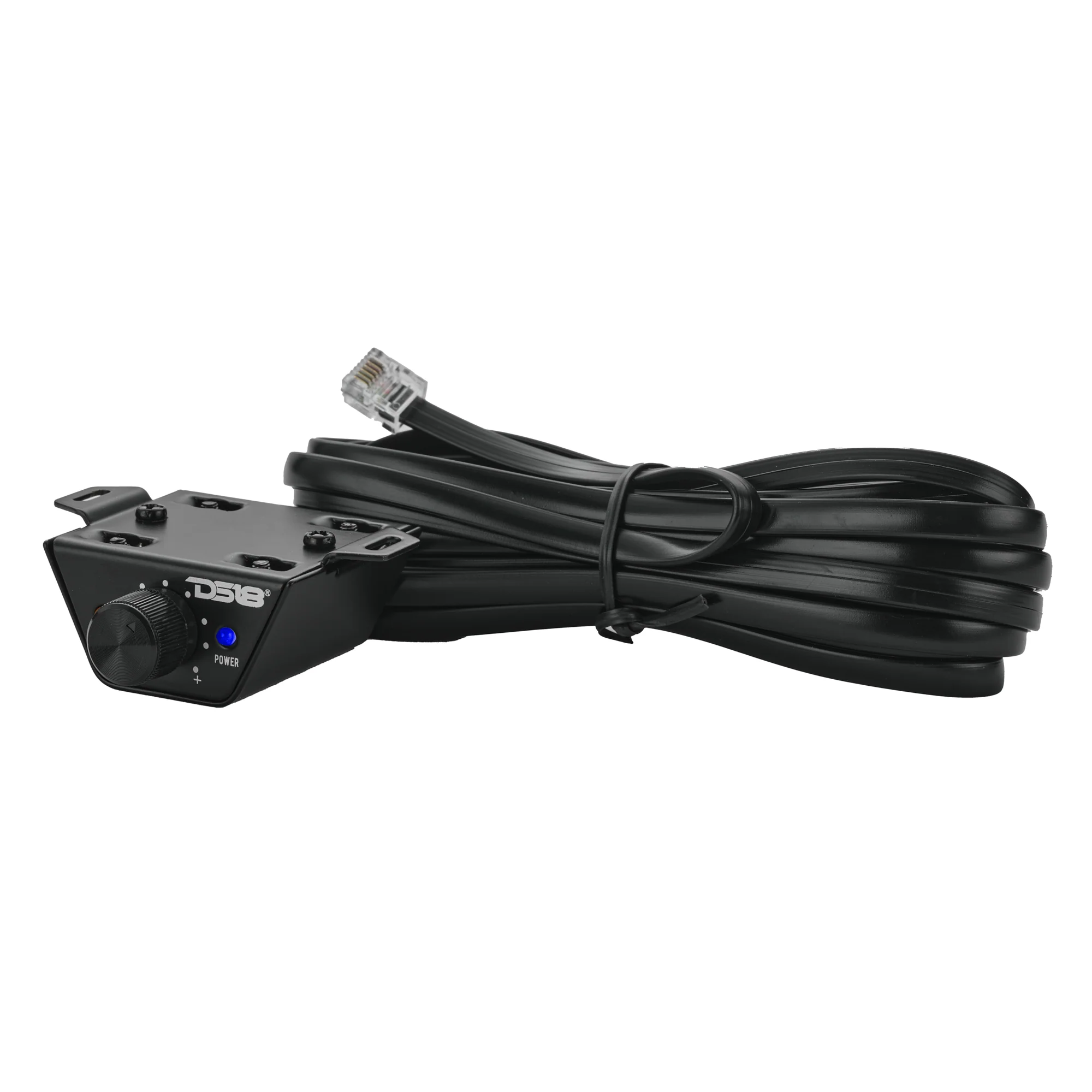

Remote Level Control with Clip Indicator
Included
Remote Level Control with Clip Indicator and Voltmeter
Optional
Measurement
Overall Length
14.5" / 370mm
Overall Width
6.5" / 167mm
Overall Height
2.4" / 63.5mm
Heatsink Length
13.3" / 338mm
Gross Single Unit Weight
4.22kg
Product Overview
Full-Range Performance

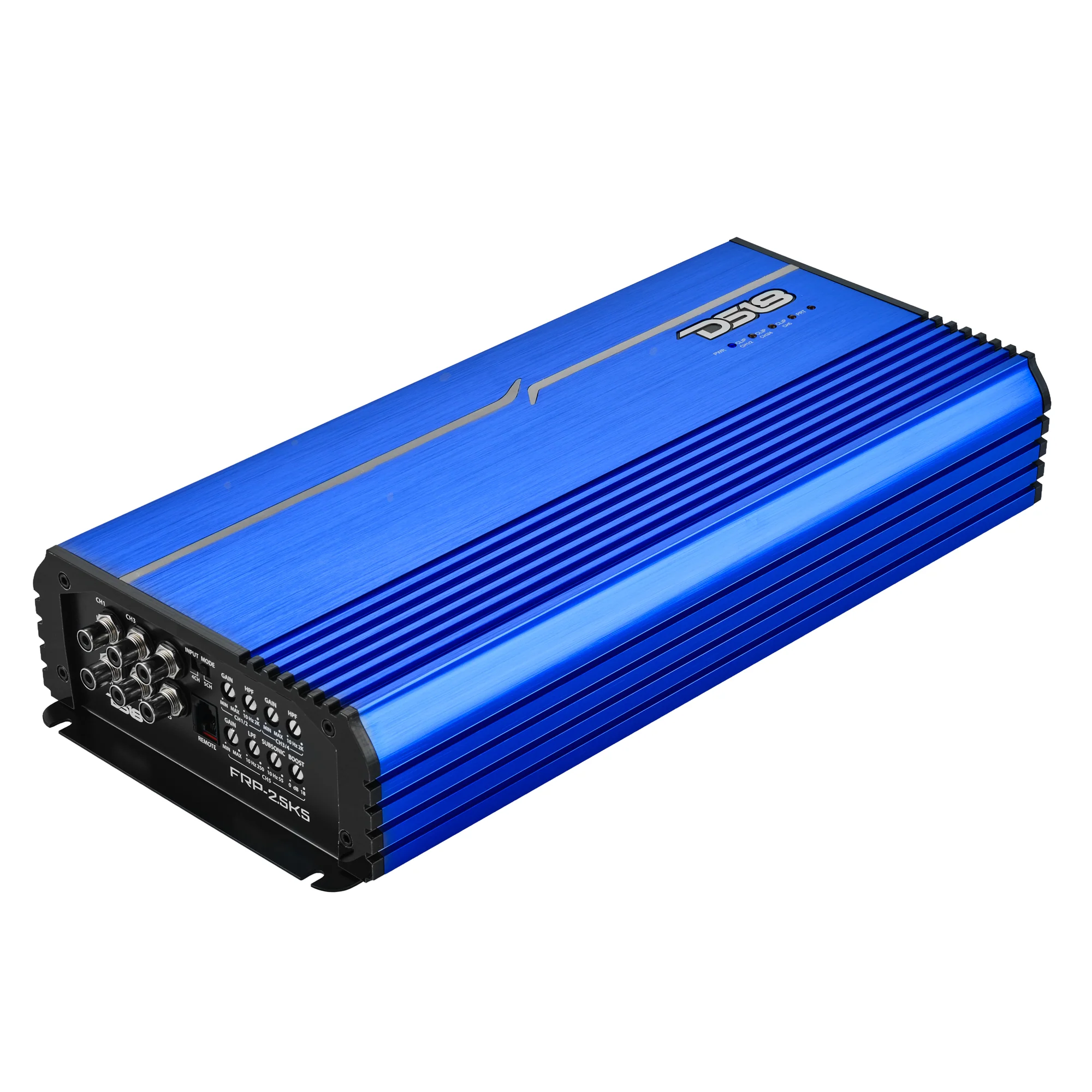

The FRP-2.5K5 is a compact full-range Class D 5-channel amplifier, part of the FRP series of amplifiers, giving you the power to amplify the loudest audio gear in your sound system.
Compact Power
Delivering up to 2800W MAX, this compact 5-channel amplifier powers your entire audio system from a single unit. It produces 250W x 4 + 500W RMS at 4 ohms, 325W x 4 + 800W RMS at 2 ohms, and up to 1200W RMS at 1 ohm on the subwoofer channel. The four full-range channels can also be bridged to deliver 550W x 2 at 4 ohms, providing flexible power for speakers, tweeters, and subwoofers.
Party Without Worry
Smart Cooling ensures your FRP-2.5K5 amp never gets too hot when handling all your audio gear. It also comes with an array of protections, keeping your amp from clipping, short circuiting, or over-loading.
Sleek Features
Featuring a sleek finish, this amp also comes with an LED clip indicator and quality control verification, letting you always stay in control and make sure everything is working and running as intended.
Made for Sound
If you want to upgrade your car audio and take it to the next level, look no further than DS18. Whether you’re throwing a party or enjoying a drive, DS18 FRP amps have everything you need to power your sound system.
