Description

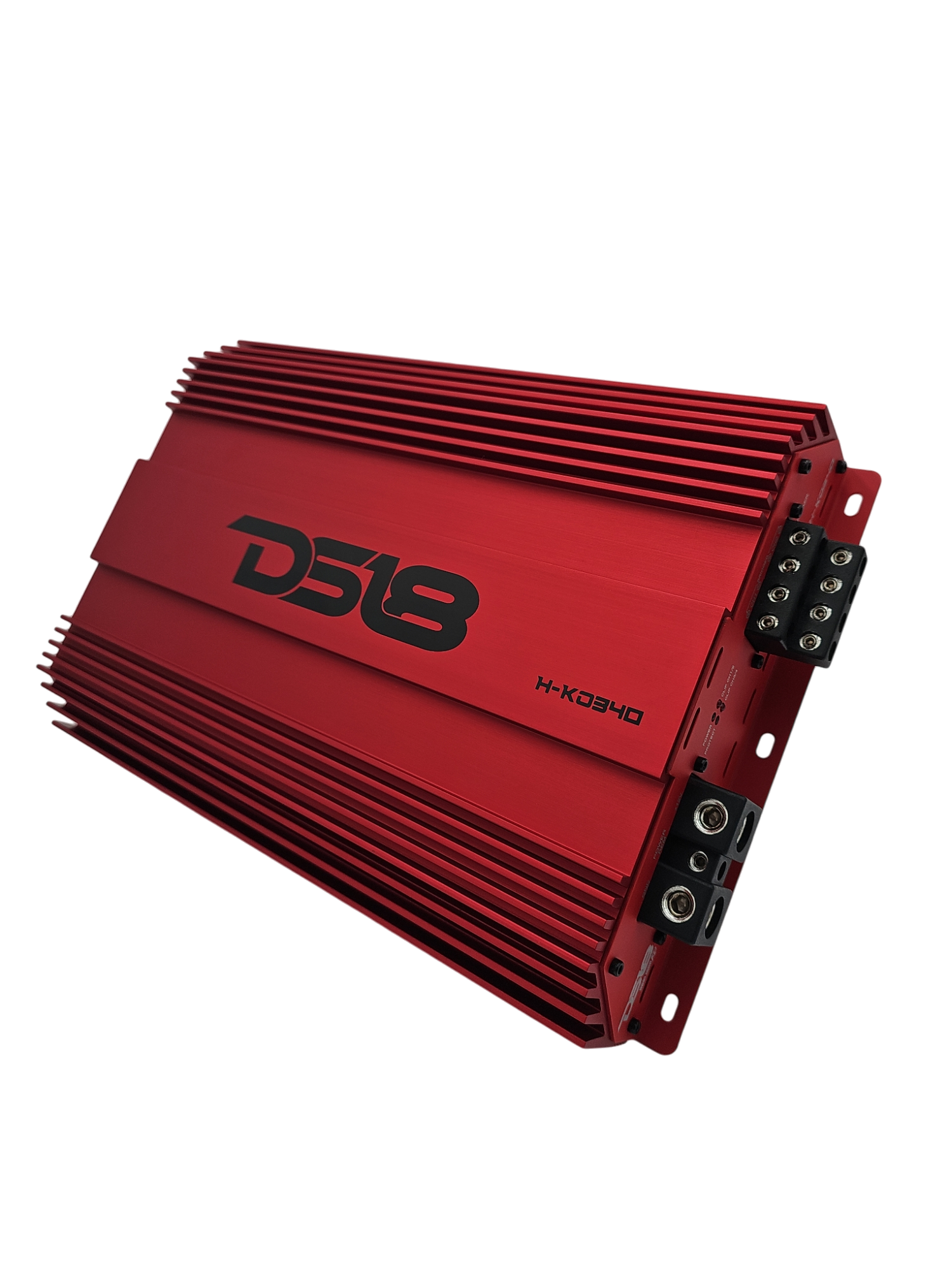

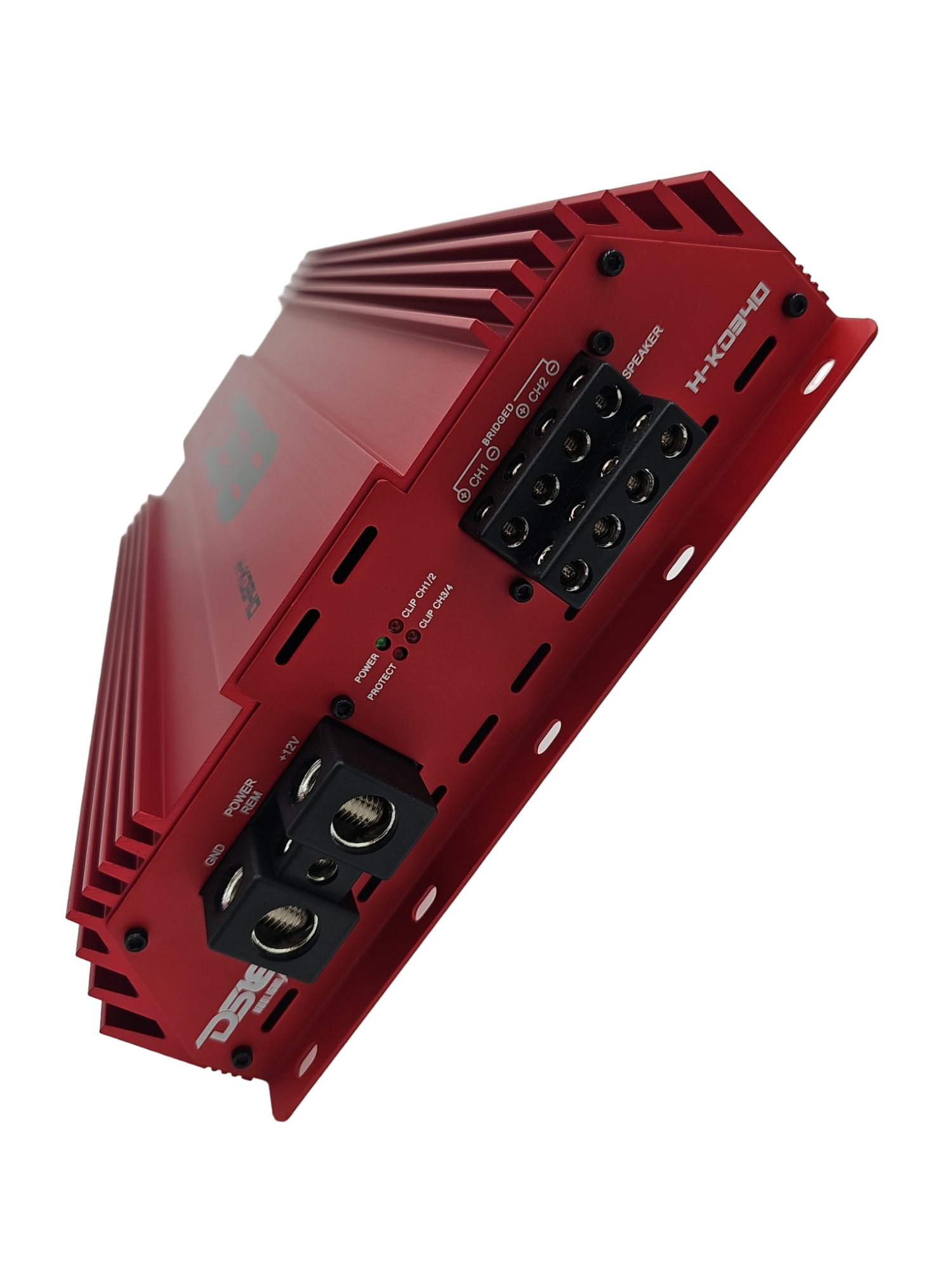

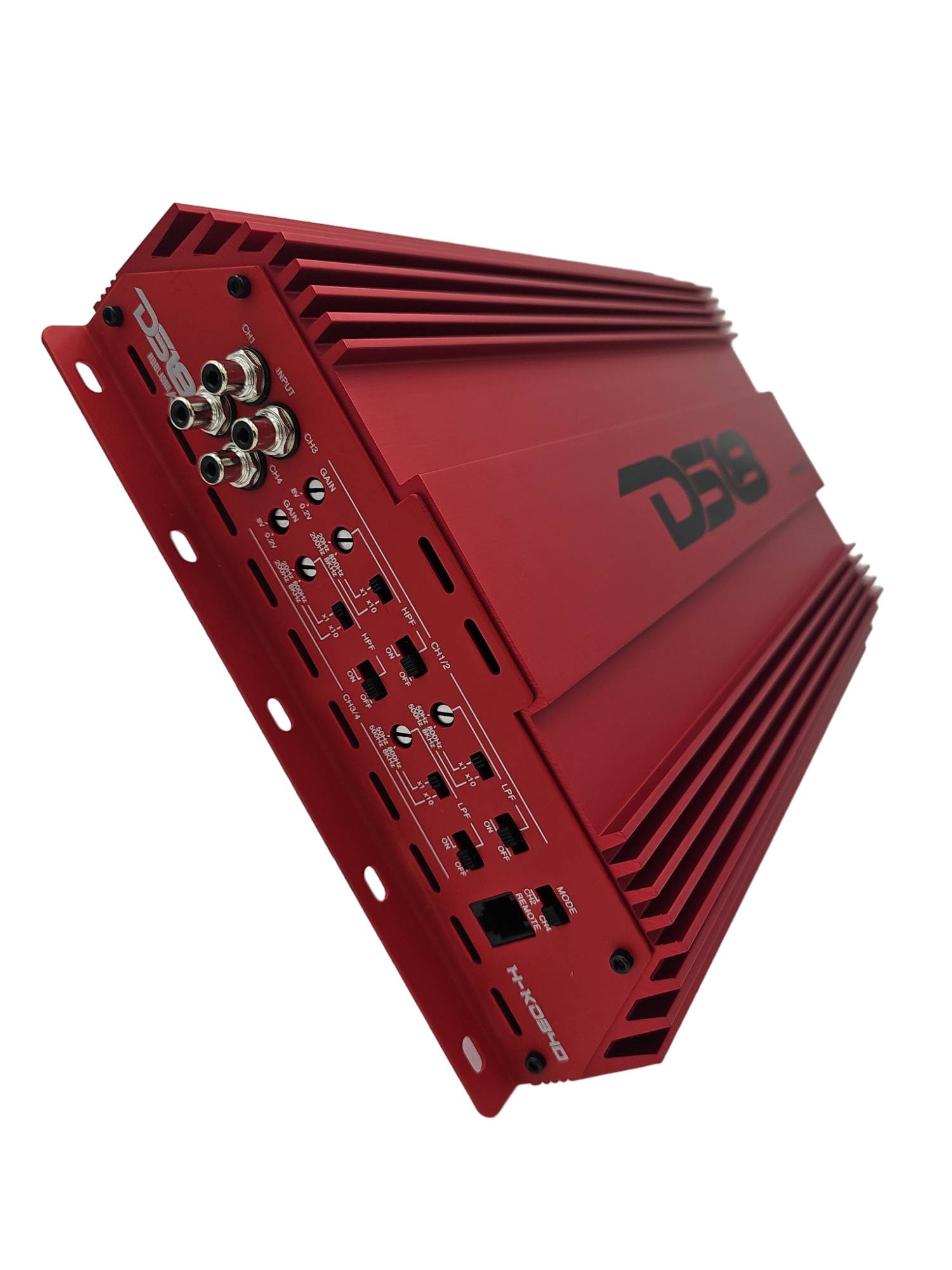

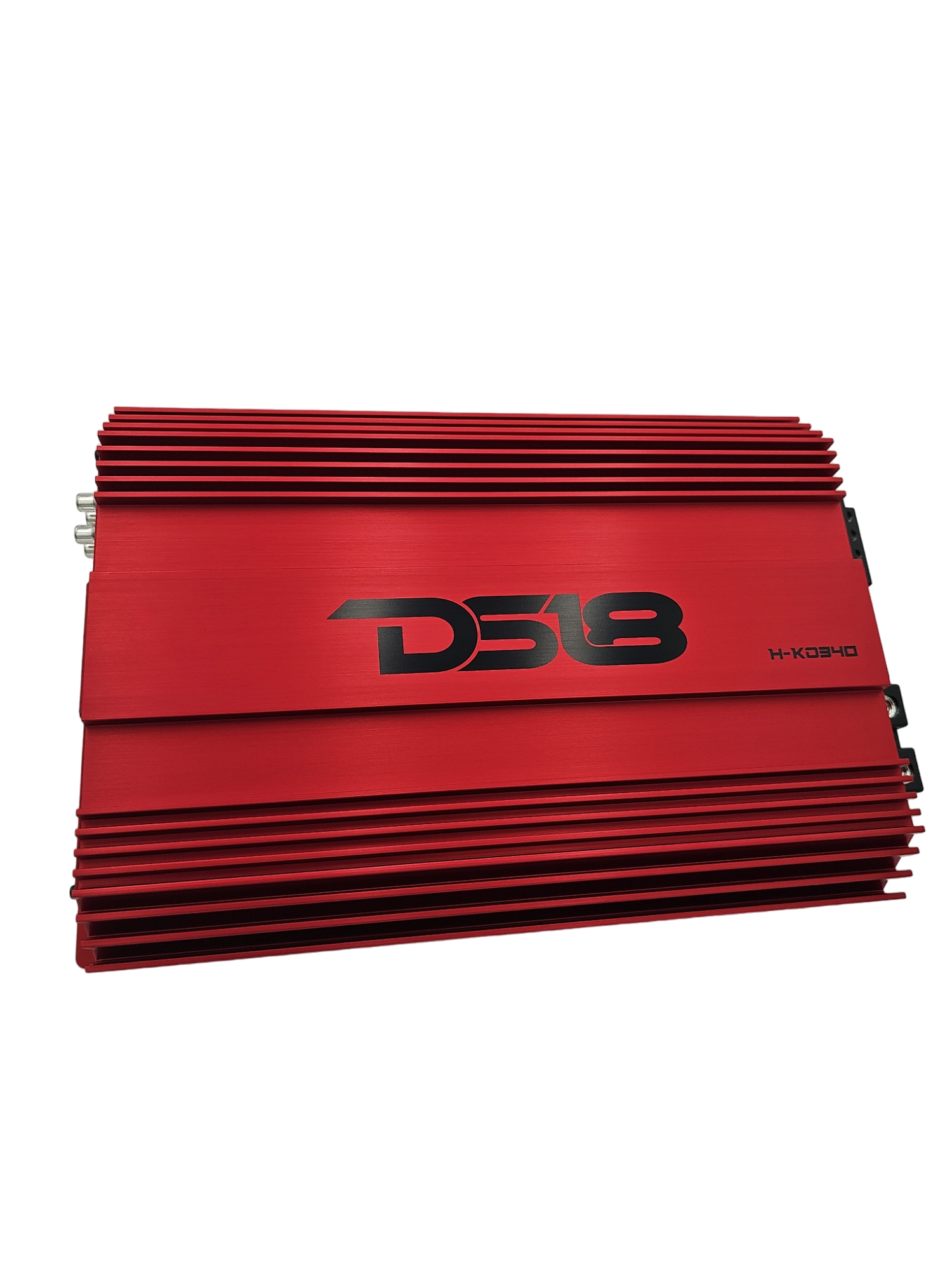

DS18 HOOLIGAN KO 4 CHANNEL AMPLIFIER WITH VOLT METER 4 X 300 WATTS RMS @ 4OHM - MADE IN KOREA
POWER
- RMS POWER @ 4OHM 4 X 300W
- RMS POWER @ 2OHM 4 X 550W
- RMS POWER @ 4OHM BRIDGED 2 X 1000W
AUDIO
- FREQUENCY RESPONSE 10HZ-20KHZ
- SNR >90DB
- EFFICIENCY @ 4OHM 90%
- DAMPING FACTOR 100
- THD <0.2%
- LOW LEVEL INPUT RANGE 0.2-8V
- SELECTABLE X-OVER HPF/LPF/BAND-PASS
- X-OVER FILTER RANGE HPF 20HZ-8KHZ, LPF 50HZ-8KHZ (1X/10X)
FEATURES
- AMPLIFIER CLASS D
- AMPLIFIER TYPE: STEREO FULL RANGE
- NUMBER OF CHANNELS: 4 CHANNELS
- MINIMUM IMPEDANCE: 2OHMS/CH (4OHMS BRIDGED)
- LED INDICATORS: POWER/PROTECT/CLIP
- POWER INPUT TERMINAL SIZE: 1/0GA
- FUSE SIZE: 200A
- REMOTE LEVEL CONTROL: METAL CASE
- THERMAL PROTECTION
- OVERLOAD PROTECTION
- DC OUTPUT PROTECTION
- SHORT CIRCUIT OUTPUT PROTECTION
- VOLTAGE INPUT PROTECTION
- X-OVER FREQUENCY MULTIPLIER
- INPUT MODE SELECTABLE
- PRO TIFFANY RCA CONNECTORS
- REMOTE LEVEL KNOB WITH CLIP INDICATOR
- HEAVY DUTY KOREAN BOARD
- VERY EFFICIENT DIGITAL CIRCUIT DESIGN
