SPECS

SKU
NXL-PS6
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4ohm
RMS Power Handling
100W
MAX Power Handling
300W
Sensitivity (1w/1m)
91dB
Frequency Response
65Hz-23Khz
Recommended HI Pass Crossover
80Hz

Body / Features

Enclosure Material
Injection PC+ABS
Marine Grade Type
IP65 + UV Stable
RGB LED
Integrated LED-RGB Speaker Cone + Back Logo Lighting 6 Core Wires for Lighting and Speaker
Grill Type
Injection Molded ASA + UV Coating
Pair
Yes

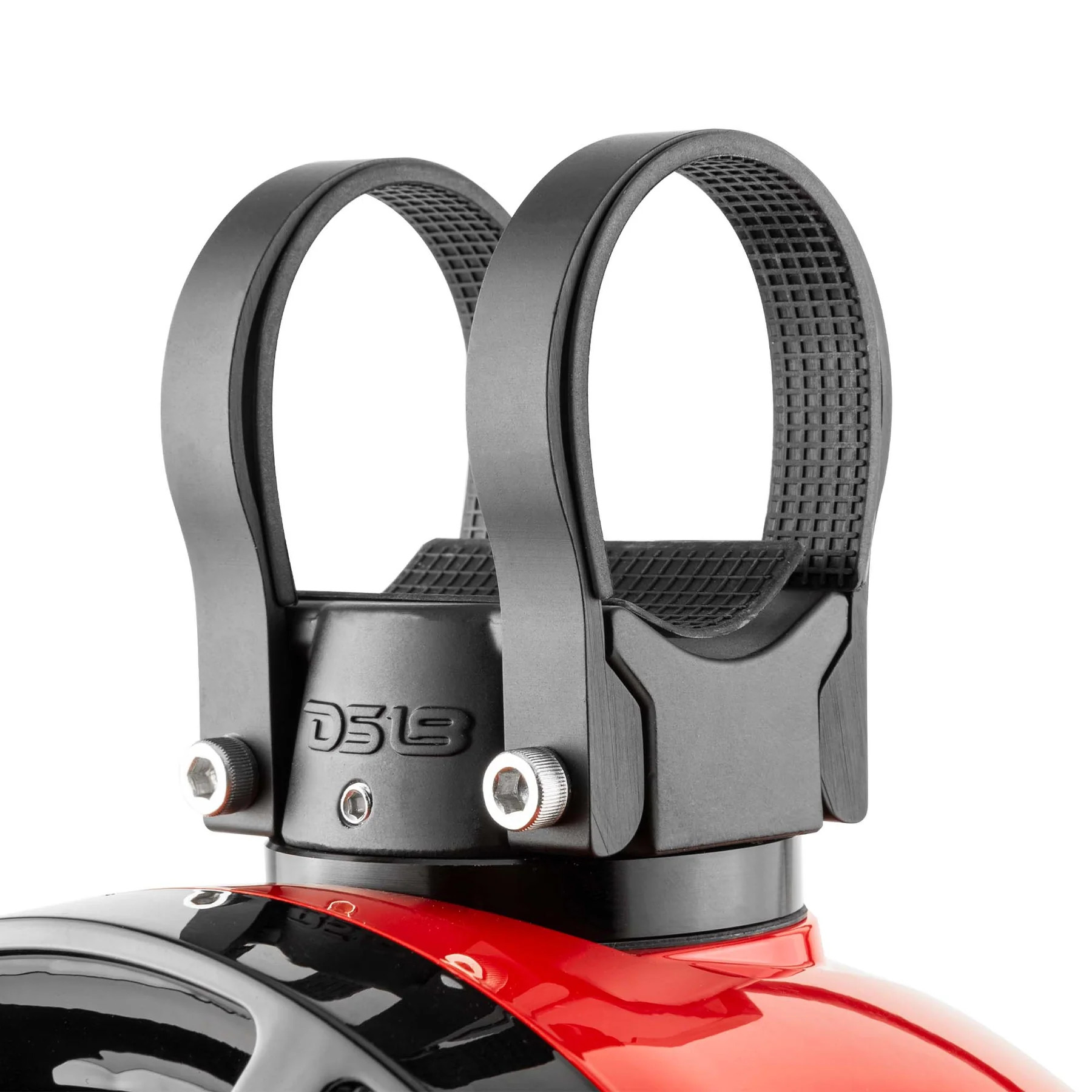

Clamps
CNC Aluminum base for flat mounting and Die-Cast Solid Aluminum 360° rotation mobile clamps for 1.75" or 2" mast Included
Front Logo
Yes, can be rotated for correct angle display
Rear Logo
Yes, can be rotated for correct angle display
Finish
Matt Black

Woofer Specifications

Voice Coil Diameter
1.2"
Cone Material
Injection Molded UV-Compliant Polypropylene
Surround Material
Butyl
Basket Material
High Temp Injection Molded Composite + UV Coating
Magnet Material
Ferrite + Neodymium
Magnet Grade
Y35 / N40H
Passive Radiator
NO

Tweeter Specifications

Voice Coil Diameter
1"
Type
Dome
Diaphragm Material
Titanium + PEI Surround
Magnet Material
Neodymium
Crossover
6dB/Oct

Thiele & Small Parameters

Equivilant Volume Vas
8.5L / 0.3"
Excursion (one way) Xmax
4 mm
Free Air Resonance Fs
65 Hz
Total Factor Qts
0.622

Speaker Measurement

Overall Diameter
6.94" / 176.2mm
Overall Depth
6.25" / 158.7mm
Overall Height (with Mast Clamp)
9.91" / 251.6mm
Overall Height (with Flat Clamp)
7.76" / 197.2mm
