Description

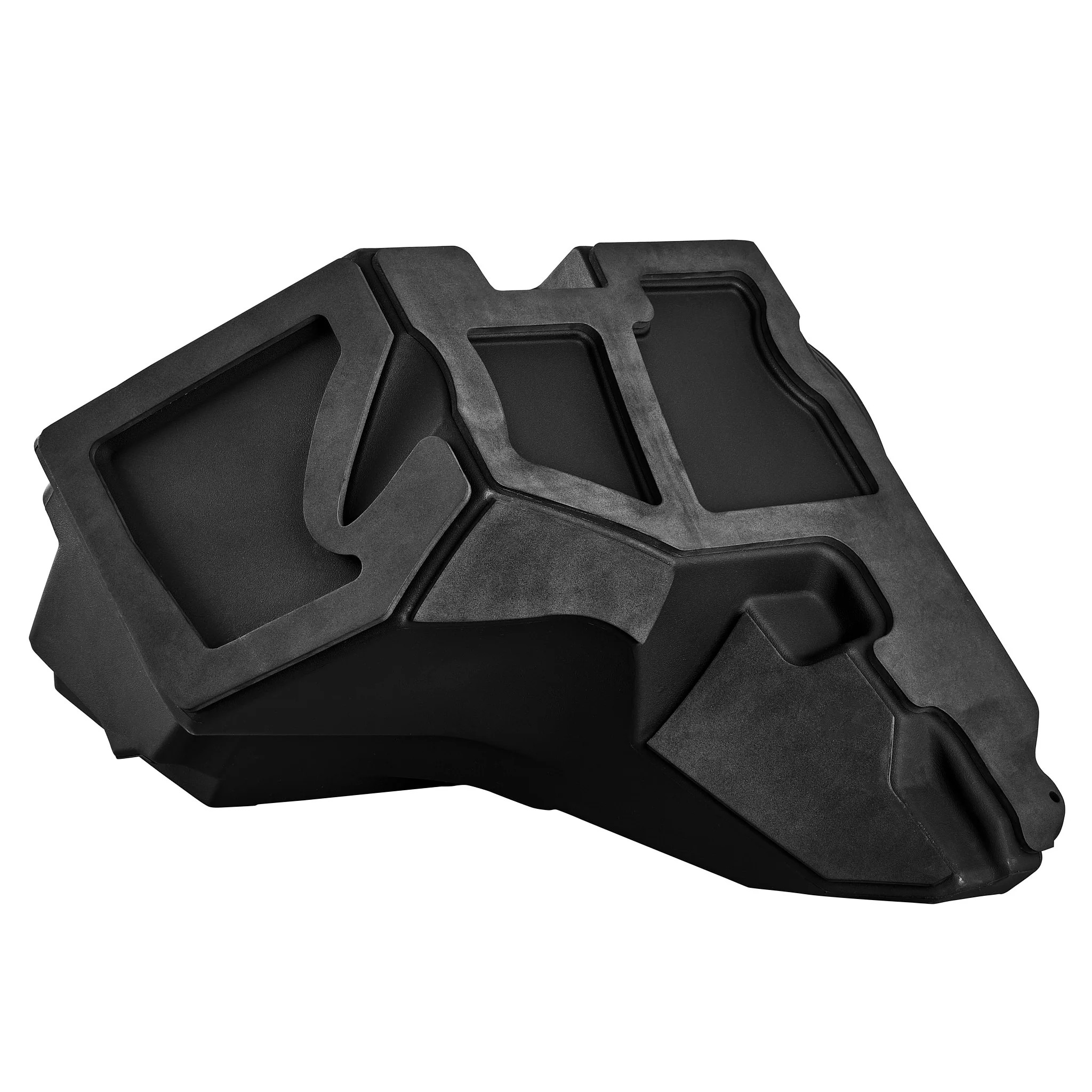

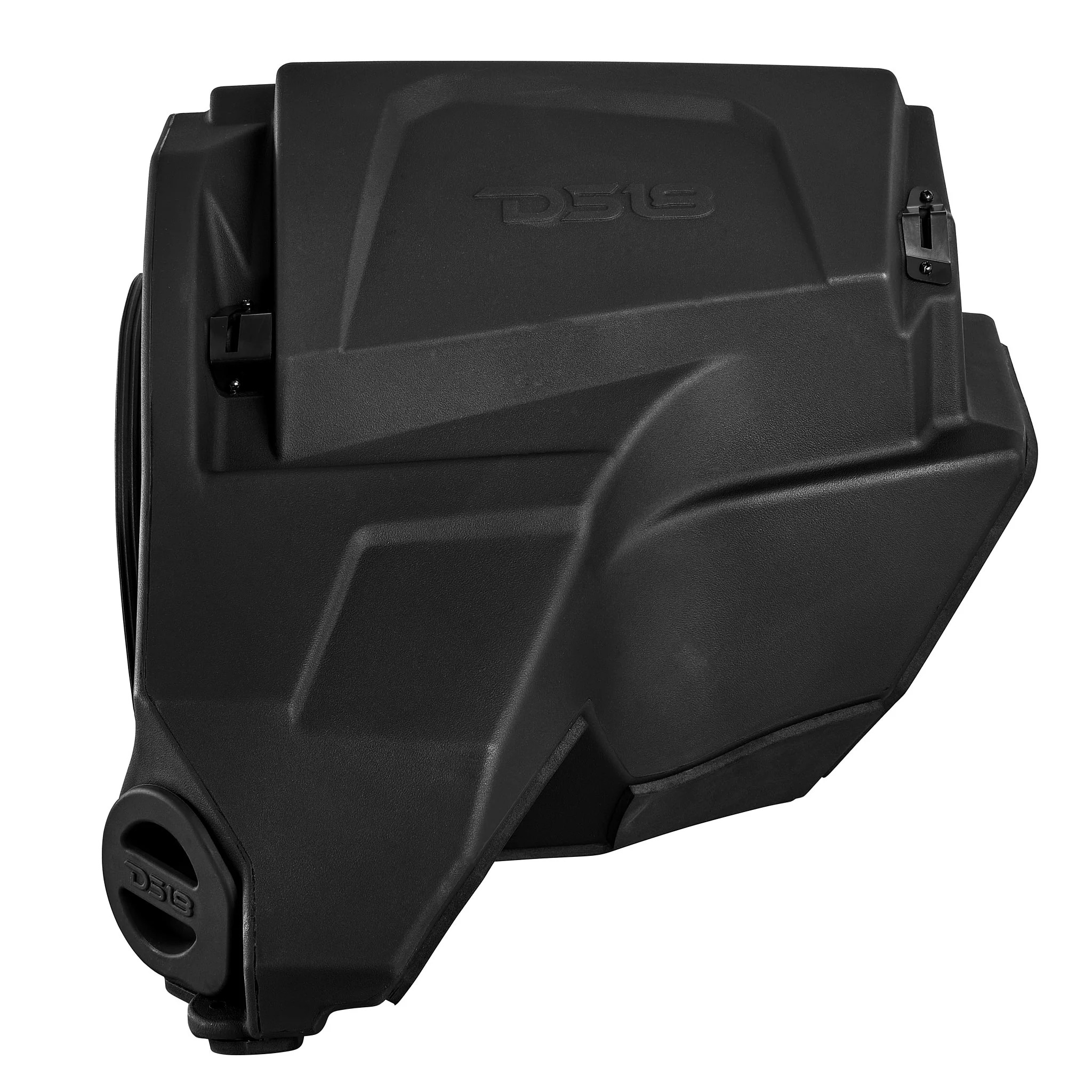

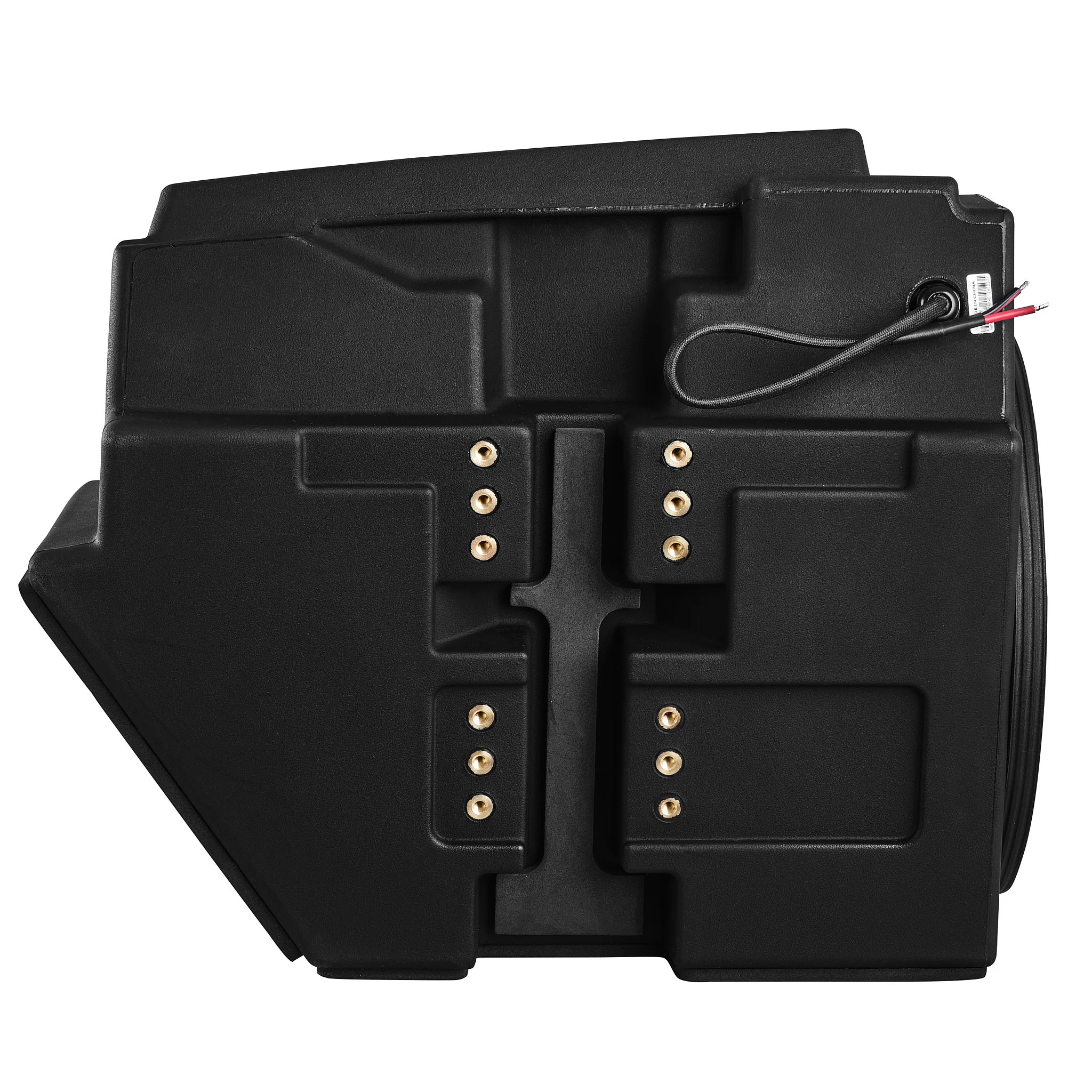

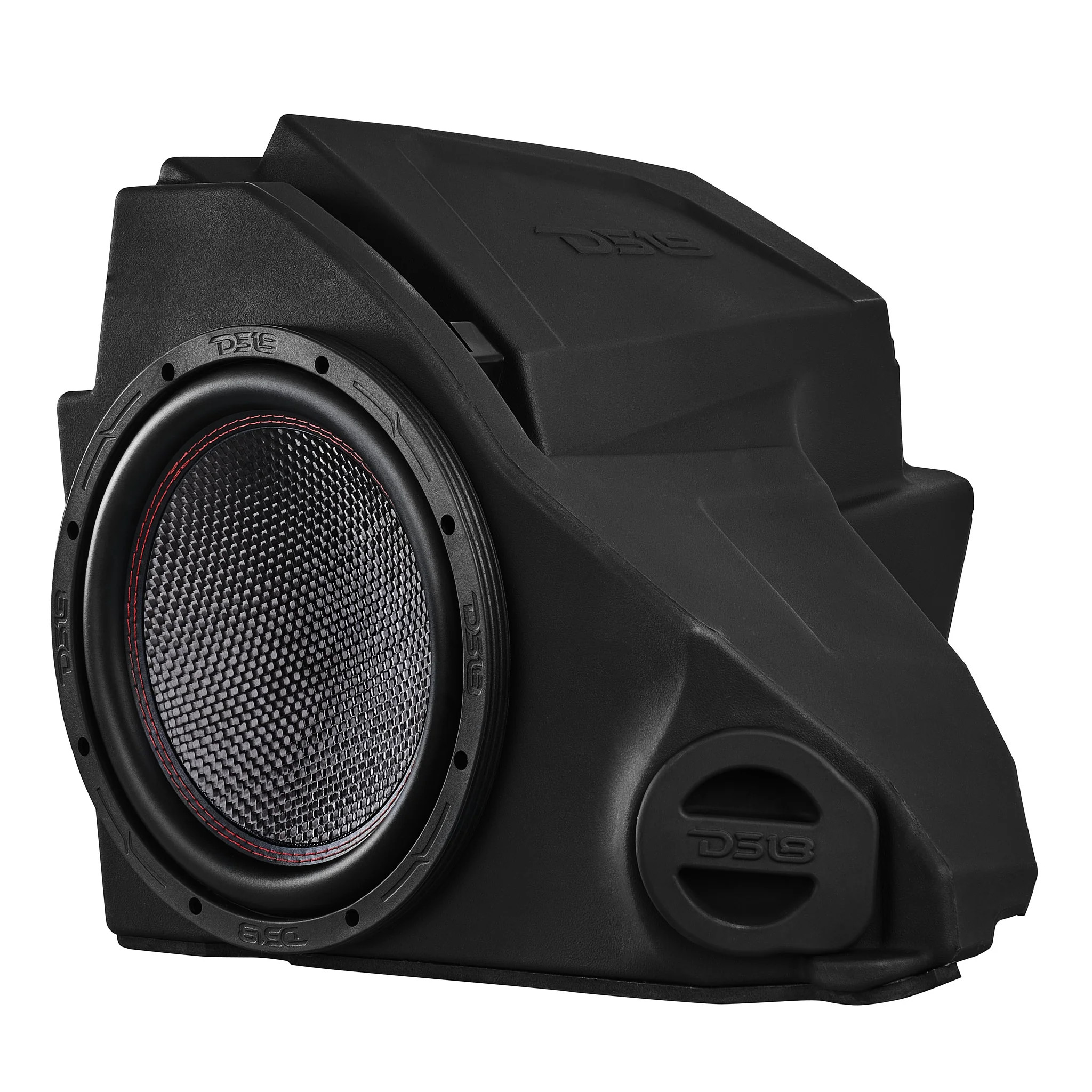

DS18 POLARIS RAZOR 10" LOADED GLOVE BOX ENCLOSURE WITH 1200 WATTS CARBON FIBER SUBWOOFER
- Loaded Subwoofer Enclosure
- OEM Fit - RZR 2014 - 2022
- Glove Box Compartment Replacement
- 1 X 10" 600 Watts RMS ~ 92dB

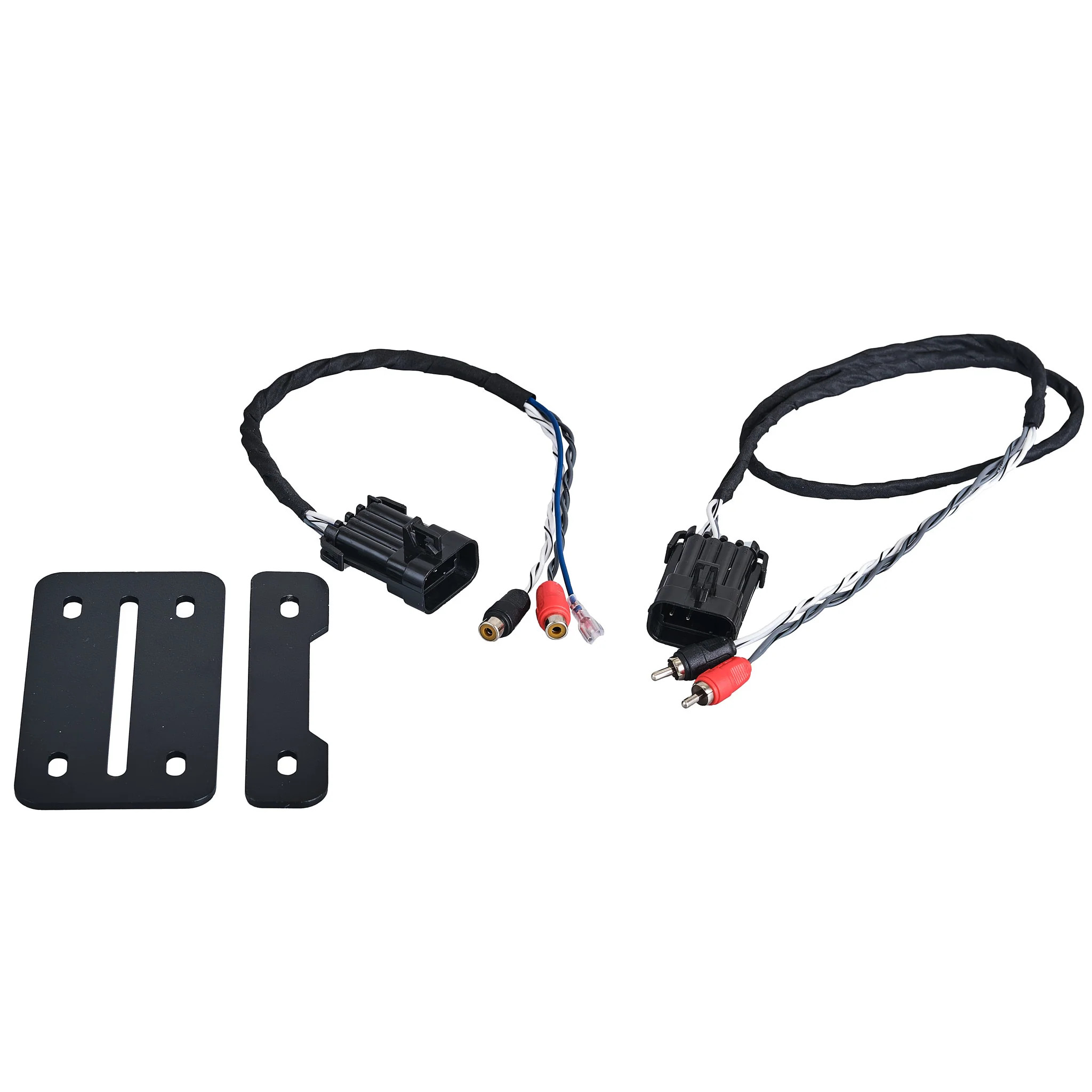

- Mounting Hardware & Ride Command Harness Included
- Water Resistant IP65
SPECS
SKU
RZR-GBSUB10LD
Nominal Diameter
10" / 254mm
Nominal Impedance
2 Ohms
RMS Power Handling
600W
MAX Power Handling
1200W
Sensitivity (1w/1m)
92dB
Frequency Response
25Hz-250Hz
Recommended Low Pass Crossover
120Hz
BODY / FEATURES
Enclosure Material
Polyethylene (PE)
Marine Grade Type
IP65
Sold in Pair or Single
Single
Color / Finish
Black

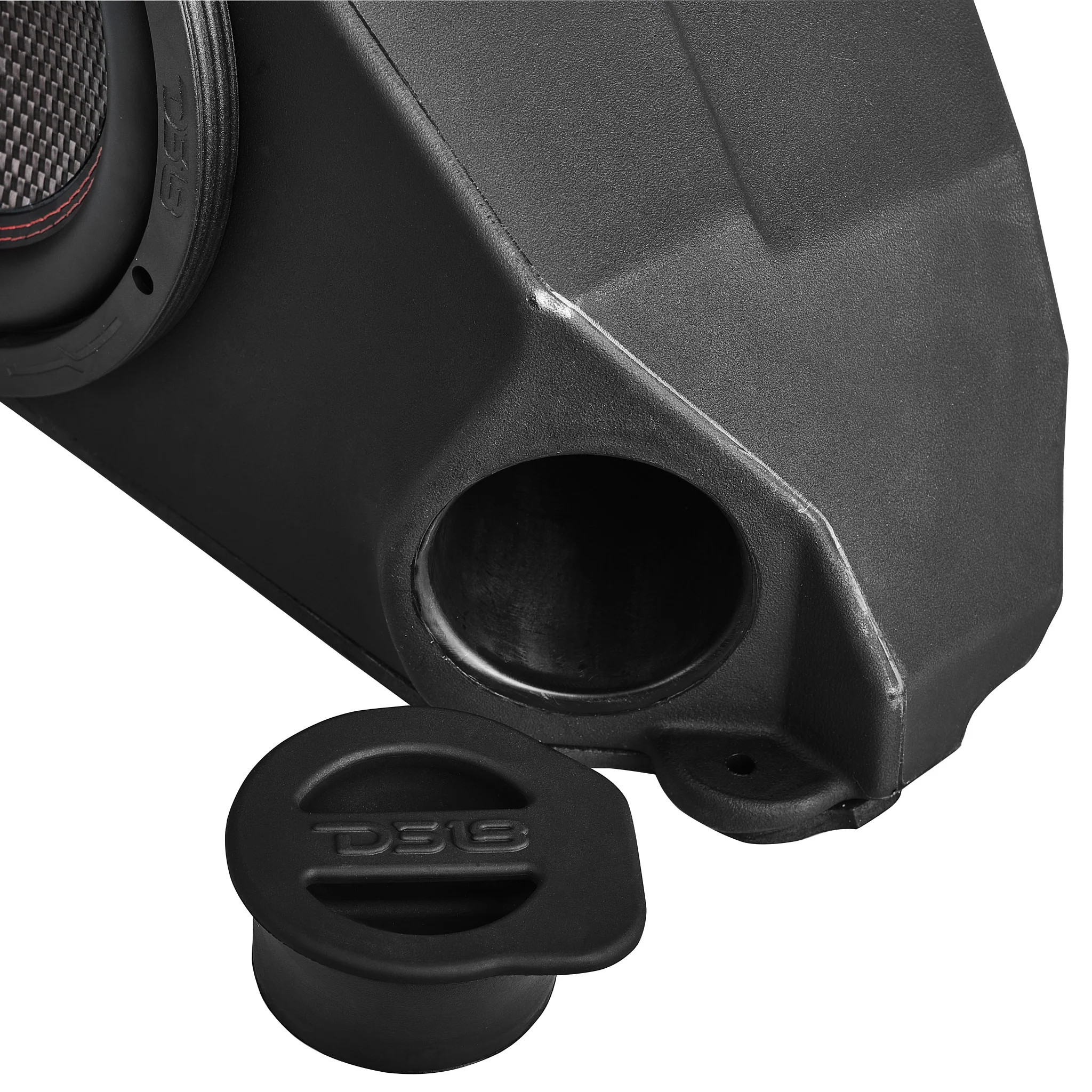

Port Plug Cover
Yes (Rubber)
Direct OEM Fit
Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non-Pressed Paper
Dust Cap Material
Carbon Fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
81 Oz
THIELE & SMALL PARAMETERS
Equivalent Volume VAS
23.67L / 0.835ft3
Excursion (one way) XMAX
21mm
Free Air Resonance FS
37Hz
Mechanical Factor QMS
5.07
Electrical Factor QES
0.76
Total Factor QTS
0.66
Moving Mass MMS
140.16gCompliance CMS
0.13mm/N
Bl Factor BI
9.26
Voice Coil Inductance LE
0.38mH
Diaphragm Area SD
352.99cm2
DC Resistance RE
2.01 ohms
BOX SPECIFICATIONS
Sealed Internal Volume
25.4L / 0.9ft3
Sealed Box Output Response F3
64Hz
Ported Internal Volume
25.4L / 0.9ft3
Port Size *Round (Diameter x Length)
2.75" x 11.8" / 70x300mm
Port Tuning Frequency FB
36Hz
Ported Box Output Response F3
32Hz
BOX MEASUREMENT
Overall Height
16.9" / 430mm
Overall Depth
14.17" / 360mm
Overall Wide
DS18 RZR-GBSUB10LD
The Polaris RZR just got LOUDER with DS18’s RZR-GBSUB10LD: This 10" Loaded Subwoofer Enclosure fits perfectly in the RZR’s Glove Box and delivers powerful bass in a weather-resistant design. Its sleek black color and direct OEM fit ensure perfect integration into your RZR, so you don’t have to think too hard when thinking outside!
With a 10" 1200W water-resistant subwoofer, this enclosure delivers deep, impactful bass that resonates the entire meet. The included mounting bracket and minimized mounting depth guarantee a hassle-free installation with no cutting or modifications needed.
This subwoofer enclosure has a nominal impedance of 2 ohms and an RMS power handling of 600W, allowing it to handle even the most demanding systems. Its sensitivity rating of 92dB allows crystal-clear reproduction, while its frequency response of 25Hz-250Hz captures every drop accurately.
DS18’s RZR-GBSUB10LD has a range of impressive features: like the included port plug cover, adding an extra layer of protection when not in use. Or the enclosure material, also made from durable polyethylene (PE) and marine-grade IP65 rated, providing excellent protection against the elements on any trail!
Get LOUD off-road like never before with DS18’s RZR-GBSUB10LD!
