Description

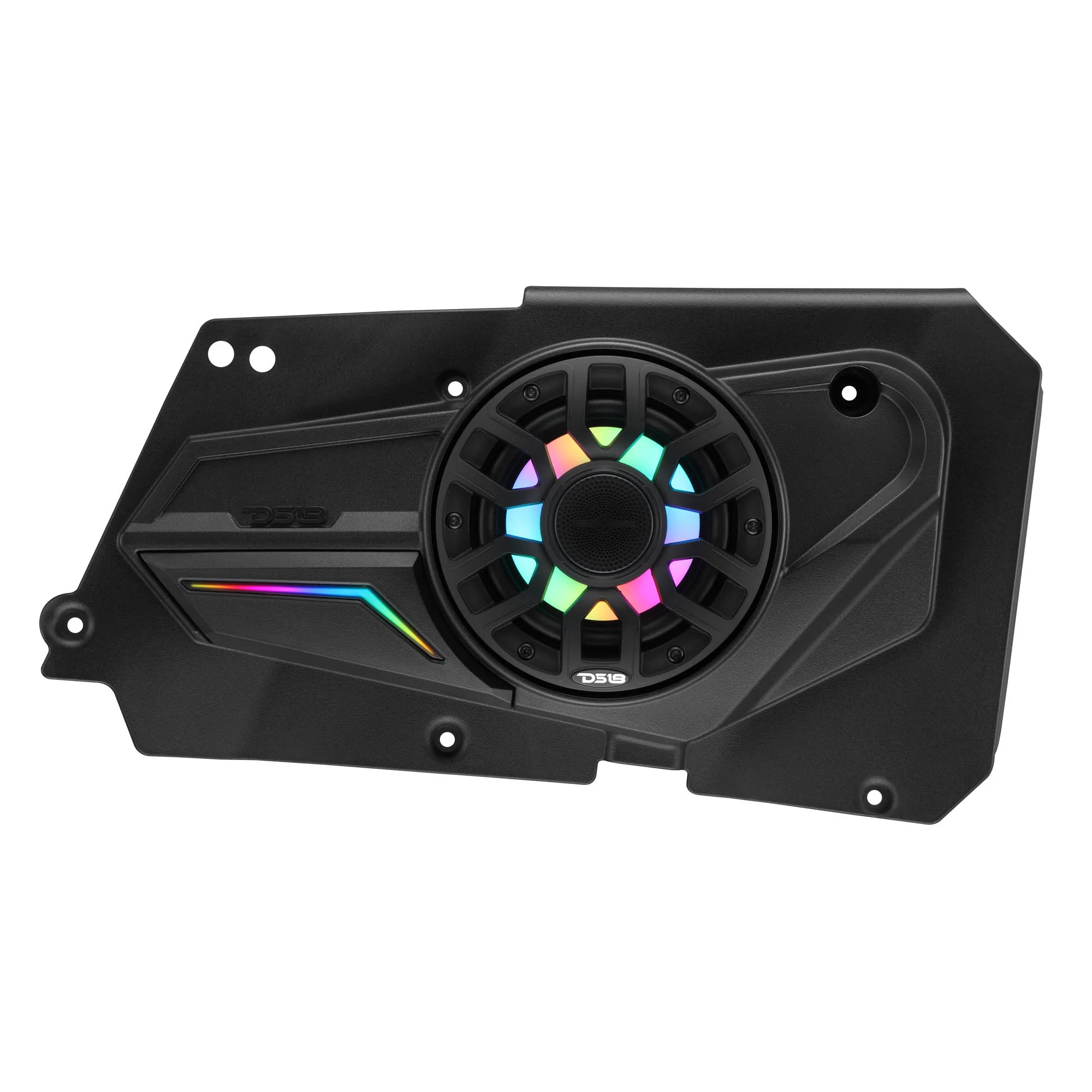

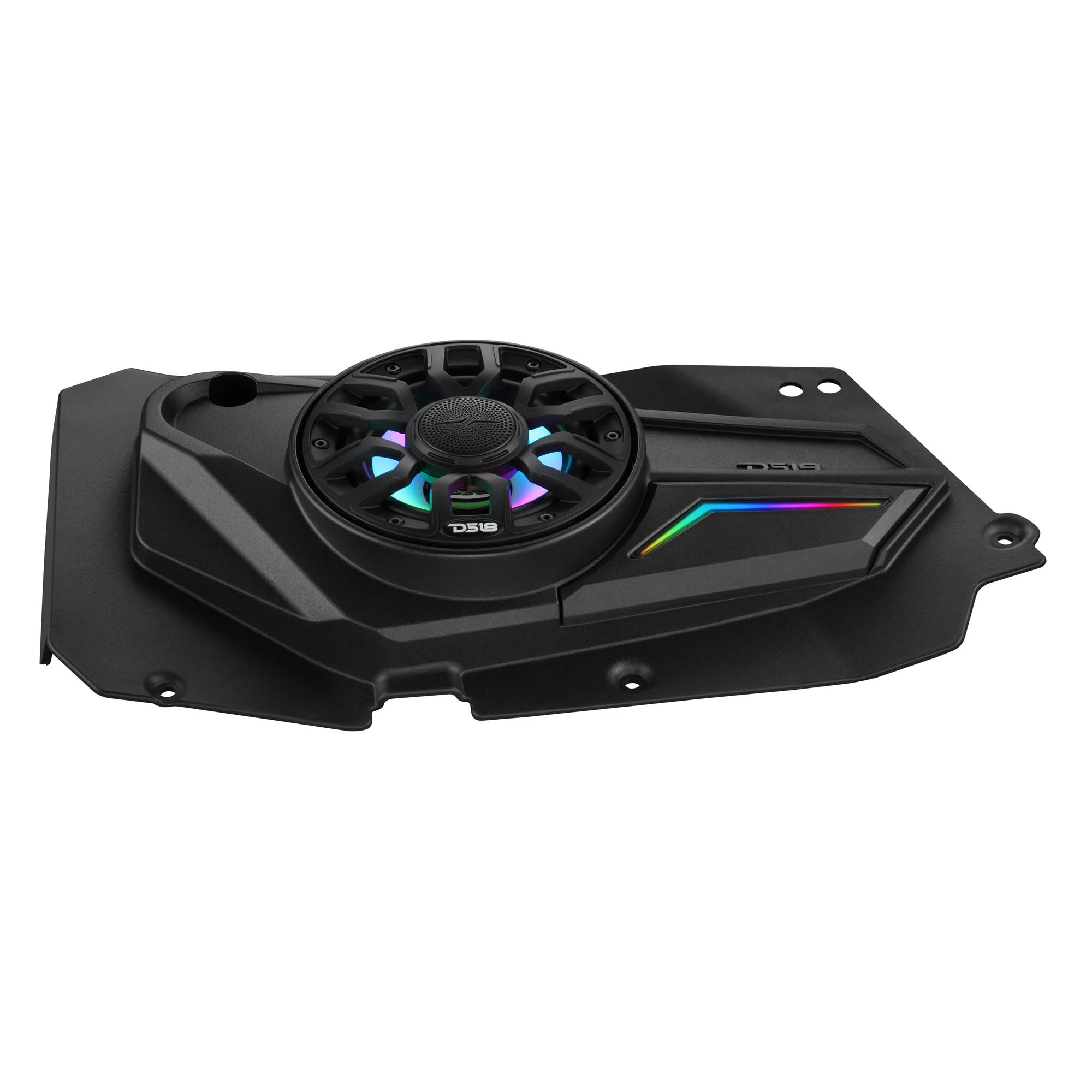

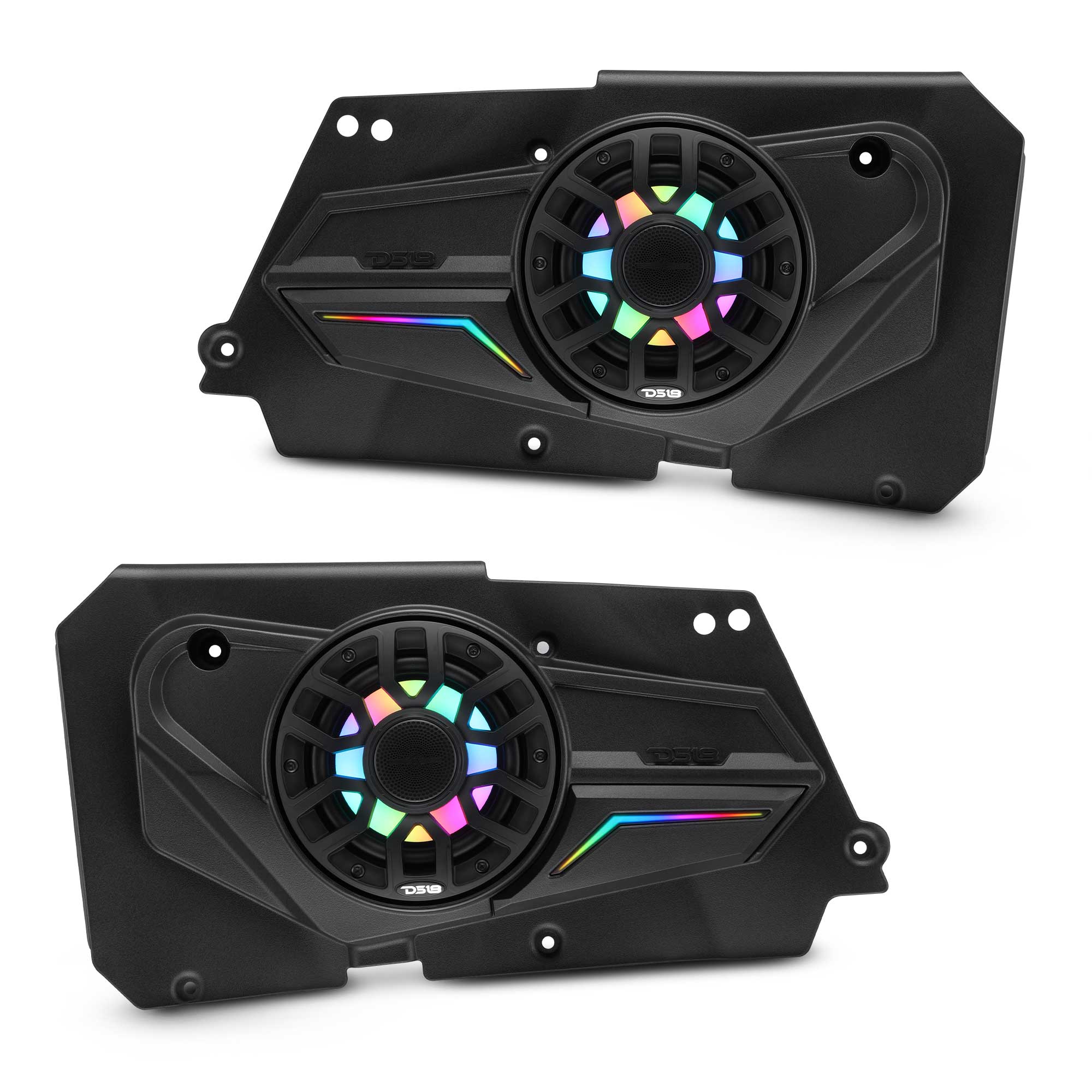

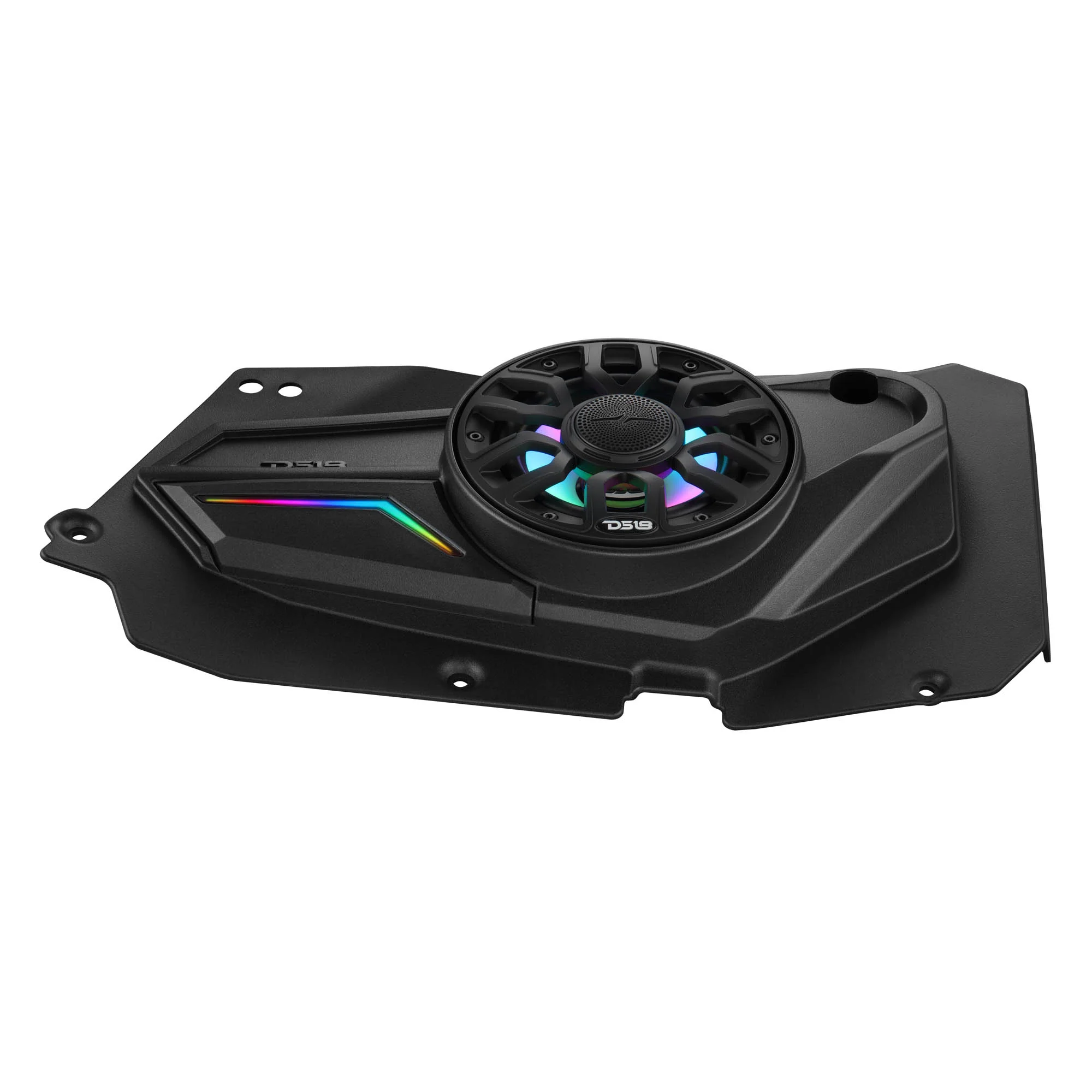

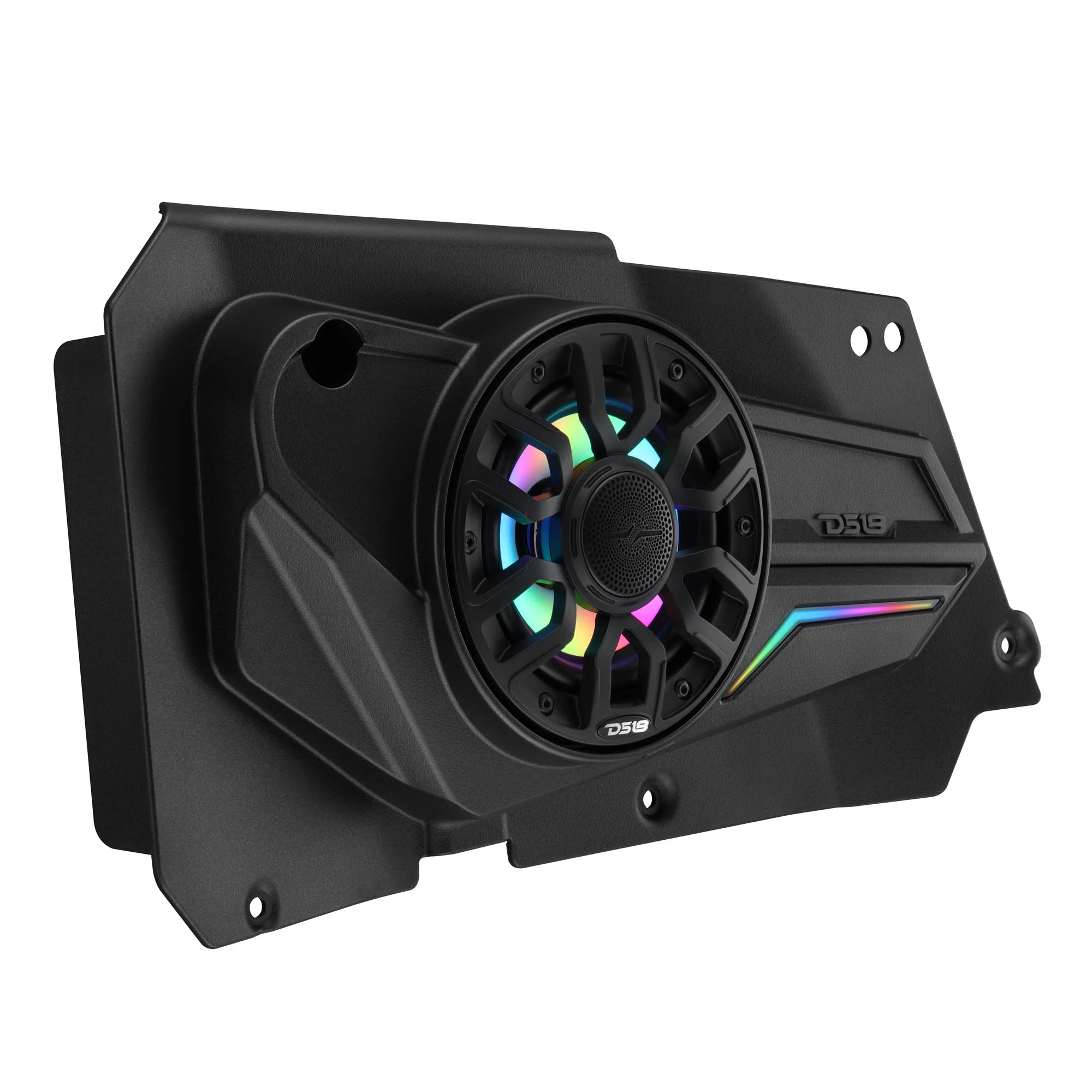

DS18 Polaris RZR-XP 2014-2023 Rear Door Panels Loaded with NXL-iQ 6.5" Coaxial Speakers with Digital LED Lighting
Key Features
- Fits 2014-2023 Polaris RZR-XP 4-Door Models
- Loaded with NXL-IQ6/BK coaxial speakers - 150W RMS / 300W MAX
- Digital LED Lighting for Custom Style
- IP65 Water-Resistant Polyethylene Panels
- OEM Fit - Easy Installation
General
Panel Type
Front Bafle
Panel Material
Polyethylene (PE)
Finish Material
Black / OEM Texture
UV Protection
Yes
IP Rating
IP65
Input Wire
LED + SPK 5 Core OFC Tinned (2ft / 0.6m)
Sold in Pair or Single
Pair (Left & Right)
OEM Fit
Yes
Compatible Model / Year
RZR-XP / 2014-2023 / 4 Doors Model
Compatible Speaker Model
Speaker Specifications (NXL-IQ6/BK)
Speaker Type / Size
6.5" Marine Grade Coaxial Speaker with Digital LED Lights and Bullet Tweeter
Total Impedance
4-Ohm
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
95dB
Frequency Response
45Hz - 20KHz
Recommended High-Pass Crossover
60Hz
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
Polypropylene Injected (PPI)
Surround Material
Rubber
Basket Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Ferrite + Neodymium
Magnet Weight
13 oz + 1.1oz
Tweeter Specifications (NXL-IQ6/BK)
Speaker Type
Floating Bullet Tweeter
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum
Bullet Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Neodymium (N35H)
Magnet Weight
0.4 Oz
Measurement
Panel Overall Height
11.8" / 300mm
Panel Overall Width
20.37" / 517mm
Panel Overall Depth
2.8" / 71mm
Product Overview
Upgrade Your Sound
Take your sound to the next level with the loaded RZR-BD6LD front door panel, featuring the NXL-IQ6/BK 2-way coaxial speaker. Designed for 4-door 2014-2023 Polaris RZR-XPs, these loaded front panels keep the volume pumping wherever you go.
Manufacture Fit
These front door panels use polyethylene with a black finish, along with a water resistance level of IP65, to give you a durable and stylish OEM fit and texture to your RZR-XP.
High-Quality Speakers
The NXL-IQ6/BK coaxial speakers give your RZR-XP a real boost with a power rating of 150W RMS / 300W MAX and a frequency response of 45Hz-20kHz. A floating bullet tweeter balances out the booming sounds with clear and crisp highs, courtesy of an aluminum diaphragm and neodymium magnets.
Personalize Your Sound
Digital LED lights give both your panels and speakers extra flair with changeable lights and colors to match your mood and vibe. The LED lights are controlled with the LC-DRM (sold separately) via the LC app (available on Android and iOS).
Take on the Trail
Made for the adventurous, the RZR series gives you quality performance, from speakers and amplifiers to enclosures and pocket mounts. With DS18, your RZR is ready for anything.
