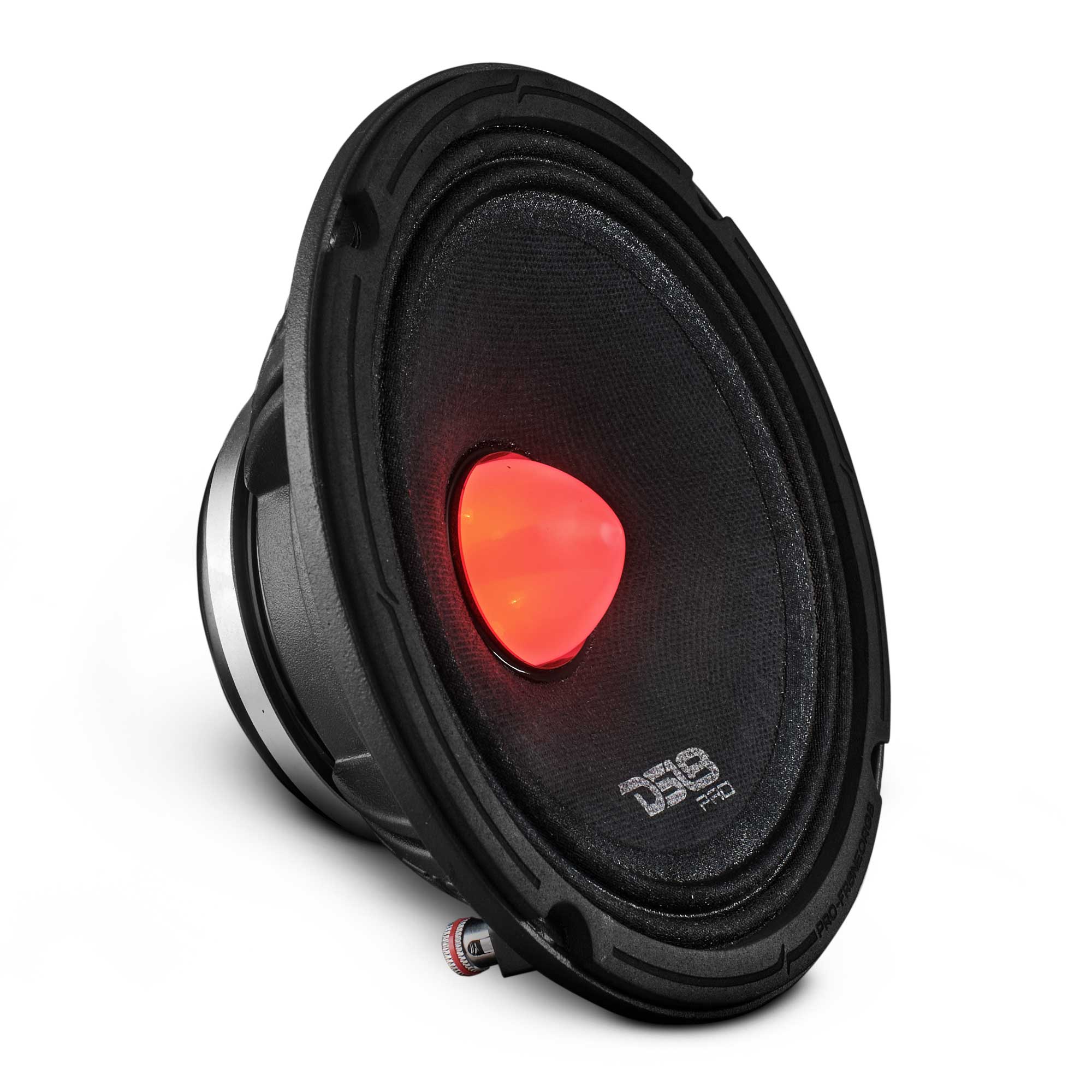

DS18 PRO 6.5" NEODYMIUM FULL RANGE RGB BULLET LOUDSPEAKER 225 WATTS

Specifications

SKU
PRO-FR6NEO
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohms
RMS Power Handling
225W
MAX Power Handling
450W
Sensitivity (1w/1m)
96dB
Frequency Response
200Hz-16KHz
Recommended HI Pass Crossover
200HZ
Sold in Pair or Single
Single
Grill Included
Yes

Motor

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Bullet Material
CNC Aluminum
Surround Material
Cloth
Basket Material
Aluminum
Magnet Material
Neodymium
Magnet Weight
7.67Oz
Displacement Volume
0.042L / 0.0015ft3

Thiele & Small Parameters

Equivalent Volume Vas
2.11L / 0.074ft3
Excursion (one way) Xmax
0.8mm
Free Air Resonance Fs
166Hz
Mechanical Factor Qms
3.173
Electrical Factor Qes
0.409
Total Factor Qts
0.362
Mechanical Mass Mms
11.31g
Mechanical Compliance Cms
0.08mm/H
BL Factor BL
9.79
Voice Coil Inductance Le
0.472mH
Cone Area Sd
136.85cm2
DC Resistance Re
3.3 ohm

Measurement

Overall Diameter
6.5" / 165 mm
Overall Diameter (With Grill)
7.1" / 181mm
Overall Depth
2.63" / 67 mm
Overall Depth (With Grill)
3.45" / 88mm
Front Mount Baffle Cutout
5.7" / 145 mm
Mounting Depth
2.36" / 60 mm
Motor Diameter
3.54" / 90mm
