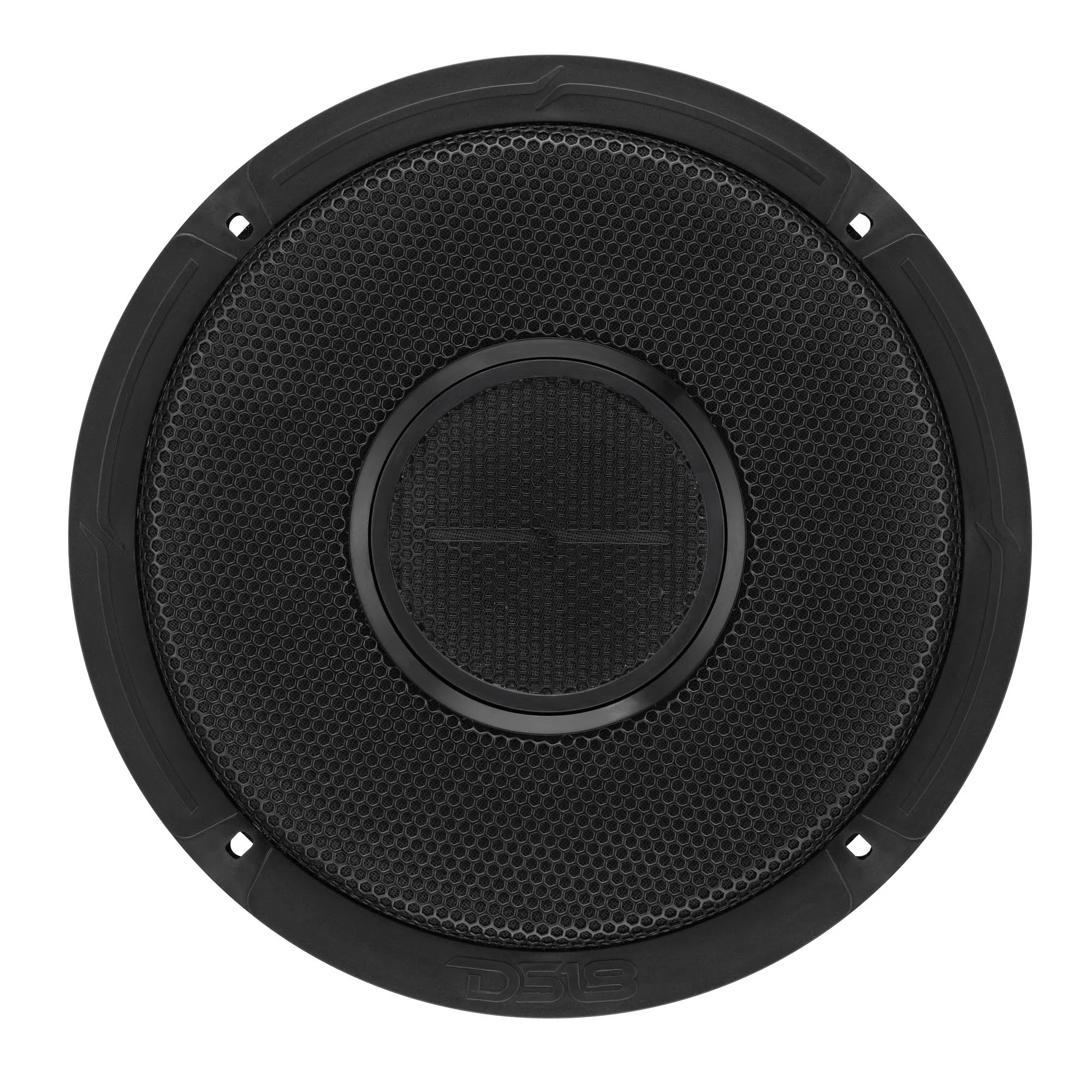

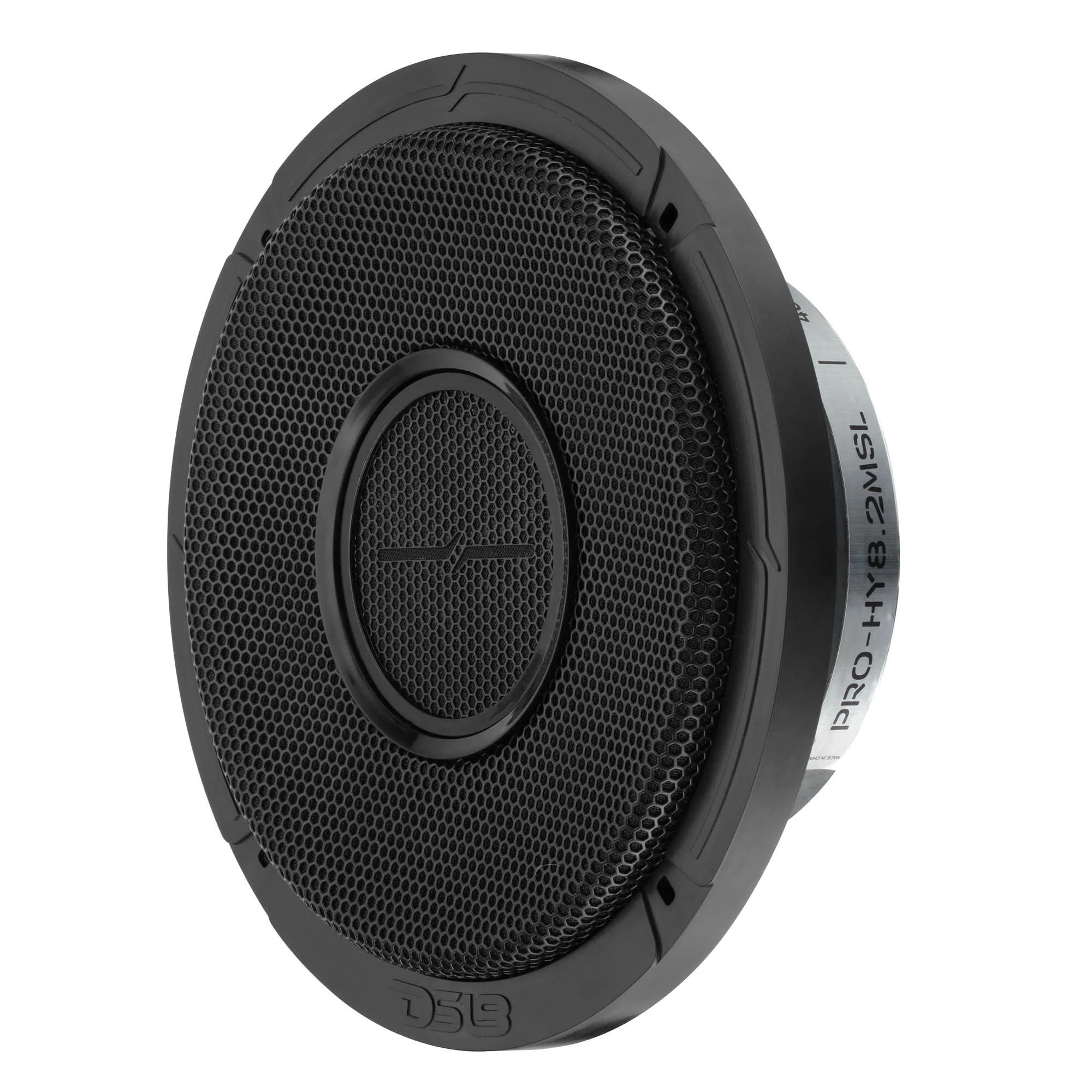

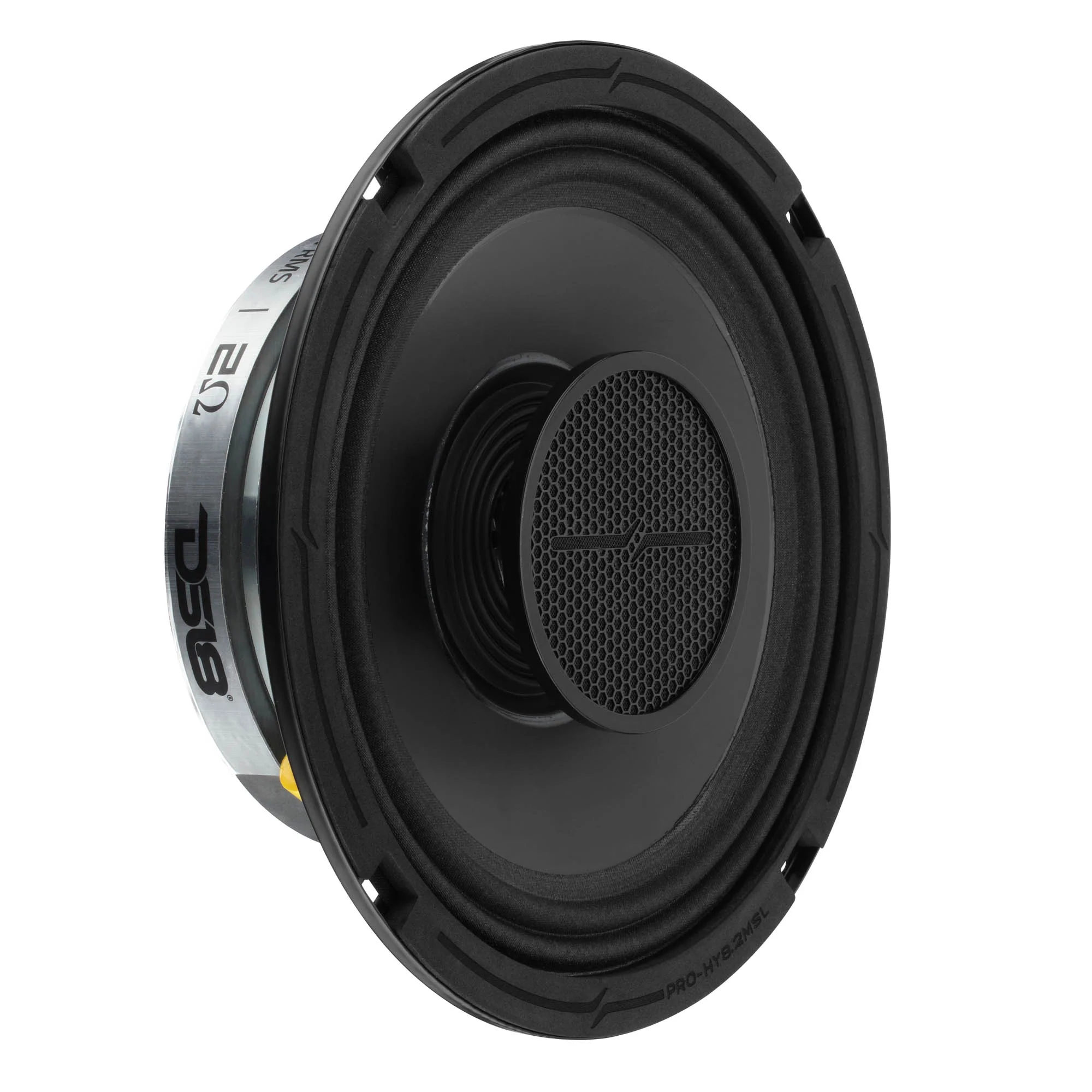

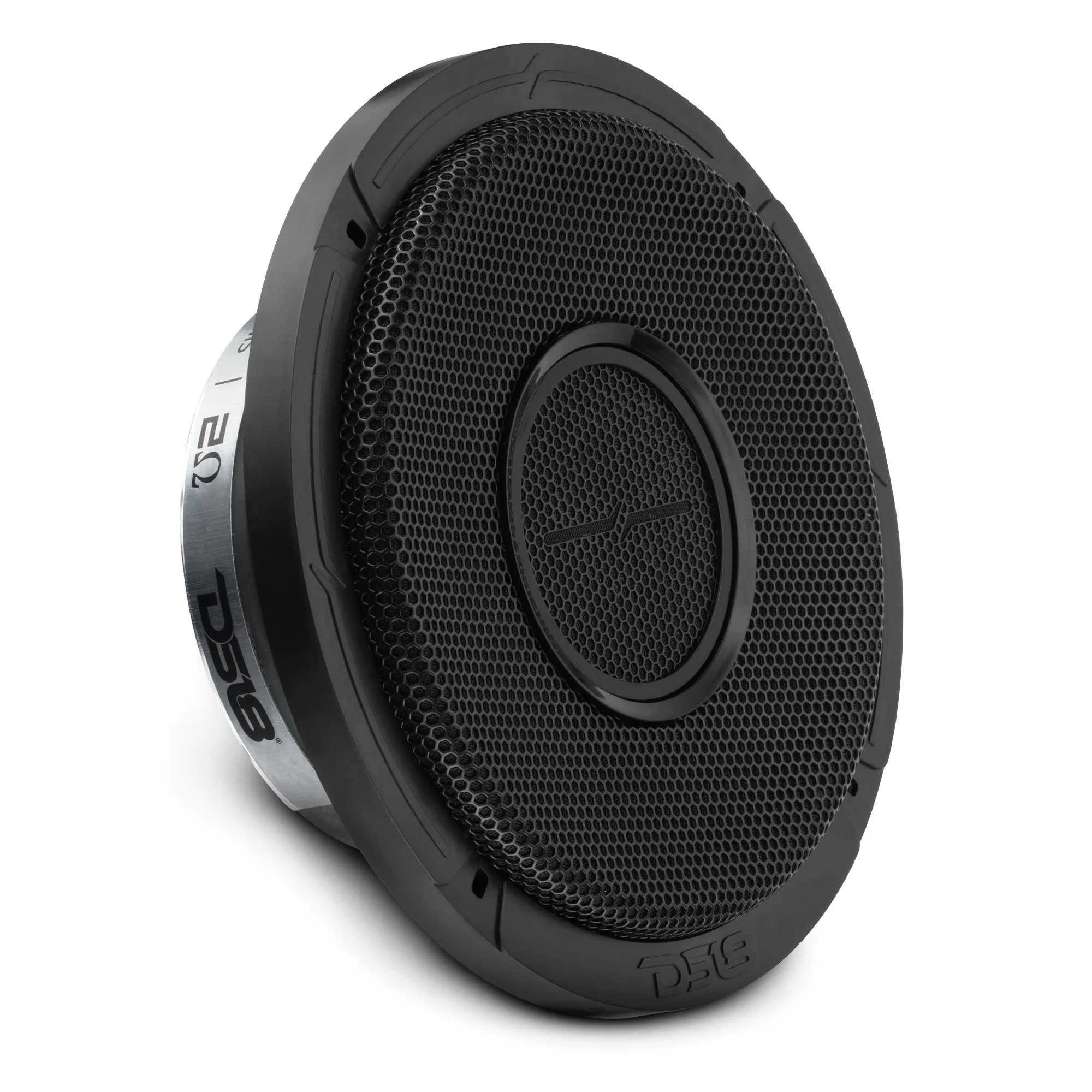

DS18 PRO 8" SLIM HYBRID MID RANGE SPEAKER WITH BUILT IN DRIVER 2 OHM

DS18

Write a Review
SKU:
DS-PRO-HY8.2MSL

Description

DS18 PRO 8" Hybrid Slim Loudspeaker with a 1" Compression Driver Horn | 200W RMS 2-Ohm

Key Features

  • 8" Shallow Hybrid Coaxial Mid-Range w/Driver
  • RMS Power: 200 Watts(400 Watts Peak)
  • Impedance: 2 Ohm ~ 97dB
  • Ferrite & Neodymium Magnets

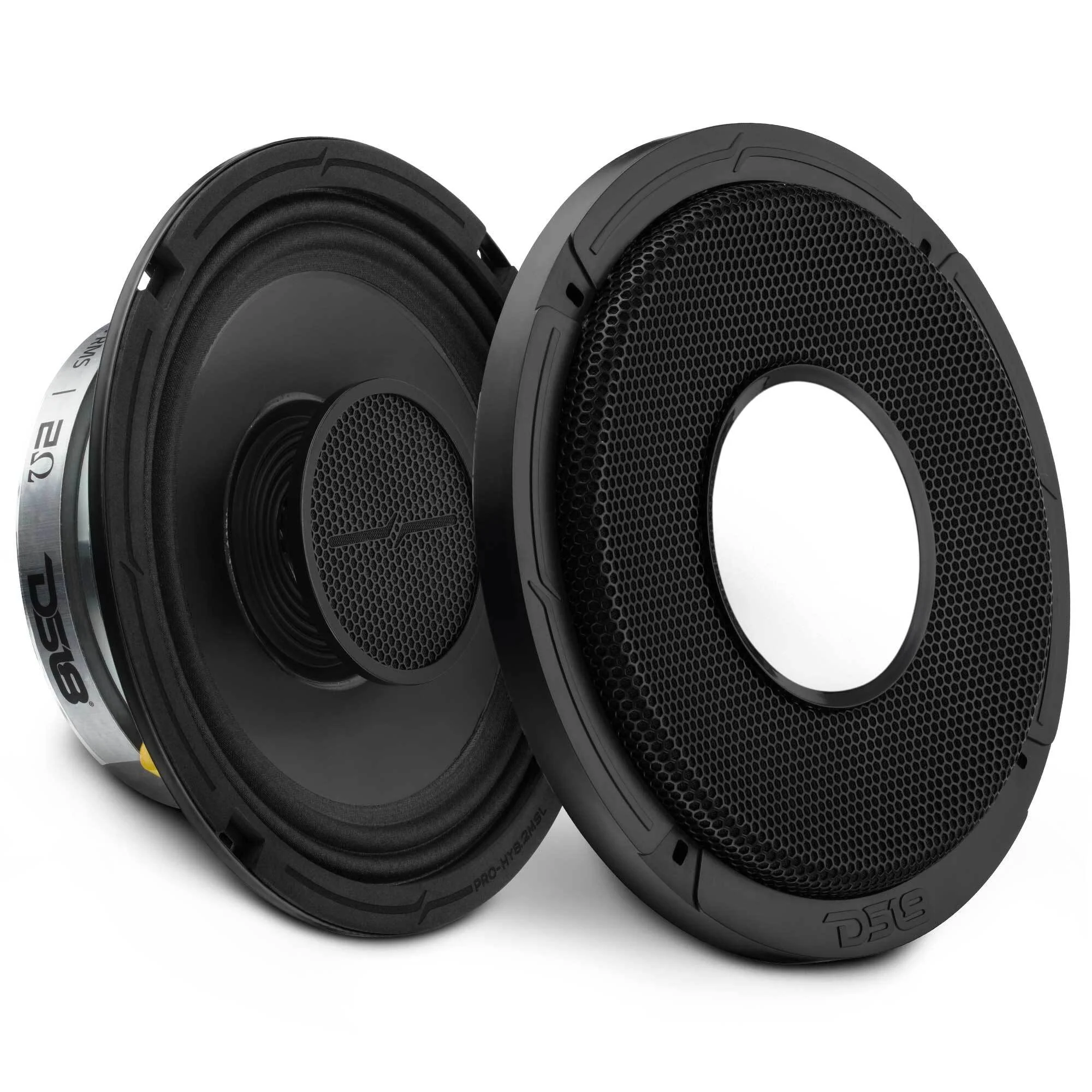

  • With Grill
  • Easily Repaired With The PRO-HY/VC

Specifications

SKU
PRO-HY8.2MSL
Nominal Diameter
8" / 203.2mm
Nominal Impedance
2 Ohms
RMS Power Handling
200W
MAX Power Handling
400W
Sensitivity (1w/1m)
98dB
Frequency Response
100Hz - 20Khz
Recommended HI Pass Crossover
120Hz
Number of Ways
2 ways
Pair or Single
Single
Grill Included
Yes



Woofer Specifications

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
29.5 Oz



Thiele & Small Parameters

Equivalent Volume Vas
9.58L / 0.33ft3
Excursion (one way) Xmax
2mm
Free Air Resonance Fs
106Hz
Mechanical Factor Qms
8.083
Electrical Factor Qes
0.729
Total Factor Qts
0.669
Mechanical Mass Mms
13.886g
Mechanical Compliance Cms
0.147 mm/N
BL Factor BL
4.74
Voice Coil Inductance Le
48.9mH
Cone Area Sd
216.424 Cm2
DC Resistance Re
1.8 ohm
Mechanical Mass w/o air Mmd
12.088g



Driver Specifications

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3" / 76.2mm



Speaker Measurement

Overall Diameter (Without Grill)
8.2" / 209mm
Overall Diameter (With Grill)
8.6" / 219mm
Overall Depth (Without Grill)
3.4" / 86mm
Overall Depth (With Grill)
4" / 104mm
Front Mount Baffle Cutout
7.16" / 182mm
Mounting Depth
3.15" / 80mm
Motor Diameter
5.27" / 134mm

Extra Information

Brand:
DS18
