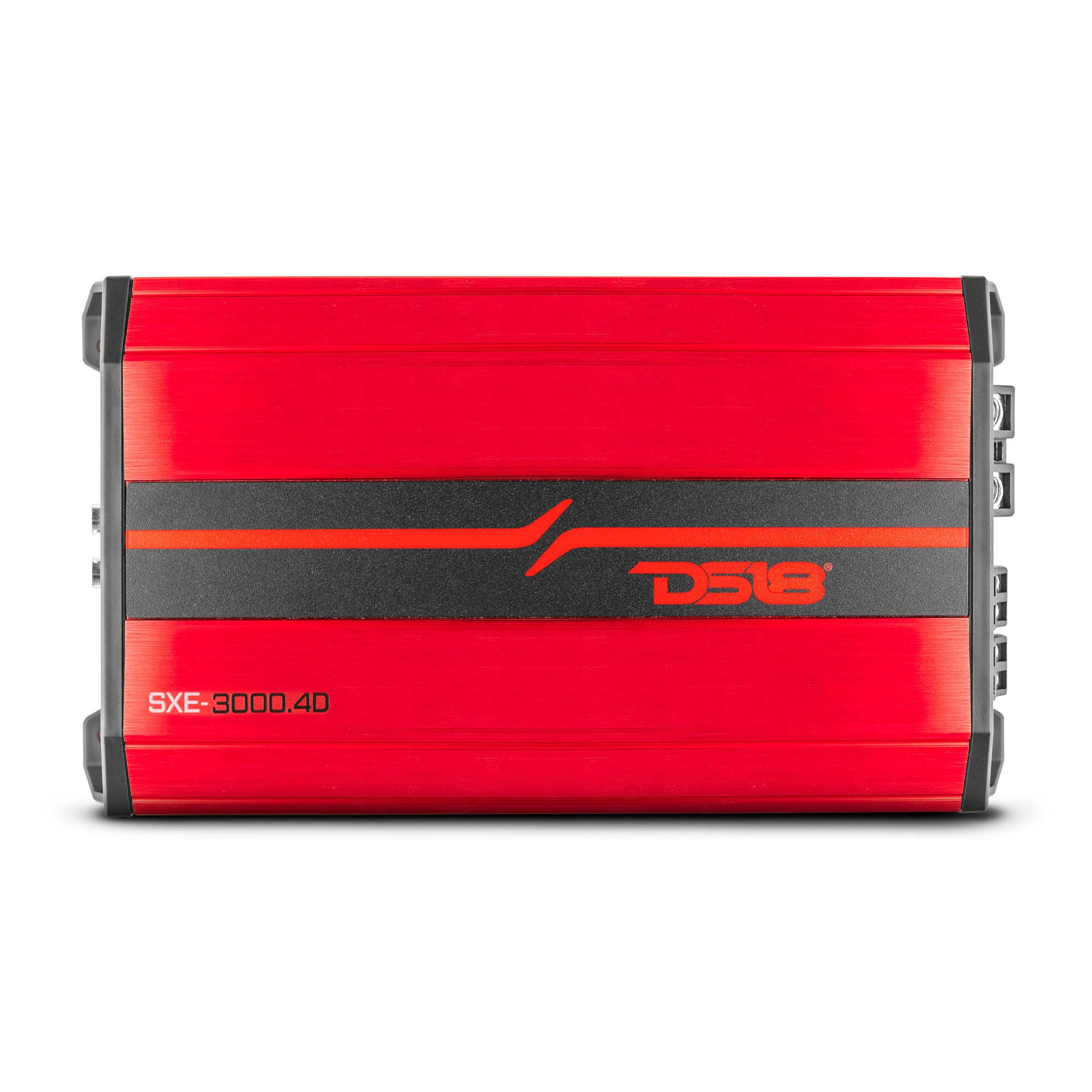

DS18 SELECT SERIES 3000W 4CH AMPLIFIER - RED

SPECS

SKU
SXE-3000.4D
Class
Digital
Amplifier Type
Stereo Full Range
Channels
4 CH
Peak Power
3000W
RMS Power @ 4 Ohm/14.4V
4 x 200W
RMS Power @ 2 Ohm/14.4V
4 x 320W
RMS Power @ 4 Ohm/14.4V Bridged
2 x 500W
Minimum Impedance
2 Ohm Stereo / 4 Ohm Bridge
Operation Voltage
10 - 15V

SPECS

Frequency Response
10Hz-20KHz
Signal/Noise Ratio
90dB
Low Pass Filter
40Hz - 400Hz
High Pass Filter
40Hz - 400Hz
Subsonic
NO
Subsonic Frequency
N/A
Efficiency @ 4 Ohm
88%
Damping Factor
140
THD %
0.05%
Input Sensitivity
0.2V - 6V
X-Over Filter Range
40HZ-2KHZ
Bass Boost Range
NO
Bass Boost Frequency
N/A
Phase Selector
NO

SPECS

High Level Input
NO

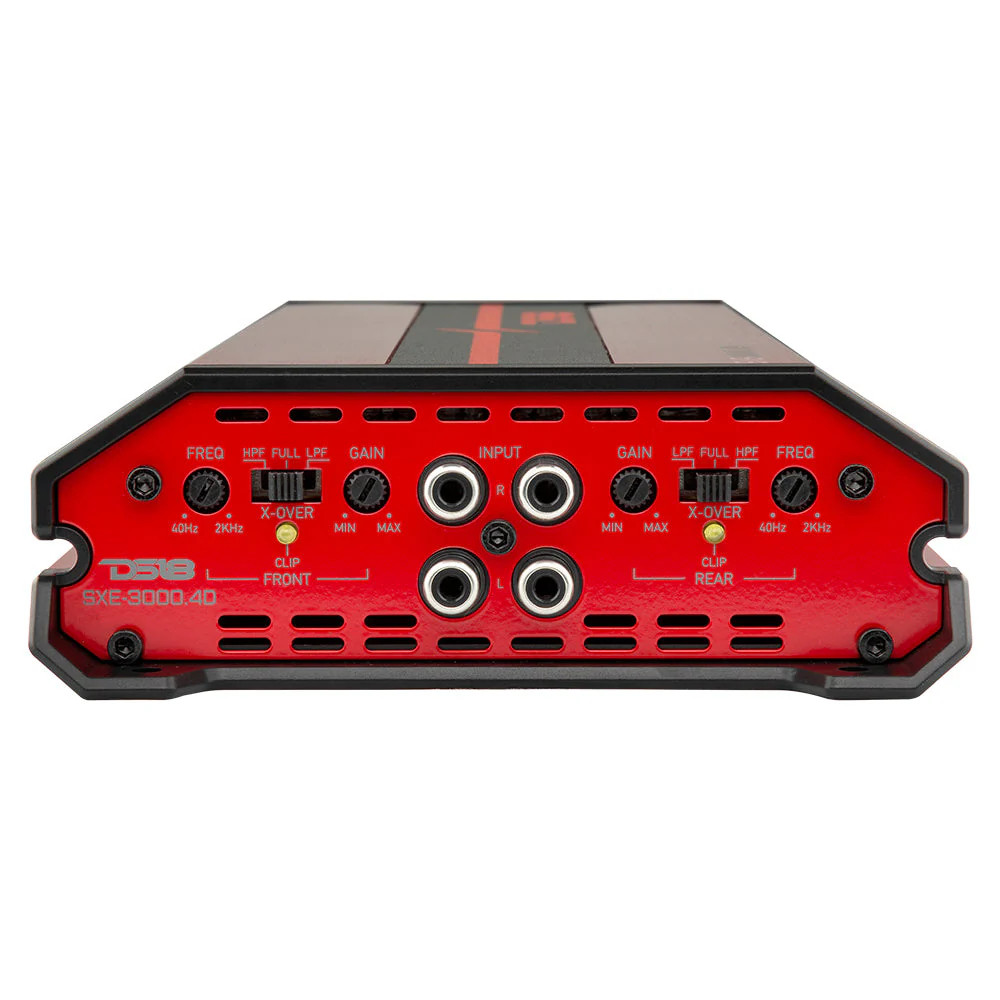

Selectable X-Over
HPF/FULL/LPF
Led Indicator
Power/Protect/Clip
Voltage Input Protection
Yes (16.5v)
Clipping Protection
Yes
Thermal Protection
Yes

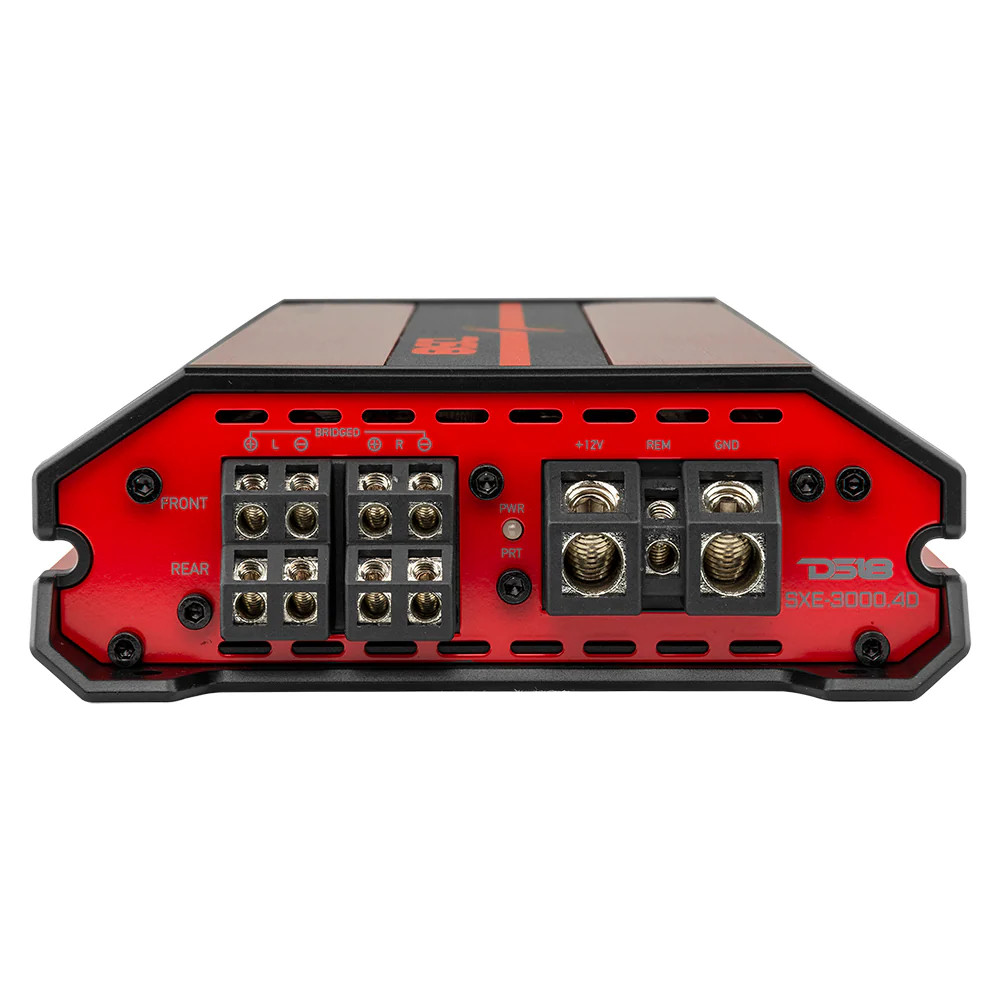

Speaker Output Size
12GA
Power Input Size
4GA
Fuse Rating
40A x 2
Remote Level Control
NO
Body Color / Finish
Red / Black Brushed Aluminum

MEASUREMENTS

Overall Length
9.8" / 249.3mm
Overall Wide
5.5" / 140mm
Overall Height
1.8" / 48mm
Heatsink Length
8.34" / 212mm
Gross Single Unit Weight
1.86KG
