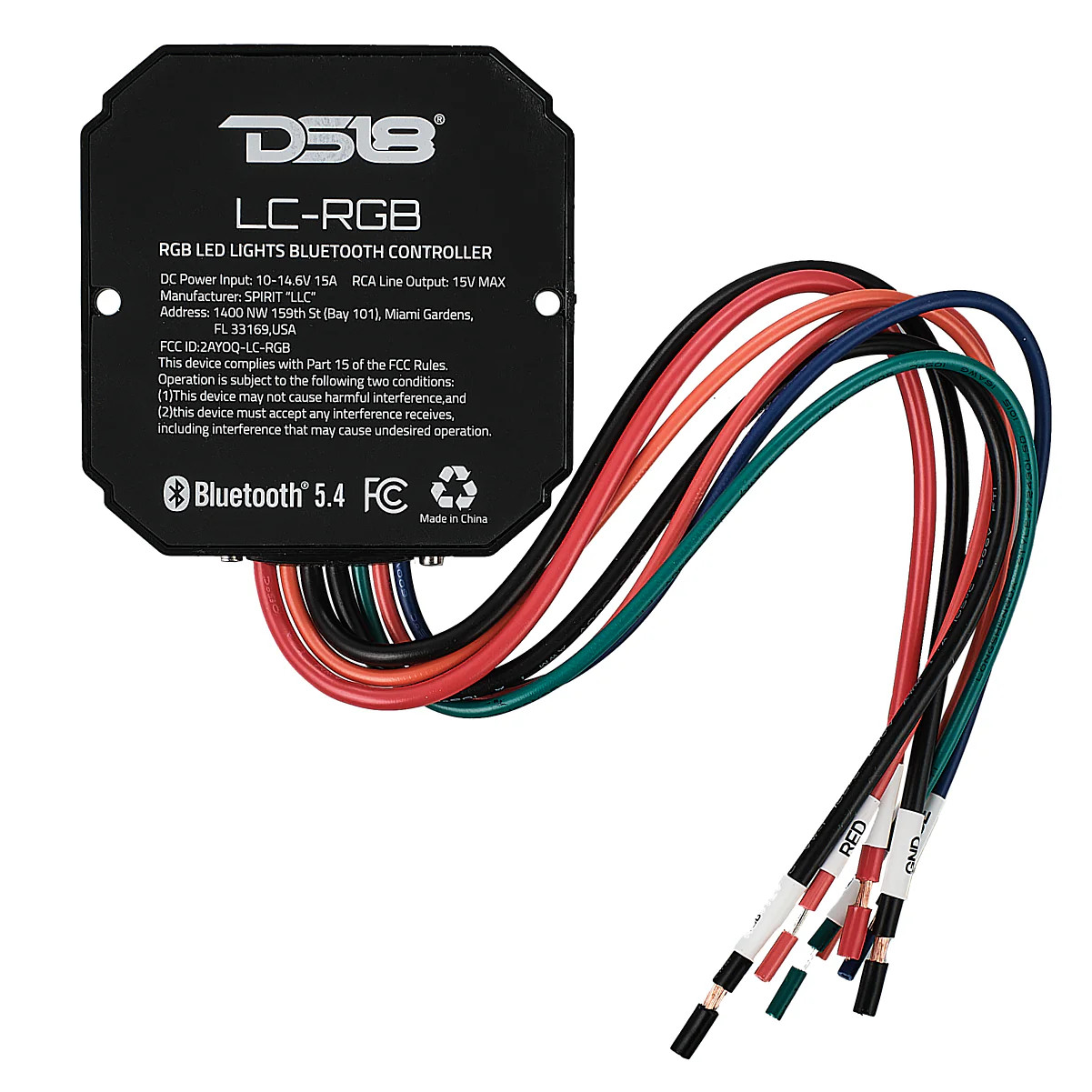

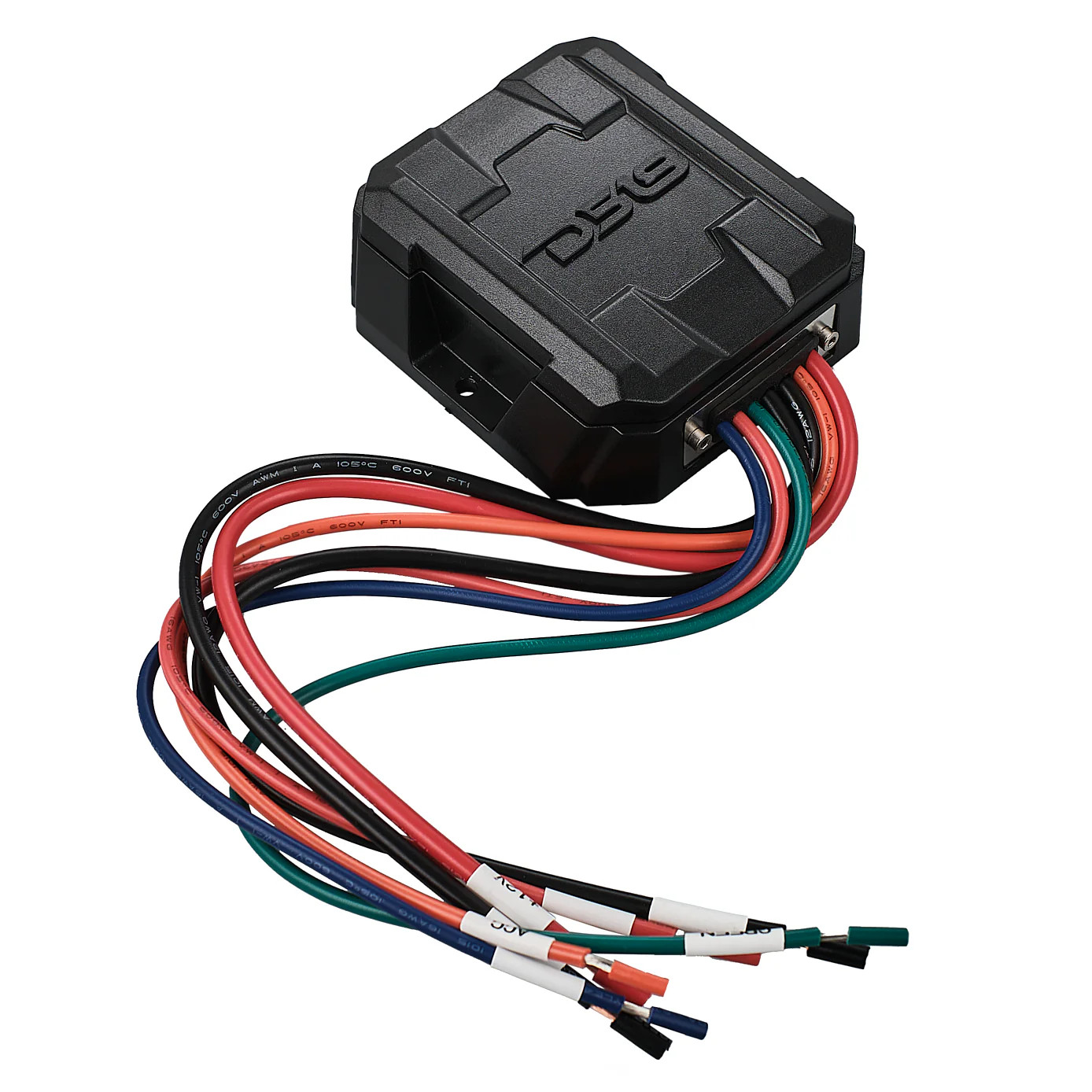

DS18 WATERPROOF HIGH AMP RGB LED BLUETOOTH CONTROLLER

Specifications

SKU
LC-RGB
Voltage Operation
10~15 DC Volts
Fuse Size
20A (Built-In)
Waterproof Rating
IP66
Buttons / Controls
APP Control
Body Material / Color / Finish
PC / Black
Short Circuit Protection
Yes (>25A)
Max Output Power (Total)
180W
Max Output Current (Total)
15A
Max Output Current (Per Color)
5A
Number of Channels (Colors)
3 (Red/Green/Blue)

Bluetooth Specifications

Version
5.4
Services
BLE 2Mbps
Bluetooth Name
DS18 LC-RGB
Range
>100ft / >30m
Supported Devices
IOS / ANDROID

Measurement

Overall Length
3.3" / 86mm
Overall Width
3.2" / 83mm
Overall Height
1" / 27mm
Input Wires Length / Size
9.8" / 250mm (12/16 AWG)
Output Wires Length / Size
9.8" / 250mm (12 AWG)

Shipping Info

Gross Single Unit Weight
0.16 g
Single Unit Box Dimensions W x L x H
18.2X9.7X3.6CM
Quantity of Units in Master Carton
40PCS
Gross Master Carton Weight
8.6 kg
Master Carton Dimensions W x L x H
39.5X38.5X23CM
