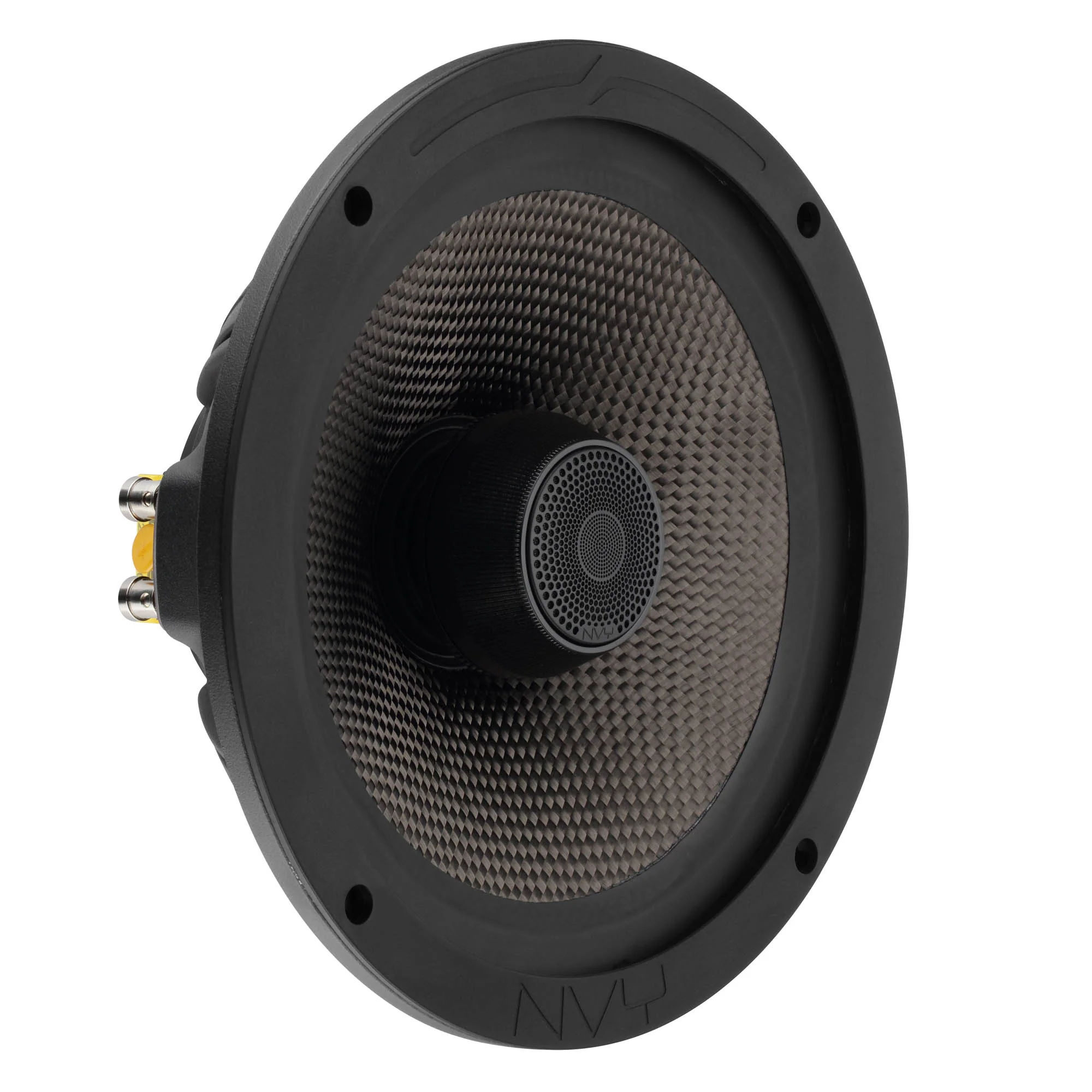

NVY AUDIO 8" Coaxial Sealed Back Loudspeaker with Bullet Tweeter and Neodymium Magnet | 300W RMS 4-Ohm

NVY AUDIO 8" Coaxial Sealed Back Loudspeaker with Bullet Tweeter and Neodymium Magnet | 300W RMS 4-Ohm (PAIR)

•

  Carbon Fiber Cone

•

  Super Tweeter

•

  High Sensitivity

•

  Water-Resistant IP65

•

  Neodymium Magnet

•

  Perfect for Motorcycles and Powersports

The Ultimate Combo

Take your sound system to the next level with the NVY-6CFZTSEALED-N4 sealed coaxial loudspeaker. Combining the power and quality from carbon fiber, bullet, and neodymium, this speaker packs plenty of punch wherever you go.



Powerful Audio

Featuring a bullet tweeter for direct and clear sound, these 8" coaxial loudspeakers have a power rating of 300W RMS / 600W MAX, sensitivity of 99dB, and a frequency response of 360Hz-20kHz.



Lightweight Strength

Neodymium magnets give these hybrid loudspeakers extra power without extra weight or space, making it ideal for those wanting a powerful but compact audio solution.

Made Tough

The carbon fiber cone keeps the loudspeaker durable through all sorts of terrain, while the water resistance of IP65 ensures you can keep the party going no matter what elements you face.





• General Specifications
• Nominal Diameter: 8" / 203mm
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 300W
• MAX Power Handling: 600W
• Sensitivity (1w/1m): 99dB
• Frequency Response: 300Hz–20kHz
• Recommended High-Pass Crossover: 400Hz
• Number of Ways: 2-Ways
• Water-Resistant Rated: IP65
• Sold as: Pair
• Grill Included: No

• Woofer Specifications
• Voice Coil Diameter: 1.5" / 38.6mm
• Voice Coil Former Material: Glass Fiber
• Winding Material: CCAW
• Cone Material: Carbon Fiber
• Surround Material: Rubber (PU)
• Basket Material: Aluminium
• Basket Color: Matte Black
• Magnet Material: Neodymium
• Magnet Weight: 8 Oz
• Demodulating Rings: Yes
• Cone Shape: Curvilinear
• Speaker Terminals: 2 x Push 16ga (WF/TW)

• Thiele & Small Parameters
• Equivalent Volume: 0.296L / 0.01ft³
• Excursion (One Way): 1mm
• Free Air Resonance: 400Hz
• Mechanical Factor: 3.445
• Electrical Factor: 1.997
• Total Factor: 1.264
• Moving Mass: 29.682g
• Mechanical Compliance: 0.005mm/N
• BL Factor: 11.031
• Voice Coil Inductance: 0.116mH
• Cone Area: 201.06cm²
• DC Resistance: 3.4 Ohms

• Tweeter Specifications
• Type: Bullet
• Nominal Diameter: 2" / 50.8mm
• Voice Coil Diameter: 1" / 25.5mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: Aluminium
• Magnet Material: 0.4 Oz
• Magnet Weight: Neodymium (N35H)

• Speaker Measurements
• Overall Diameter: 8.2" / 210mm
• Overall Depth: 3.7" / 93.5mm
• Front Mount Baffle Cutout: 7" / 179mm
• Mounting Depth: 3.2" / 81mm
• Motor Diameter: 3.5" / 90mm
