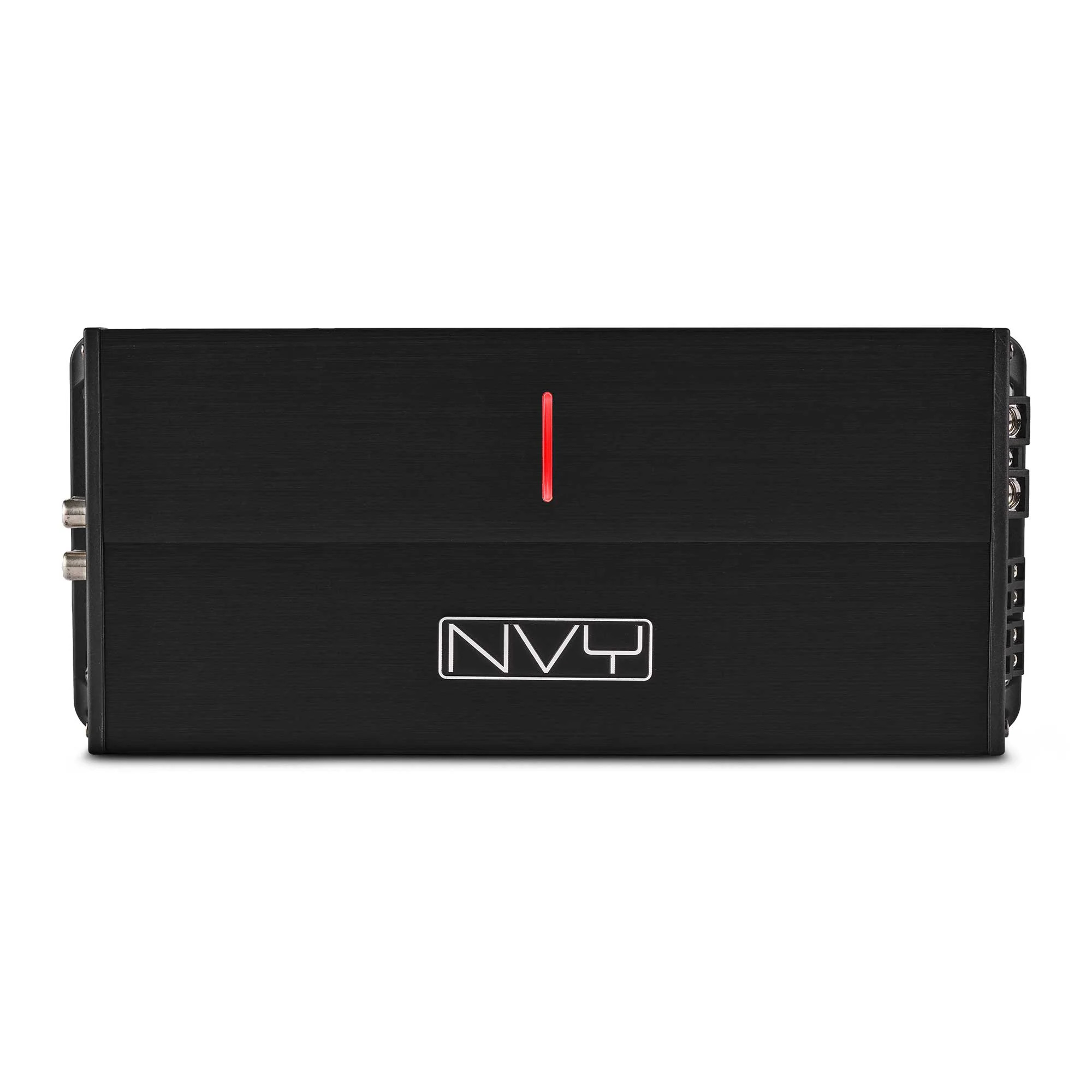

NVY Full Range 4-Channel Amplifier 4 x 800 Watts RMS @ 2-Ohm

• Power
• Total Watts (Peak): 3200W
• RMS Power @ 4 Ohms: 4 x 500W
• RMS Power @ 2 Ohms: 4 x 800W
• RMS Power @ 4 Ohms Bridge: 2 x 1100W

• Audio
• Frequency Response: 10Hz – 31kHz
• Signal to Noise Ratio: 102dB
• Efficiency @ 4 Ohms: 88%
• Damping Factor: 200
• Input Impedance: 10k Ohms
• Channel Separation: 52dB
• Total Harmonic Distortion (THD): 1.00%
• Low-Level Input Range: 0.2 – 6V
• High-Level Input: Yes, with Auto Turn-On
• Selectable Crossover: LPF / HPF / FULL
• Crossover Filter Range: 40Hz – 2kHz

• Features
• Amplifier Class: Digital
• Amplifier Type: Full-Range Stereo
• Number of Channels: 4 Channels
• Minimum Impedance: 2 Ohm (Stereo) / 4 Ohms (Bridge)
• LED Indicators: Power | Protection | Clipping
• Power Input Terminal Size: 4 AWG
• Fuse Size: 340A (External)
• Cooling Fan: Yes
• Thermal Protection: Yes
• Overload Protection: Yes
• DC Output Protection: Yes
• Short Circuit Protection: Yes
• Voltage Input Protection: Yes
• Clipping Protection: Yes
• High-Level Speaker Connector: Yes
• Tiffany RCA Terminal: Yes
• LED Clip Indicator: Yes
• High-Efficiency Micro Digital Design: Yes
• Body Color / Finish: Black / Aluminum

Durability You Can Trust

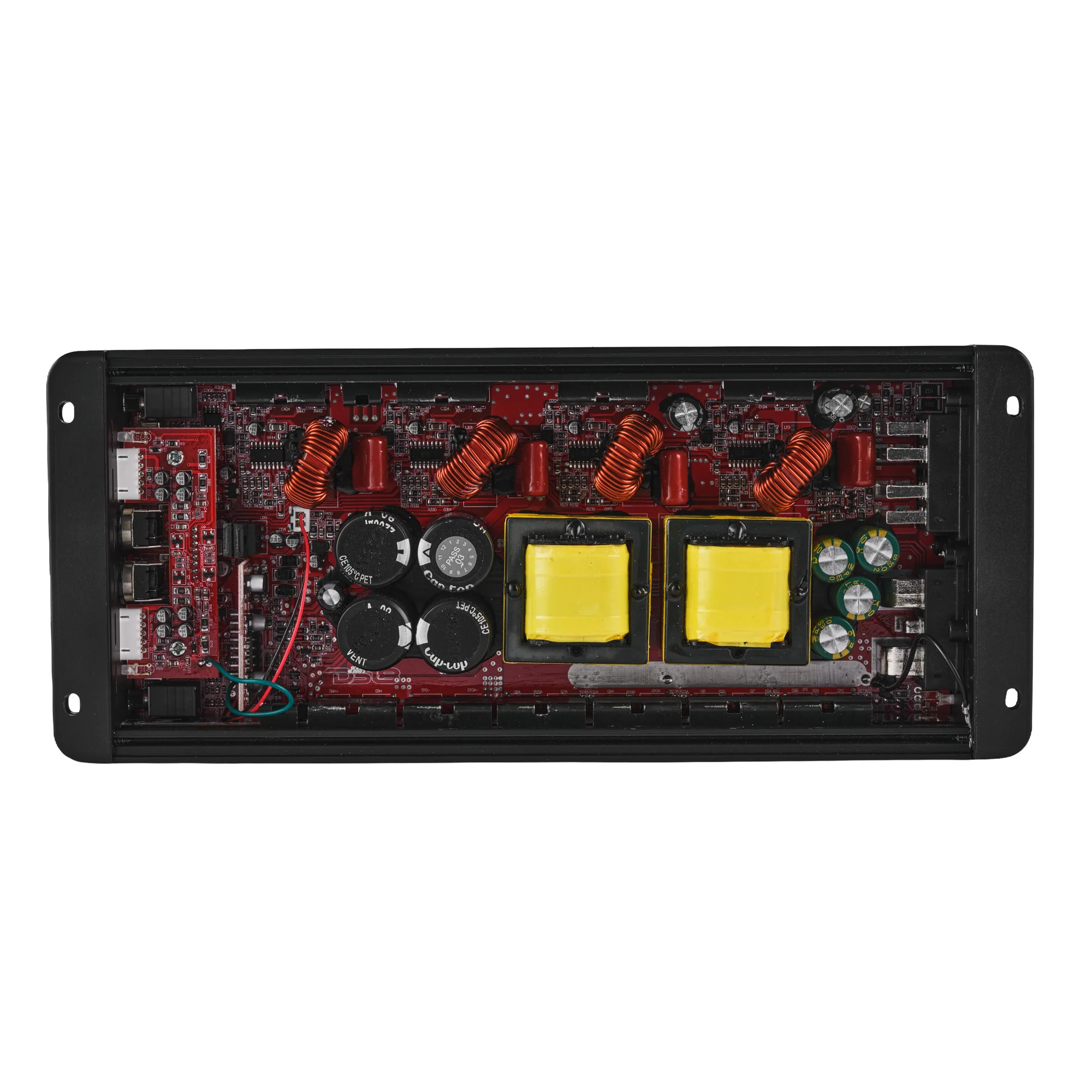

With a stable and reliable digital circuit design, this amplifier features bonded components for extra vibration protection. Its protective coating prevents moisture corrosion on the PCB, enhancing long-term durability. Fully variable crossover filters give you the flexibility you deserve.



Maximized Performance

The NVY-i800.4D features a Class D design for high efficiency, minimizing power loss and heat. Its compact size allows for compatibility with a wide range of installations, and it includes high-level input with auto turn-on for easy integration into factory systems.

Built-In Protection

This amplifier features power, protection, and clipping LED indicators, keeping you informed about your system’s status. With short-circuit, thermal, DC offset, and high/low voltage protection, it stands as one of the most reliable units in its class. An integrated cooling fan keeps performance consistent under demand.
