Description
FD1A-RSX
RadioPRO Advanced Interface for Select Ford Vehicles with CAN bus
An all-in-one radio replacement and SWC interface, the innovative RadioPRO Advanced comes pre-loaded with amplifier retention and SWC software, navigation-based output signals, and other features that save time and money during installation. Retains steering wheel controls (pre-programmed). Data-controlled accessory and navigation outputs. Retains factory amplifier. Retains Rear Seat Controls. Provides factory RSE activation. Updatable using the PAC-UP.
FEATURES
- 12V ACC output (RAP)
- Vehicle Speed Sense (VSS)
- Retains factory amplifier
- Illumination
- Reverse Trigger
- Parking brake output
- Does not retain SYNC.
- Factory amplified Systems will not fade as neither the aftermarket radio or the RP interface have the ability to control the amplifier’s fader.
Vehicle Specific Notes

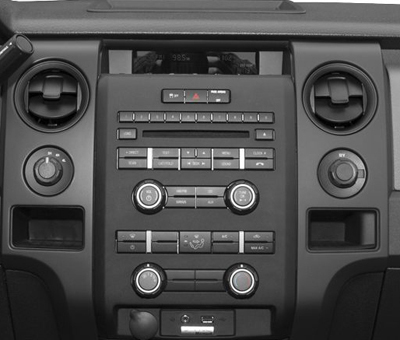

- 2013-2014 F-150: Only compatible in base model trucks equipped with the center stack radio (pictured below)
- 2008 - 2010 F-250/350/450: Not compatible with model trim XL (fleet vehicles). These vehicles do not have the necessary CAN bus signals
- 2013 -2016 Ford Super Duty: Only compatible in base model trucks equipped with the double DIN radio (pictured below)
| Year(s) | Make | Model | Compatible feature(s) | Not compatible feature(s) |
|---|---|---|---|---|
| 2007-2010 | FORD | EDGE | ||
| 2008-2012 | FORD | ESCAPE | ||
| 2007-2014 | FORD | EXPEDITION | ||
| 2006-2010 | FORD | EXPLORER | ||
| 2007-2010 | FORD | EXPLORER SPORT TRAC | ||
| 2009-2012 | FORD | F-150 | ||
| 2013-2014 | FORD | F-150 | Center Stack | MyTouch |
| 2008-2010 | FORD | F-250 | All other trim levels | XL |
| 2011-2012 | FORD | F-250 | ||
| 2013-2016 | FORD | F-250 | Base Model (Double DIN) | MyTouch |
| 2008-2010 | FORD | F-350 | All other trim levels | XL |
| 2011-2012 | FORD | F-350 | ||
| 2013-2016 | FORD | F-350 | Base Model (Double DIN) | MyTouch |
| 2008-2010 | FORD | F-450 | All other trim levels | XL |
| 2011-2012 | FORD | F-450 | ||
| 2013-2016 | FORD | F-450 | Base Model (Double DIN) | MyTouch |
| 2013-2016 | FORD | F-550 | Base Model (Double DIN) | MyTouch |
| 2005-2007 | FORD | FIVE HUNDRED | ||
| 2009-2012 | FORD | FLEX | ||
| 2008-2011 | FORD | FOCUS | ||
| 2005-2007 | FORD | FREESTYLE | ||
| 2006-2012 | FORD | FUSION | ||
| 2005-2013 | FORD | MUSTANG | ||
| 2010-2012 | FORD | TAURUS | ||
| 2009-2012 | LINCOLN | MKS | ||
| 2010-2012 | LINCOLN | MKT | ||
| 2007-2010 | LINCOLN | MKX | ||
| 2007-2012 | LINCOLN | MKZ | ||
| 2007-2014 | LINCOLN | NAVIGATOR | ||
| 2006 | LINCOLN | ZEPHYR | ||
| 2009-2011 | MAZDA | TRIBUTE | ||
| 2008-2011 | MERCURY | MARINER | ||
| 2006-2011 | MERCURY | MILAN | ||
| 2005-2007 | MERCURY | MONTEGO | ||
| 2006-2010 | MERCURY | MOUNTAINEER |
