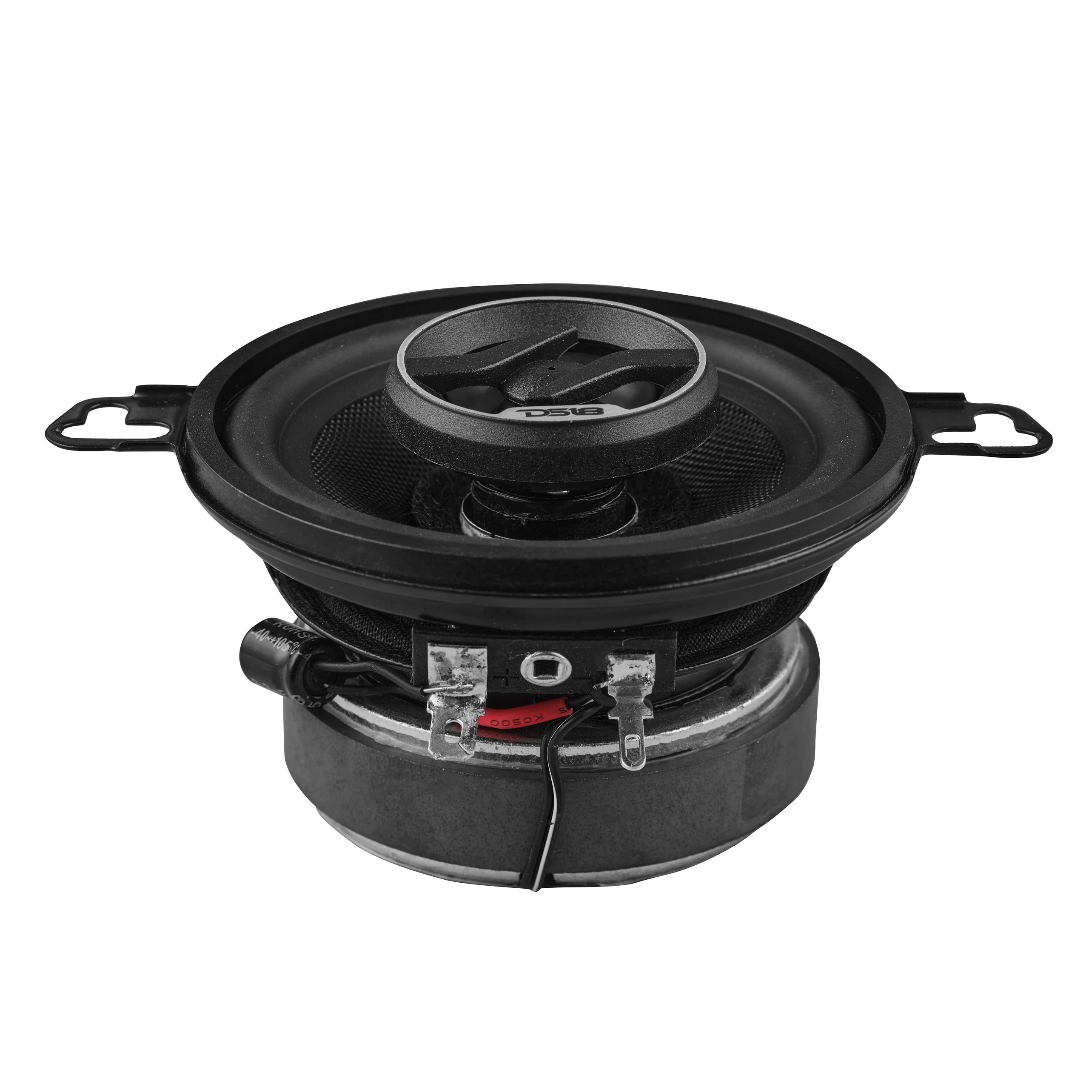

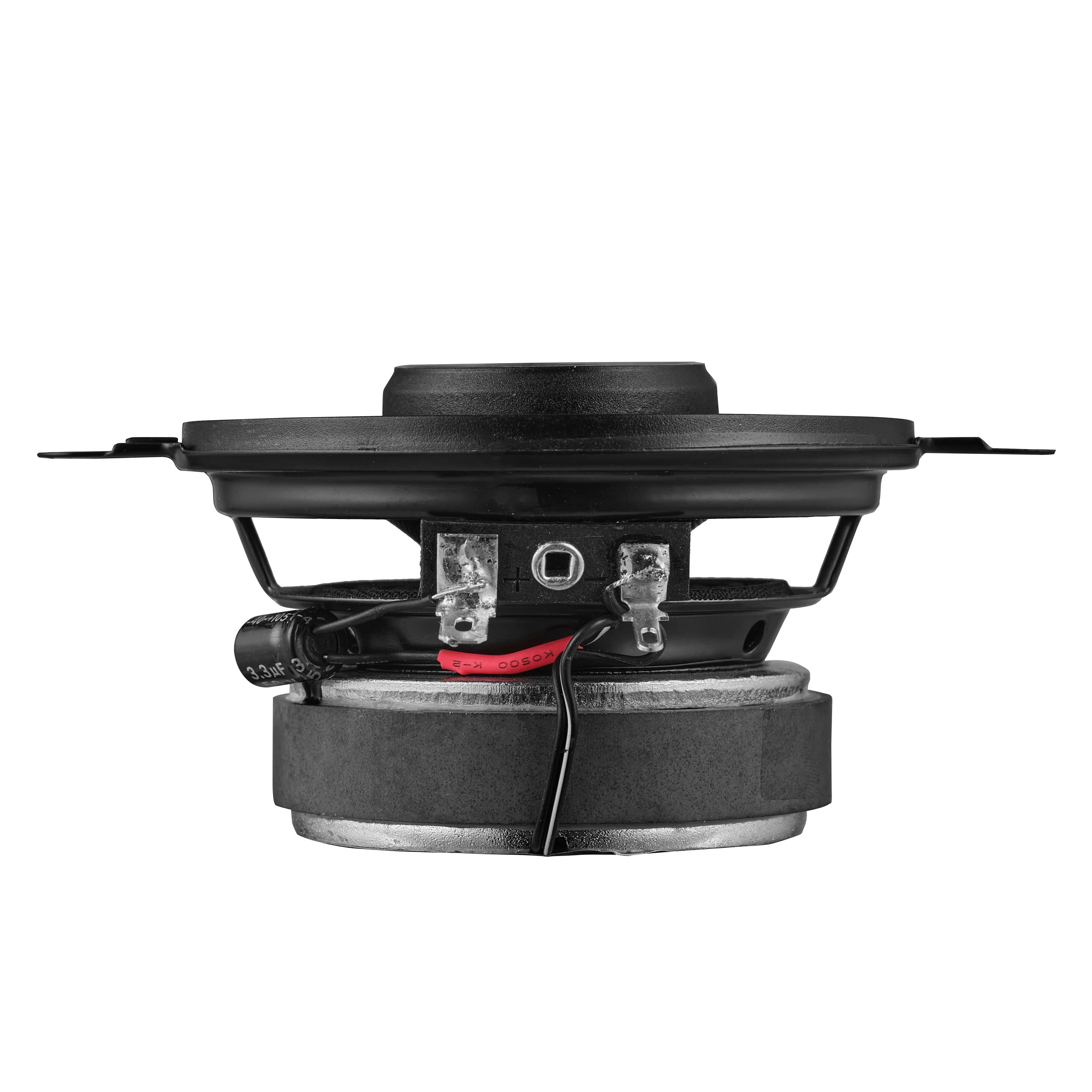

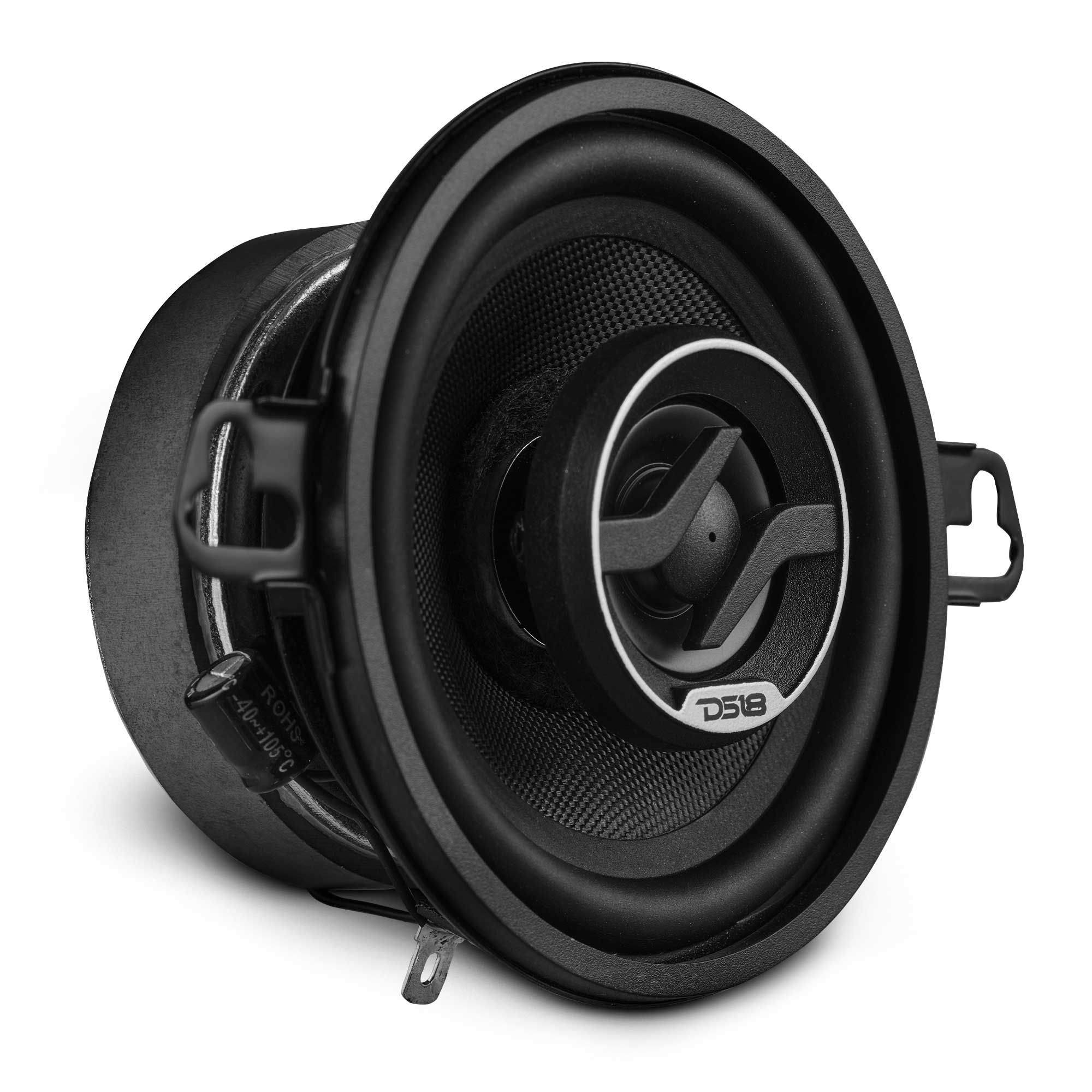

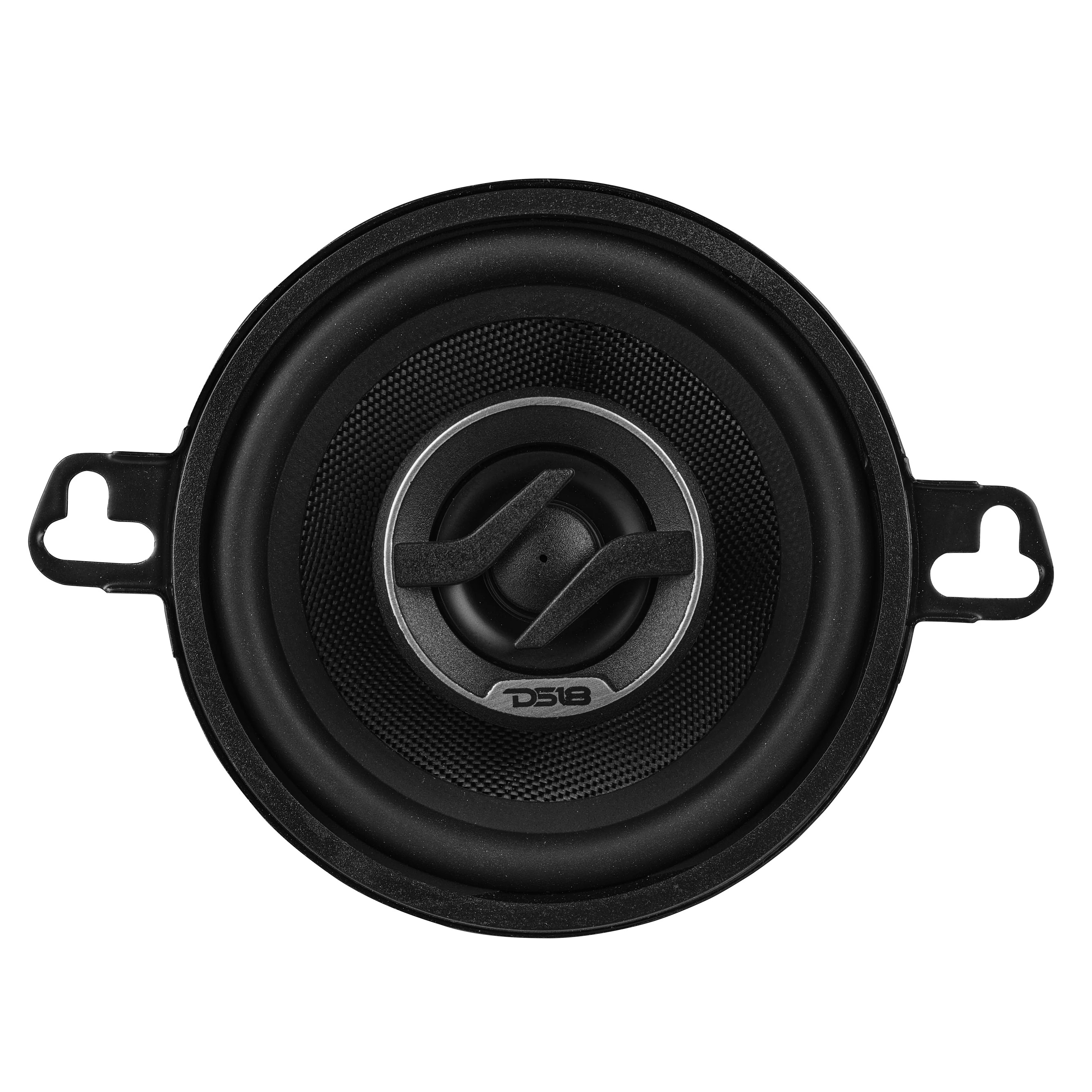

DS18 3.5" 2-Way Full-Range Coaxial Speaker 4 Ohm

Specifications

SKU
ZXI-3542
Nominal Diameter
3.5" / 89mm
Nominal Impedance
4 Ohm
RMS Power Handling
40W
MAX Power Handling
120W
Sensitivity (1w/1m)
87dB
Frequency Response
80Hz-20kHz
Recommended HI Pass Crossover
120Hz
Number of Ways
2-Way

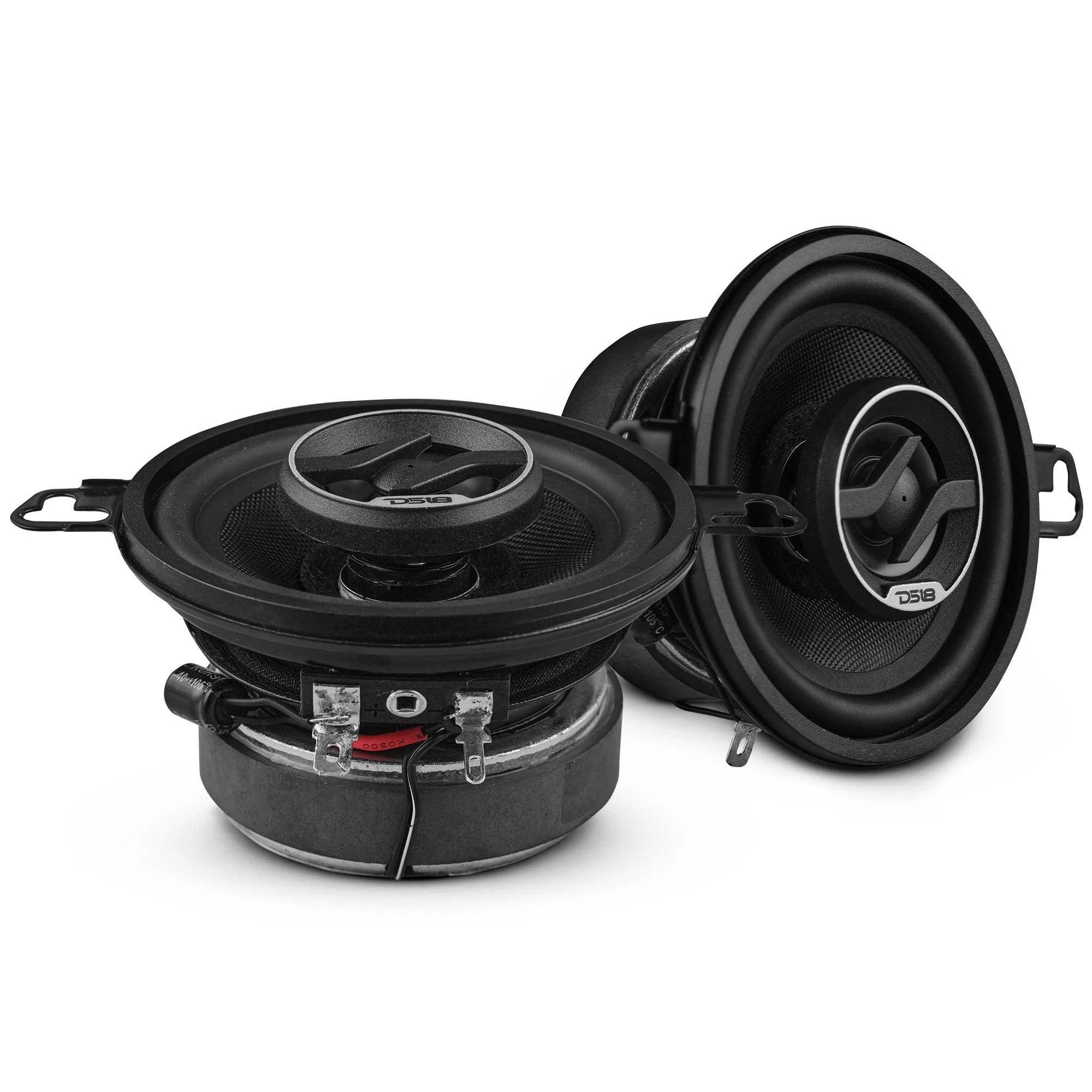

Sold in Pair or Single
Pair
Grill Included
No

Woofer Specifications

Voice Coil Diameter
0.8" / 20.4mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Barium Ferrite
Magnet Weight
172g

Thiele & Small Parameters

Equivalent Volume Vas
2.4L / 0.0849ft3
Excursion (one way) Xmax
1.2mm
Free Air Resonance Fs
106Hz
Mechanical Factor Qms
4.39
Electrical Factor Qes
1.034
Total Factor Qts
0.836
Mechanical Mass Mms
3.8g
Mechanical Compliance Cms
1.225mm/N
BL Factor BL
3.4
Voice Coil Inductance Le
105.5uH
Cone Area Sd
38cm2
DC Resistance Re
3.7 ohm
Mechanical Mass w/o air Mmd
2.6g

Tweeter Specifications

Nominal Diameter
1" / 25.4mm
Voice Coil Diameter
0.52" / 13mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Weight
1.8g

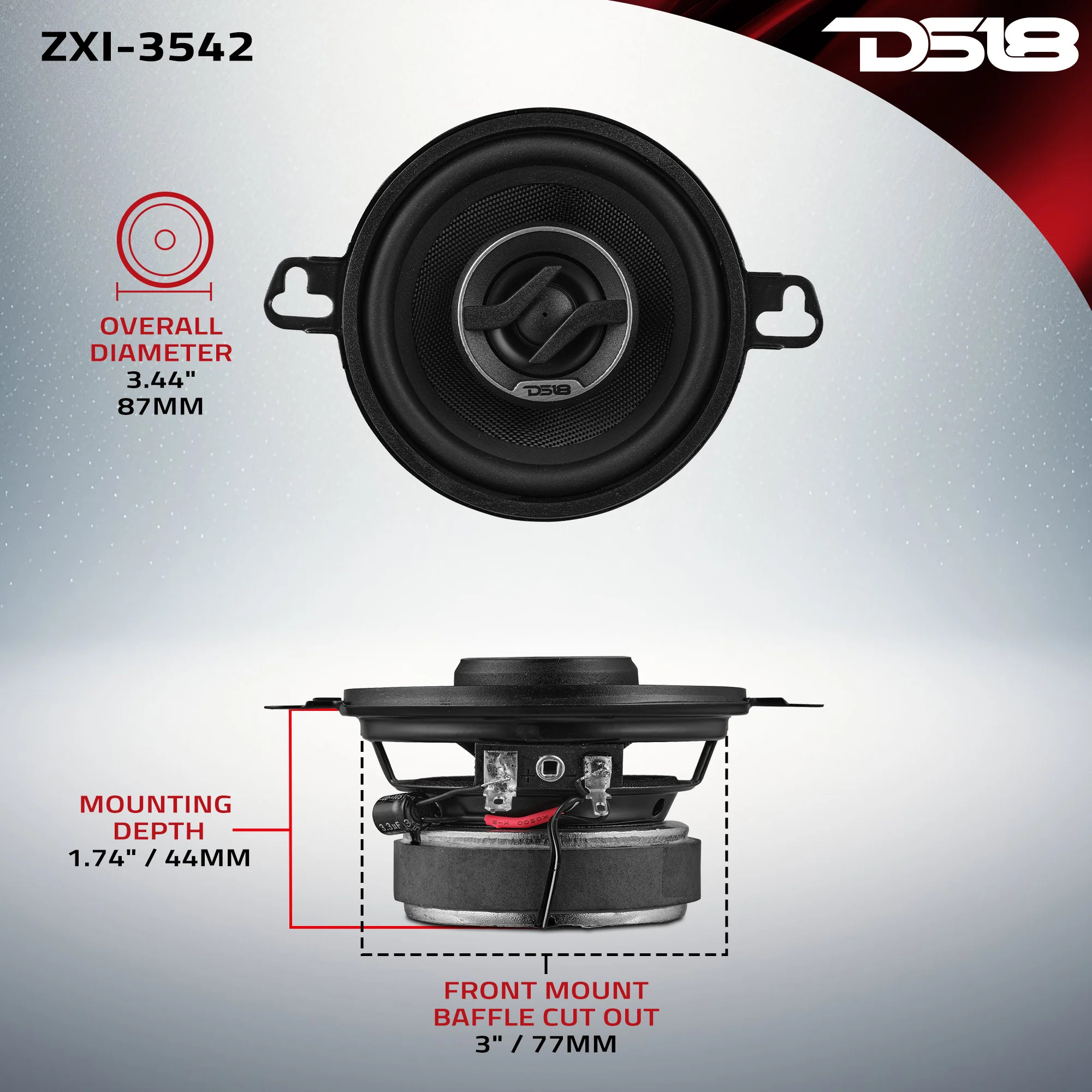

Speaker Measurement

Overall Diameter (Without Grill)
3.44" / 87.3mm
Overall Depth (Without Grill)
2.21" / 56.2mm
Front Mount Baffle Cutout
3" / 77mm
Mounting Depth
1.74" / 44.3mm
Motor Diameter
2.56" / 65mm
Gross Single Unit Weight
0.387KG
Single Unit Box Dimensions W x L x H
240*120*70mm
Quantity of Units in Master Carton
20
Master Carton Dimensions W x L x H
500*365*260mm
