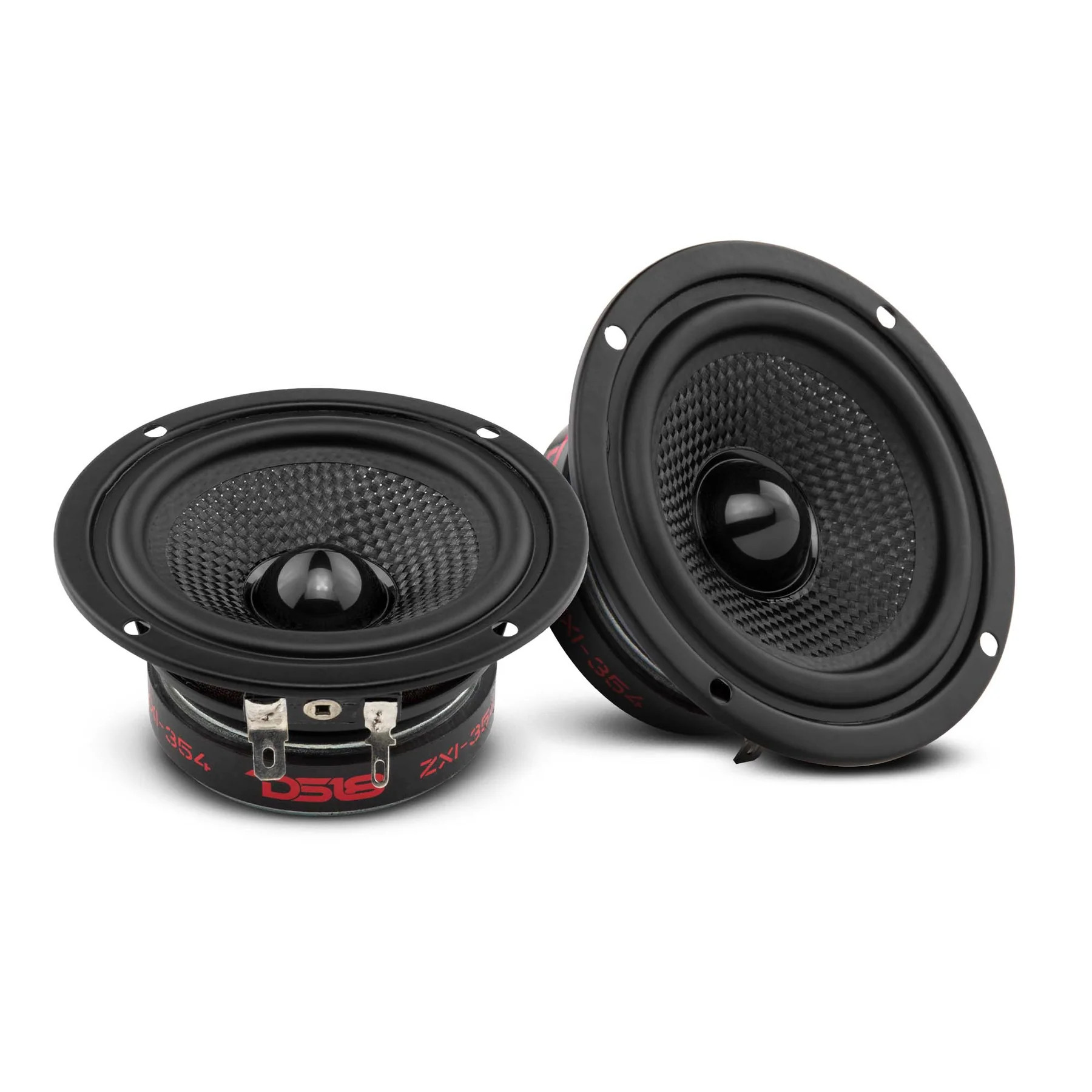

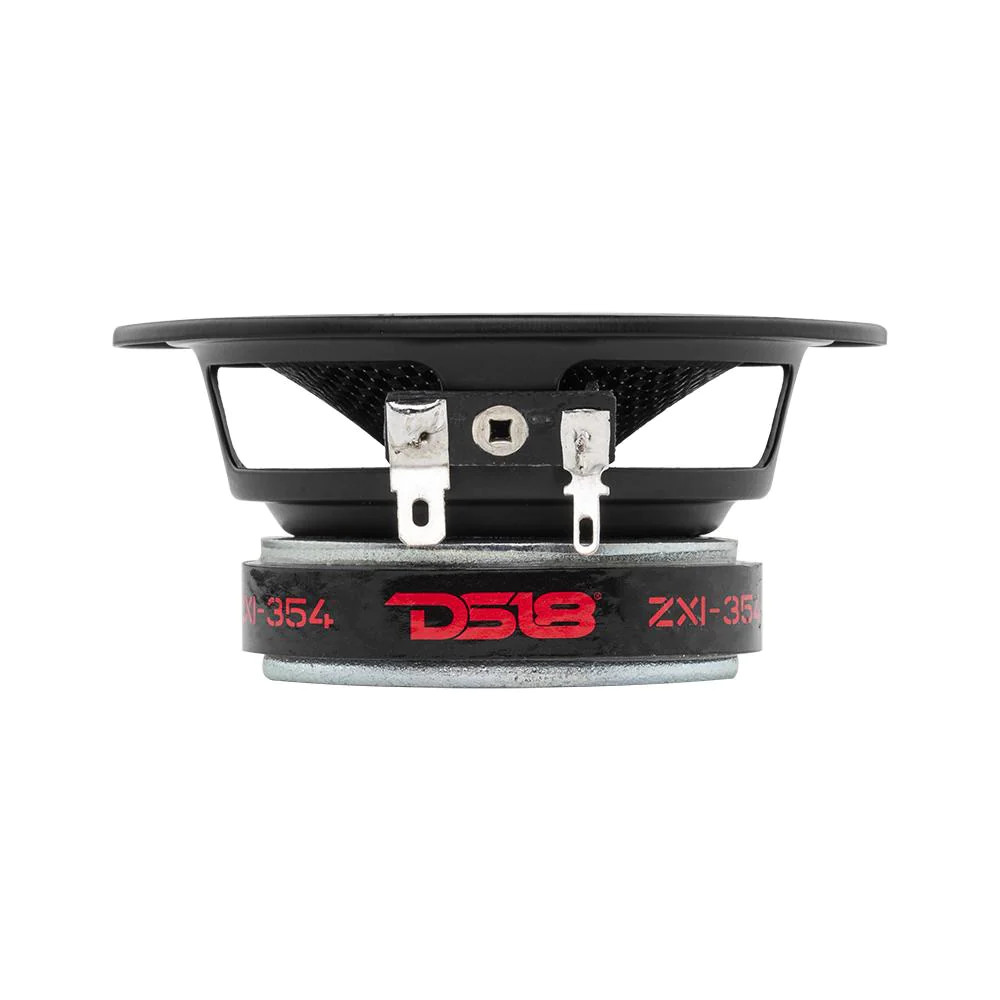

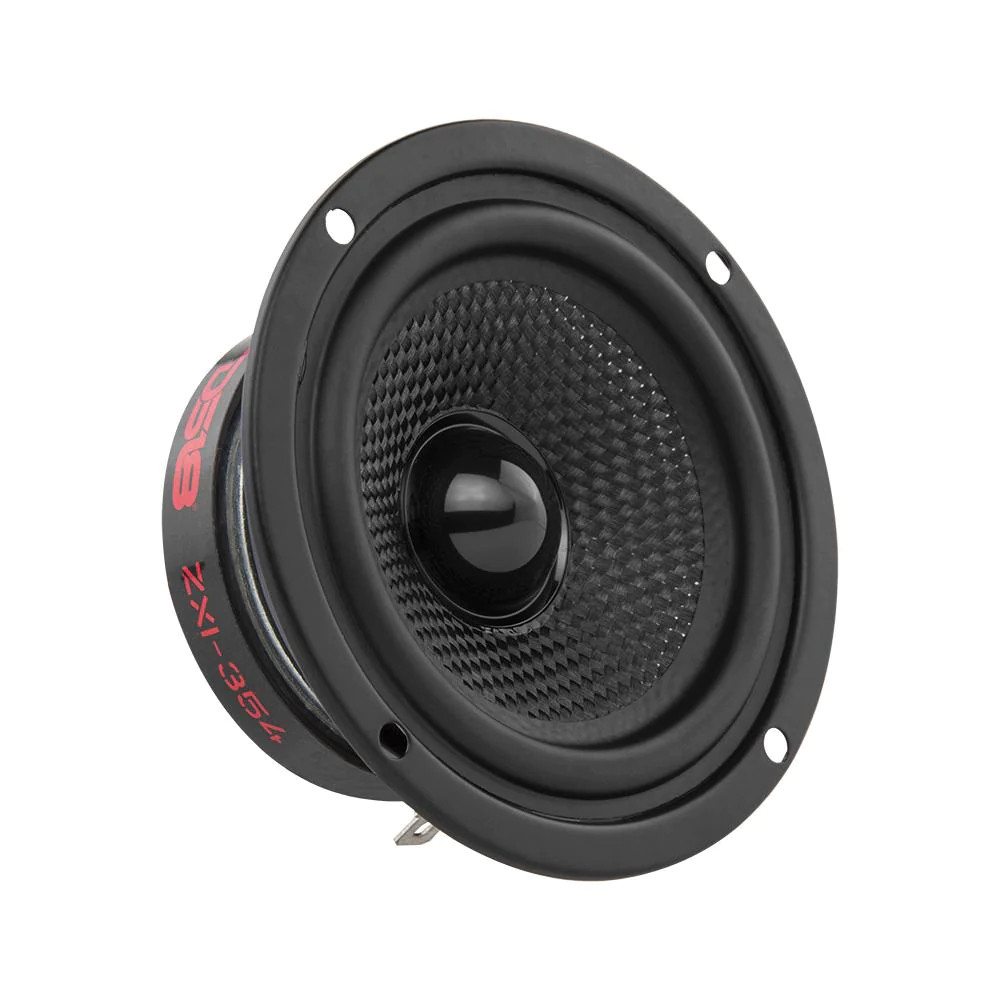

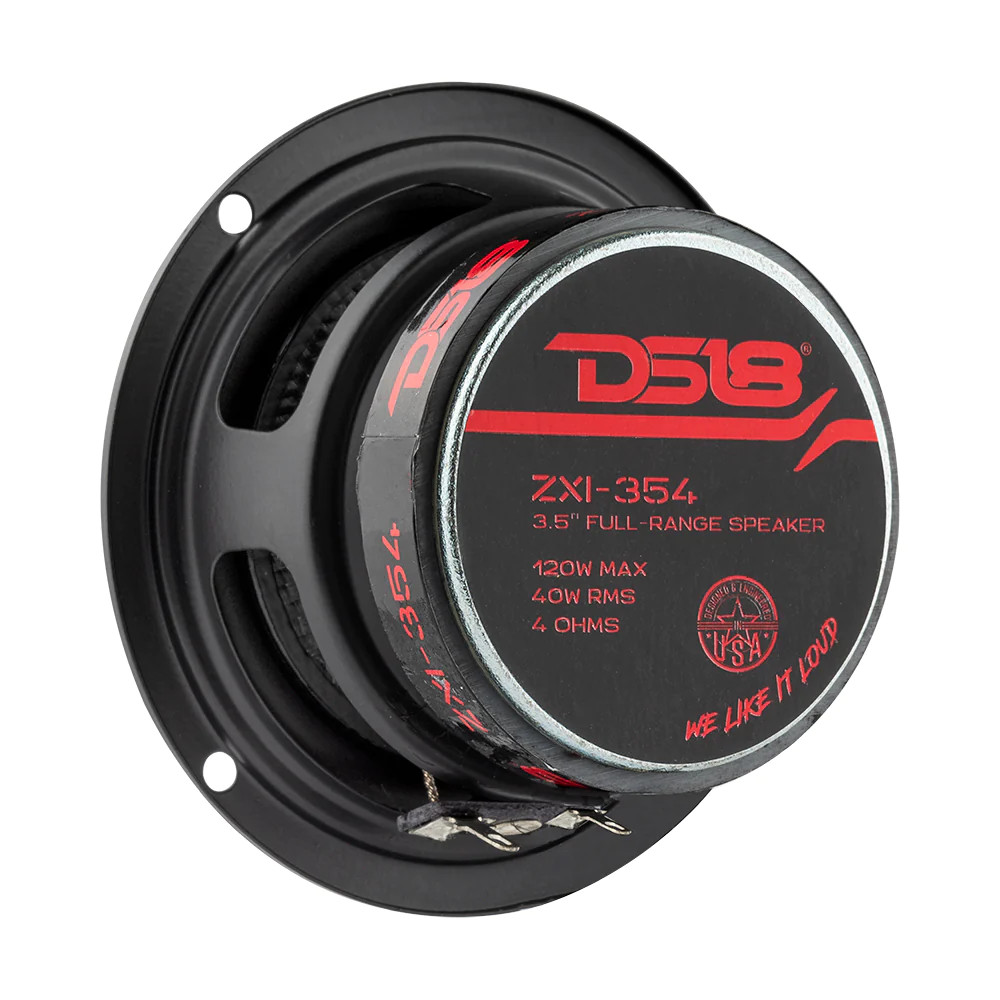

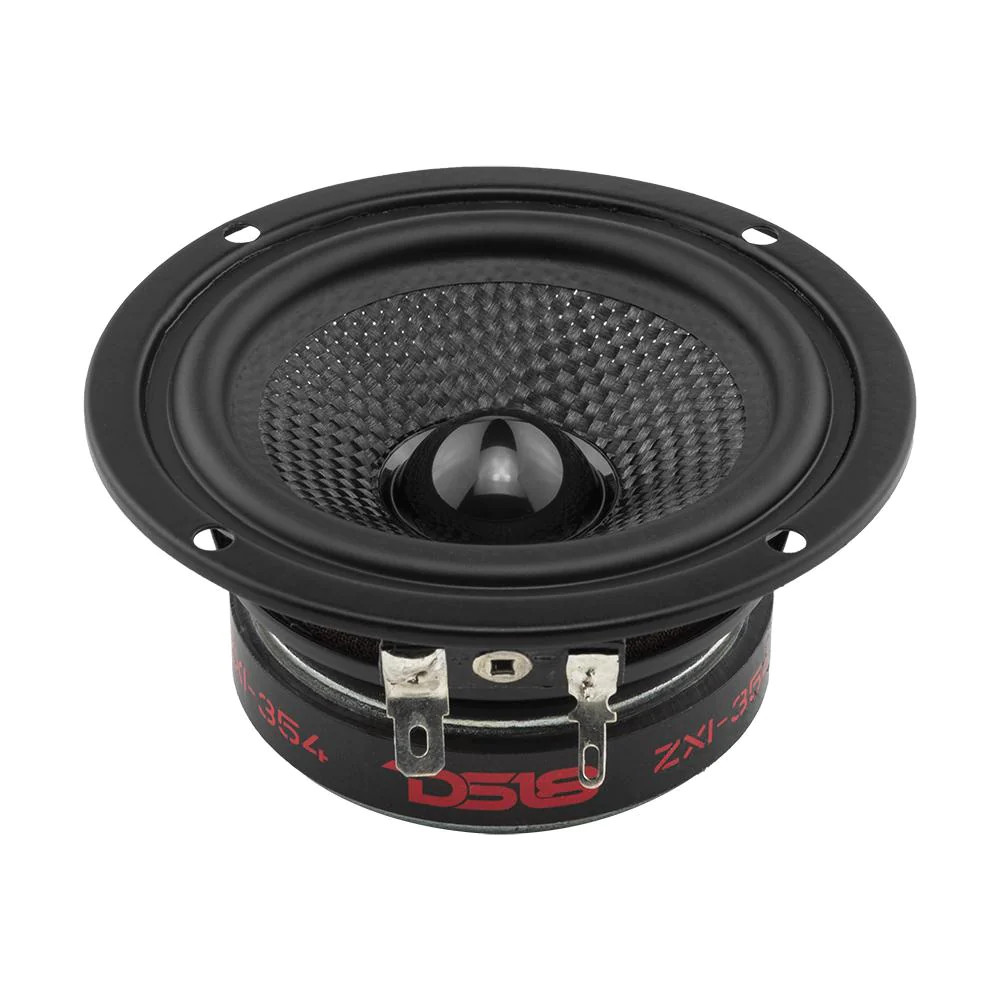

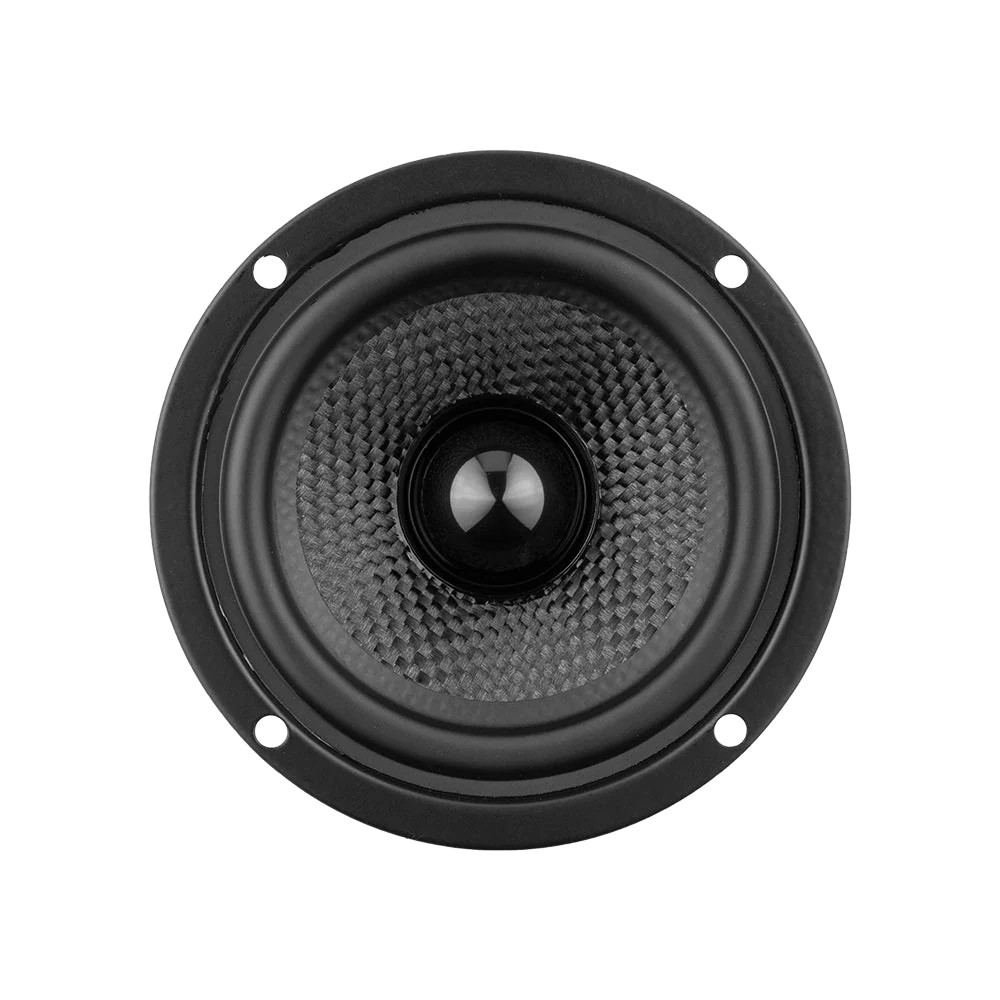

DS18 ELITE 3.5" FULL RANGE SPEAKERS WITH KEVLAR CONE 100W 4 OHM

SPECS

SKU
ZXI-354
Nominal Diameter
3.5 Inches
Nominal Impedance
4 ohm
RMS Power Handing
40 WATTS
MAX Power Handing
120 WATTS
Sensitivity
86 dB
Frequency Response
120 Hz - 20 KHz
Recommended HI Pass
140 Hz
Speaker Type
Full Range

MIDRANGE

Voice Coil Diameter
25.5 mm (1 inch)
Voice Coil Former Material
KSV
Winding Material
EISV
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Barium Ferrite
Magnet Weight
10.9 oz / 310 g

THIELE & SMALL PARAMETERS

Vas
0.55 LTR
Xmax
1.4 mm
Fs
140 Hz
Qms
7.08
Qes
1.37
Qts
1.15
Mms
3.2 g
Cms
402 mm / N
BL
2.938
Le
169 mH
Sd
32 cm2
Re
4.2 ohm
Mmd
3.0 g

MEASUREMENTS

Overall Diameter
3.50 inch (89 mm)
Overall Depth
42 mm (1.65 inch)
Front Mount Baffle Cutout
71 mm (2.80 inch)
Mounting Depth
37.8 mm (1.49 inch)
Motor Diameter
60 mm (2.36 inch)
Product Weight
1.5 lbs
Product Dimensions
8.75 x 4.5 x 2
M/C Weight
32.5 lbs
M/C Dimensions
20 x 9.25 x 9.5
M/C QTY
20
Sold In
Pair
