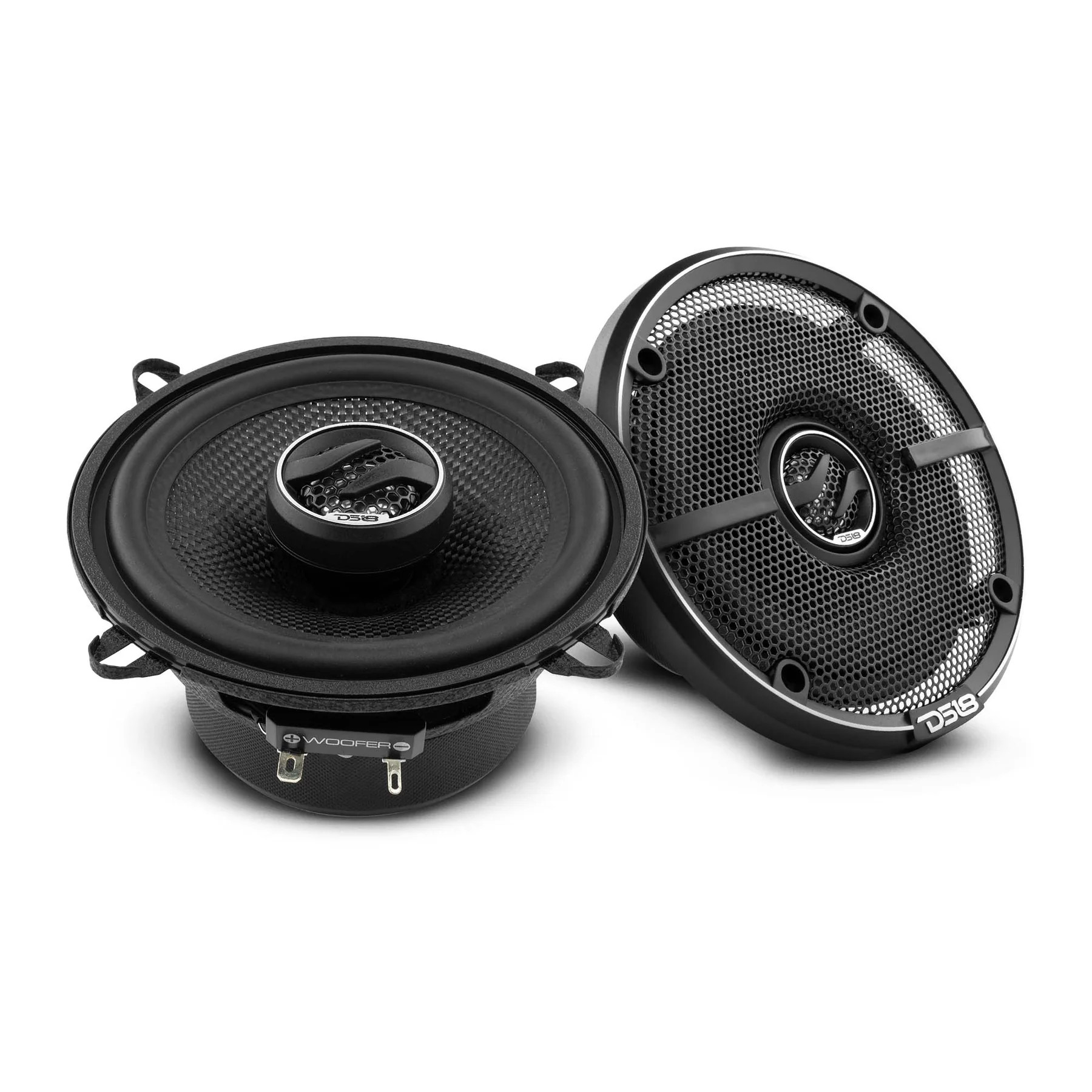

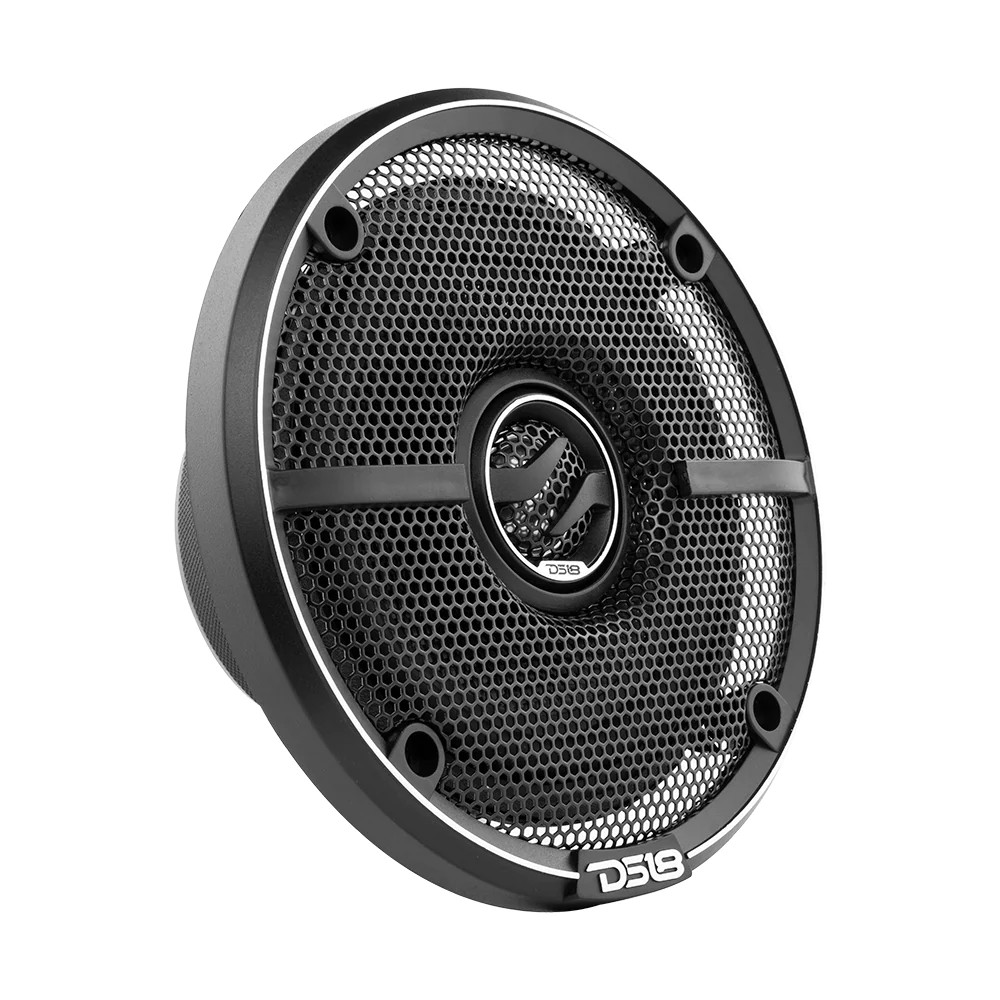

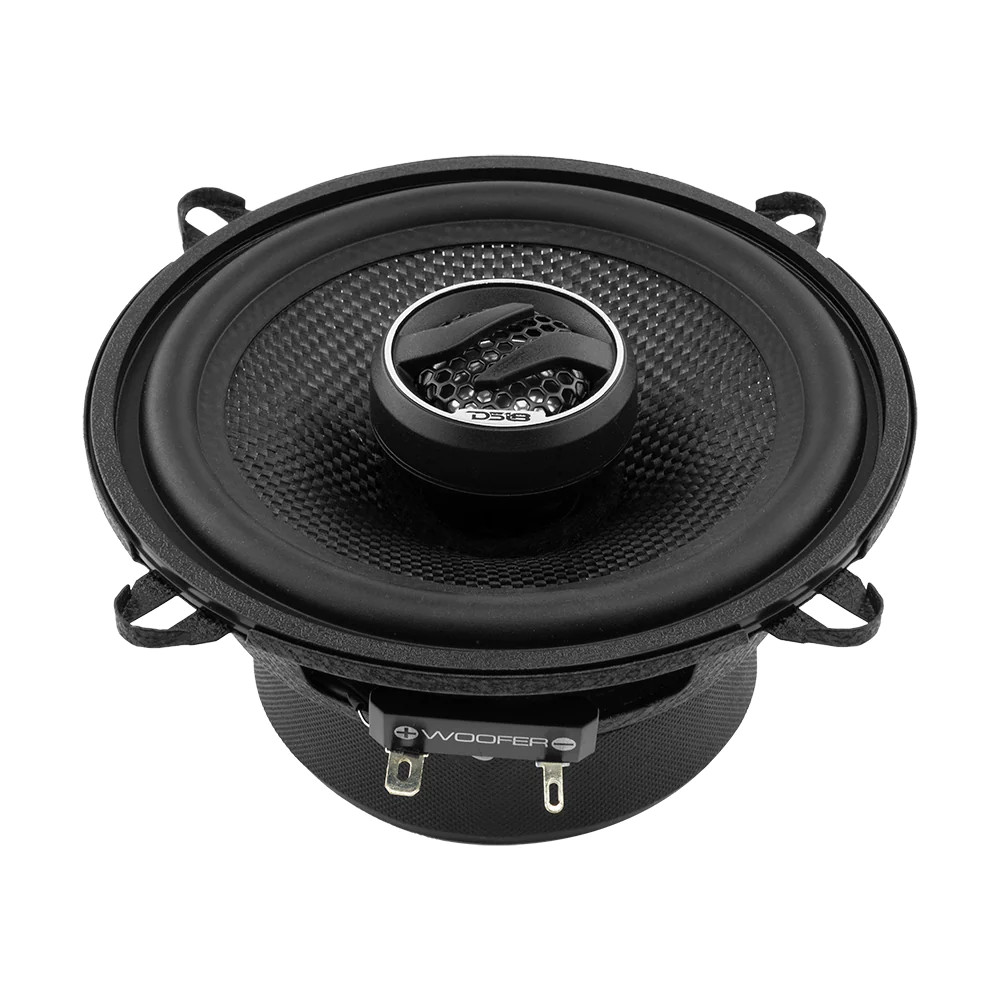

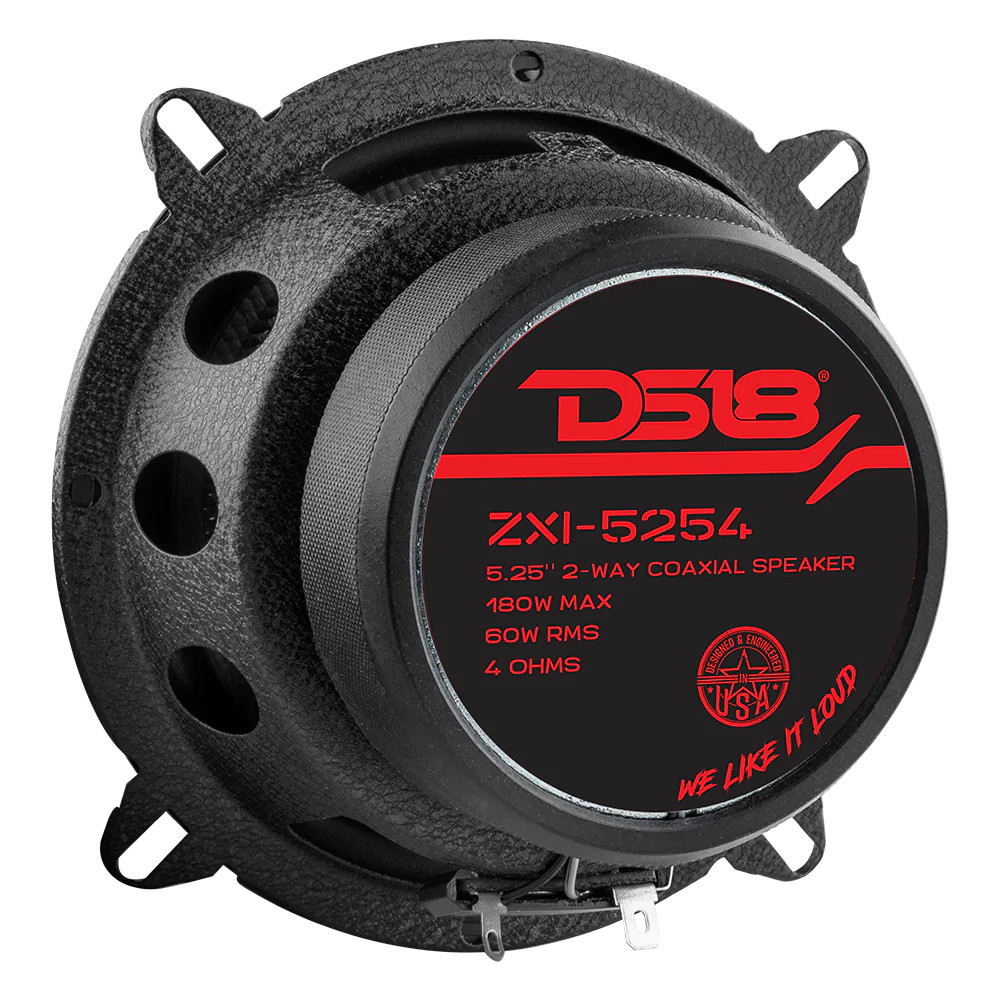

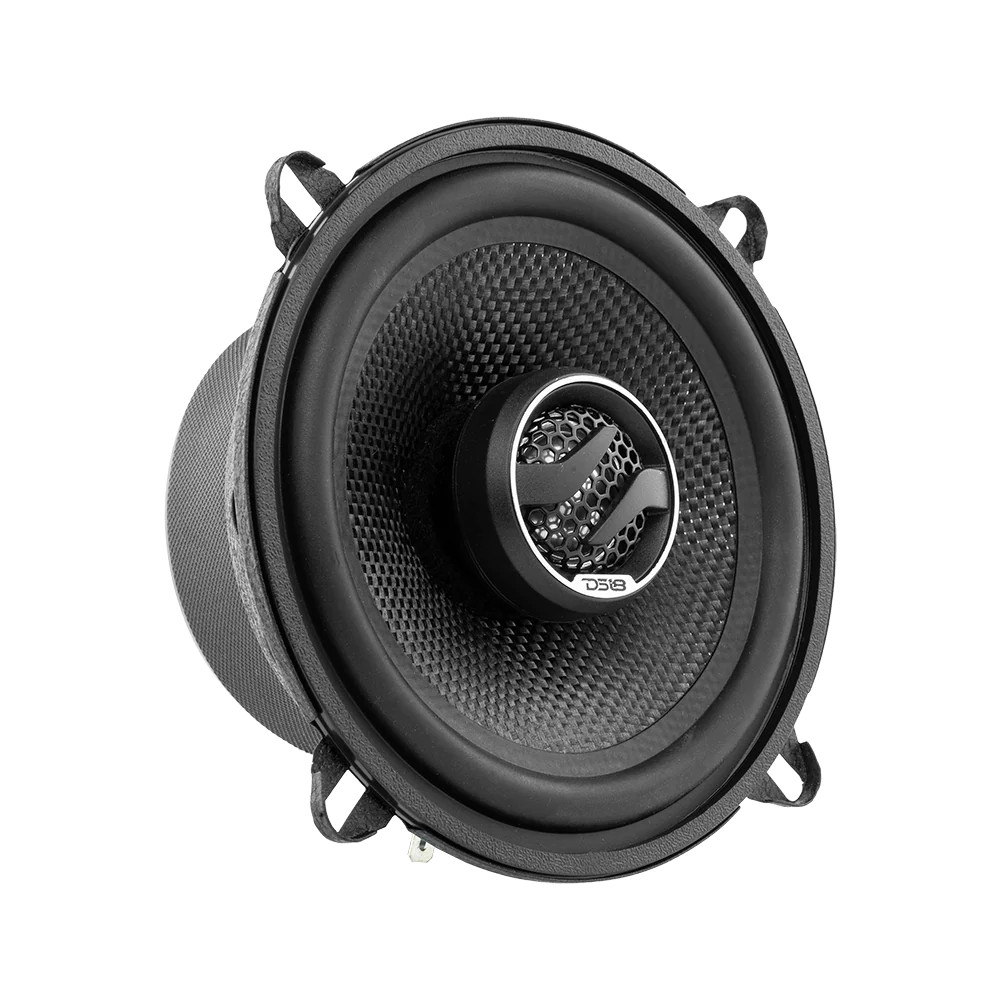

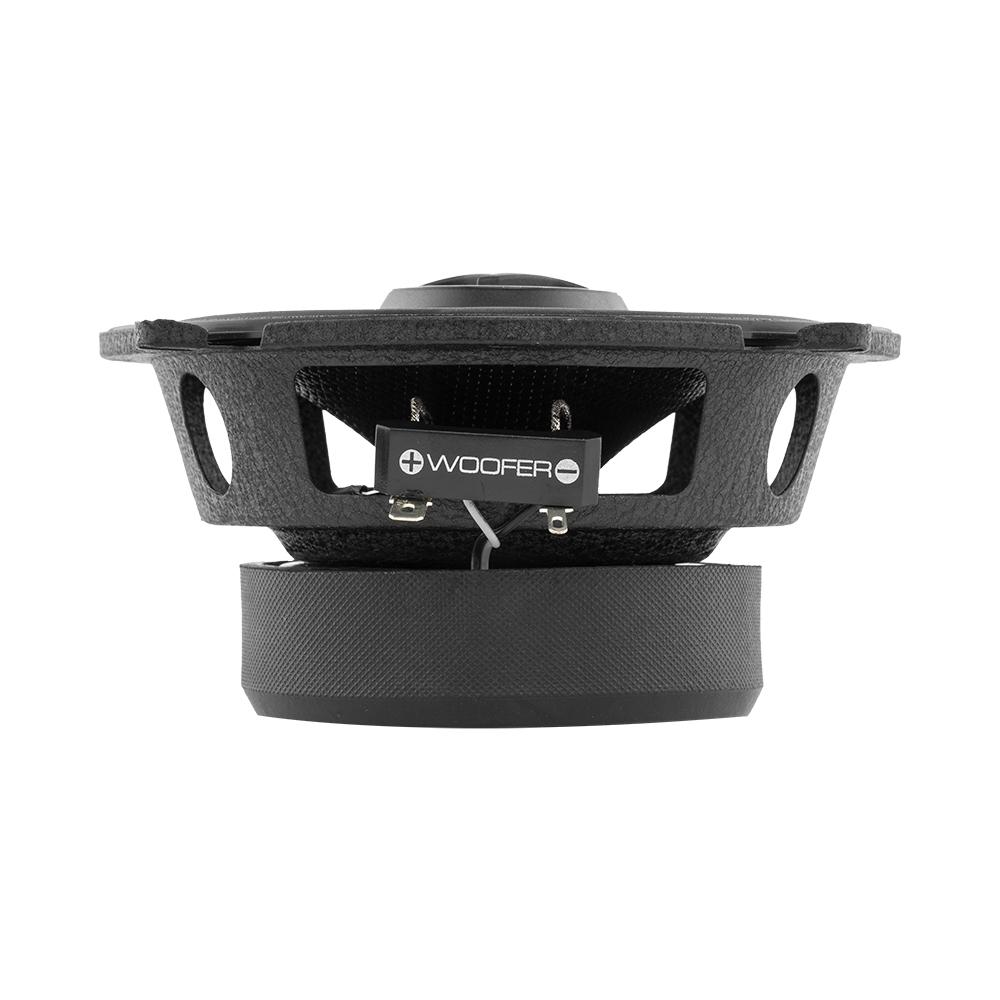

DS18 ELITE 5.25" FULL RANGE SPEAKERS WITH KEVLAR CONE 150W 4 OHM

SPECS

SKU
ZXI-5254
Nominal Diameter
5.25 Inches
Nominal Impedance
4 ohm
RMS Power Handing
60 WATTS
MAX Power Handing
180 WATTS
Sensitivity
89 dB
Frequency Response
40 Hz - 20 KHz
Recommended HI Pass
60 Hz
Speaker Type
2-Way

MIDRANGE

Voice Coil Diameter
25.5 mm (1 inch)
Voice Coil Former Material
KSV
Winding Material
EISV
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Barium Ferrite
Magnet Weight
10.9 oz / 310 g

TWEETER

Nominal Diameter
25.4 mm (1 inch)
Voice Coil Diameter
20.4 mm (0.8 inch)
Voice Coil Former Material
KSV
Winding Material
EISVM
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Weight
8.5 g / 0.3 oz

THIELE & SMALL PARAMETERS

Vas
4.86 LTR
Xmax
2.3 mm
Fs
77 Hz
Qms
8.39
Qes
0.87
Qts
0.79
Mms
9.93 g
Cms
457 mm / N
BL
4.321
Le
216 mH
Sd
86.5 cm2
Re
3.5 ohm
Mmd
9.0 g

MEASUREMENTS

Overall Diameter
5.08 inch (129 mm)
Overall Depth
71 mm (2.80 inch)
Front Mount Baffle Cutout
113 mm (4.45 inch)
Mounting Depth
58 mm (2.28 inch)
Motor Diameter
84 mm (3.31 inch)
Product Weight
4.5 lbs
Product Dimensions
14.25 x 7 x 3.5
M/C Weight
27 lbs
M/C Dimensions
15 x 15 x 11
M/C QTY
6
Sold In
Pair
