DS18 ZXI 4x6" 2-Way Coaxial Speakers with Kevlar Cone 180 Watts 4-Ohm

SPECS

SKU
ZXI-464
Nominal Diameter
4 X 6 Inches
Nominal Impedance
4 ohm
RMS Power Handing
60 WATTS
MAX Power Handing
180 WATTS
Sensitivity
87 dB
Frequency Response
80 Hz - 20 KHz
Recommended HI Pass
100 Hz
Speaker Type
2-Way

MIDRANGE

Voice Coil Diameter
25.5 mm (1 inch)
Voice Coil Former Material
KSV
Winding Material
EISV
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Barium Ferrite
Magnet Weight
10.9 oz / 310 g

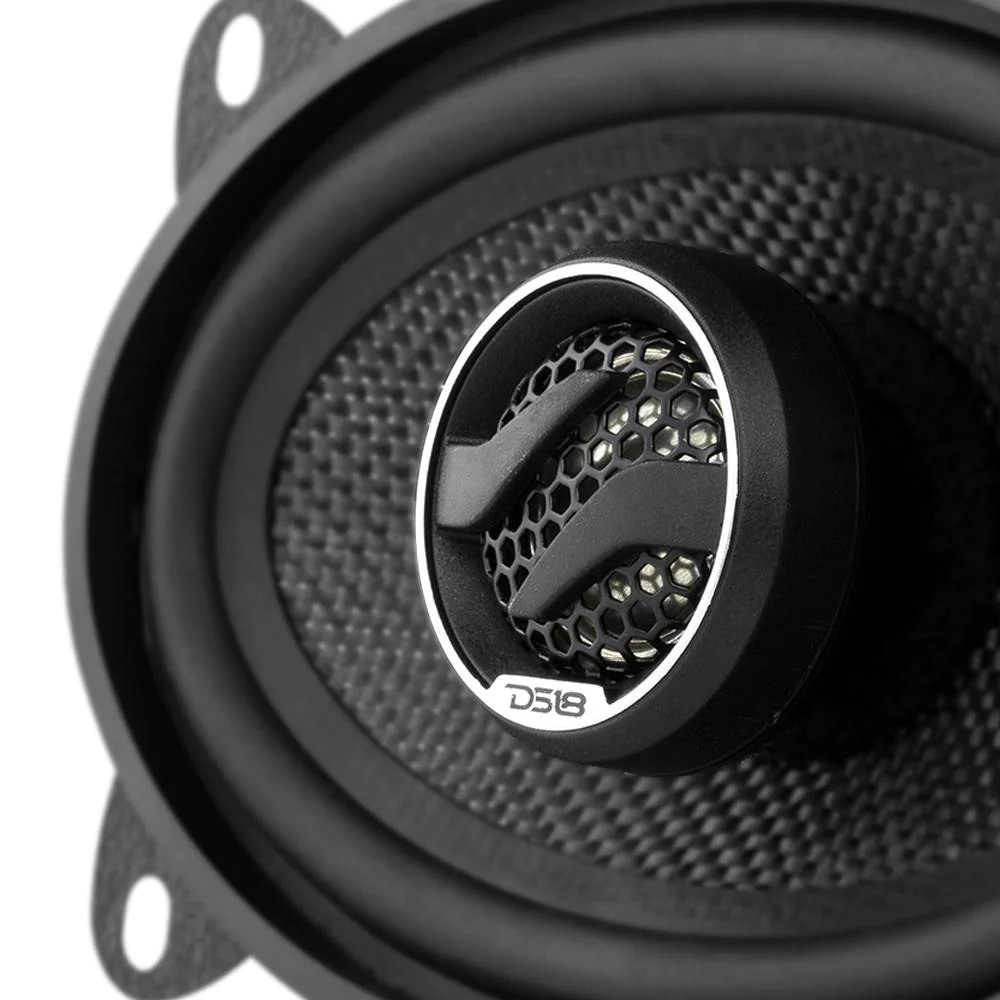

TWEETER

Nominal Diameter
25.4 mm (1 inch)
Voice Coil Diameter
20.4 mm (0.8 inch)
Voice Coil Former Material
KSV
Winding Material
EISVM
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Weight
8.5 g / 0.3 oz

THIELE & SMALL PARAMETERS

Vas
1.989 LTR
Xmax
2.3 mm
Fs
77 Hz
Qms
5.97
Qes
1.15
Qts
0.97
Mms
9.79 g
Cms
232 mm / N
BL
4.44
Le
216 mH
Sd
77.7 cm2
Re
3.5 ohm
Mmd
9 g

MEASUREMENTS

Overall Diameter
3.82 x 5.94 inch (97 x 151 mm)
Overall Depth
71 mm (2.80 inch)
Front Mount Baffle Cutout
87.8 x 140 mm (3.46 x 5.51 inch)
Mounting Depth
52 mm (2.05 inch)
Motor Diameter
84 mm (3.31 inch)
Product Weight
4.5 lbs
Product Dimensions
11.5 x 8 x 3.5
M/C Weight
26.5 lbs
M/C Dimensions
16.5 x 12.25 x 11
M/C QTY
6
Sold In
Pair
