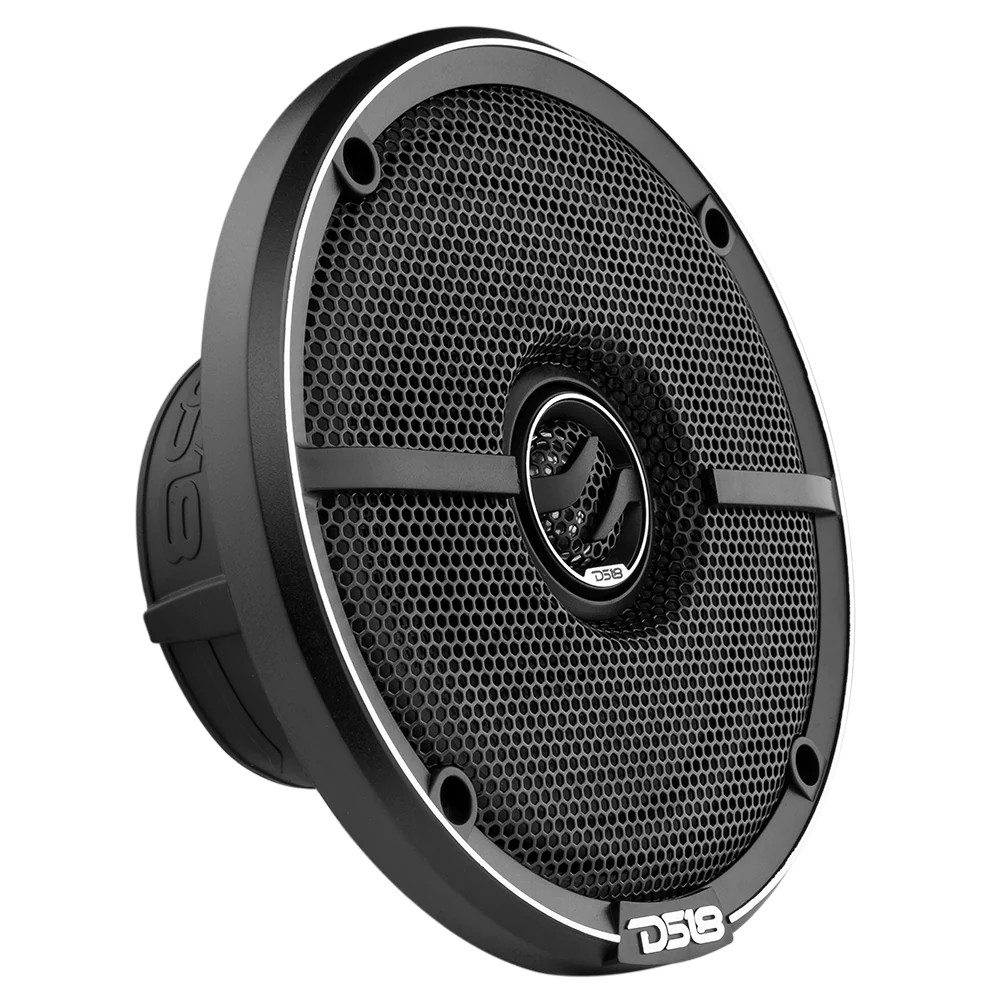

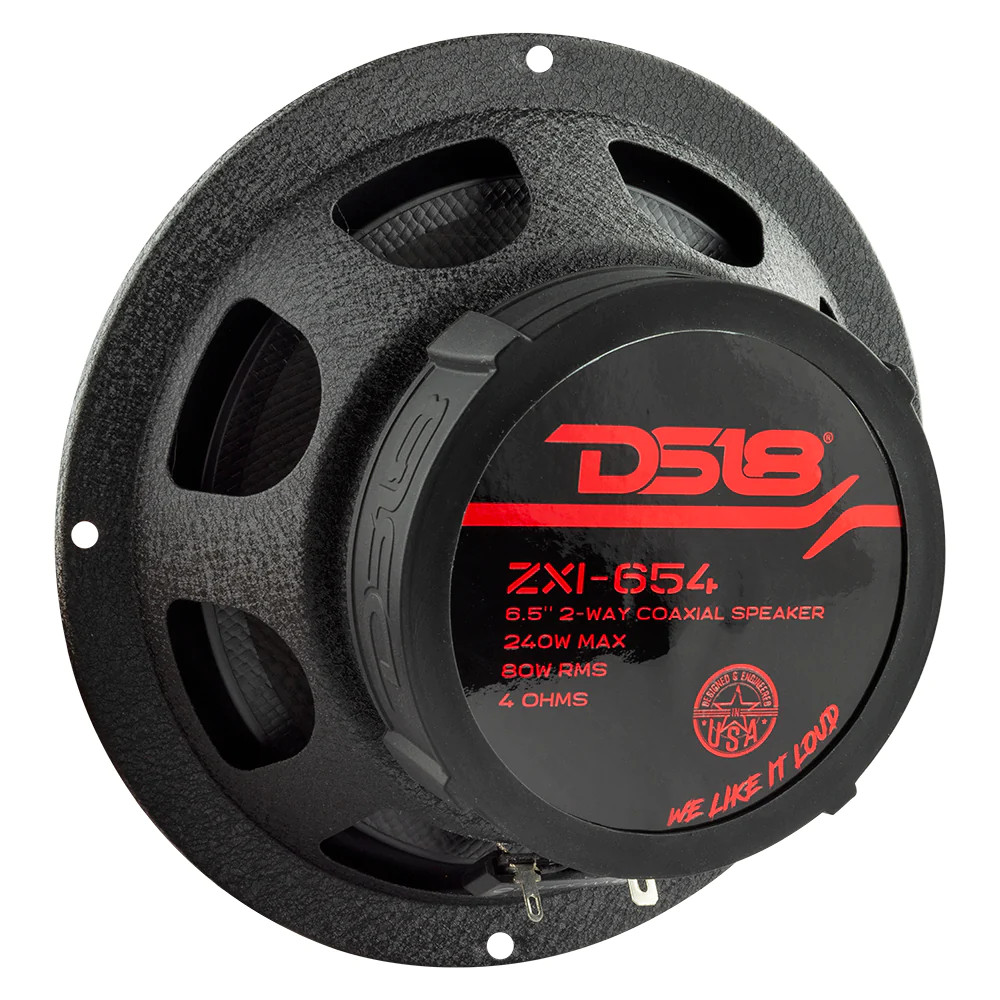

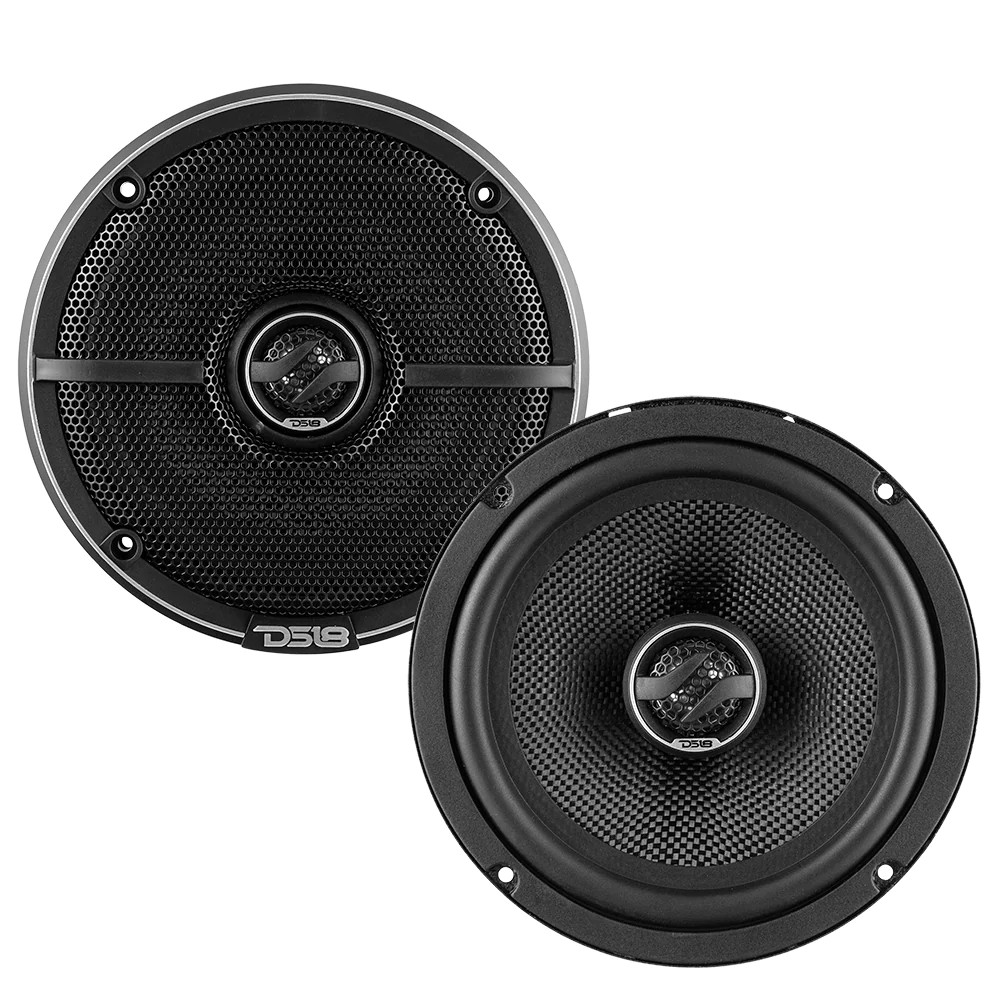

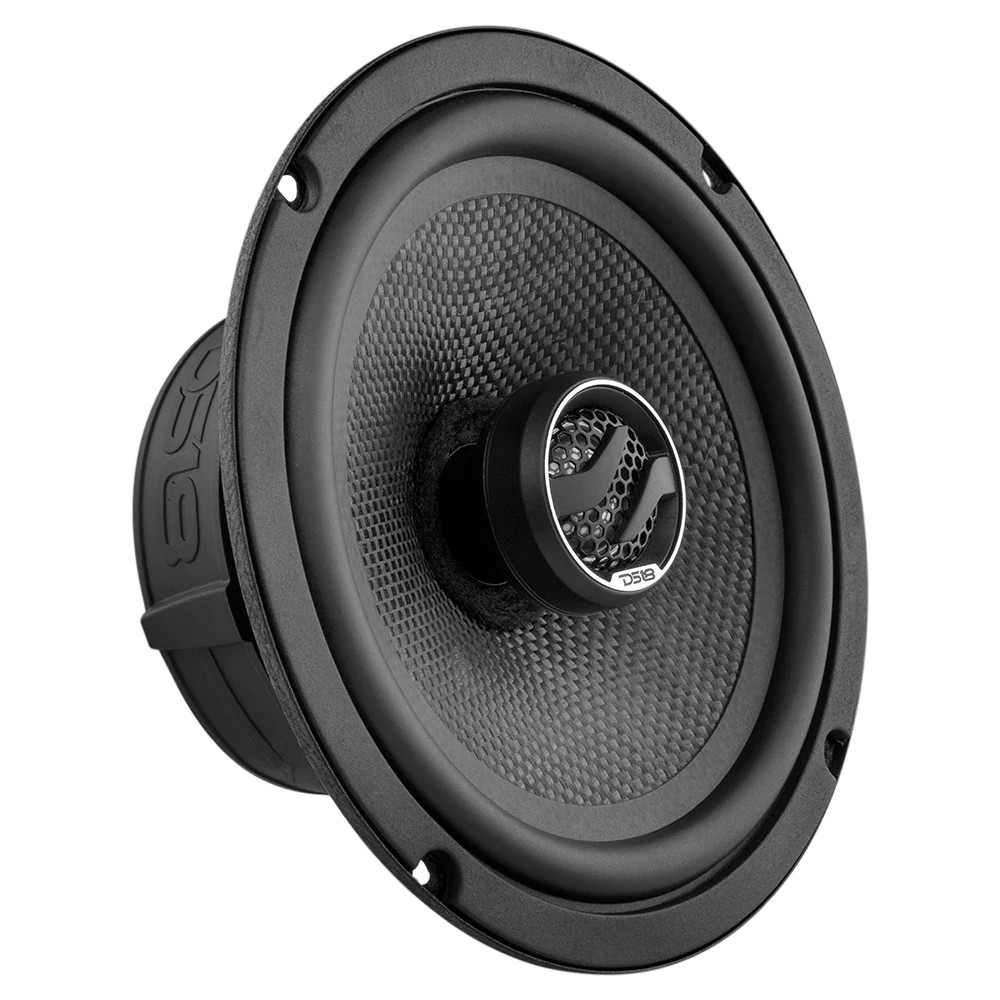

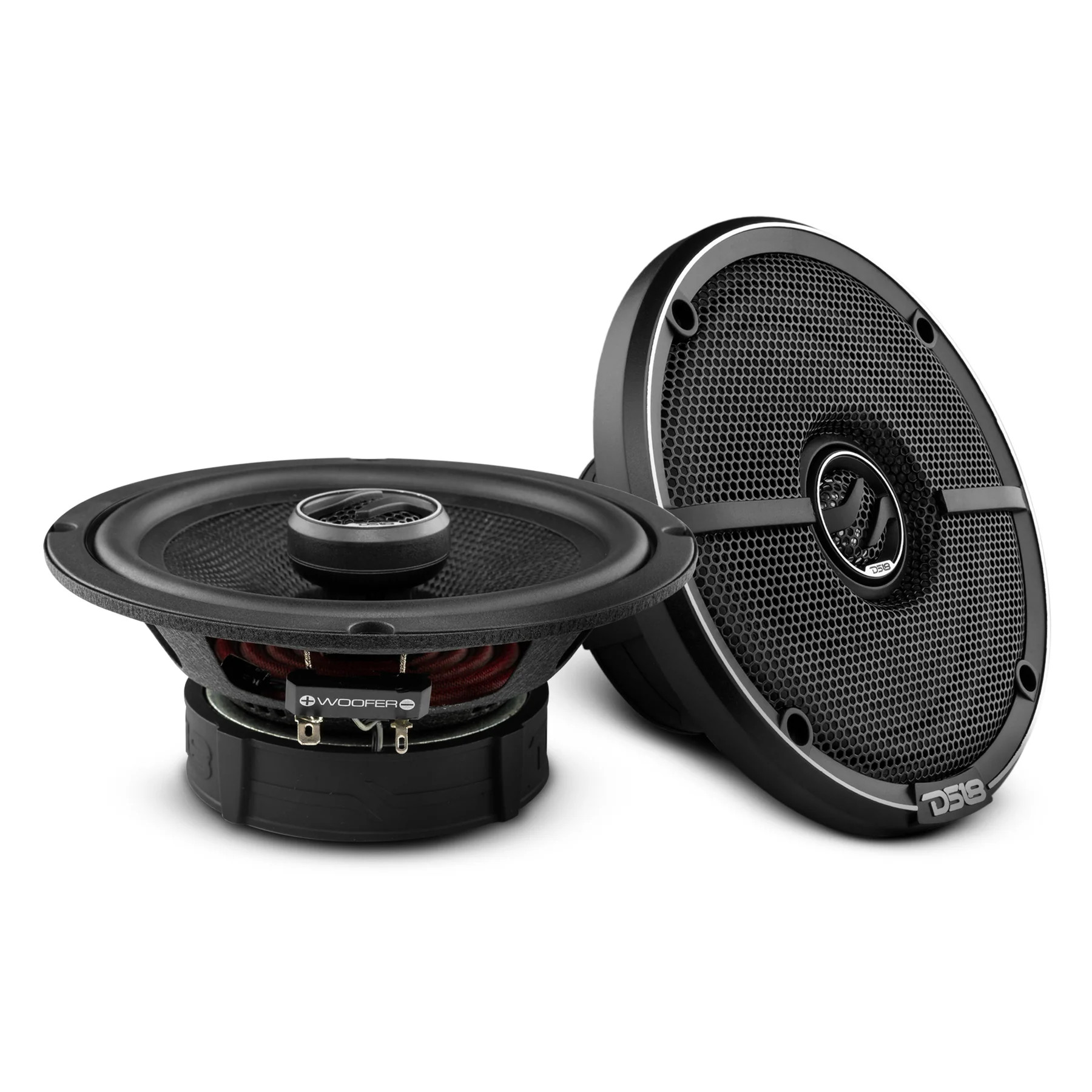

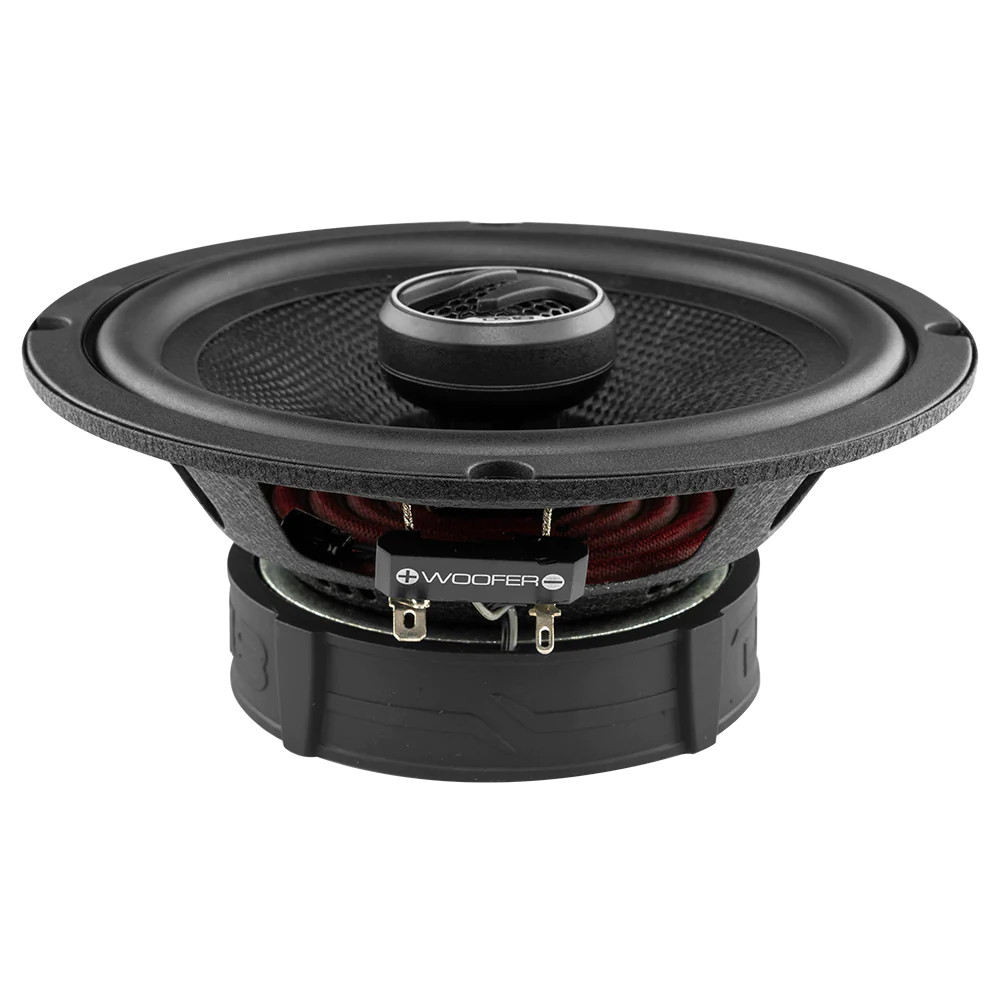

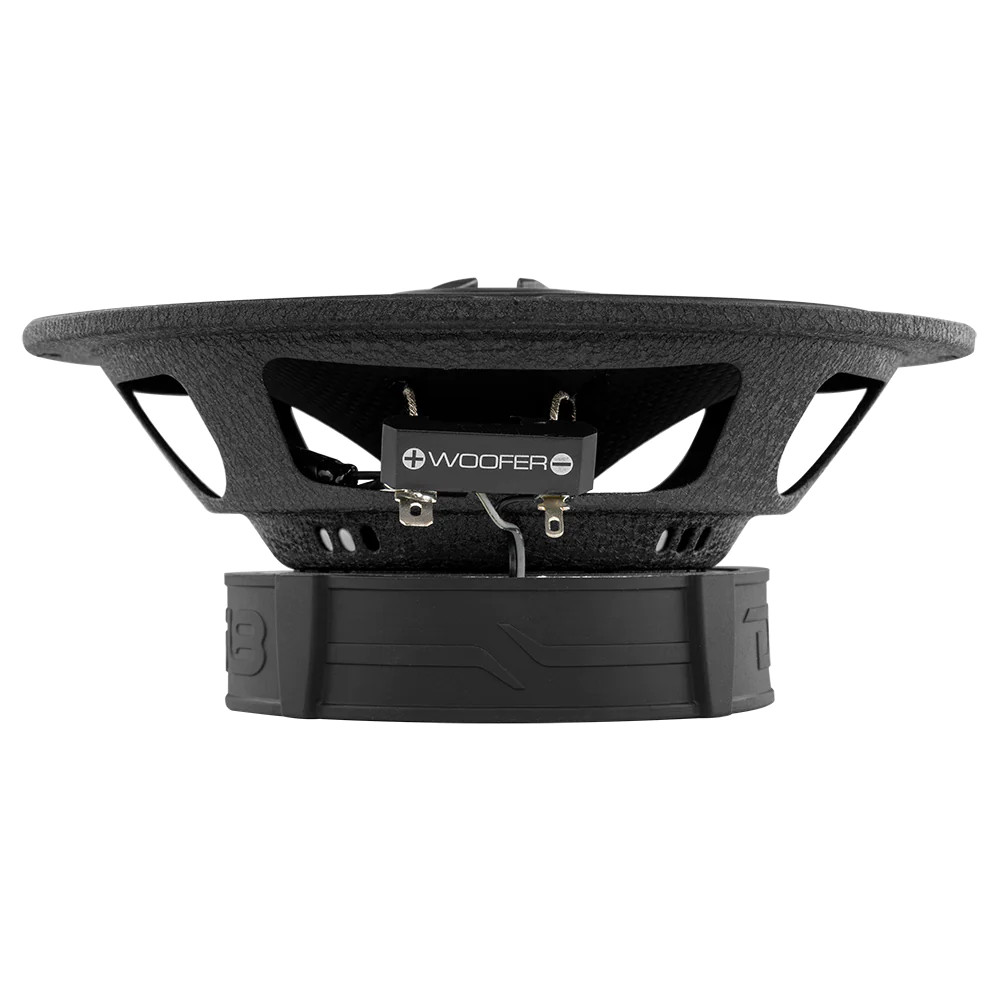

DS18 ZXI-654 Kevlar 6.5" 2-Way Coaxial Car Speaker 240 Watts 4-Ohm

SPECS

SKU
ZXI-654
Nominal Diameter
6.5 Inches
Nominal Impedance
4 ohm
RMS Power Handing
80 WATTS
MAX Power Handing
240 WATTS
Sensitivity
89 dB
Frequency Response
40 Hz - 20 KHz
Recommended HI Pass
60 Hz
Speaker Type
2-Way

MIDRANGE

Voice Coil Diameter
25.5 mm (1 inch)
Voice Coil Former Material
KSV
Winding Material
EISV
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Barium Ferrite
Magnet Weight
14.46 oz / 410 g

TWEETER

Nominal Diameter
25.4 mm (1 inch)
Voice Coil Diameter
20.4 mm (0.8 inch)
Voice Coil Former Material
KSV
Winding Material
EISVM
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Weight
8.5 g / 0.3 oz

THIELE & SMALL PARAMETERS

Vas
10.84 LTR
Xmax
2.7 mm
Fs
64 Hz
Qms
9.44
Qes
0.79
Qts
0.73
Mms
13.72 g
Cms
444 mm / N
BL
5.1
Le
228 mH
Sd
131 cm2
Re
3.5 ohm
Mmd
12 g

MEASUREMENTS

Overall Diameter
6.50 inch (165 mm)
Overall Depth
72 mm (2.83 inch)
Front Mount Baffle Cutout
141 mm (5.55 inch)
Mounting Depth
60 mm (2.36 inch)
Motor Diameter
94 mm (3.70 inch)
Product Weight
5.5 lbs
Product Dimensions
15.75 x 7.75 x 3.75
M/C Weight
35 lbs
M/C Dimensions
16.5 x 16.75 x 12.25
M/C QTY
6
Sold In
Pair
