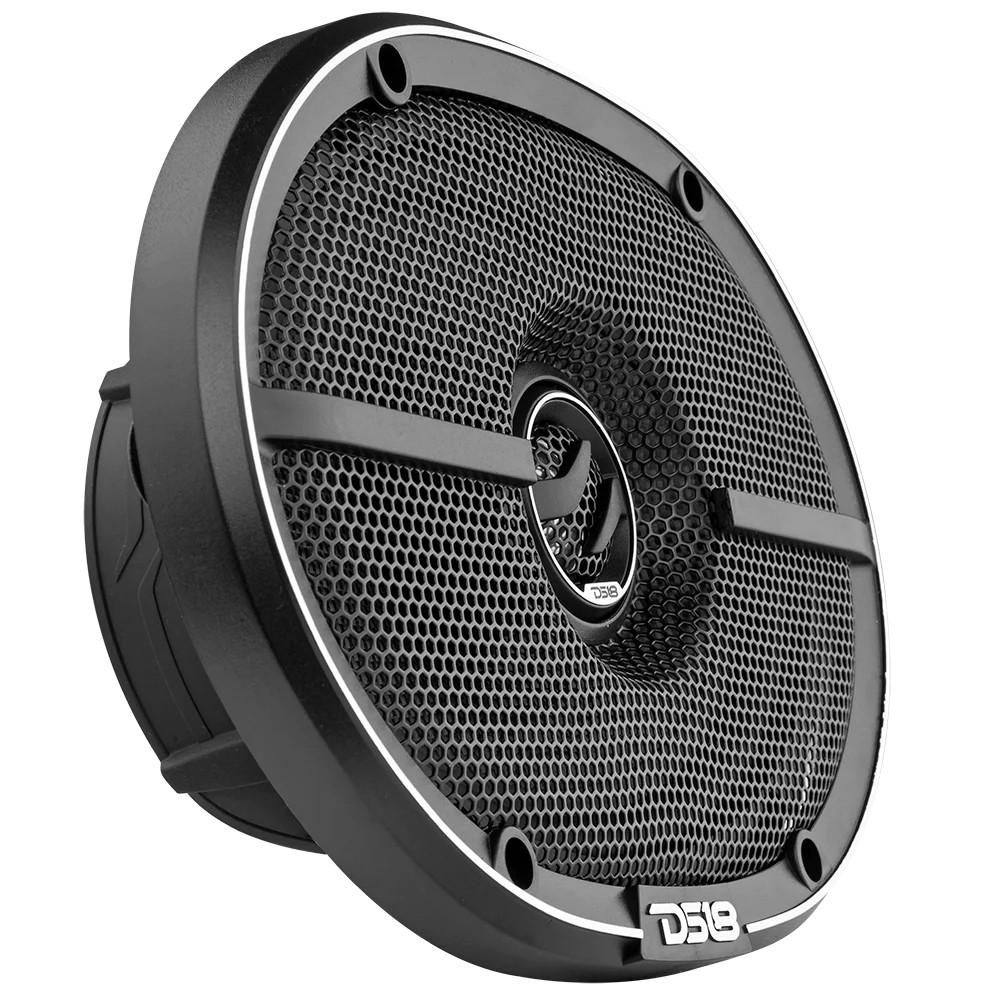

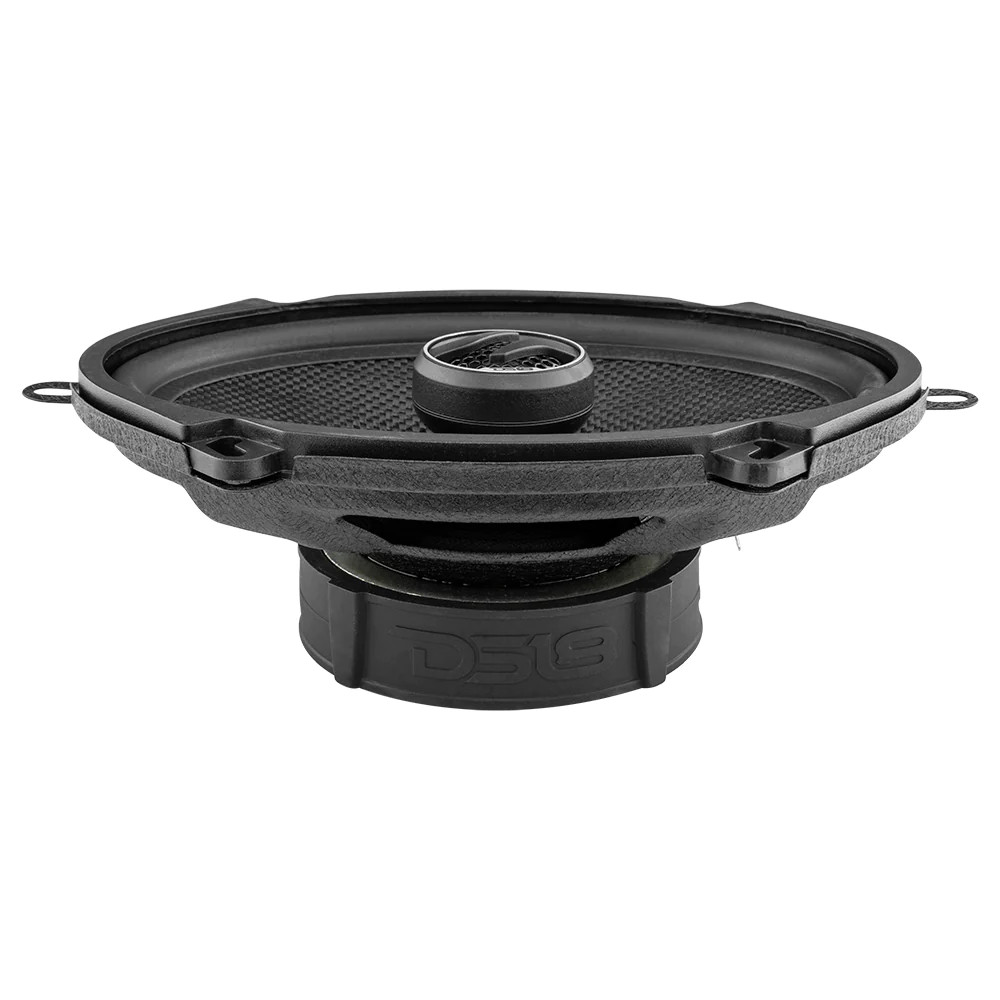

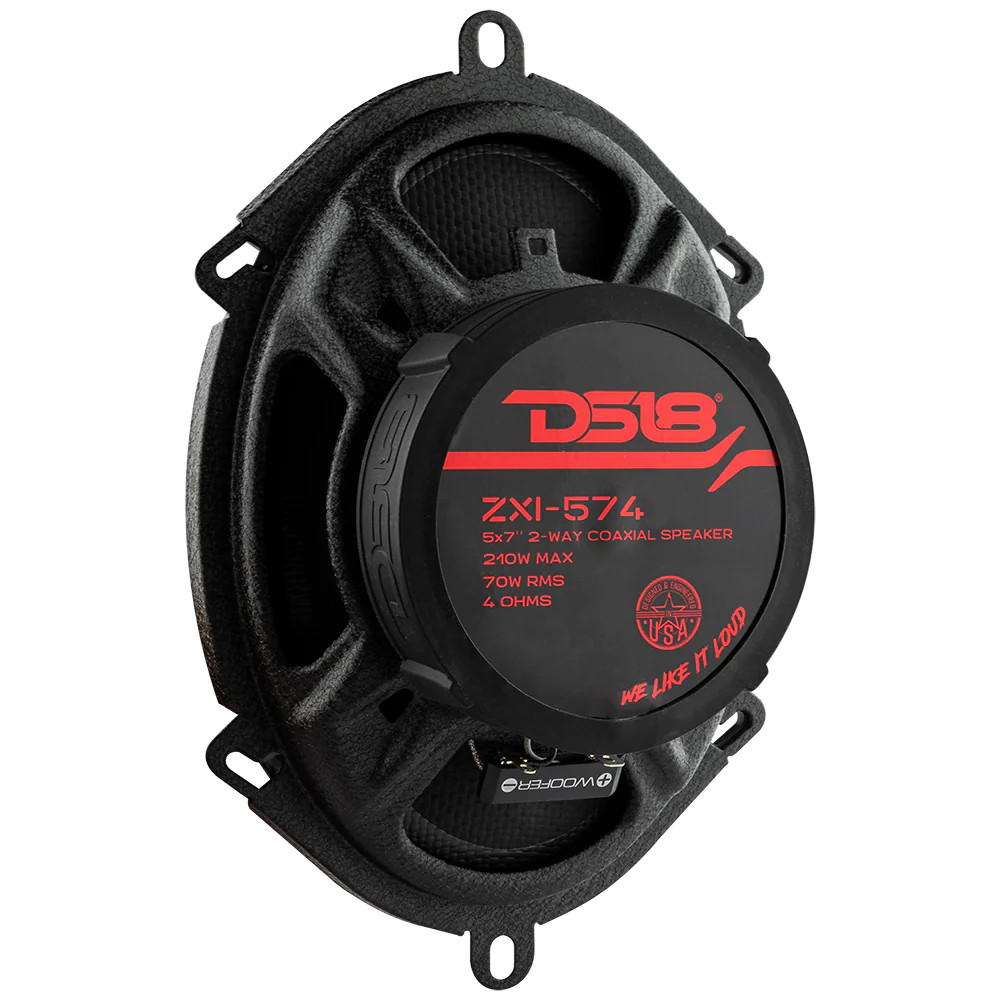

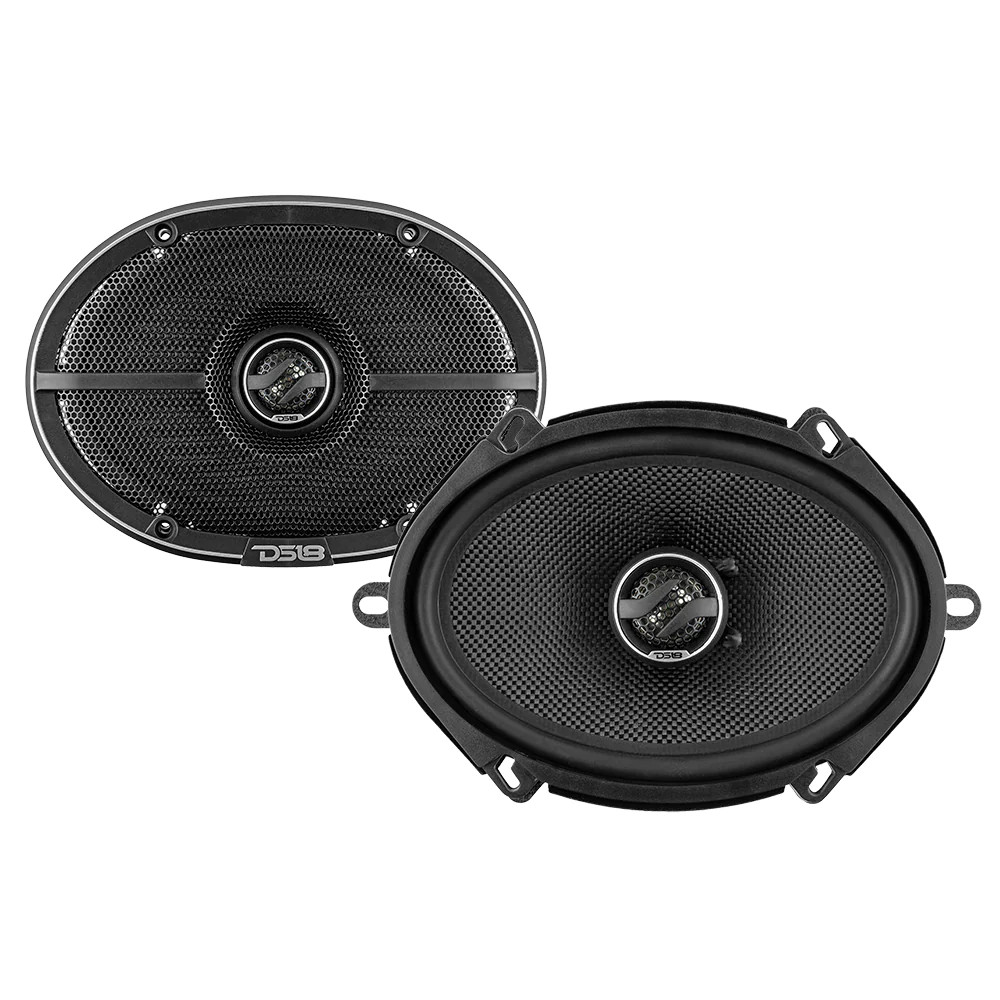

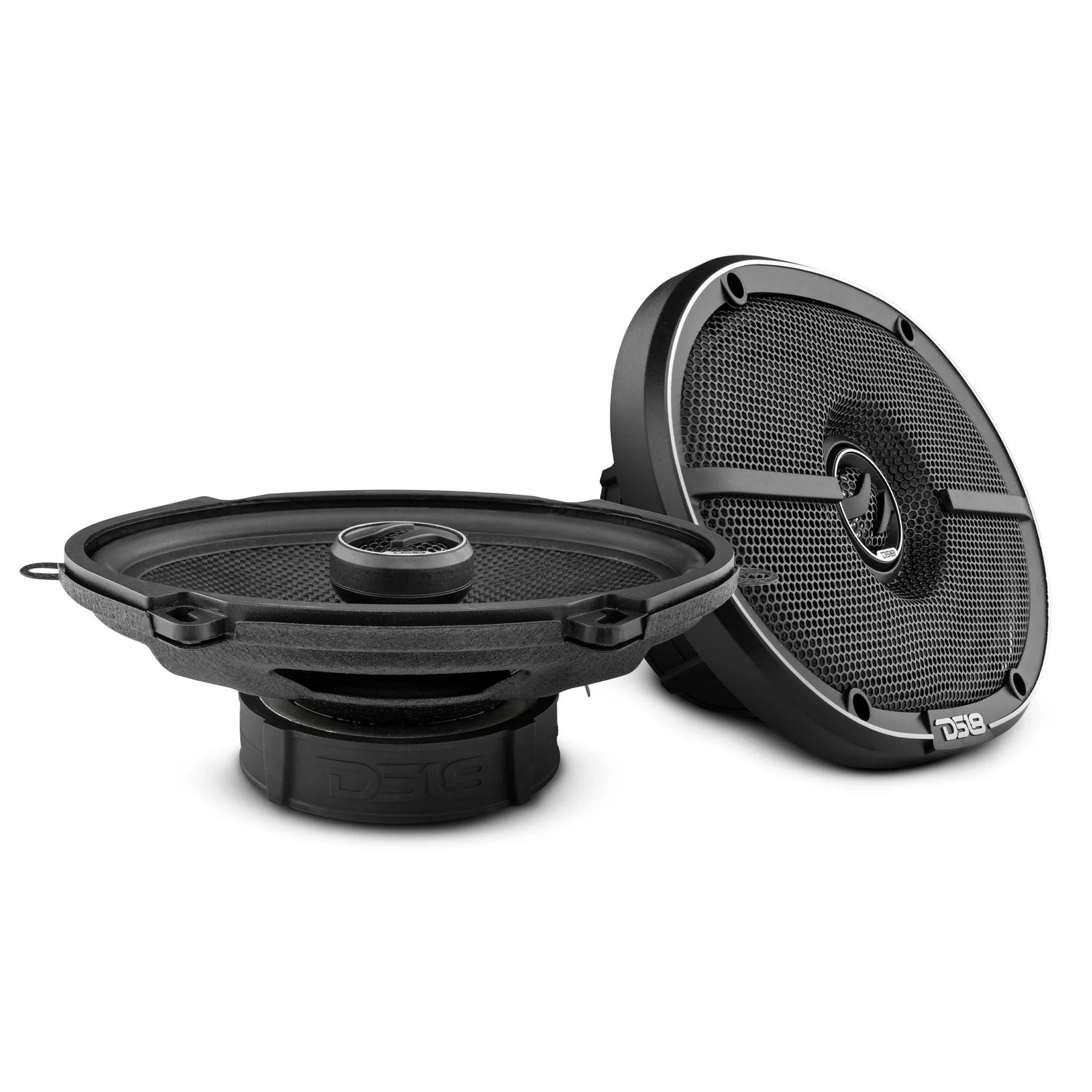

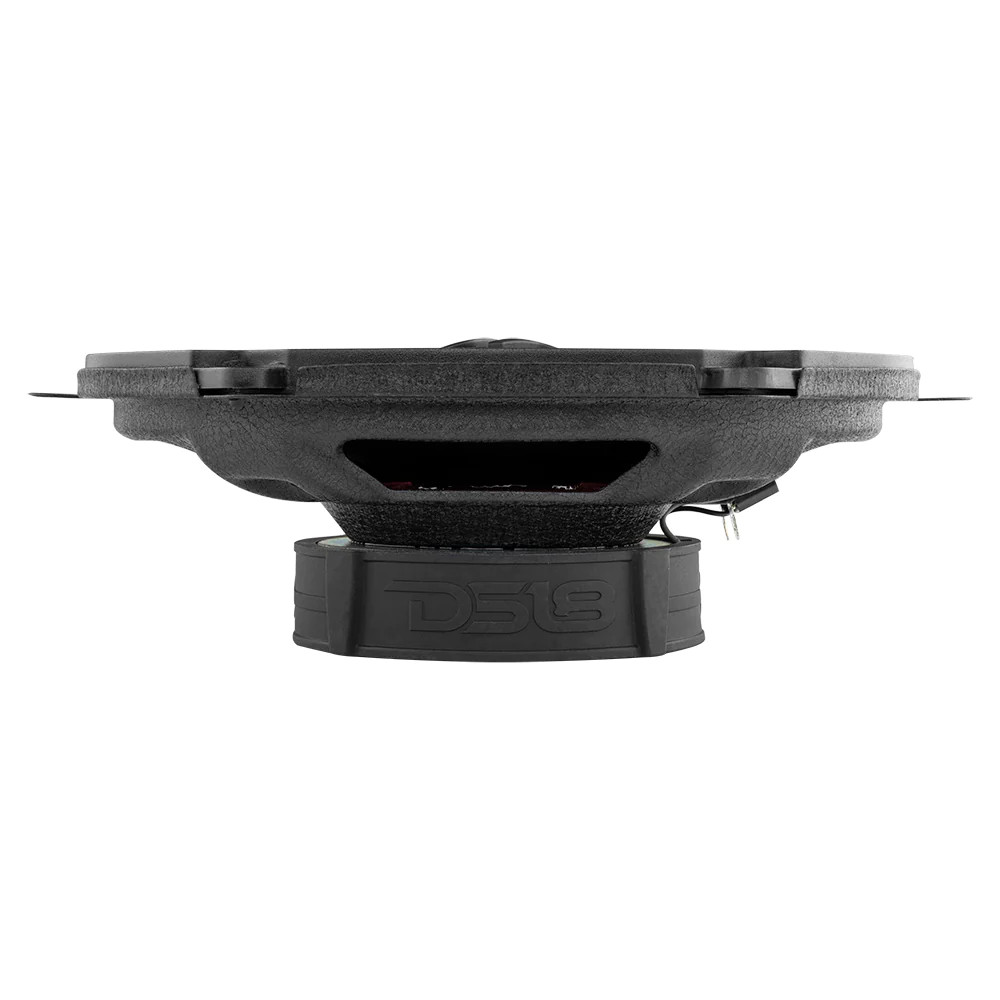

DS18 ZXI 5x7" 2-Way Coaxial Speakers with Kevlar Cone 210 Watts 4-Ohm

SPECS

SKU
ZXI-574
Nominal Diameter
5 x 7 Inches
Nominal Impedance
4 ohm
RMS Power Handing
70 WATTS
MAX Power Handing
210 WATTS
Sensitivity
91 dB
Frequency Response
40 Hz - 20 KHz
Recommended Hi Pass
60 Hz
Speaker Type
2-Way

MIDRANGE

Voice Coil Diameter
25.5 mm (1 inch)
Voice Coil Former Material
KSV
Winding Material
EISV
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Barium Ferrite
Magnet Weight
14.46 oz / 410 g

TWEETER

Nominal Diameter
25.4 mm (1 inch)
Voice Coil Diameter
20.4 mm (0.8 inch)
Voice Coil Former Material
KSV
Winding Material
EISVM
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Weight
8.5 g / 0.3 oz

THIELE & SMALL PARAMETERS

Vas
8.66 LTR
Xmax
2.7 mm
Fs
68 Hz
Qms
7.04
Qes
1.28
Qts
1.08
Mms
16.1 g
Cms
258.7 mm / N
BL
4.66
Le
228 mH
Sd
153.5 cm2
Re
3.5 ohm
Mmd
14 g

MEASUREMENTS

Overall Diameter
5.55 x 7.60 inch (141 x 193 mm)
Overall Depth
72 mm (2.84 inch)
Front Mount Baffle Cutout
125 x 179.5 mm (4.92 x 7.07 inch)
Mounting Depth
56.5 mm (2.22 inch)
Motor Diameter
94 mm (3.70 inch)
Product Weight
6 lbs
Product Dimensions
14 x 9.5 x 3.75
M/C Weight
36 lbs
M/C Dimensions
20 x 14.75 x 11.75
M/C QTY
6
Sold In
Pair
