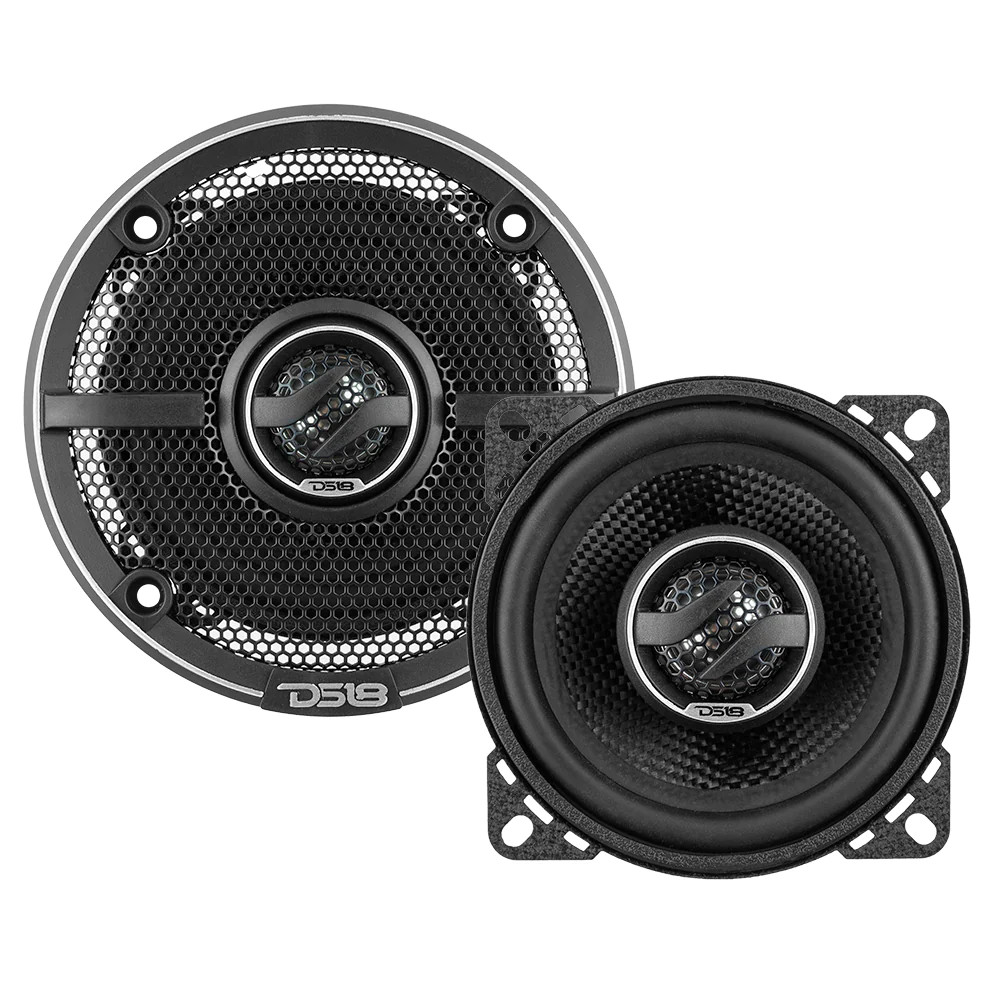

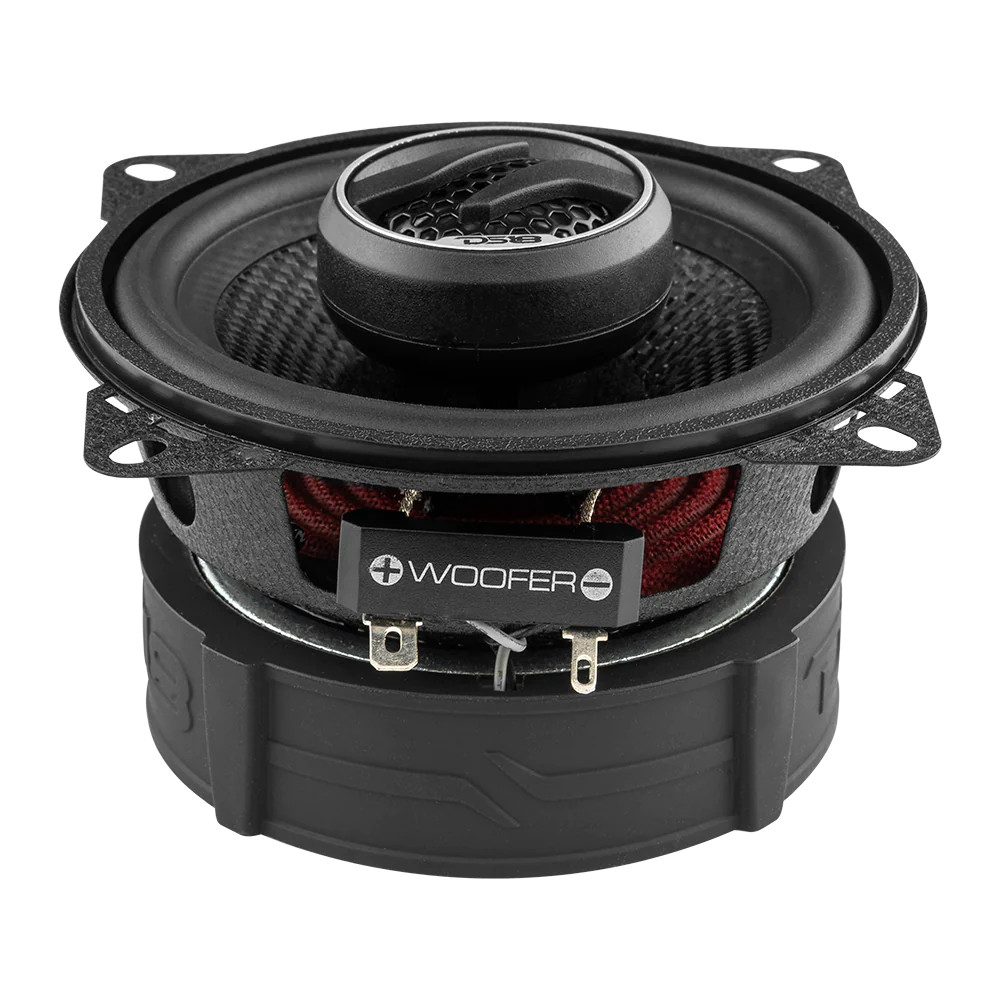

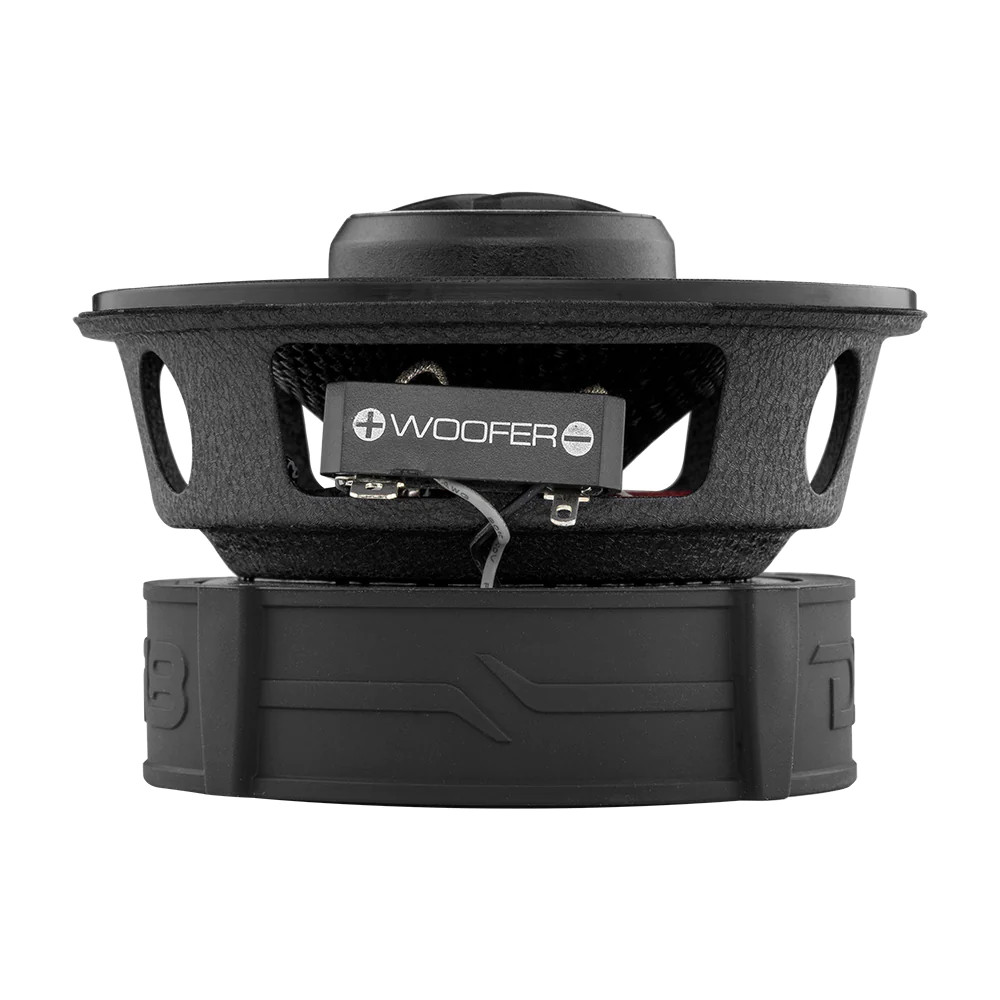

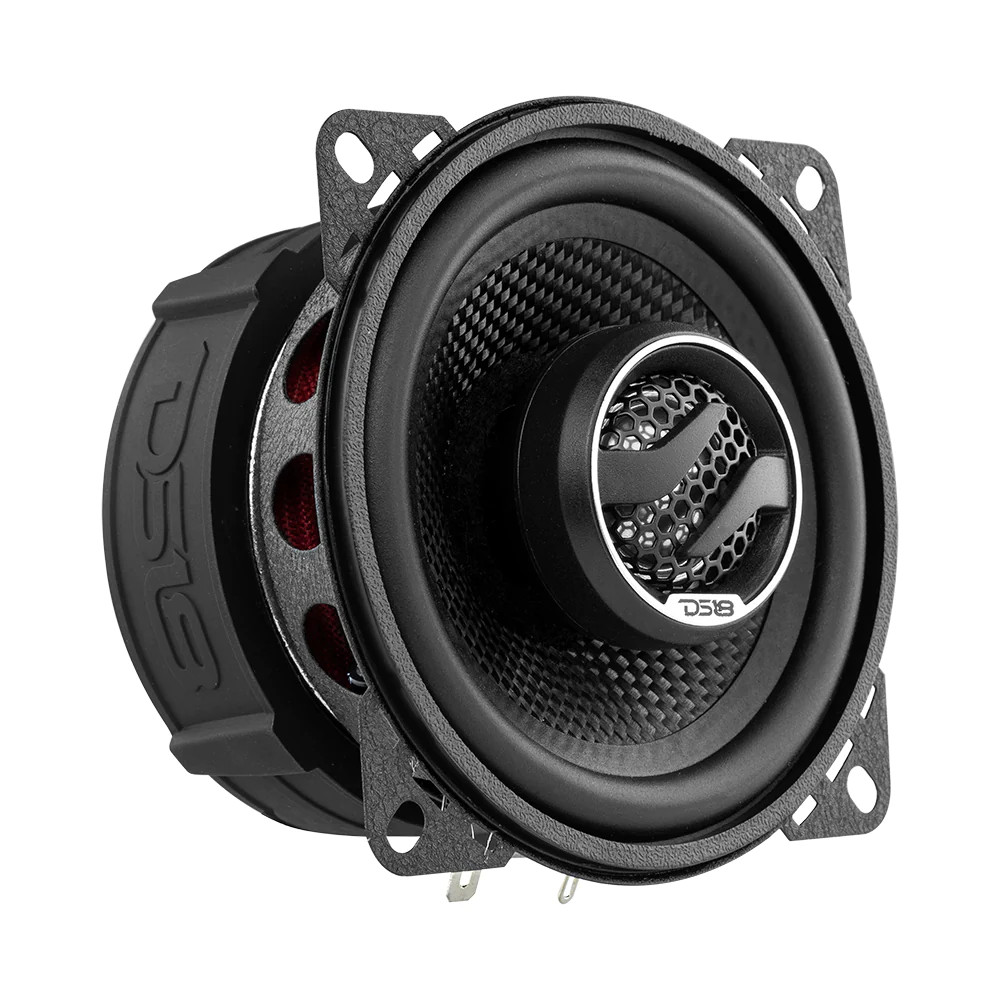

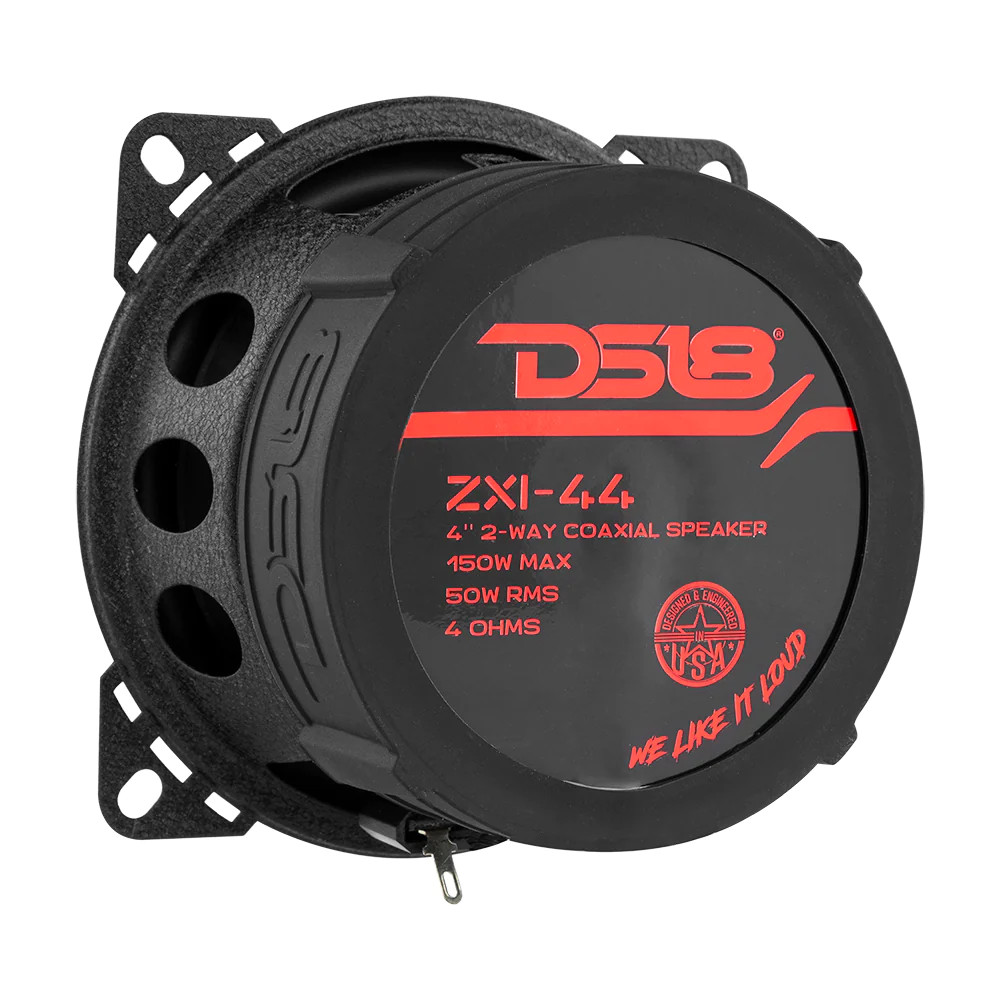

DS18 ELITE 4" FULL RANGE SPEAKERS WITH KEVLAR CONE 120W 4 OHM

SPECS

SKU
ZXI-44
Nominal Diameter
4 Inches
Nominal Impedance
4 ohm
RMS Power Handing
50 WATTS
MAX Power Handing
150 WATTS
Sensitivity
88 dB
Frequency Response
80 Hz - 20 KHz
Recommended HI Pass
100 Hz
Speaker Type
2-Way

MIDRANGE

Voice Coil Diameter
25.5 mm (1 inch)
Voice Coil Former Material
KSV
Winding Material
EISV
Cone Material
Glass fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Barium Ferrite
Magnet Weight
10.9 oz / 310 g

TWEETER

Nominal Diameter
25.4 mm (1 inch)
Voice Coil Diameter
20.4 mm (0.8 inch)
Voice Coil Former Material
KSV
Winding Material
EISVM
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Weight
8.5 g / 0.3 oz

THIELE & SMALL PARAMETERS

Vas
1.59 LTR
Xmax
2.3 mm
Fs
95 Hz
Qms
9.00
Qes
0.8
Qts
0.74
Mms
8.47 g
Cms
364.9 mm / N
BL
4.583
Le
216 mH
Sd
55.4 cm2
Re
3.5 ohm
Mmd
8.0 g

MEASUREMENTS

Overall Diameter
3.94 inch (100 mm)
Overall Depth
71 mm (2.80 inch)
Front Mount Baffle Cutout
93 mm (3.66 inch)
Mounting Depth
56 mm (2.20 inch)
Motor Diameter
84 mm (3.31 inch)
Product Weight
4 lbs
Product Dimensions
12 x 5.75 x 3.25
M/C Weight
33.5 lbs
M/C Dimensions
24 x 12.5 x 7.25
M/C QTY
8
Sold In
Pair
