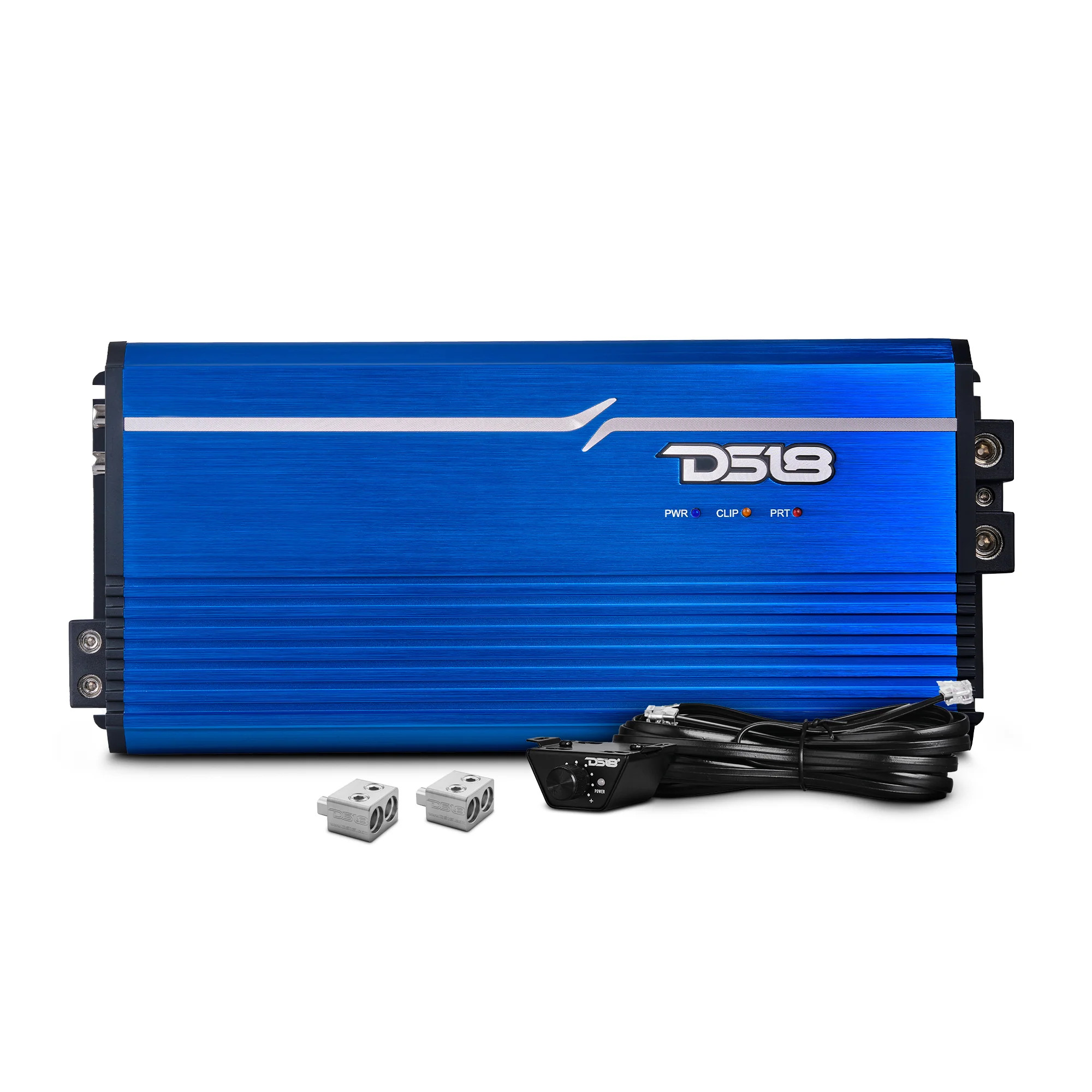

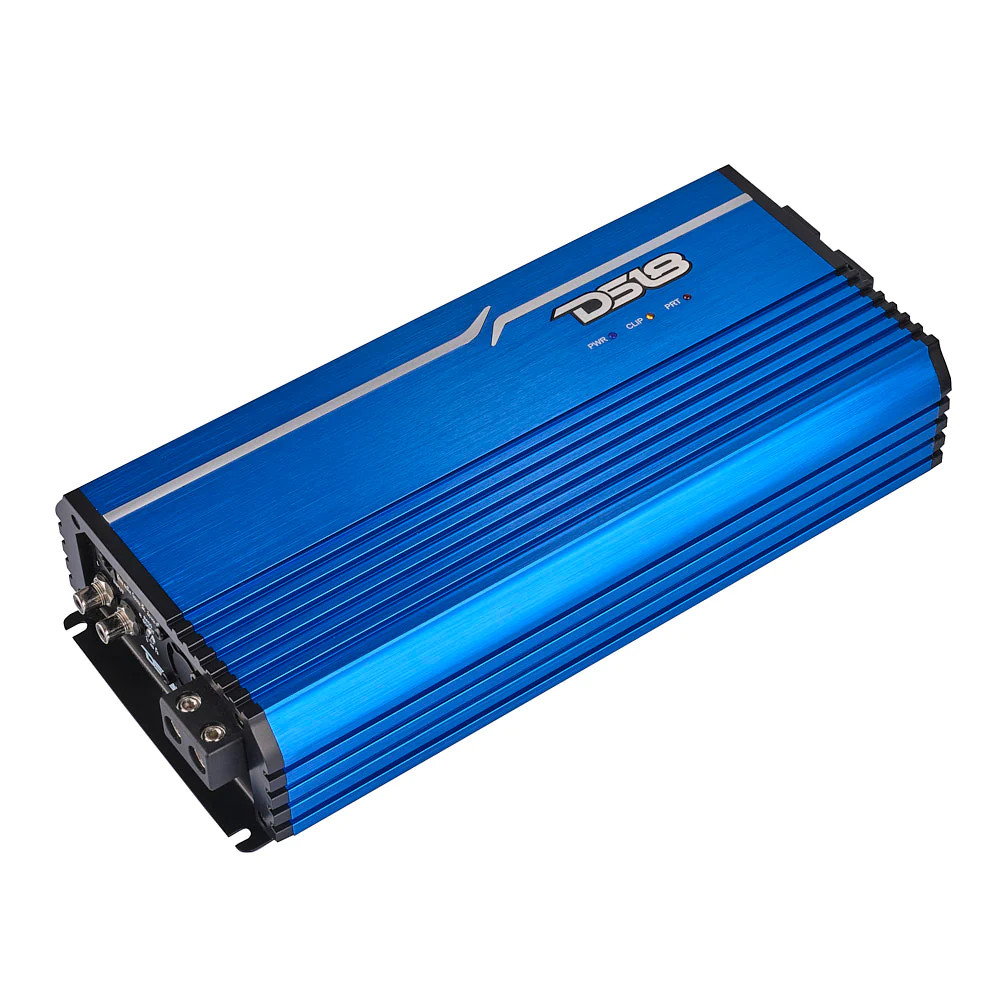

DS18 FRP Compact Full-Range Class D 1-Channel Amplifier 5,000 Watts Rms @ 1-Ohm - BLUE

SPECS

SKU
FRP-5K/BL
RMS Power @ 4 ohms
1500W
RMS Power @ 2 ohms
2900W

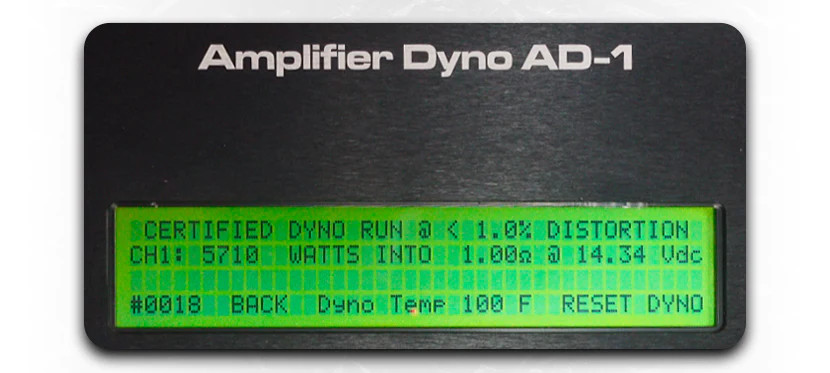

RMS Power @ 1 ohm
5000W

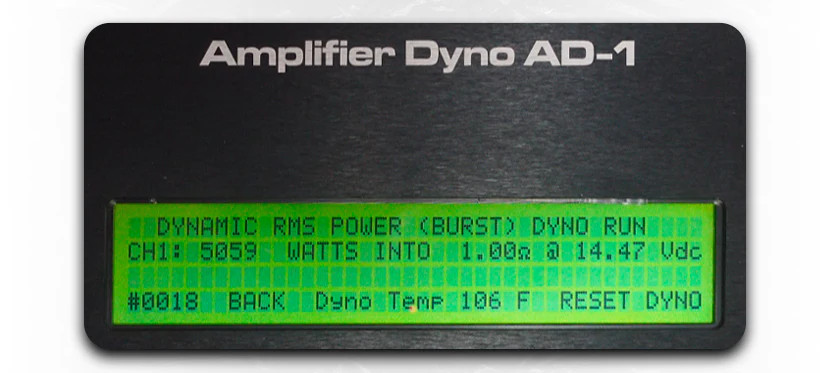

MAX Power @ 1 ohm (Burst)
5600W

AUDIO

Frequency Response
10Hz-15KHz
Signal to Noise Ratio
83dB
Efficiency @ 4ohm
92%
Damping Factor
90
Input Impedance
10KΩ
Total Harmonic Distortion (THD)
0.5%
Low Level Input Range
400mv-3.6V
High Level Input
No

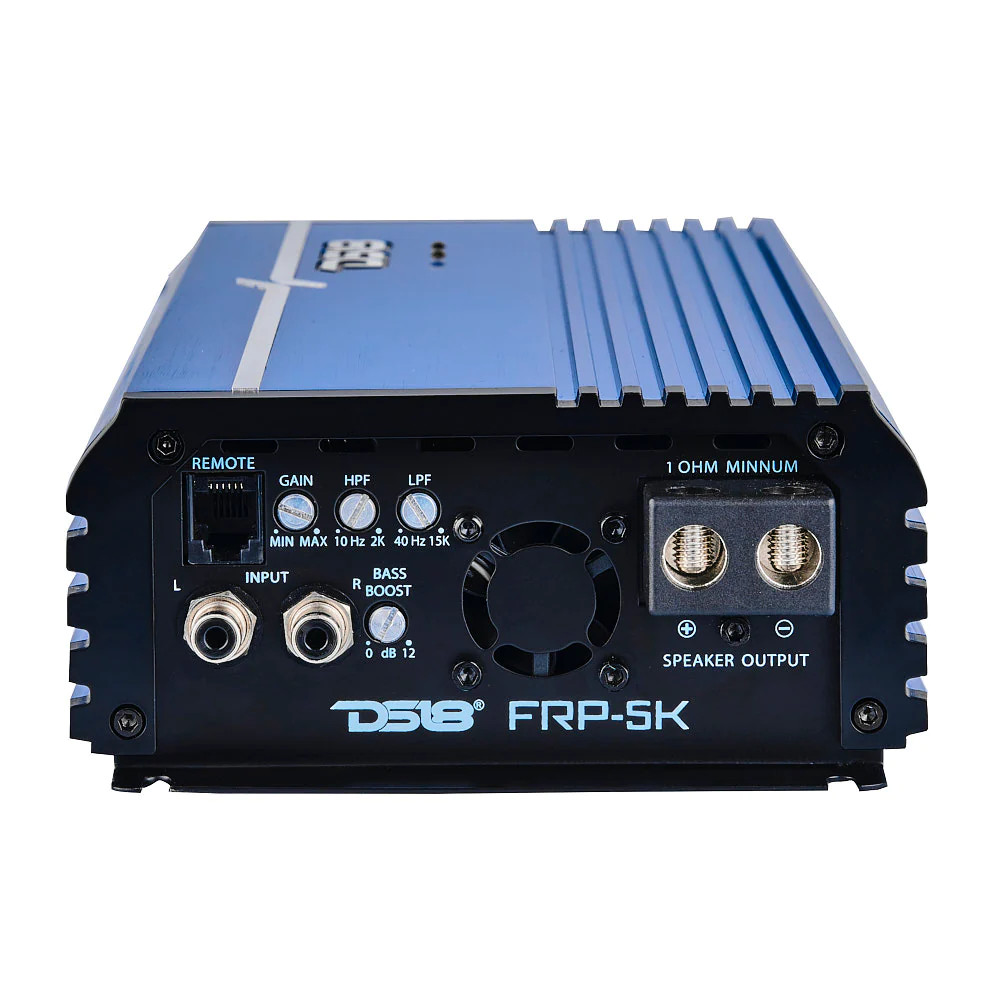

Selectable X-Over
Fixed Band-Pass
X-Over Filter Range
HP: 10Hz-2KHz / LP: 40Hz-20KHz
Bass Boost Range
0-12dB
Bass Boost Frequency
50Hz
Phase Selector
No

FEATURES

Amplifier Class
Digital
Amplifier Type
Full-Range Monoblock
Number of Channels
1CH
Minimum Impedance
1Ω
Led Indicator
Power / Protect / Clipping

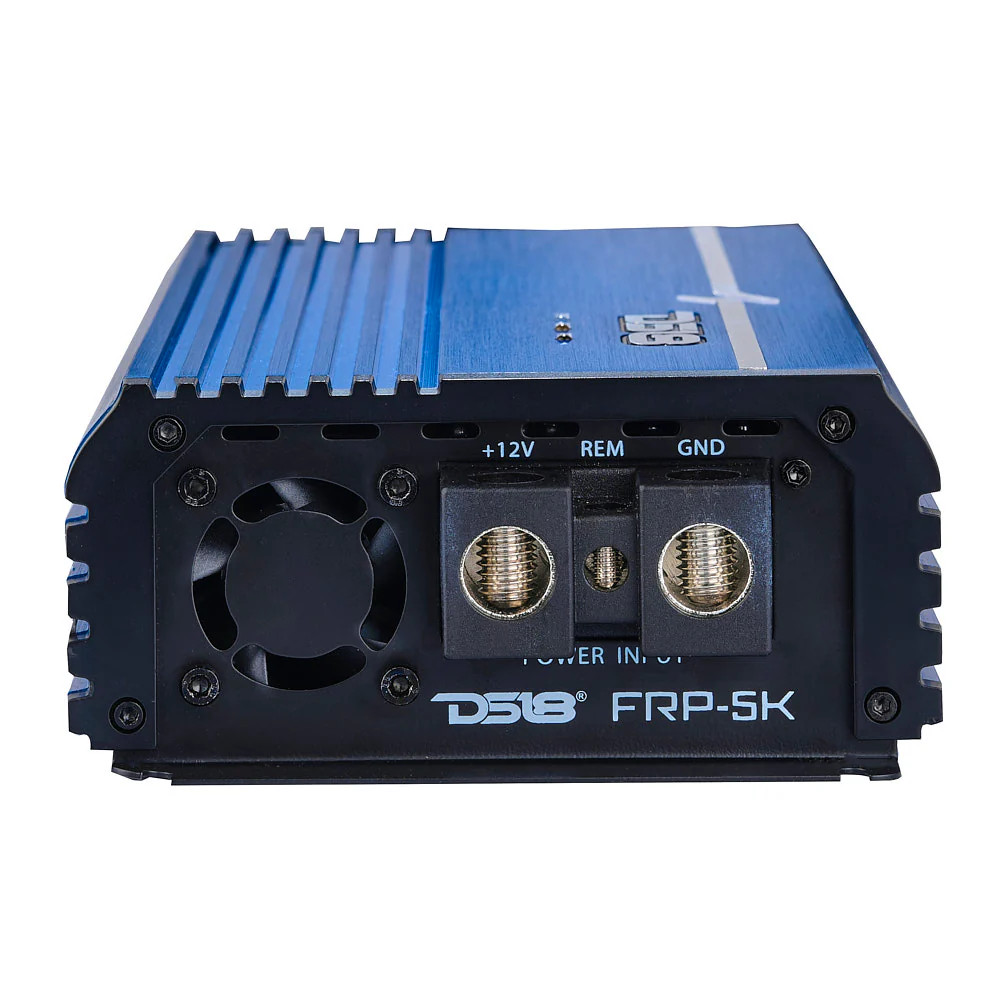

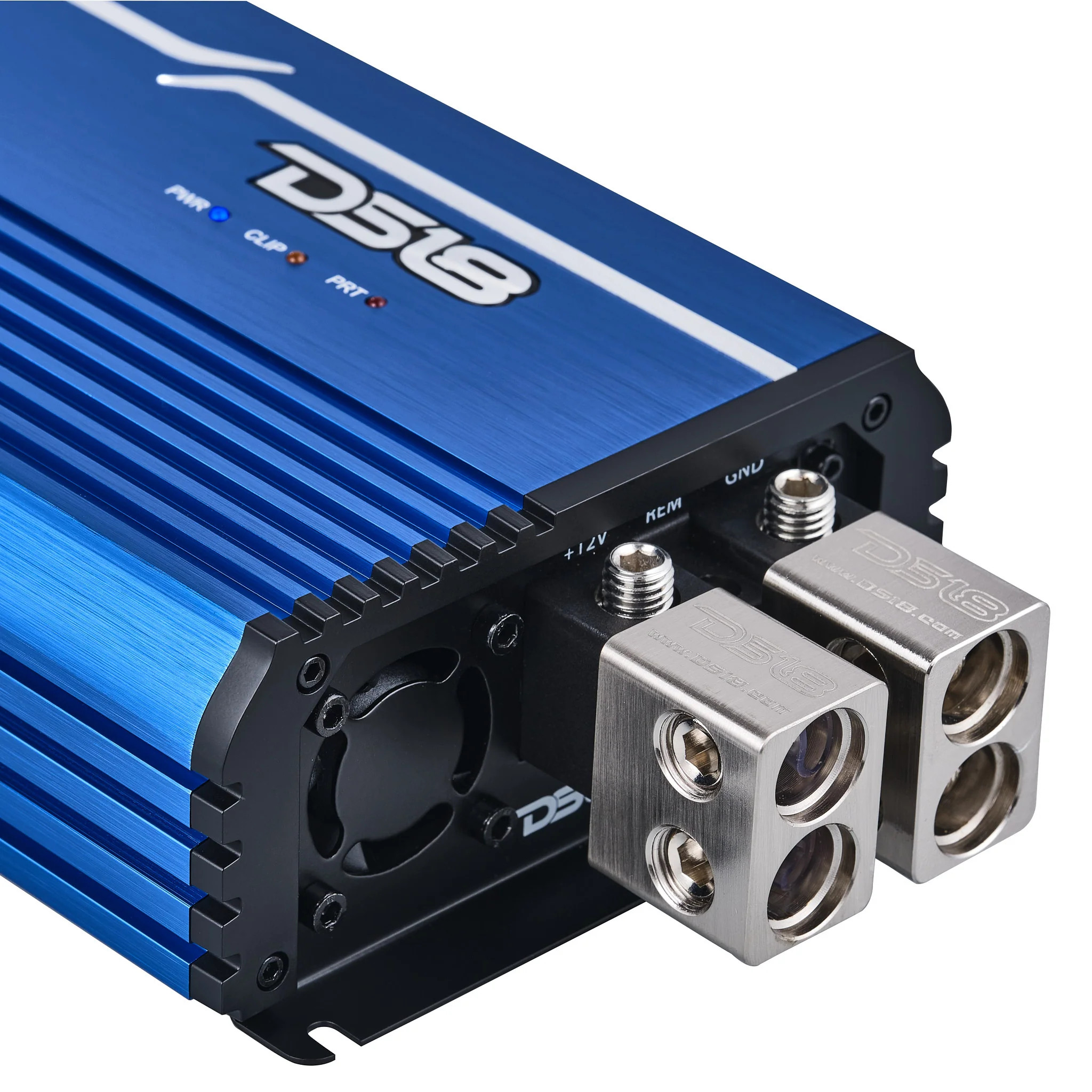

Power Input Terminal Size
0GA
Fuse Size (Recommended)
500A
Remote Level Control
Yes (Volmeter Optional)
Cooling Fan
Yes (Smart Cooling x 2)
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Blue / Red / Titanium
Compact Size to Easy Installation for Any Applications
Yes

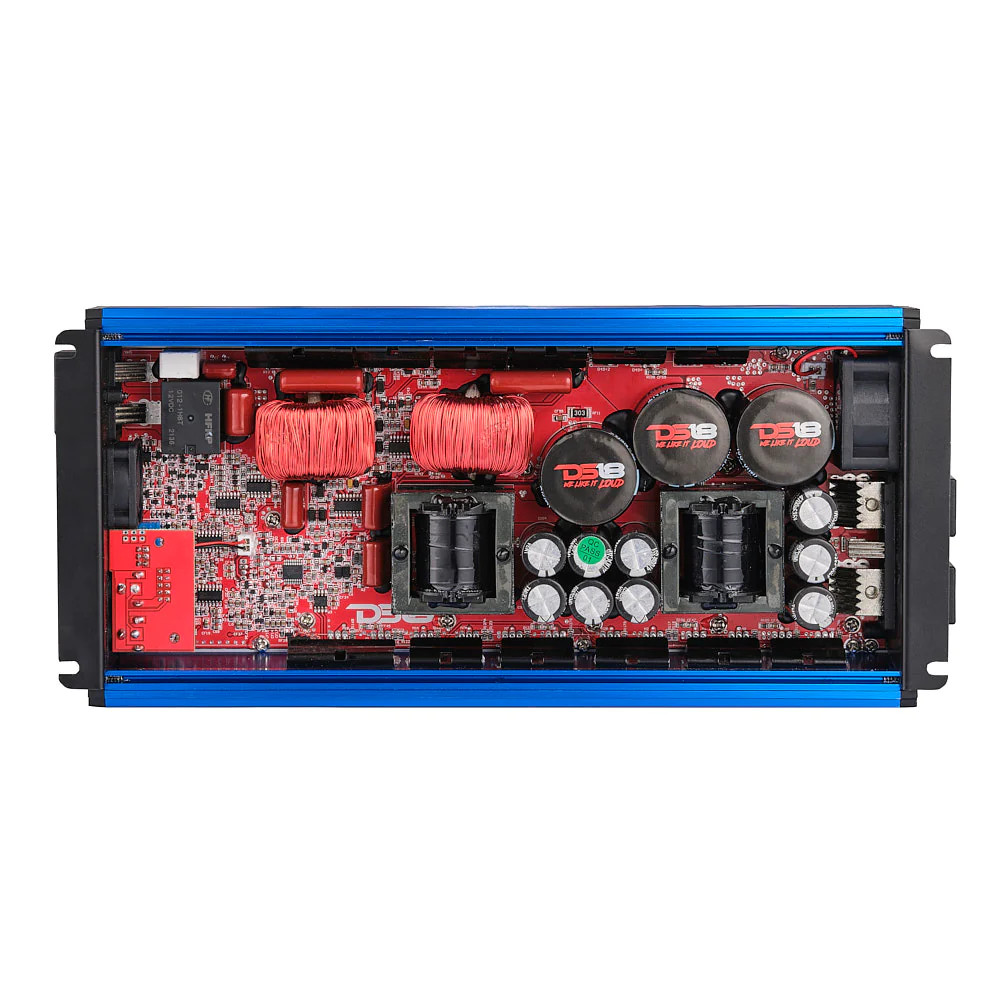

Stable/Reliable Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
Metal Knobs with Click Steps
Yes

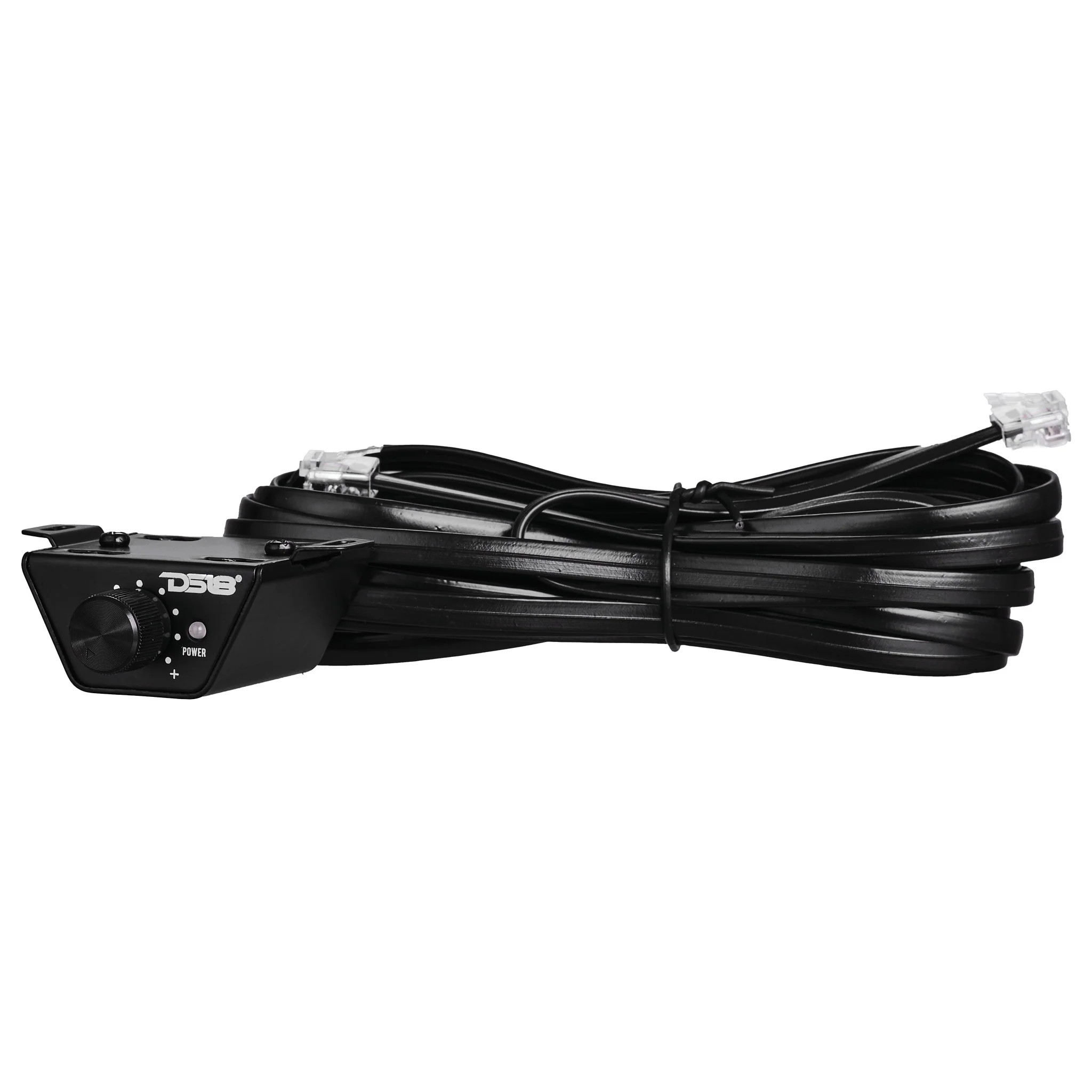

Remote Level Control with Clip Indicator
Included
Remote Level Control with Clip Indicator and Voltmeter
Optional

MEASUREMENT

Overall Length
12.2" / 310mm
Overall Width
5.5" / 140mm
Overall Height
2.36" / 60mm
Heatsink Length
11" / 278mm
Gross Single Unit Weight
3.3kg
