Description
DS18 FRP Compact Full-Range Class D 1-Channel Amplifier 12,000 Watts Rms @ 1-Ohm
Key Features
- Full-Range Class D Monoblock
- 12,000W RMS at 1 Ohm
- Compact High-Power Design
- Smart Cooling System
- Remote Level Control
- Clip, Short Circuit, and Overload Protection
Power
RMS Power @ 4 ohms
4000W
RMS Power @ 2 ohms
7500W
RMS Power @ 1 ohm
12000W
MAX Power @ 1 ohm (Burst)
13000W
Audio
Frequency Response
10Hz-15kHz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
92%
Damping Factor
90
Input Impedance
10K Ω
Total Harmonic Distortion (THD)
0.5%
Low Level Input Range
400mV-6V
High Level Input
No
Selectable X-Over
Band-Pass
X-Over Filter Range
HP: 10Hz-2KHz / LP: 40Hz-15KHz
Bass Boost Range
0-12dB
Bass Boost Frequency
50Hz
Phase Selector
No
Features
Amplifier Class
Digital
Amplifier Type
Full-Range Monoblock
Number of Channels
1CH
Minimum Impedance
1 Ω
Led Indicator
Power / Protect / Clipping

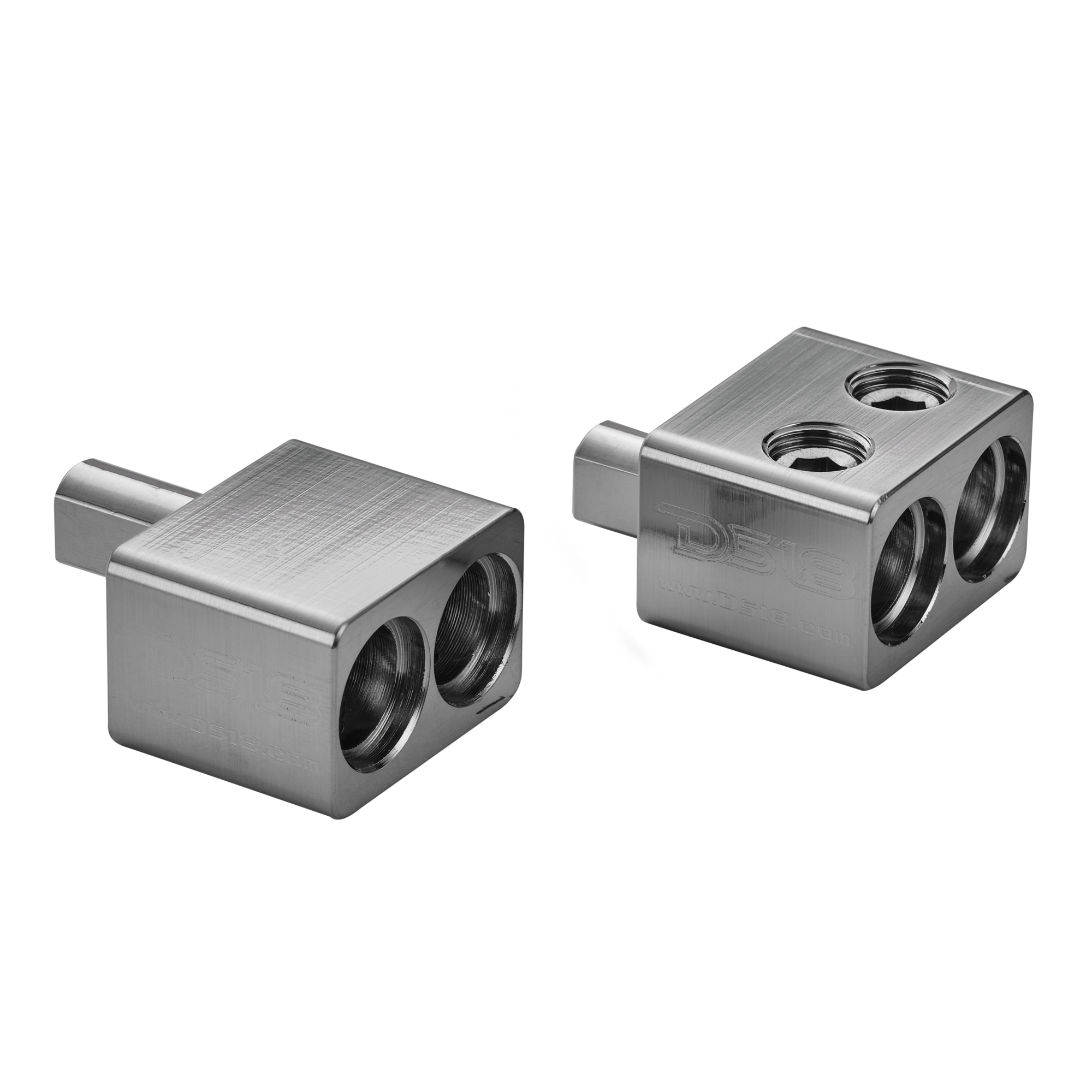

Power Input Terminal Size
0GA
Fuse Size (Recommended)
1300A
Cooling Fan
Yes (Smart Cooling x 3)
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Blue / Red / Titanium
Compact Size to Easy Installation for Any Applications
Yes
Stable/Reliable Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
Metal Knobs with Click Steps
Yes
Remote Level Control with Clip Indicator
Included
Remote Level Control with Clip Indicator and Voltmeter
Optional
Measurement
Overall Length
24" / 610mm
Overall Width
6.5" / 167mm
Overall Height
2.4" / 62.5mm
Heatsink Length
22.6" / 576mm
Gross Single Unit Weight
7.3Kg
Product Overview
Full-Range Performance

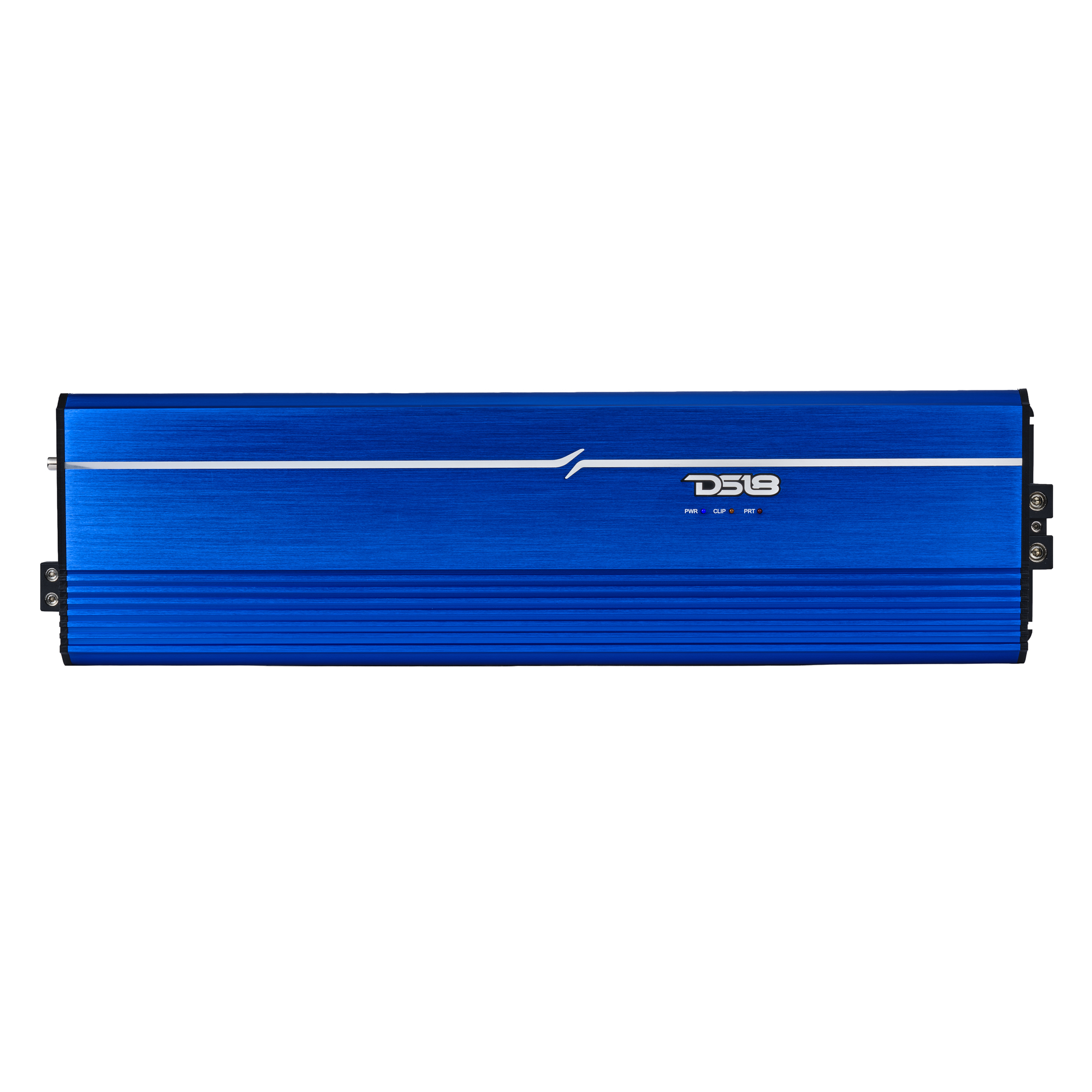

The FRP-12K/BL is a compact full-range Class D 1-channel amplifier, part of the FRP series of amplifiers, giving you the power to amplify the loudest audio gear in your sound system.
Compact Power
This amp comes with a MAX power of 13000W (at 1 ohm), with RMS ranging from 4000W to 12000W. And with a frequency response of 10Hz-15kHz, your speakers and tweeters will have no problem reaching their full potential whenever you need to pump up the volume.
Party Without Worry
Smart Cooling ensures your FRP-12K/BL amp never gets too hot when handling all your audio gear. It also comes with an array of protections, keeping your amp from clipping, short circuiting, or over-loading.
Sleek Features
Featuring a sleek finish, this amp also comes with an LED clip indicator and quality control verification, letting you always stay in control and make sure everything is working and running as intended.
Made for Sound
If you want to upgrade your car audio and take it to the next level, look no further than DS18. Whether you’re throwing a party or enjoying a drive, DS18 FRP amps have everything you need to power your sound system.
