SPECS

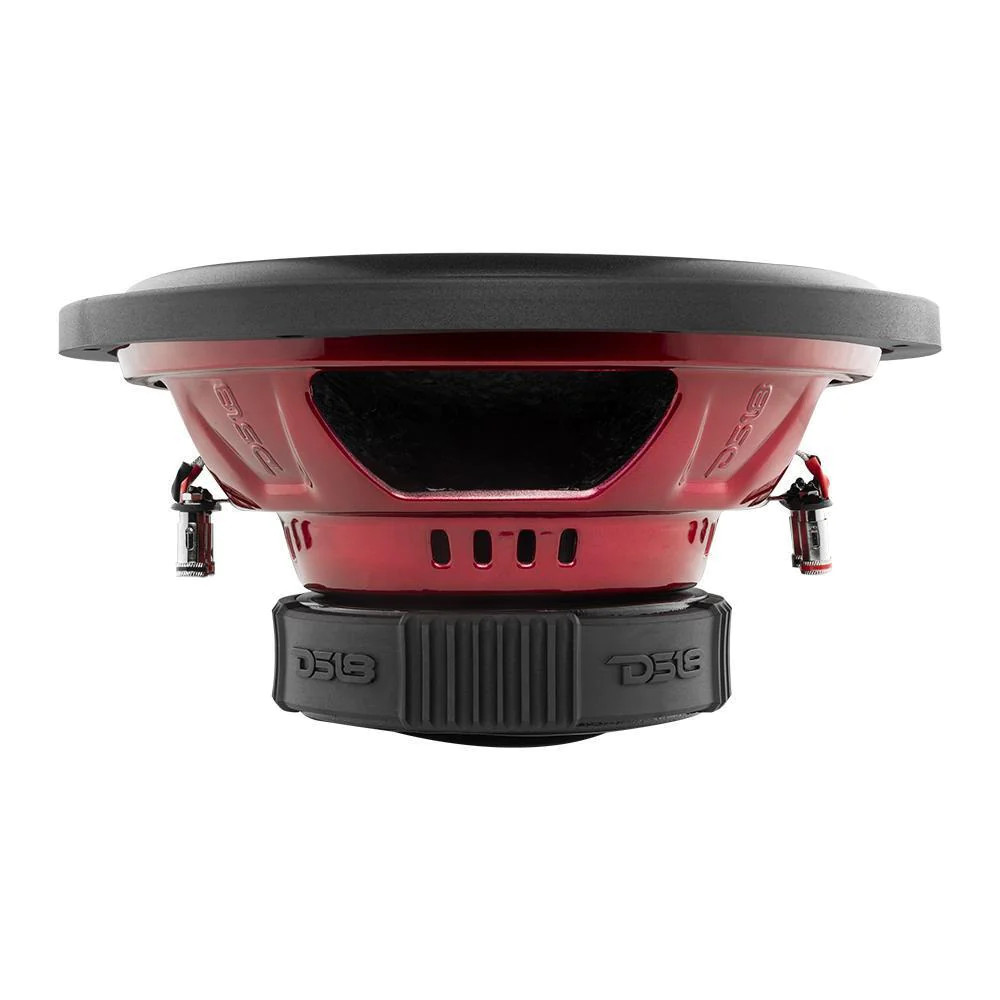

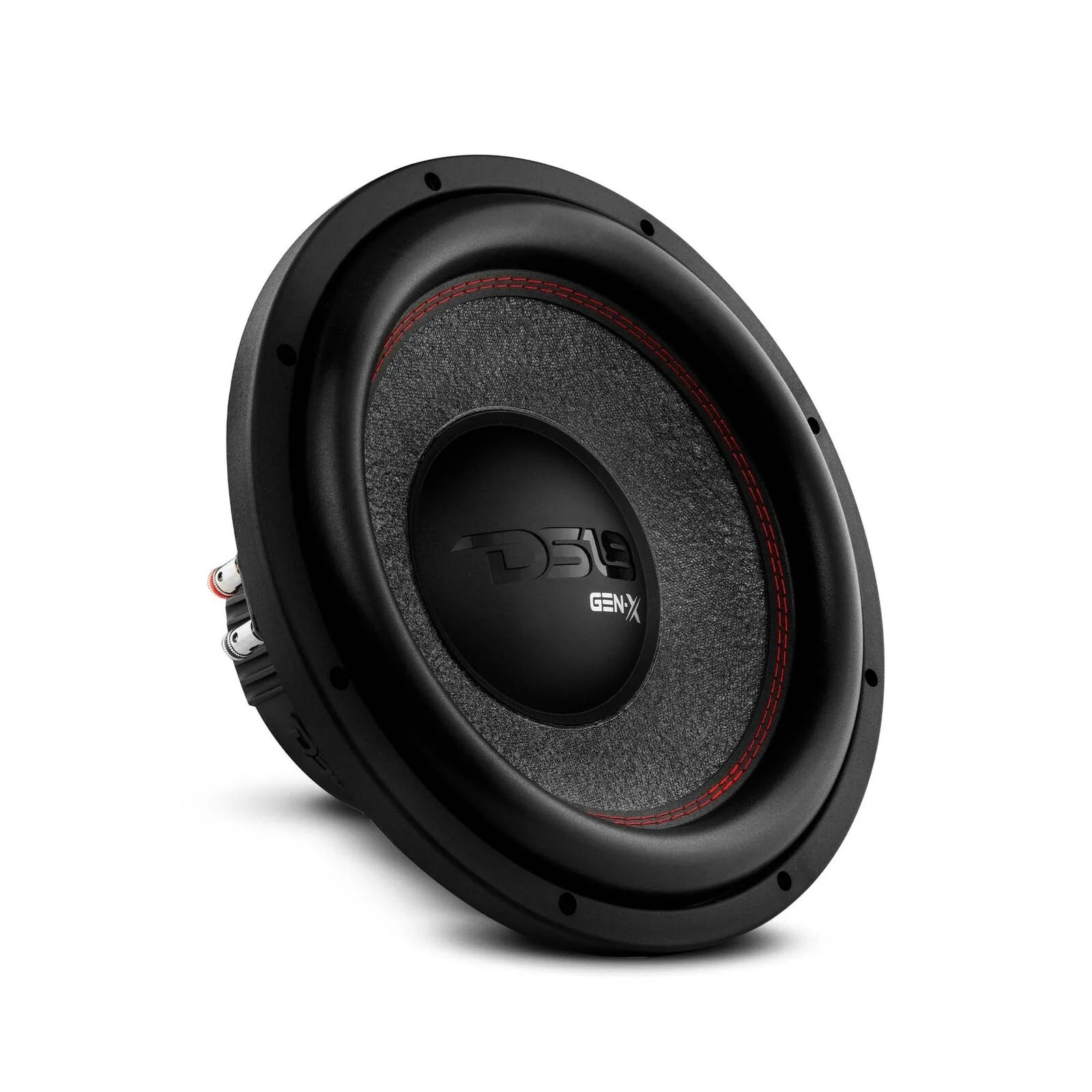

PRODUCT NAME
GEN-X124D
Nominal Diameter
12" / 304.8mm
Nominal Impedance
4+4 ohms
RMS Power Handling
450w
Maximum Power Handling
900w
Sensitivity (1w/1m)
87.5 db
Frequency Response
20 - 250Hz
Recommended Lo Pass Crossover
120 Hz

MOTOR

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel Basket
Basket Color/Finish
Glossy Red
Frame Material
Steel
Magnet Material
Ferrite
Magnet Weight
70 oz

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
23.4L / 0.82ft3
Free Air Resonance Fs
43 Hz
Mechanical Factor Qms
6.305
Electrical Factor Qes
0.748
Total Factor Qts
0.69
Moving Mass Mms
189.648g
Compliance Cms
0.069mm/N
Bl Factor Bl
21.65
Voice Coil Inductance Le
32.18 mH
Diaphragm Area Sd
490.87 cm2
DC Resistance Re
3.2 + 3.2ohms
Efficiency Bandwidth Product EBP
57.4

MEASUREMENTS

Overall Diameter
12.44" / 316mm
Overall Depth
6.41" / 163mm
Front Mount Baffle Cutout
10.9" / 277mm
Mounting Depth
5.75" / 146mm
Motor Diameter
6.54" / 166mm
Gross Single Unit Weight (lb)
14.5
Single Unit Box Dimensions W x L x H (Inches)
13.25 x 13.25 x 7.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
31
Master Carton Dimensions W x L x H (Inches)
14.25 x 14.25 x 16
