SPECS

PRODUCT NAME

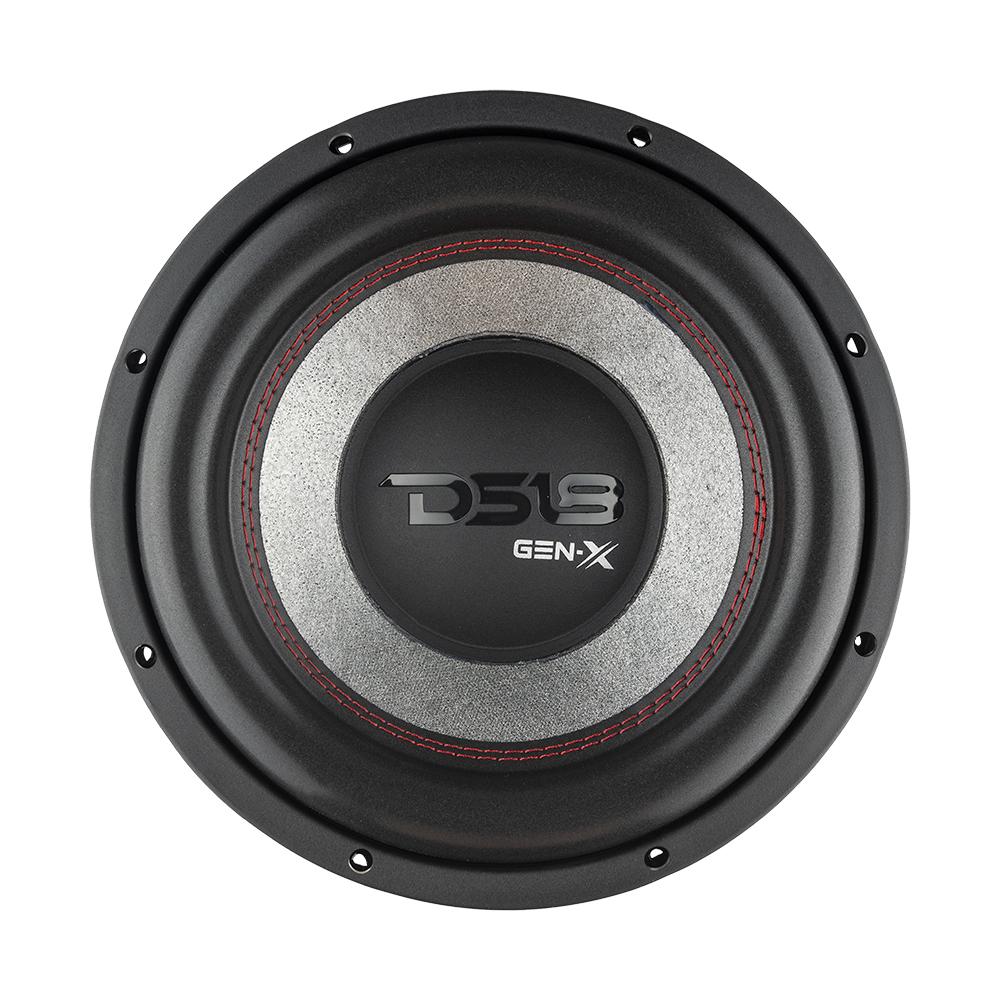

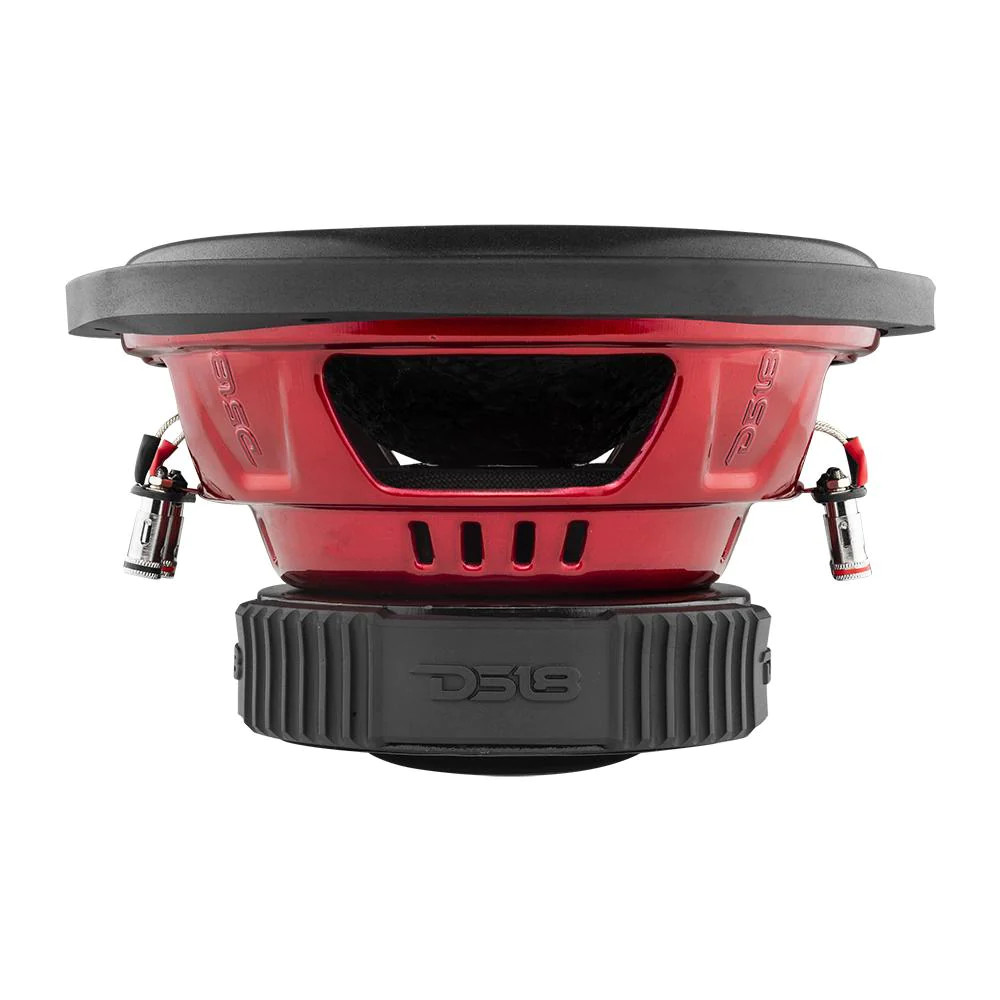

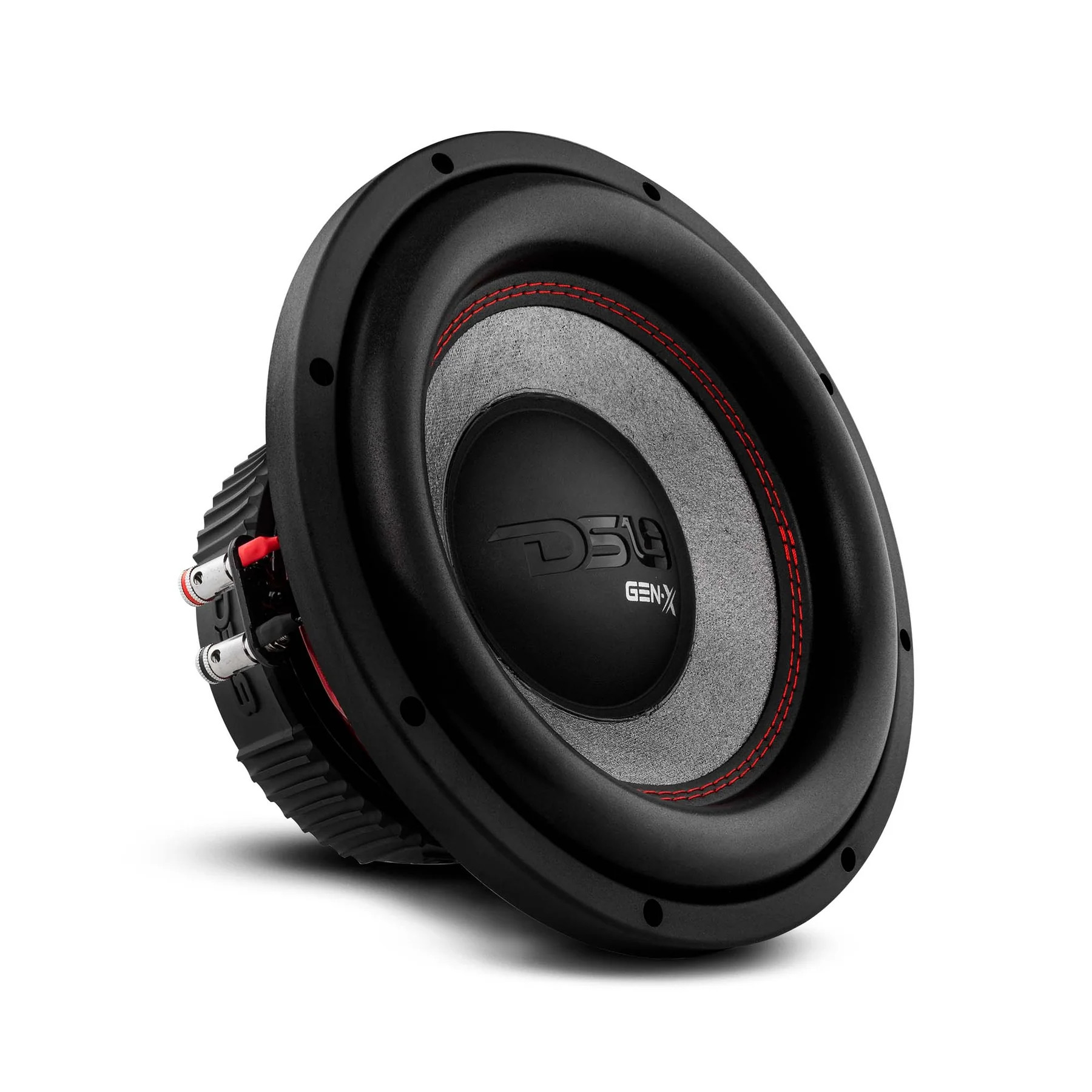

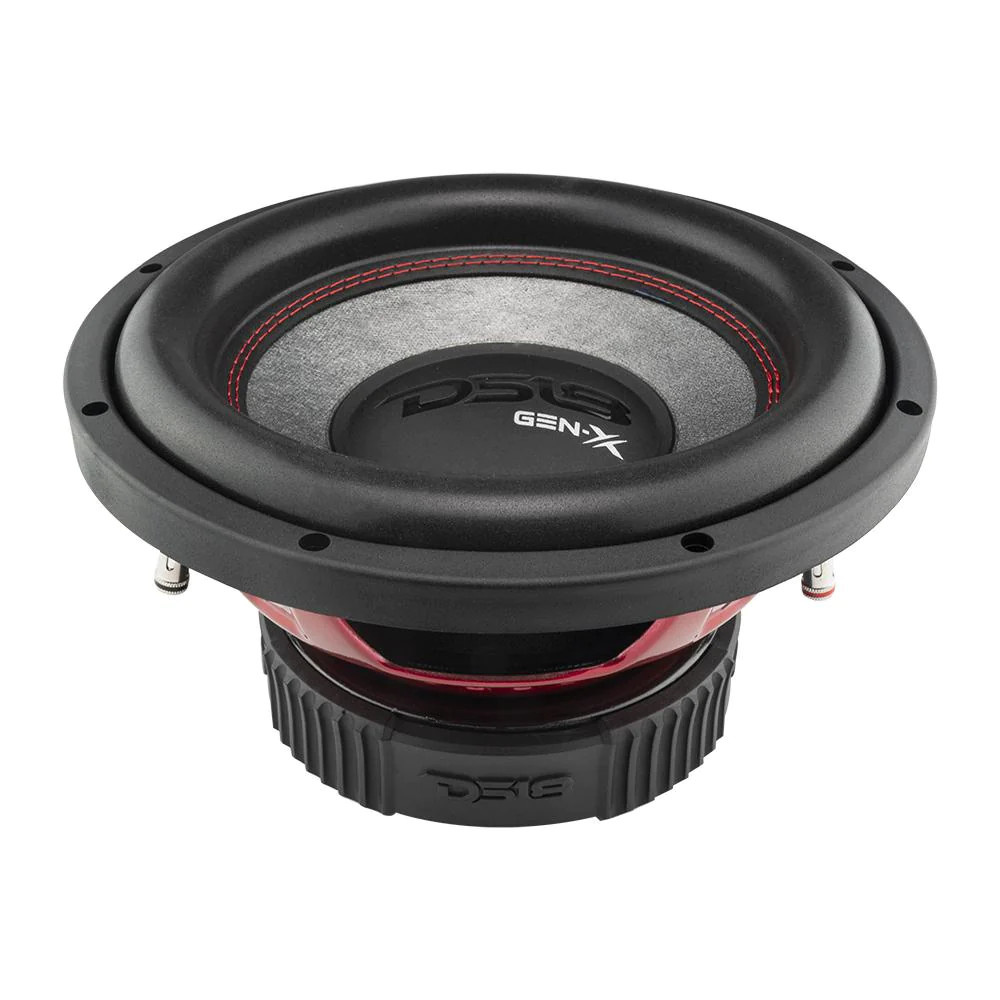

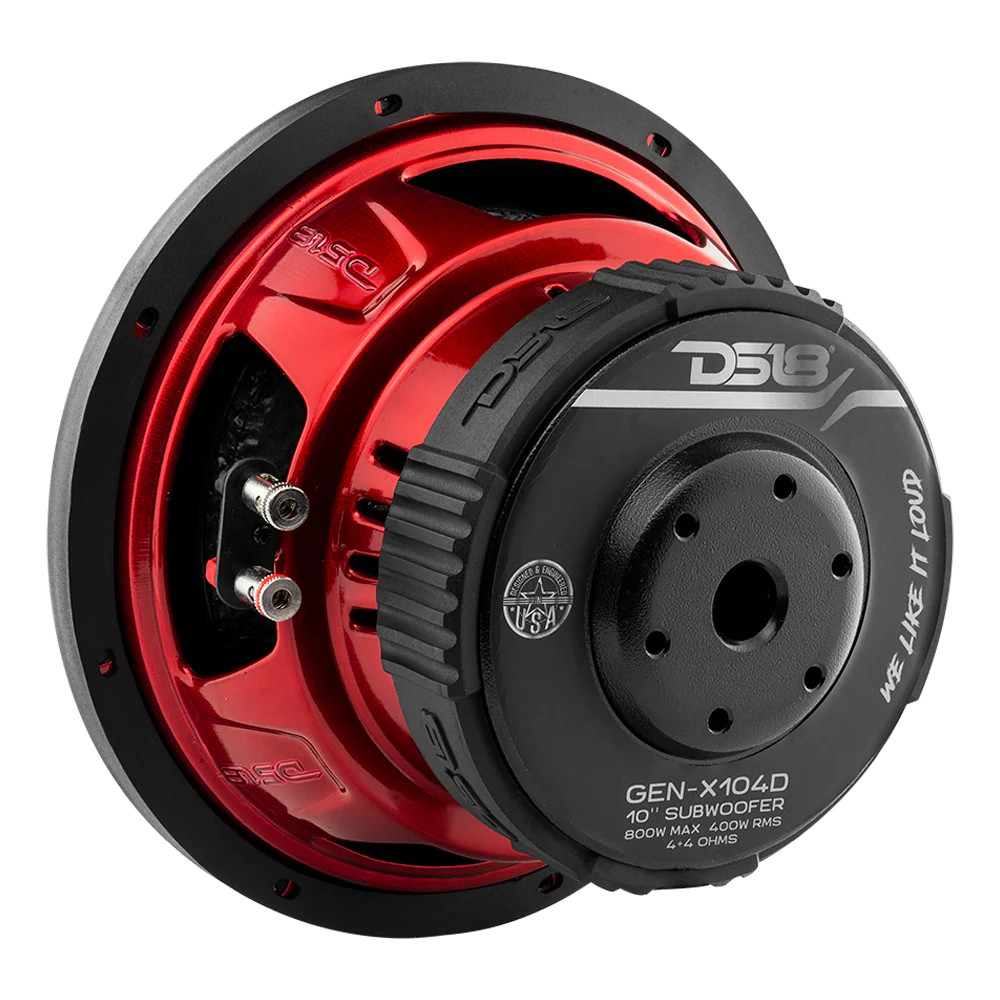

GEN-X104D
Nominal Diameter
10" / 254mm
Nominal Impedance
4+4 ohms
RMS Power Handling
400w
Maximum Power Handling
800w
Sensitivity (1w/1m)
87 db
Frequency Response
25 - 300Hz
Recommended Lo Pass Crossover
120 Hz

MOTOR

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel Basket
Basket Color/Finish
Glossy Red
Frame Material
Steel
Magnet Material
Ferrite
Magnet Weight
66 oz

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
10.6L / 0.37ft3
Free Air Resonance Fs
54.6Hz
Mechanical Factor Qms
5.191
Electrical Factor Qes
0.616
Total Factor Qts
0.551
Moving Mass Mms
123.04g
Compliance Cms
0.069mm/N
Bl Factor Bl
10.905
Voice Coil Inductance Le
8.22mH
Diaphragm Area Sd
330.06cm2
DC Resistance Re
3.2 + 3.2ohms
Efficiency Bandwidth Product EBP
88.6

MEASUREMENTS

Overall Diameter
10.24" / 260mm
Overall Depth
6.3" / 160mm
Front Mount Baffle Cutout
9.21" / 234mm
Mounting Depth
5.39" / 137mm
Motor Diameter
6.54" / 166mm
Gross Single Unit Weight (lb)
13.5
Single Unit Box Dimensions W x L x H (Inches)
11.25 x 11.25 x 7.25
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
28.5
Master Carton Dimensions W x L x H (Inches)
12 x 12 x 15.5
