General Specifications

Nominal Diameter
8" / 218mm
Nominal Impedance
4 Ohms
RMS Power Handling (Combined)
350W
MAX Power Handling (Combined)
700W
Sensitivity (1w/1m) (Combined)
96dB
Frequency Response (Combined)
35Hz-20kHz
Number of Ways
2-Ways
Recommended High-Pass Crossover
60Hz
Sold in Pair or Single
Pair
Enclosure Material
Injection ASA
IP Rating
IP65 + UV Stable
RGB LED Lighting
Integrated Digital LED Speaker Lighting (Front of Cone, Acrylic Ring, Radiator Logo)
Digital LED Chip Type
1815S
Grill Type
Injection Molded Composite ASA with UV Protection coating

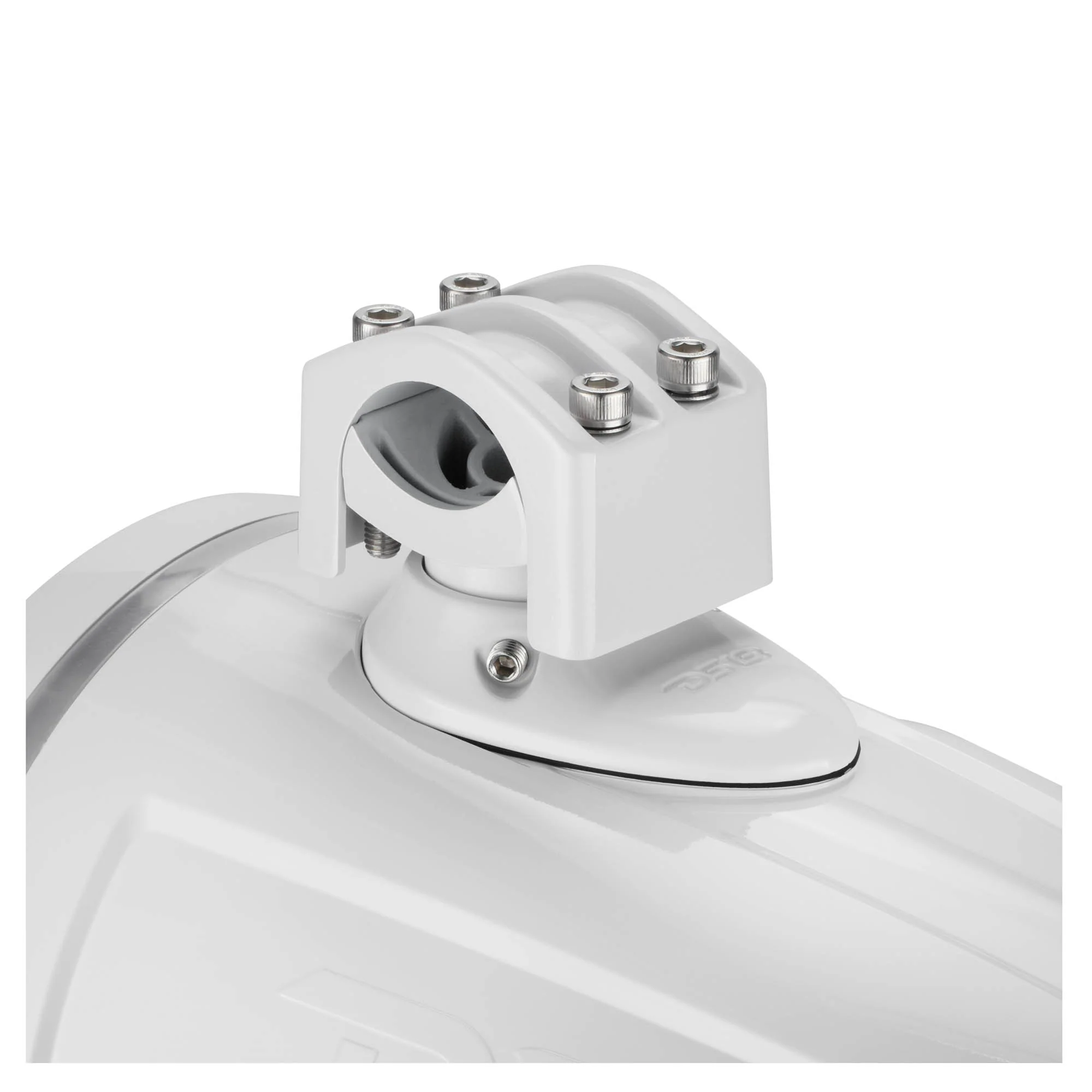

Clamps
Die-Cast adjustable (1"~ 2") 360 Degree Rotation Mounting, Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)

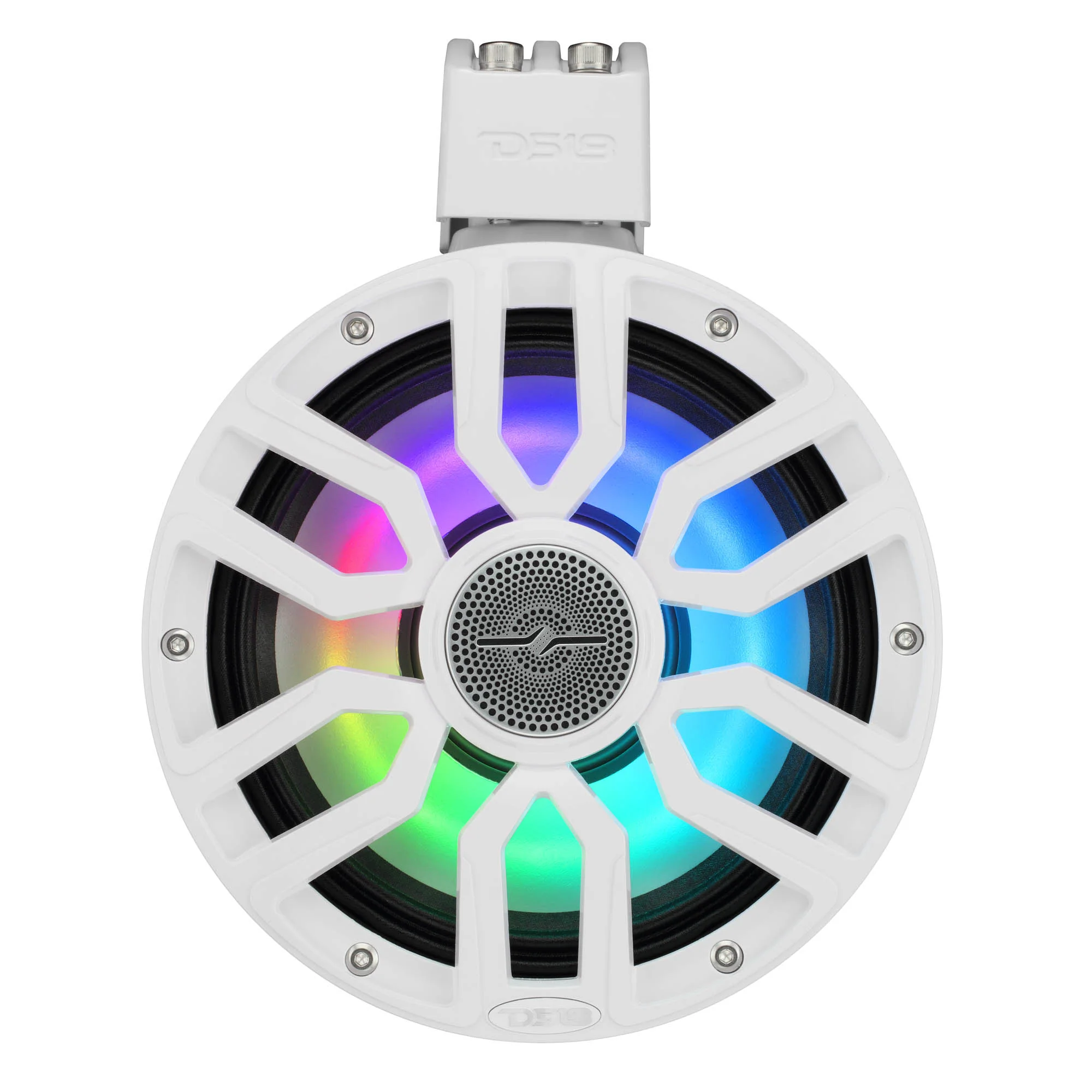

Front Logo
Yes, can be rotated for correct angle display

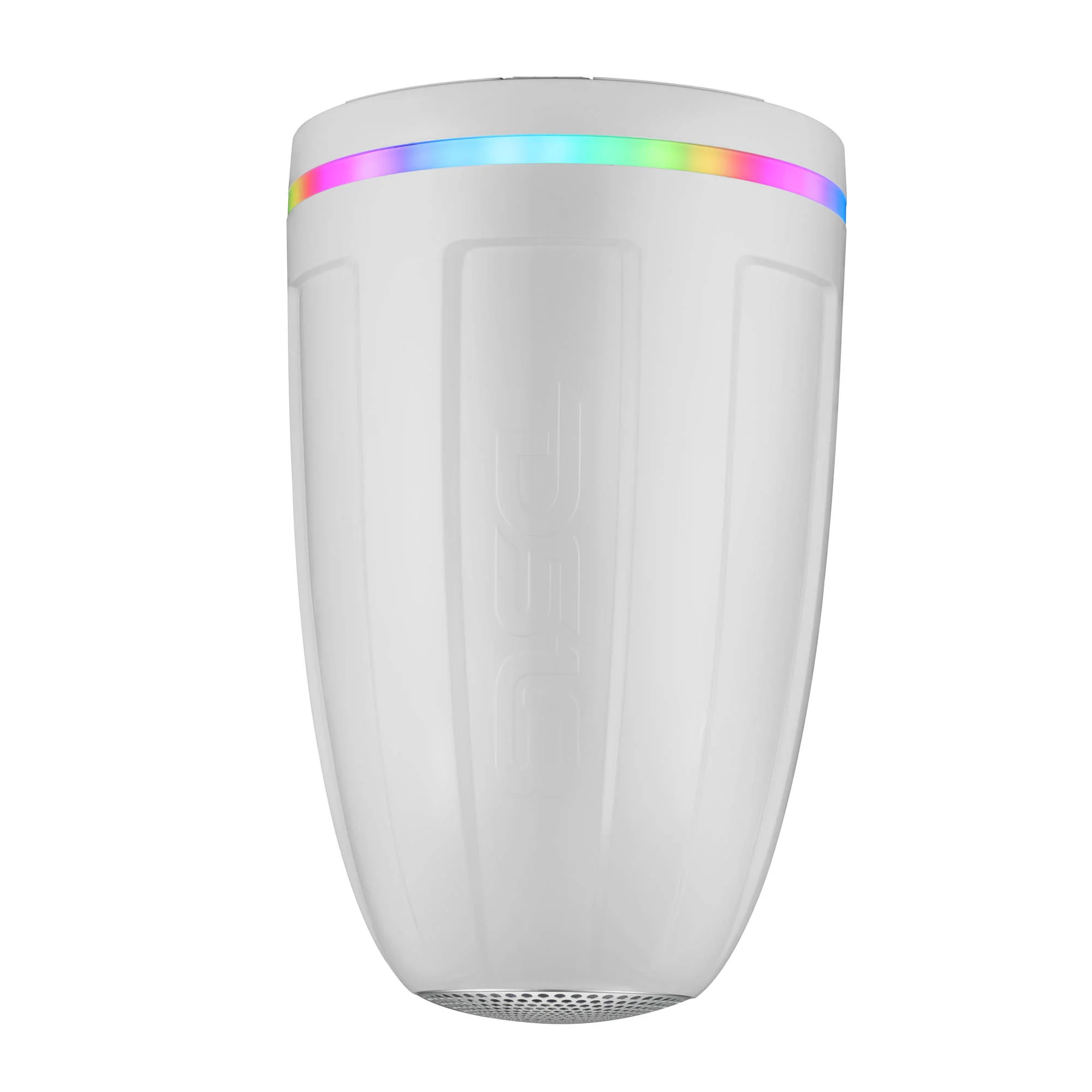

Rear Logo
Radiator Fixed Position
Color / Finish
White Gloss
Wiring
5 Core Wires for Lighting and Speaker

Woofer Specifications

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
Water Resistant Compressed Paper
Surround Material
Soft PC Damping Glued
Basket Material
PC Injection Molded Composite
Magnet Material
Neodymium
Magnet Weight
8.8 Oz
Magnet Grade
N38H
Passive Radiator
Yes 4"

Thiele & Small Parameters

Equivalent Volume
16.29L / 0.575ft3
Excursion (one way)
2.25mm
Free Air Resonance
82Hz
Mechanical Factor
5.048
Electrical Factor
0.604
Total Factor
0.539
Moving Mass
15.048g
Compliance
0.251mm/N
BL Factor
6.202
Voice Coil Inductance
1.4mH
Diaphragm Area
213.82 CM2
DC Resistance
3.2 Ohms

Driver Specifications

Type
Compression Driver with CNC Solid Aluminum Horn
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
PEN
Magnet Material
Neodymium
Magnet Weight
0.61 Oz
Magnet Grade
N38H
Crossover
Built-In 12dB/Oct with Overload Protection

Speaker Measurement

Overall Diameter
8.6" / 218mm
Overall Depth
13.9" / 353mm
Overall Height (with Mast Clamp)
12.37" / 314mm
