Description

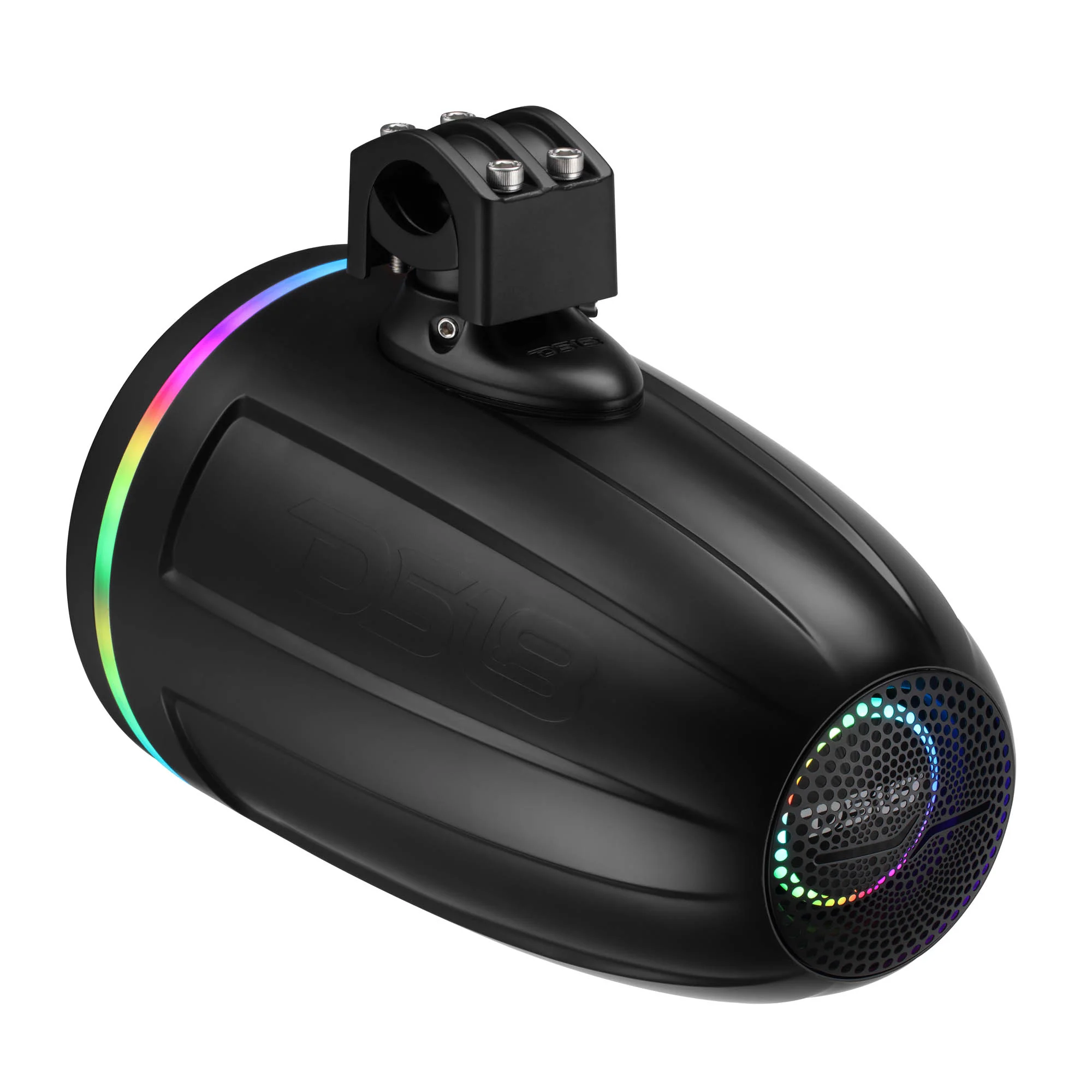

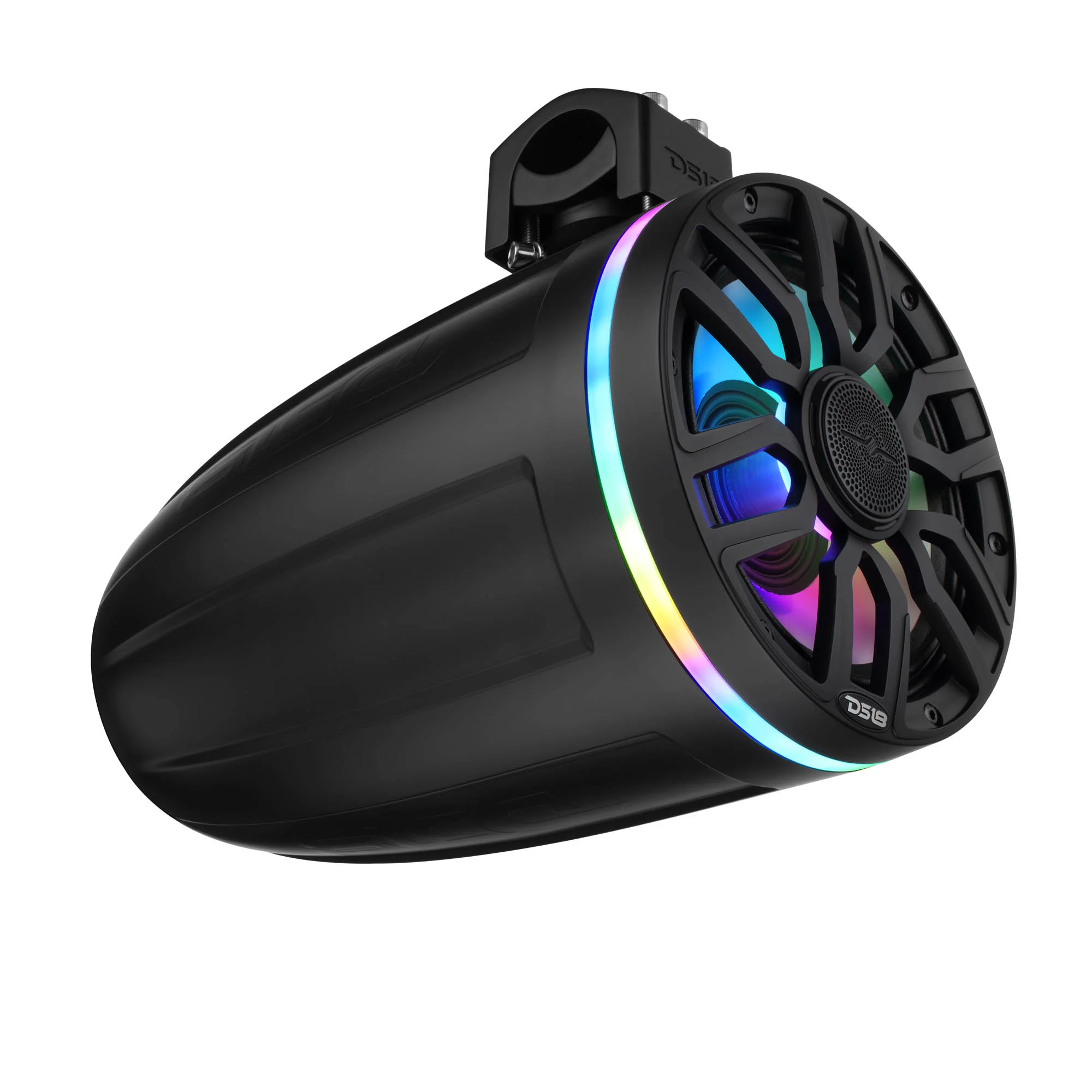

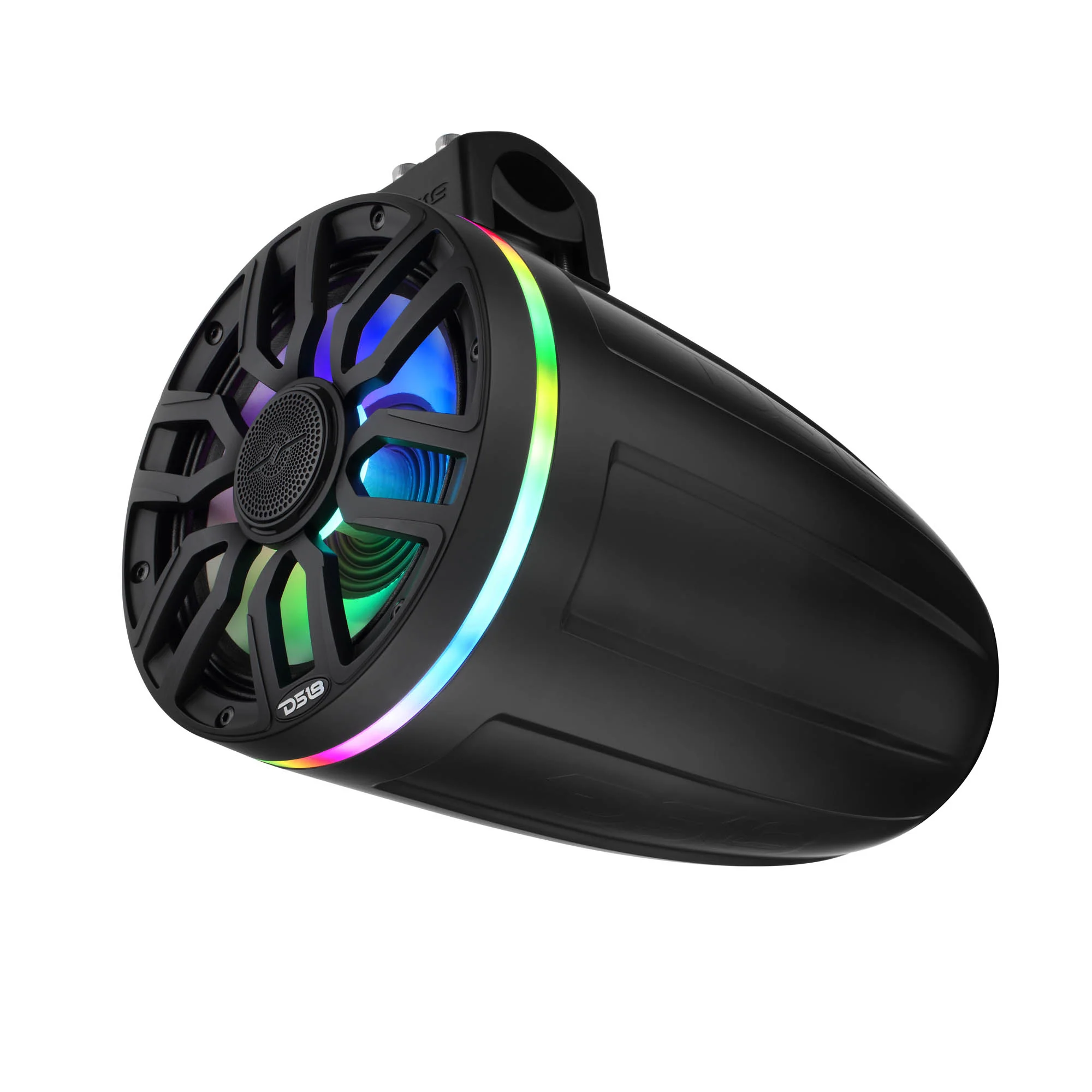

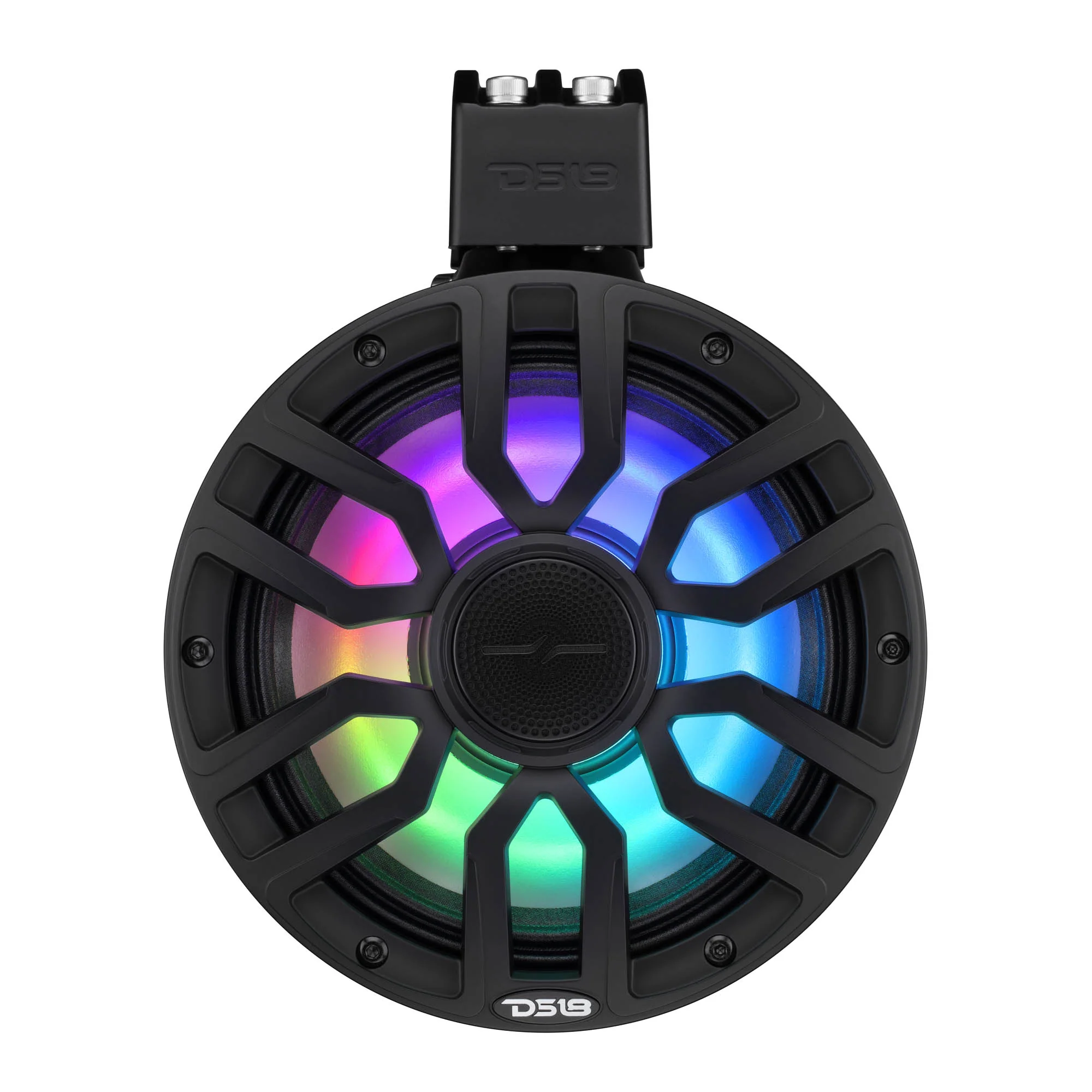

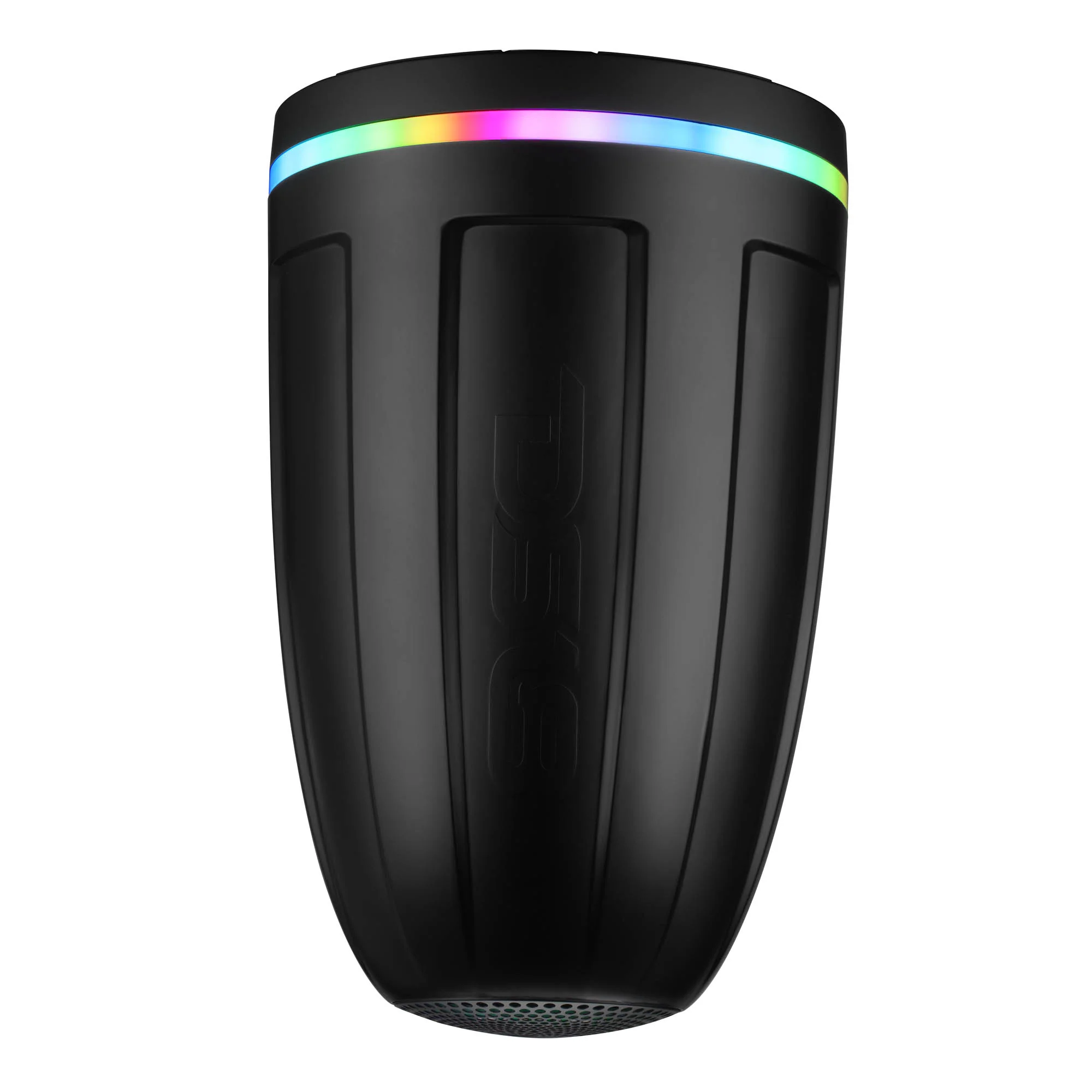

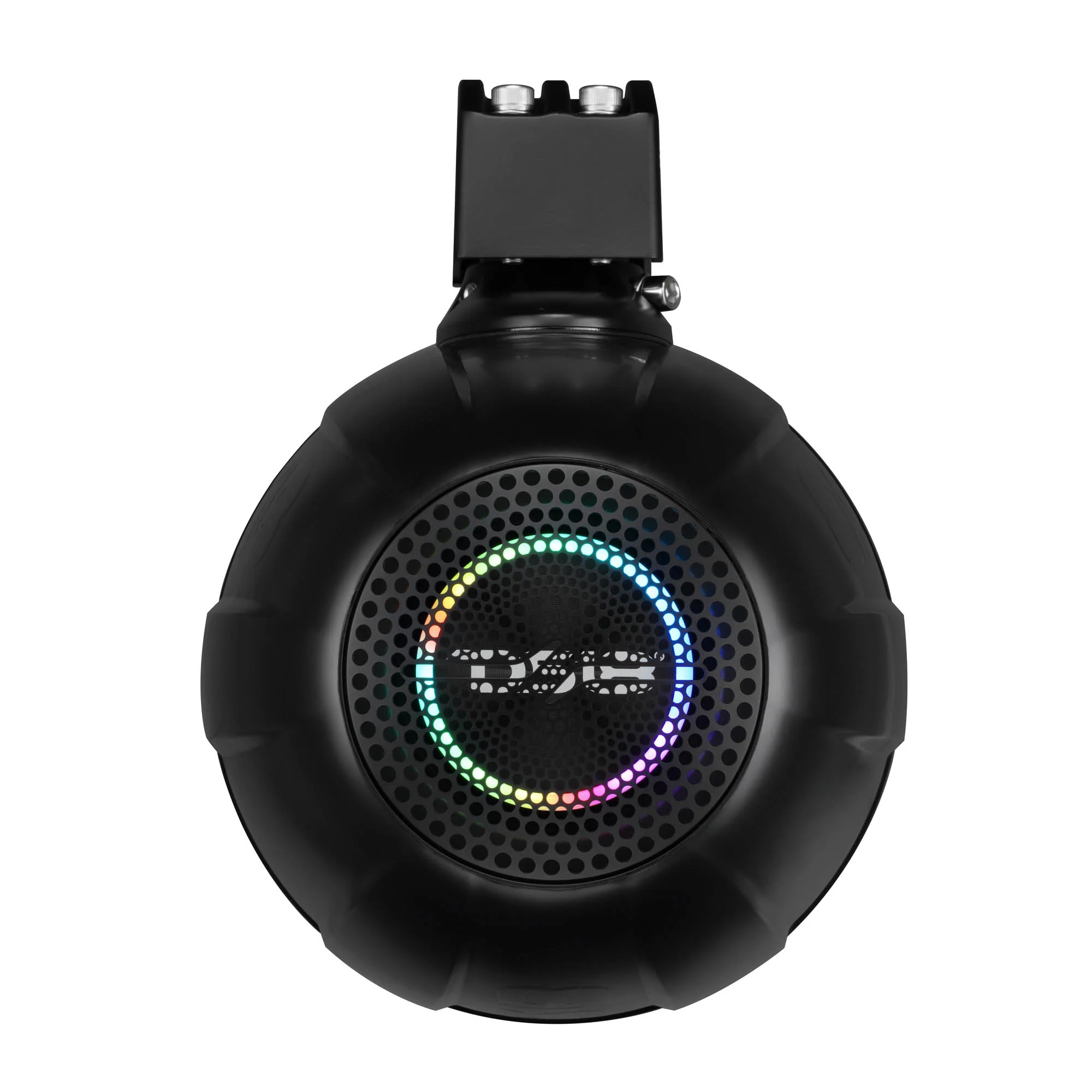

DS18 8" NXL-iQ Marine Tower Speaker with Digital LED Lights, Neodymium Magnet, 1" Compression Driver, IP65 Rated, 300W RMS, 4-Ohm
Key Features
- 8” Marine and Powersports Audio – 350W RMS / 700W MAX
- Neodymium Magnet – Strong performance with lighter weight
- IP65 Rated Build – Water-resistant and UV protected
- Digital LED Lights – LC app control with LC-DRM (sold separately)
- 360° Adjustable Mount – Flexible positioning and clean install
General Specifications
Nominal Diameter
8" / 218mm
Nominal Impedance
4 Ohms
RMS Power Handling (Combined)
350W
MAX Power Handling (Combined)
700W
Sensitivity (1w/1m) (Combined)
96dB
Frequency Response (Combined)
35Hz-20kHz
Number of Ways
2-Ways
Recommended High-Pass Crossover
60Hz
Sold in Pair or Single
Pair
Enclosure Material
Injection ASA
IP Rating
IP65 + UV Stable
RGB LED Lighting
Integrated Digital LED Speaker Lighting (Front of Cone, Acrylic Ring, Radiator Logo)
Digital LED Chip Type
1815S
Grill Type
Injection Molded Composite ASA with UV Protection coating

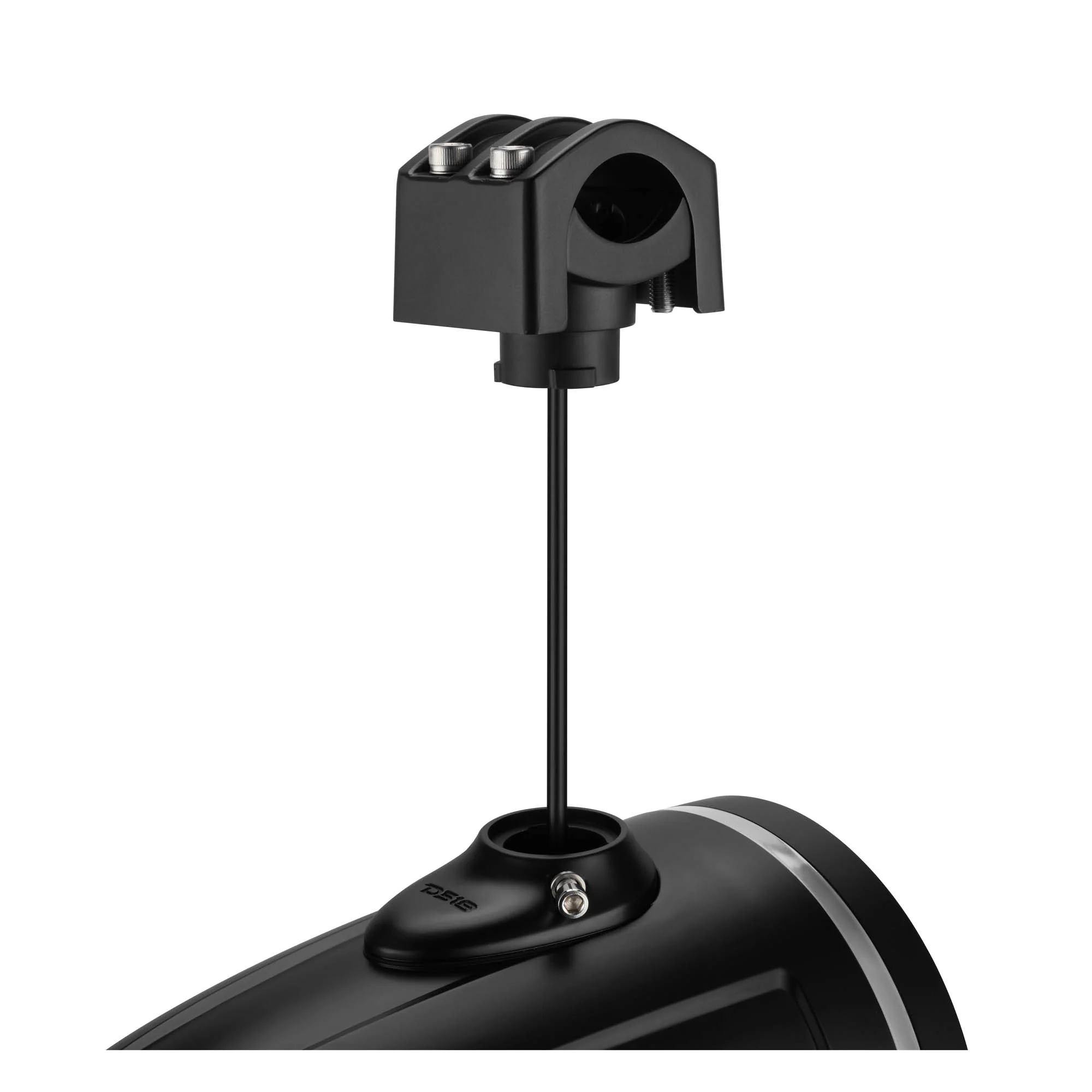

Clamps

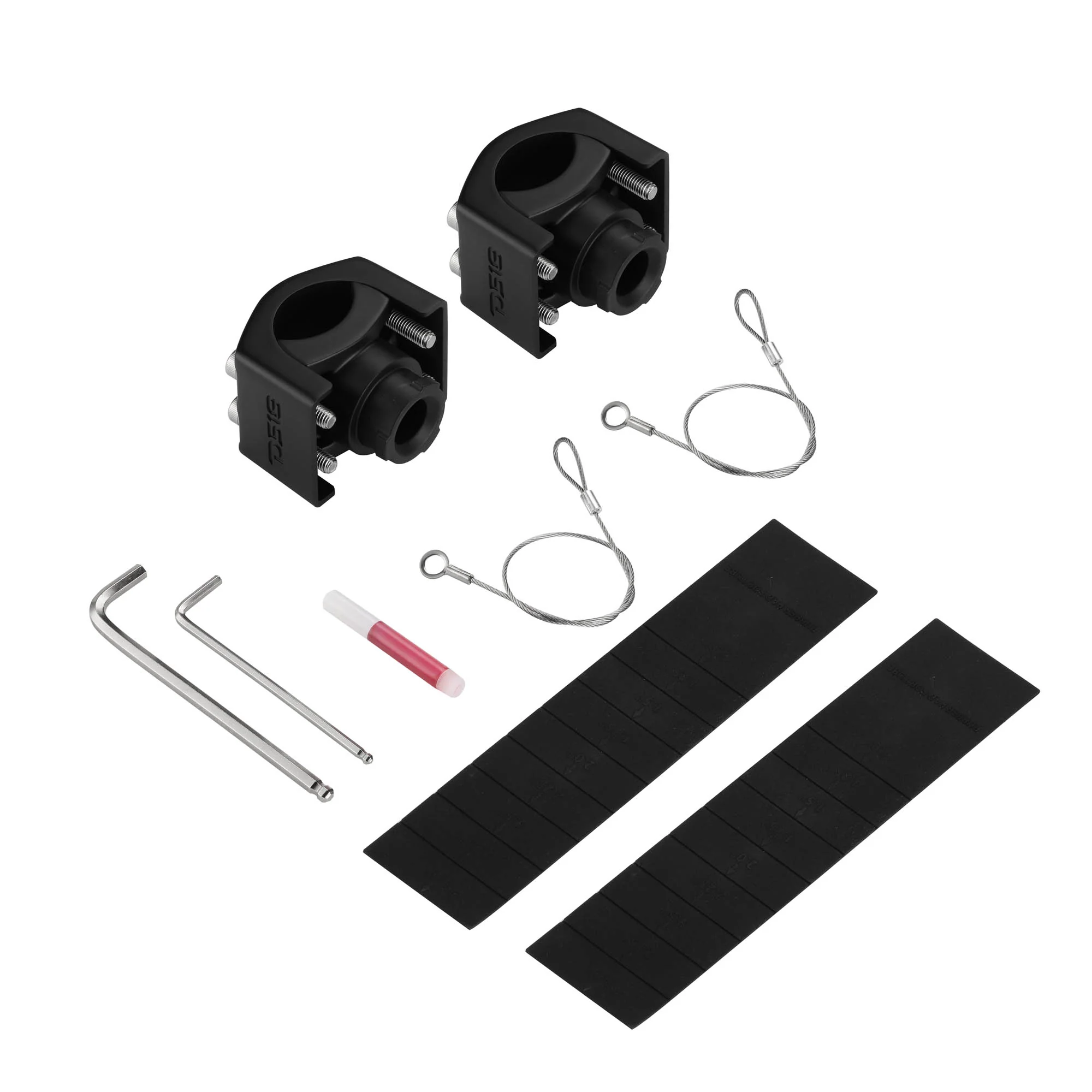

Die-Cast adjustable (1"~ 2") 360 Degree Rotation Mounting, Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
Front Logo
Yes, can be rotated for correct angle display
Rear Logo
Radiator Fixed Position
Color / Finish
Matt Black
Wiring
5 Core Wires for Lighting and Speaker
Woofer Specifications
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
Water Resistant Compressed Paper
Surround Material
Soft PC Damping Glued
Basket Material
PC Injection Molded Composite
Magnet Material
Neodymium
Magnet Weight
8.8 Oz
Magnet Grade
N38H
Passive Radiator
Yes 4"
Thiele & Small Parameters
Equivalent Volume
16.29L / 0.575ft3
Excursion (one way)
2.25mm
Free Air Resonance
82Hz
Mechanical Factor
5.048
Electrical Factor
0.604
Total Factor
0.539
Moving Mass
15.048g
Compliance
0.251mm/N
BL Factor
6.202
Voice Coil Inductance
1.4mH
Diaphragm Area
213.82 CM2
DC Resistance
3.2 Ohms
Driver Specifications
Type
Compression Driver with CNC Solid Aluminum Horn
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
PEN
Magnet Material
Neodymium
Magnet Weight
0.61 Oz
Magnet Grade
N38H
Crossover
Built-In 12dB/Oct with Overload Protection
Speaker Measurement
Overall Diameter
8.6" / 218mm
Overall Depth
13.9" / 353mm
Overall Height (with Mast Clamp)
12.37" / 314mm
Product Overview
Optimal Audio, Quality Materials
Keep the volume pumping with the NXL-IQ8TPNEO/BK, an 8” marine tower speaker with neodymium magnets for better power handling and a lighter install. This design gives you a powerful sound setup with a higher sensitivity rating. Experience audio clarity with a 1” compression driver that gives you crisp highs and clear sound while the 1.5” glass fiber voice coil brings the rumble to your sound system.
Durability You Can Trust
Rated IP65, this tower speaker is ready to brace the elements with a water-resistant compressed paper cone and UV protection on the grille and enclosure. This tower is made from durable materials to keep the party going day and night.
Style It Your Way
Take advantage of 360 degrees of rotation, a detachable grille, and buried or open wire mounting for a flexible speaker setup you can take anywhere.
Light Up the Sky
Customize your speaker setup with digital LED lights. Control the lights directly from your phone using DS18’s LC app and the LC-DRM module (sold separately).
NOTE: This digital lighting system requires a digital signal from a compatible module to function correctly. To ensure proper operation, DS18's LC-DRM digital lighting controller is required (sold separately).
DS18 Marine Audio
The NXL-IQ8TPNEO/BK is only one way to play it loud. DS18’s diverse line of marine speakers and towers let you brave the elements with ease while enjoying quality audio anywhere you go.
